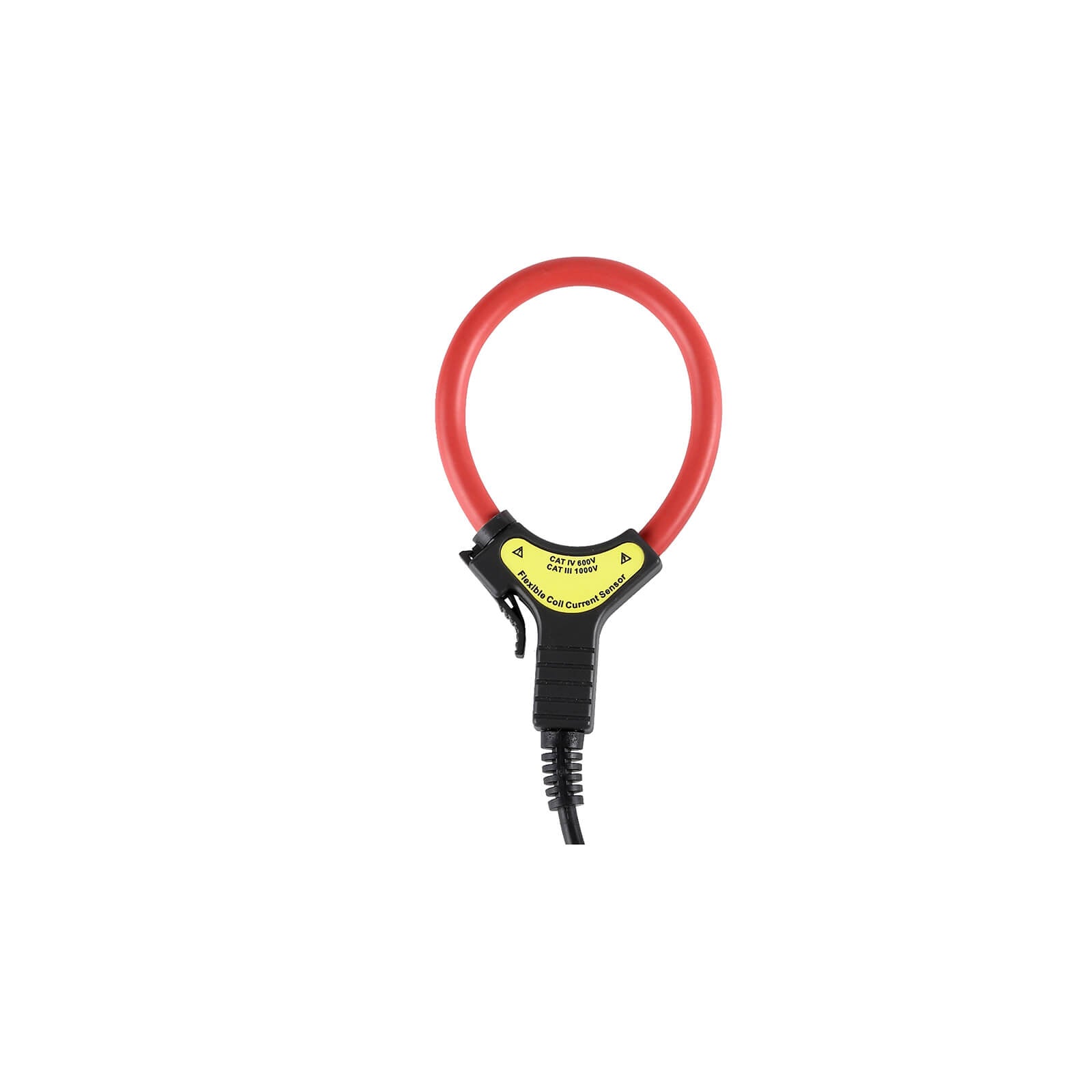

EITAI-FA-FB Series Rogowski Flexible Coil AC Current Probe

$26.00
$0.00
$26.00
Model: EITAI-FA
Diameter/Circumference: 1.97"/6.3"(50mm/160mm)
Output Interface: BNC Plug
Subtotal: $26.00

Free Shipping

Free standard shipping on orders over $99

Deliver in 3-10 business days

Free Returns

30-Day No-Hassle Returns

2-Year Warranty

Safe & Secure Checkout.
EITAI-FA-FB Series Rogowski Flexible Coil AC Current Probe

EITAI-FA-FB Series Rogowski Flexible Coil AC Current Probe

$0.00 $26.00

EITAI-FA-FB Series Rogowski Flexible Coil AC Current Probe

$0.00 $26.00
Model: EITAI-FA
Diameter/Circumference: 1.97"/6.3"(50mm/160mm)
Output Interface: BNC Plug

EITAI-FA-FB Series Rogowski Flexible Coil Current Sensor, Used for detection of AC current, high-order harmonic current, complex waveform current, transient inrush current, start-up current, phase, electrical energy, power, power factor, etc.

High-Precision Current Detection: Our Flexible Current Sensor is equipped with a 10mA resolution, enabling it to accurately detect AC currents up to 6000A. It is ideal for detecting high-order harmonics, complex waveforms, and transient events such as inrush and startup currents. With a response frequency ranging from 0.1Hz to 1MHz, the sensor can capture even the most fleeting electrical events.

Wide Range of Measurement: Whether you're working with low or high currents, the EITAI-FA-FB Series can handle it all. Our sensor offers a versatile range of 0A to 6000A, ensuring it meets the needs of various electrical testing scenarios.

Customization for Your Unique Needs: The standard Flexible Current Sensor comes with a 3.5mm audio plug interface, which allows for easy integration with your existing DIY integrator setup. This flexibility empowers you to tailor your measurement system to your preferences, ensuring seamless compatibility with your current equipment.

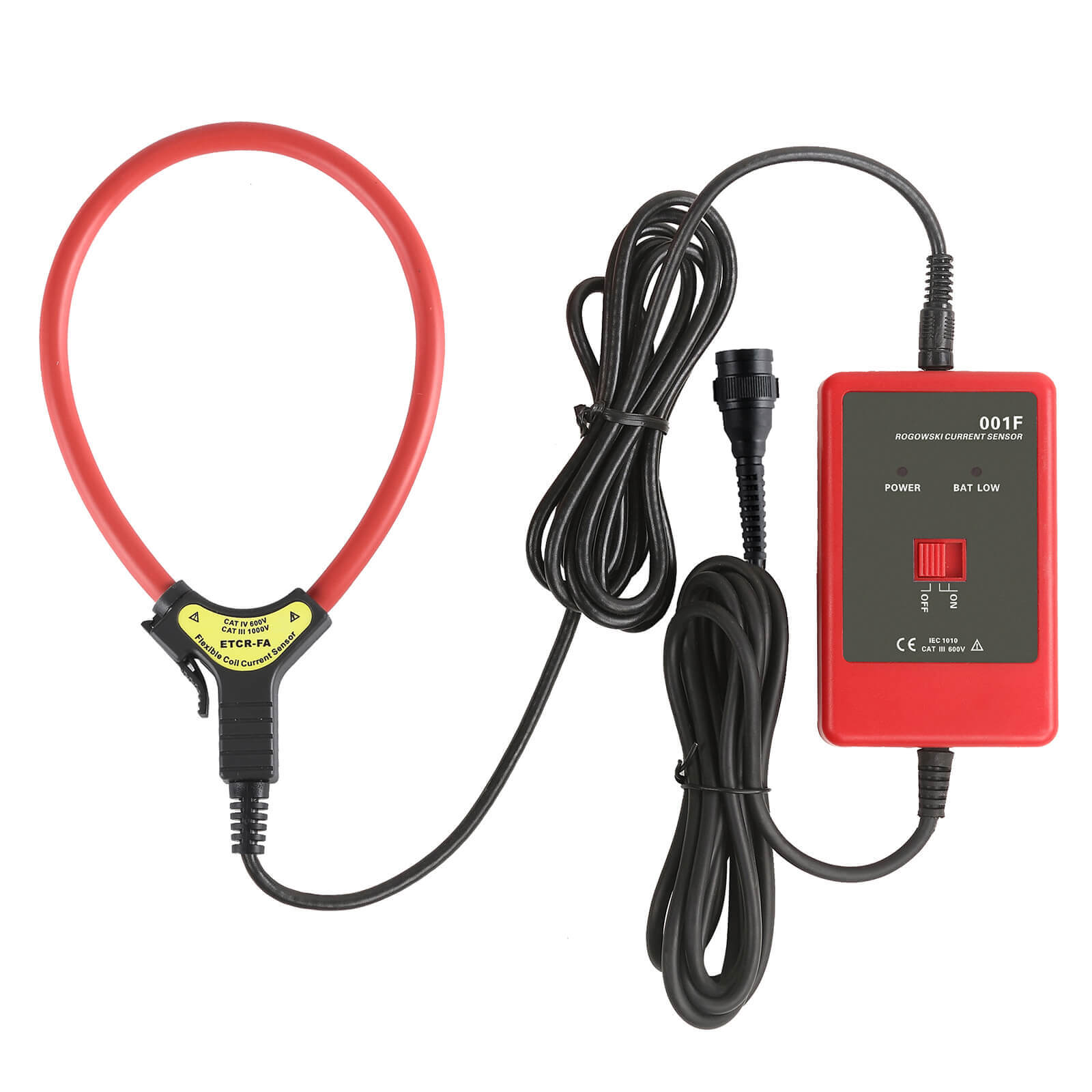

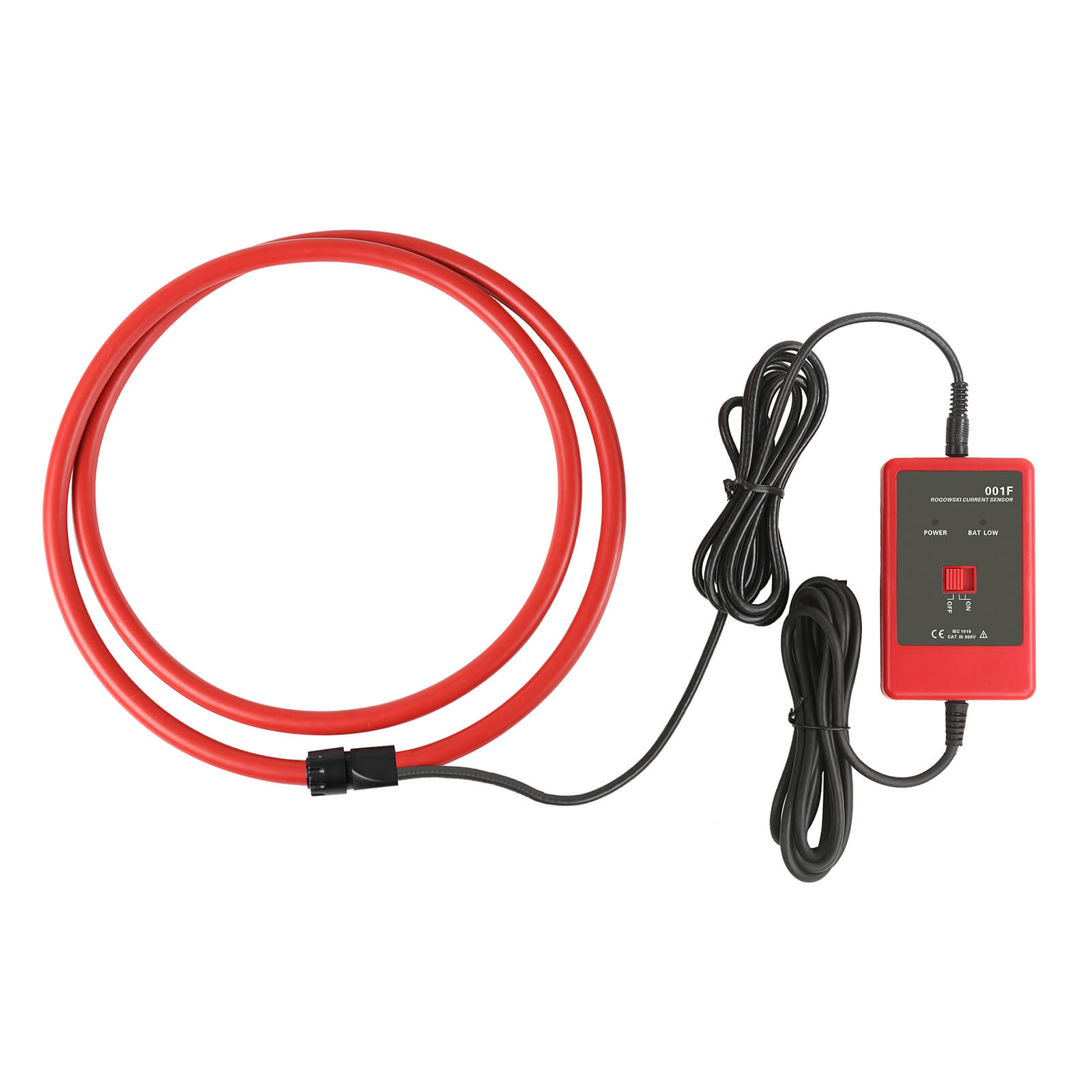

Optional Ready-to-use Solution: We offer the EITAI001F Flexible Coil Sensor Integrator. This robust unit standard comes with a BNC interface and an integrator output signal of 6000A/1V, making it compatible with a wide range of devices such as oscilloscopes.

Tailored to Your Specifications: The range, output signal, output interface, etc. of the transformer can be customized according to business orders' customer requirements.



ModelDiameterCircumferenceWeightCoil Diameter

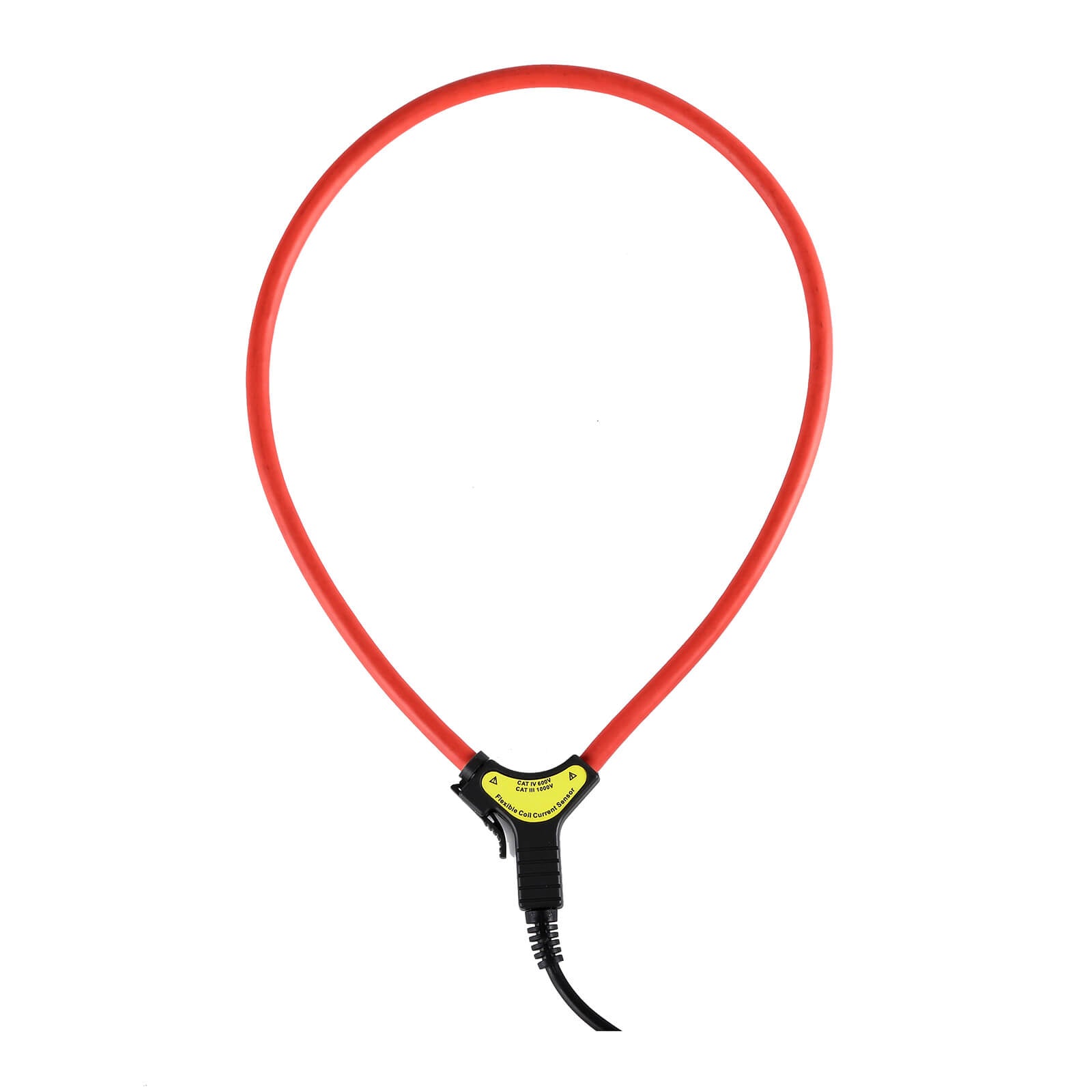

EITAIFAФ50mm160mm80gФ7.5mm

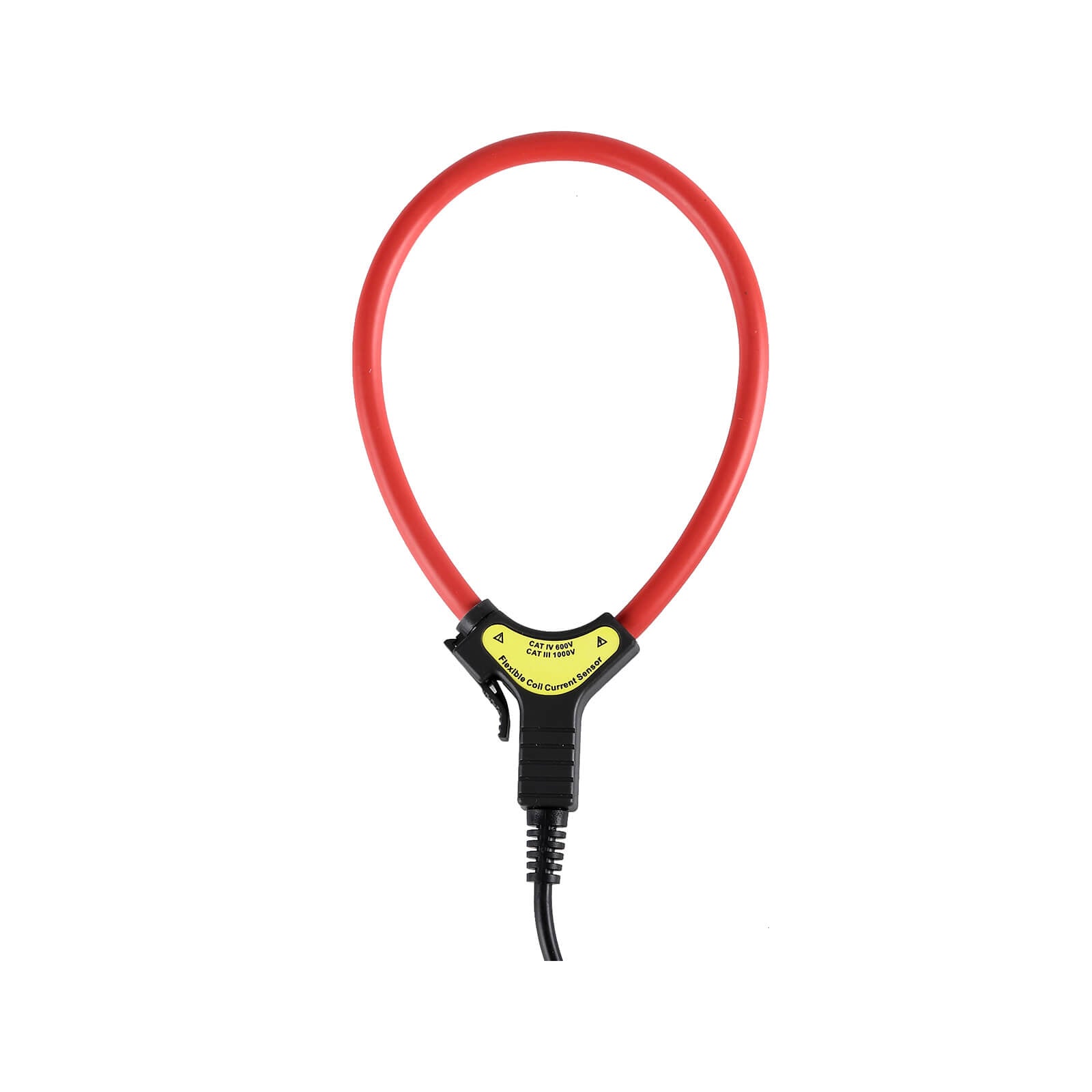

EITAIFAФ100mm320mm90g
EITAIFAФ200mm640mm110g

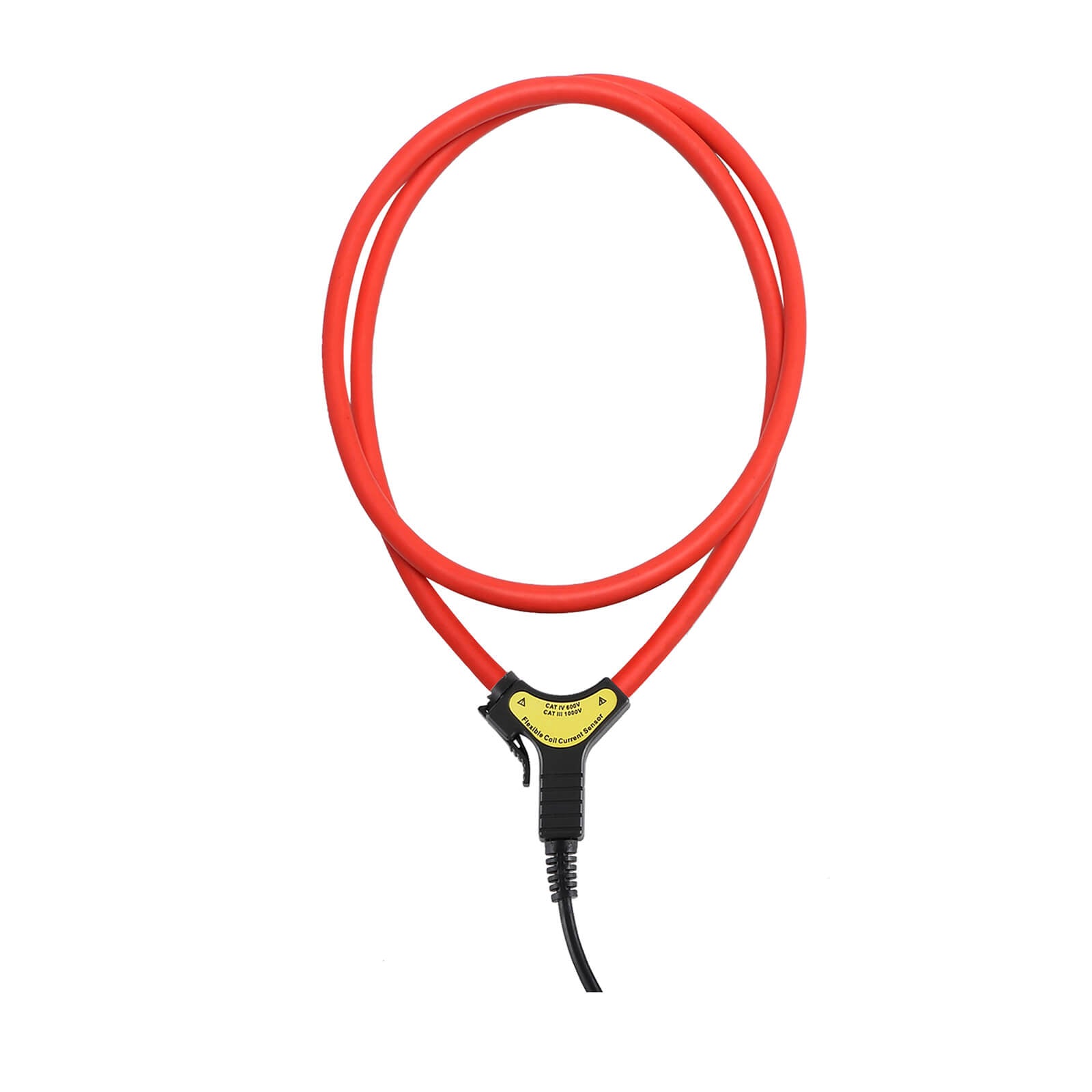

EITAIFAФ300mm950mm132g

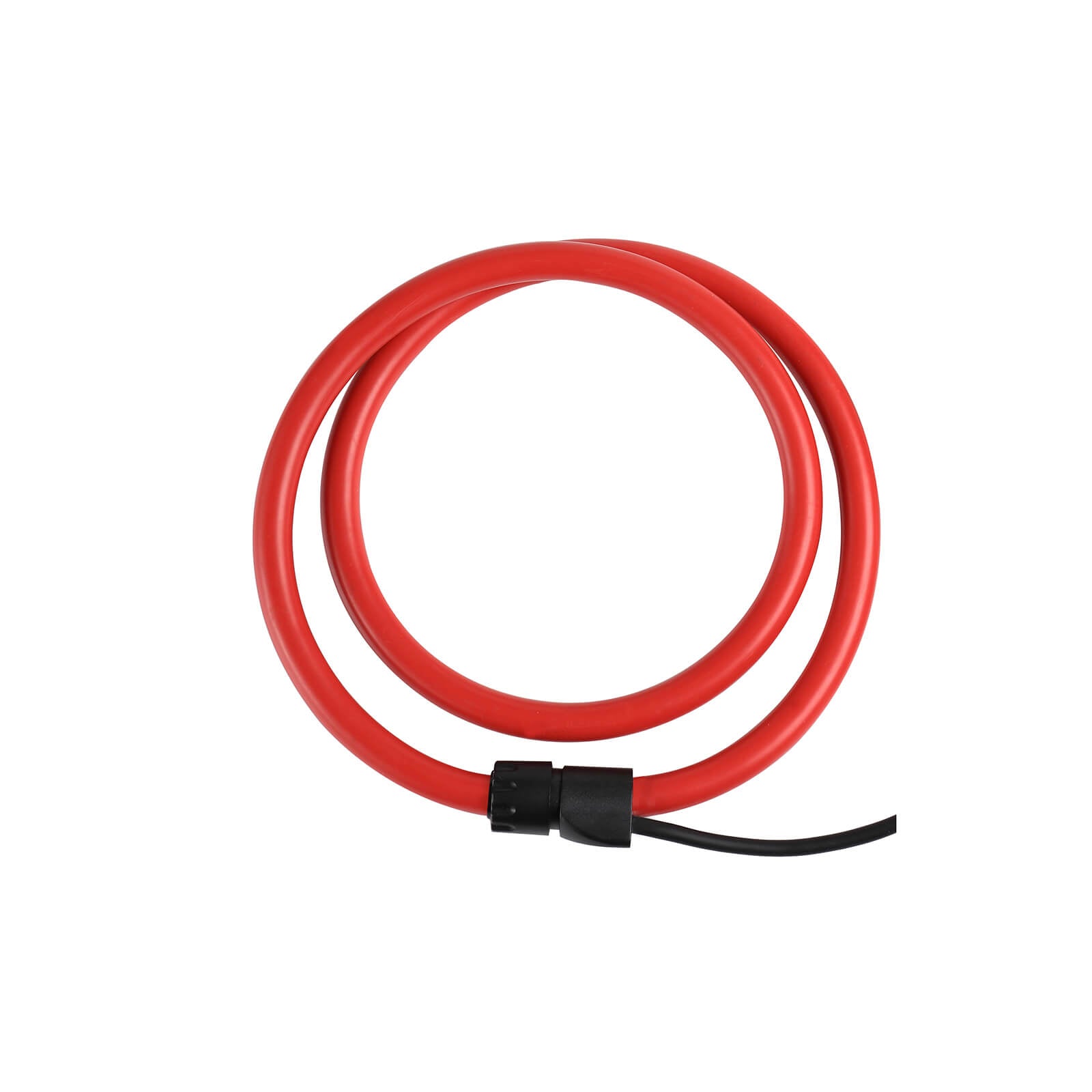

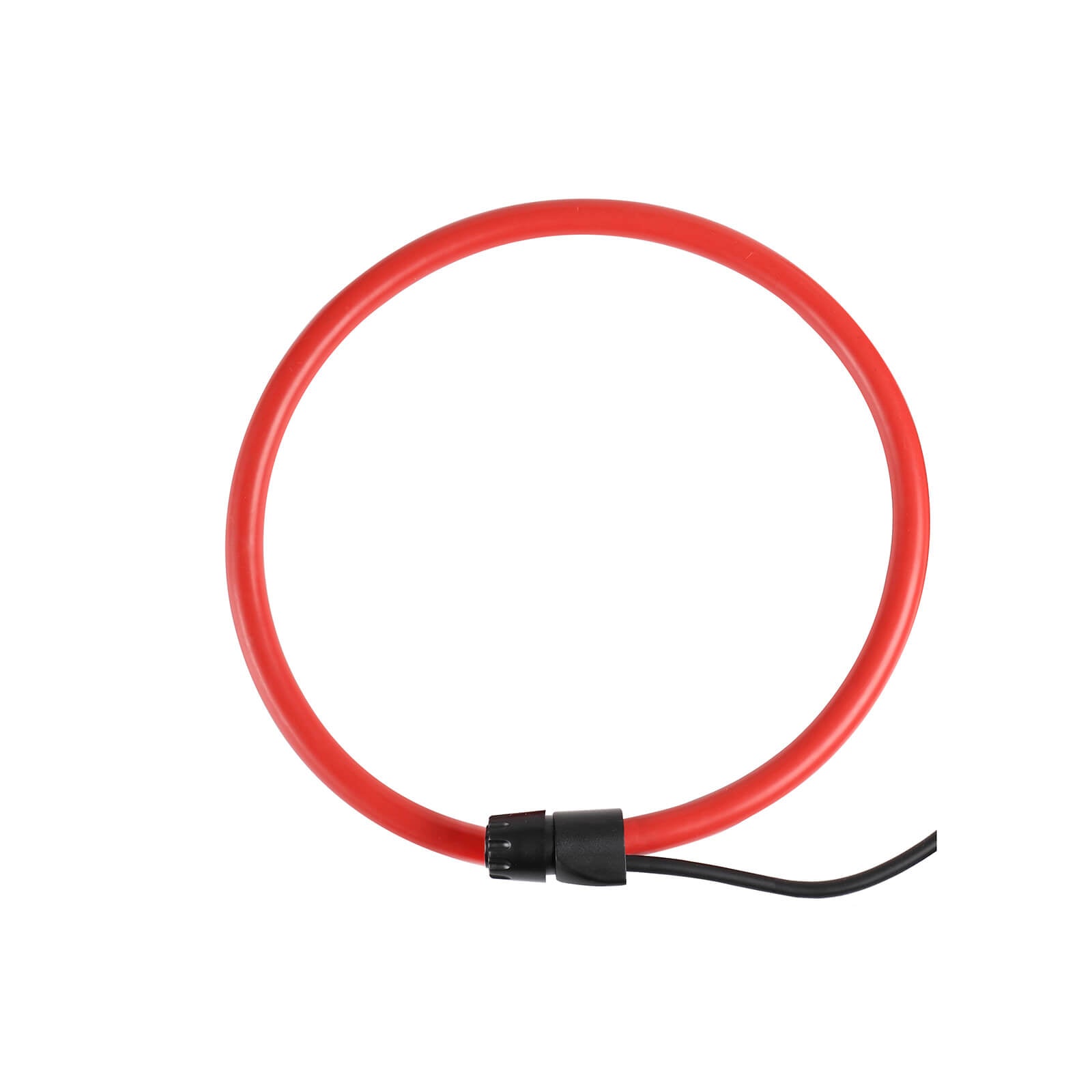

EITAIFBФ200mm640mm212gФ12mm
EITAIFBФ300mm950mm274g

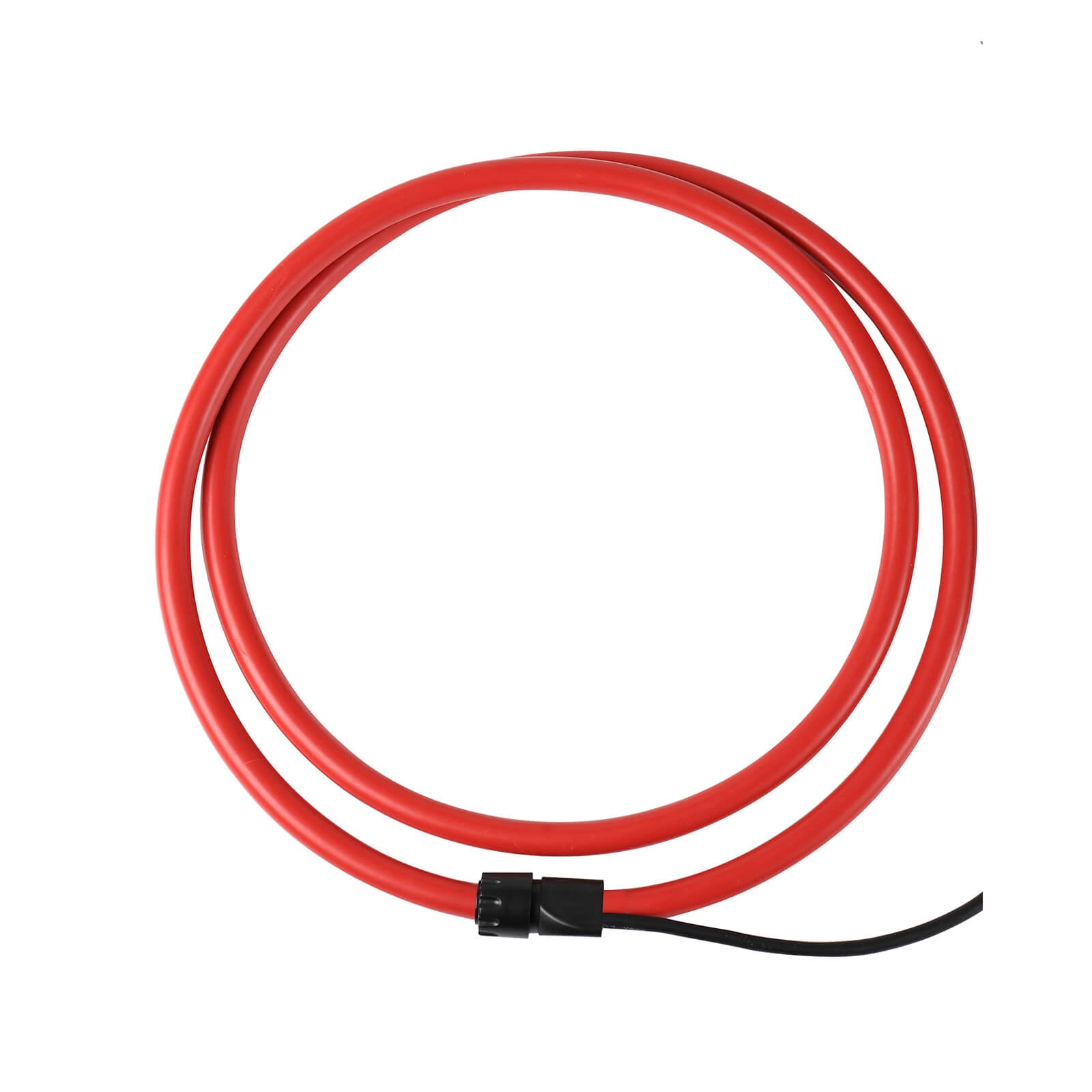

EITAIFBФ500mm1580mm400g



EITAI001F Integrator Technical Specifications

Power SupplyZinc-manganese dry battery 6F22 9VDC
Current RangeAC 0A-6000A
Resolution10mA
Accuracy Level±1%FS (50Hz/60Hz; 23℃±2℃, below 70%RH, the wire is in the center of the coil)
Signal OutputFull-scale corresponding outputAC 0-1V
Phase Error≤1°(50Hz/60Hz;23℃±2℃)
Electric Field InterferenceNo hysteresis effect, not disturbed by external electric field
Wire PositionThe wire under test is in the center of the coil, and the influence of the position error is ≤±0.5%FS
Current Frequency45Hz-70Hz (measured current frequency)
Response Frequency0.1Hz-1MHz
Line VoltageLine test below AC 600V
Integrator Size103mm×65mm×26mm
Integrator Weight205g
Insulation StrengthAC 2000V/rms (both ends of the coil after unlocking and unfolding)
Suitable Safety StandardCAT IV 600V, CAT Ⅲ 1000V
Working Temperature & Humidity-20℃-50℃; below 80%rh
Storage Temperature & Humidity-10℃-60℃; below 70%rh
Flexible Sensor1 PCS
Warranty Card / Qualification Certificate1 SET
Product ModelClamp Jaw SizeCurrent Range
EITAI008 SeriesΦ8 mm/Φ14 mm/17mm×18mmAC 0.0mA-20A/100A
EITAI016 SeriesΦ16mm/25mm×30mm/35mm×40mm/Φ68mm/80mm×80mmAC 0.00mA-20A/30A/40A/60A
EITAI030A Series25mm×30mm/35mm×40mm/Φ68mm/80mm×80mmAC 0mA-300A/500A/800A/1000A
EITAI050 SeriesΦ50mm/Φ70mmAC 0mA-600A/1000A
EITAI007AD Series

Φ7mm/16mm×18mm/25mm×30mm/

30mm×35mm/Φ68mm

AC/DC 0mA-100mA/50.0A/1000A/1500A
EITAI030D25mm×30mmDC 0.1mA-100mA
EITAI010K SeriesΦ10mm/Φ25mm/Φ25mm/Φ40mm/Φ80mmAC 0.00mA-20A/30A/60A
EITAI010KD SeriesΦ10mm/Φ25mmDC 0.0mA-100mA
EITAI022KU SeriesΦ22mm/Φ45mm/80mm×21mm/Φ90mmAC 0uA-10A(Solution: 1uA)
EITAI082K Series80×26mm/85×20mmAC 0.00mA-60A
EITAI-FA-FBΦ50mm/Φ100mm/Φ200mm/Φ300mm/Φ500mmAC 0A-6000A
EITAI002F (with Integral)Φ50mm/Φ100mm/Φ200mmAC 0A-6000A
