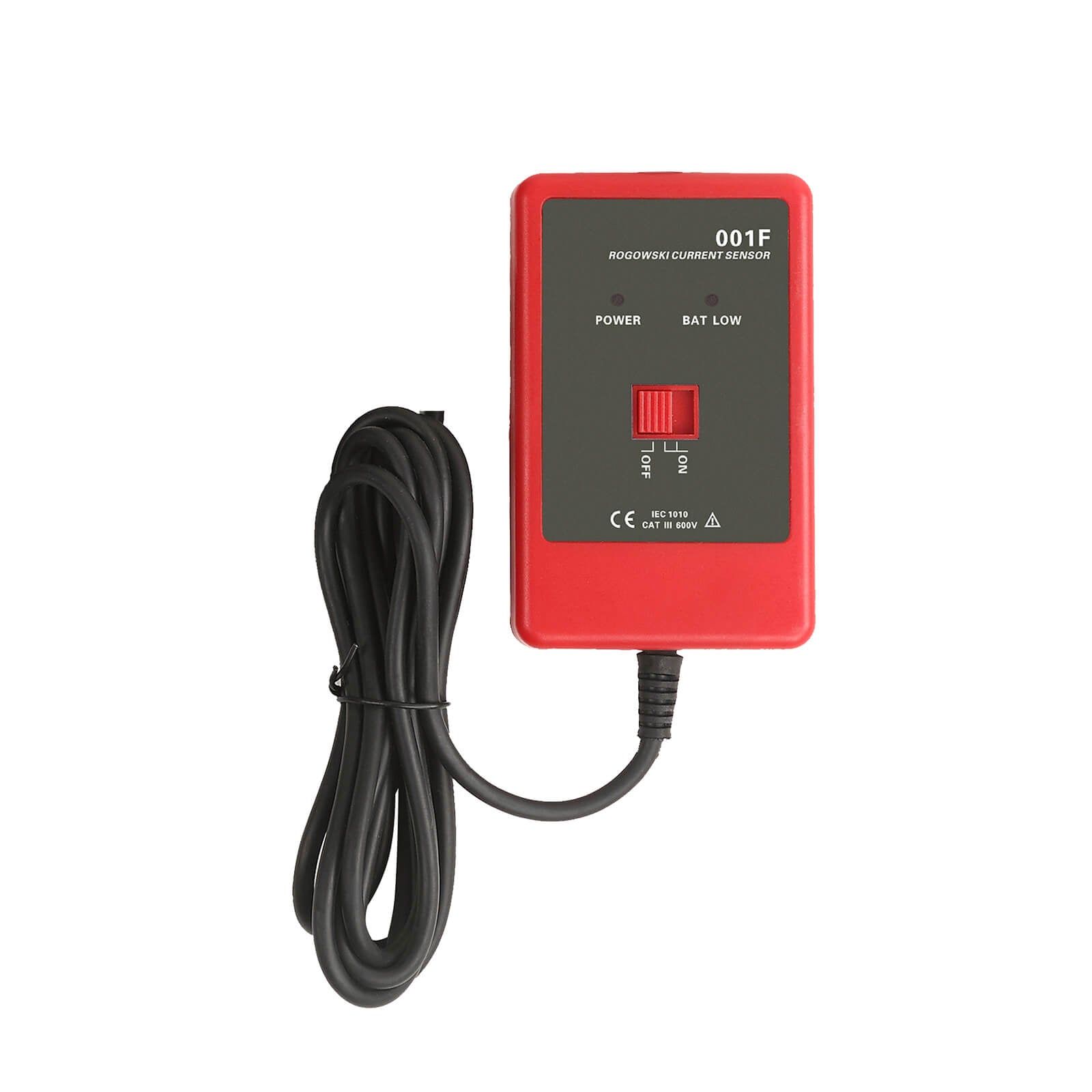

EITAI001F Rogowski Flexible Coil Current Probe Integrator

EITAI001F Rogowski Flexible Coil Current Probe Integrator

$0.00 $55.00

EITAI001F Rogowski Flexible Coil Current Probe Integrator

$0.00 $55.00
Output Interface: BNC Plug
EITAI001F Flexible Coil Sensor Integrator, also known as Rockwell coil current sensor, Roche coil sensor, flexible current clamp, lightning strike current sensor, is used for current, high-order harmonic current (up to 400 times), complex waveform current, transient inrush current, phase, electrical energy, power, power factor and other detection.After being equipped with an integrator, it can be more easily integrated into other test equipment, such as power quality analyzer, harmonic analyzer, power parameter recorder, phase detection analyzer, industrial control device, oscilloscope, high-precision digital multimeter, transient impact recorder, distributed measurement system, protection system, etc.

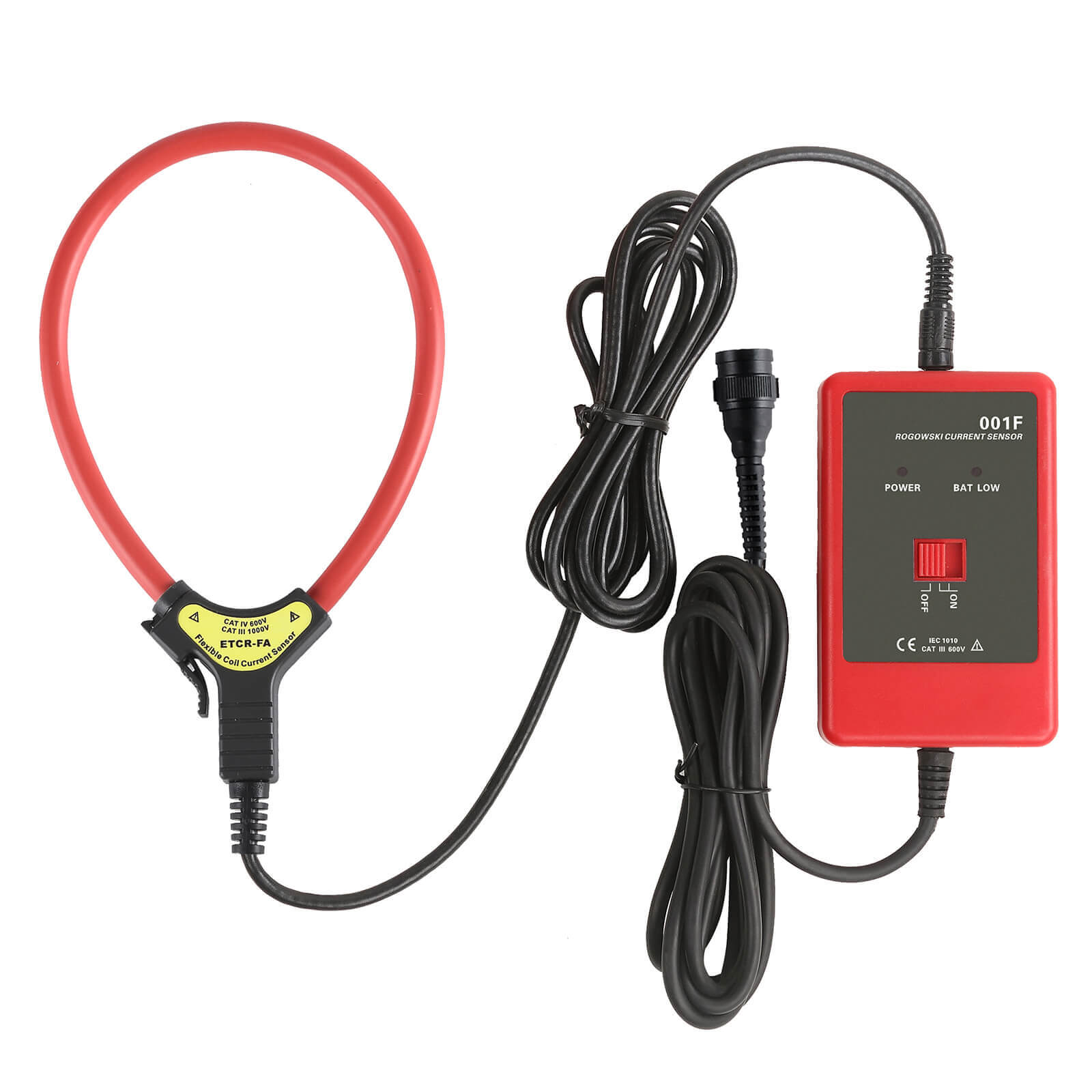

EITAI001F Flexible Coil Sensor Integrator consists of an integrator and a coil, and the integrator can be combined with FA and FB coils.The coil part does not have any exposed metal conductors, non-contact measurement, safe and reliable; its small size, light weight, exquisite appearance, soft and flexible, suitable for narrow environments and places with dense wiring; wide measurement range, high accuracy, strong reliability, wide response frequency band, users can customize the coil length according to their needs.It is widely used in electric power, communications, meteorology, railways, oil fields, construction, metrology, scientific research and teaching units, industrial and mining enterprises and other fields.It is particularly suitable for industrial environments with severe signal distortion such as relay protection, SCR rectifier, frequency conversion speed regulation, semiconductor switching, power electronic conversion equipment, arc welding, etc.
  1. The separate integrator can be equipped with flexible coils of various specifications, which are flexible and convenient to meet various needs.
  2. Non-contact measurement, safe and reliable.The measurement range is wide, the accuracy is high, the reliability is strong, and the response frequency band is wide.
  3. The integrator is small in size and light in weight, and the flexible coil is soft and flexible. It is suitable for narrow environments and places with dense wiring, as well as for measuring the current of conductors with large sizes or irregular shapes.
  4. The coil diameter and length can be customized according to customer requirements.
  5. Interface: Input: 3.5mm audio plug, output: BNC plug(Optional).
  6. Aplicable for EITAI-FA FB Series AC Flexible Coil Current Sensor

EITAI001F Integrator Technical Specifications

Power SupplyZinc-manganese dry battery 6F22 9VDC
Current RangeAC 0A-6000A
Resolution10mA
Accuracy Level±1%FS (50Hz/60Hz; 23℃±2℃, below 70%RH, the wire is in the center of the coil)
Signal OutputFull-scale corresponding outputAC 0-1V
Phase Error≤1°(50Hz/60Hz;23℃±2℃)
Electric Field InterferenceNo hysteresis effect, not disturbed by external electric field
Wire PositionThe wire under test is in the center of the coil, and the influence of the position error is ≤±0.5%FS
Current Frequency45Hz-70Hz (measured current frequency)
Response Frequency0.1Hz-1MHz
Line VoltageLine test below AC 600V
Integrator Size103mm×65mm×26mm
Integrator Weight205g
Insulation StrengthAC 2000V/rms (both ends of the coil after unlocking and unfolding)
Suitable Safety StandardCAT IV 600V, CAT Ⅲ 1000V
Working Temperature & Humidity-20℃-50℃; below 80%rh
Storage Temperature & Humidity-10℃-60℃; below 70%rh
Flexible Sensor Integrator1 PCS
Warranty Card / Qualification Certificate1 SET
Product ModelClamp Jaw SizeCurrent Range
EITAI008 SeriesΦ8 mm/Φ14 mm/17mm×18mmAC 0.0mA-20A/100A
EITAI016 SeriesΦ16mm/25mm×30mm/35mm×40mm/Φ68mm/80mm×80mmAC 0.00mA-20A/30A/40A/60A
EITAI030A Series25mm×30mm/35mm×40mm/Φ68mm/80mm×80mmAC 0mA-300A/500A/800A/1000A
EITAI050 SeriesΦ50mm/Φ70mmAC 0mA-600A/1000A
EITAI007AD Series

Φ7mm/16mm×18mm/25mm×30mm/

30mm×35mm/Φ68mm

AC/DC 0mA-100mA/50.0A/1000A/1500A
EITAI030D25mm×30mmDC 0.1mA-100mA
EITAI010K SeriesΦ10mm/Φ25mm/Φ25mm/Φ40mm/Φ80mmAC 0.00mA-20A/30A/60A
EITAI010KD SeriesΦ10mm/Φ25mmDC 0.0mA-100mA
EITAI022KU SeriesΦ22mm/Φ45mm/80mm×21mm/Φ90mmAC 0uA-10A(Solution: 1uA)
EITAI082K Series80×26mm/85×20mmAC 0.00mA-60A
EITAI-FA-FBΦ50mm/Φ100mm/Φ200mm/Φ300mm/Φ500mmAC 0A-6000A
EITAI002F (with Integral)Φ50mm/Φ100mm/Φ200mmAC 0A-6000A
