EITAI030D DC Clamp Leakage Current Sensor

EITAI030D DC Clamp Leakage Current Sensor

$0.00 $59.00

EITAI030D DC Clamp Leakage Current Sensor

$0.00 $59.00
Output Interface: 2m Shield Wires

EITAI030D DC Clamp Leakage Current Sensor, Online detection of DC leakage current, phase, electrical energy, power, power factor, harmonics, etc.Suitable for industrial test equipment such as multimeter, oscilloscope, harmonic analyzer, power fault analyzer, etc.

Product Features:

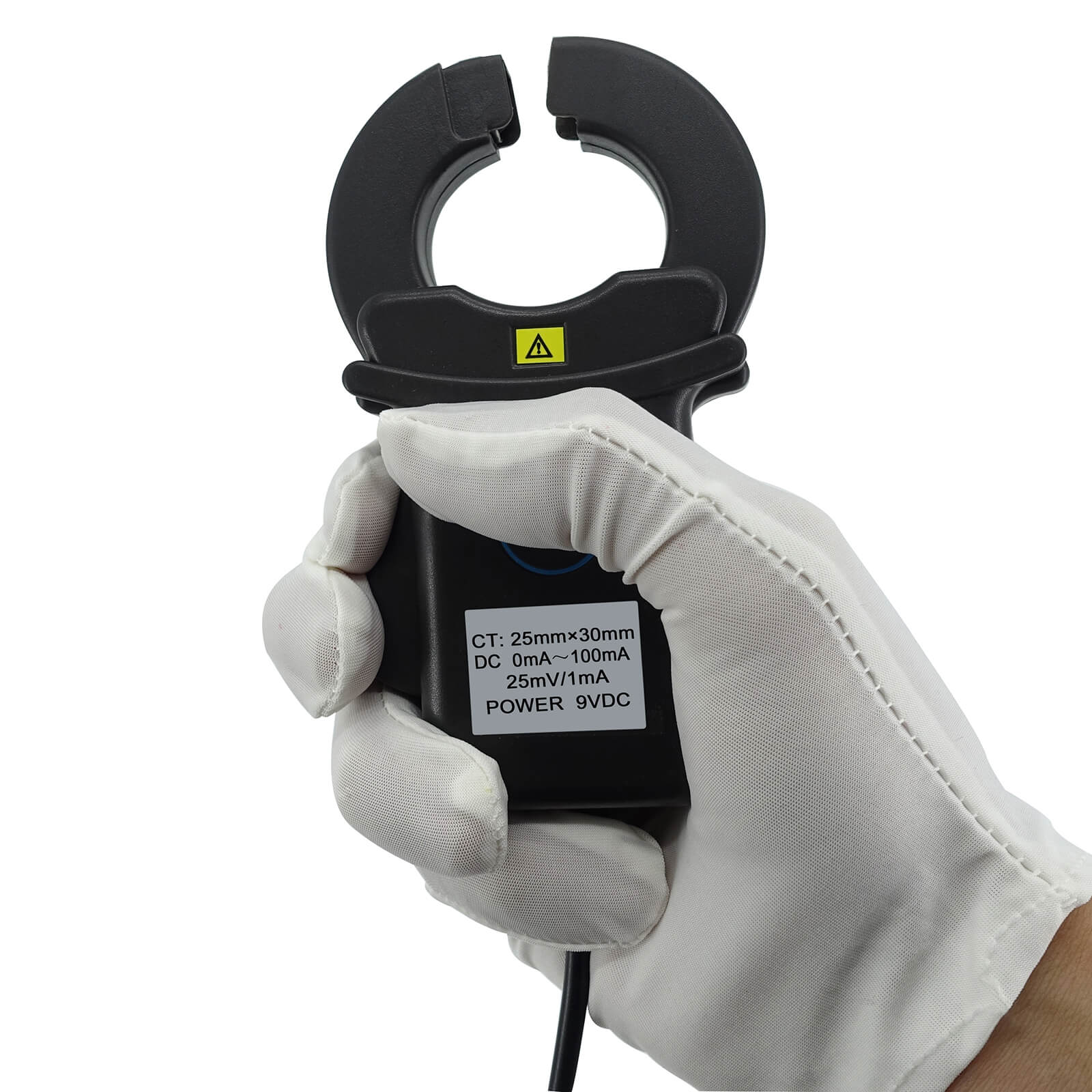

  1. Clamp structure, no need to interrupt the power supply and disconnect the circuit in testing, easy to carry and especially suitable for on-site online testing. Noncontact
    measurement, easy to operate, fast, safe and reliable.
  2. Adopts Permalloy core and CT double-layer shielding technology, with high performance and high accuracy, high anti-interference ability, suitable for
    complex interference environment.
  3. output voltage signal.

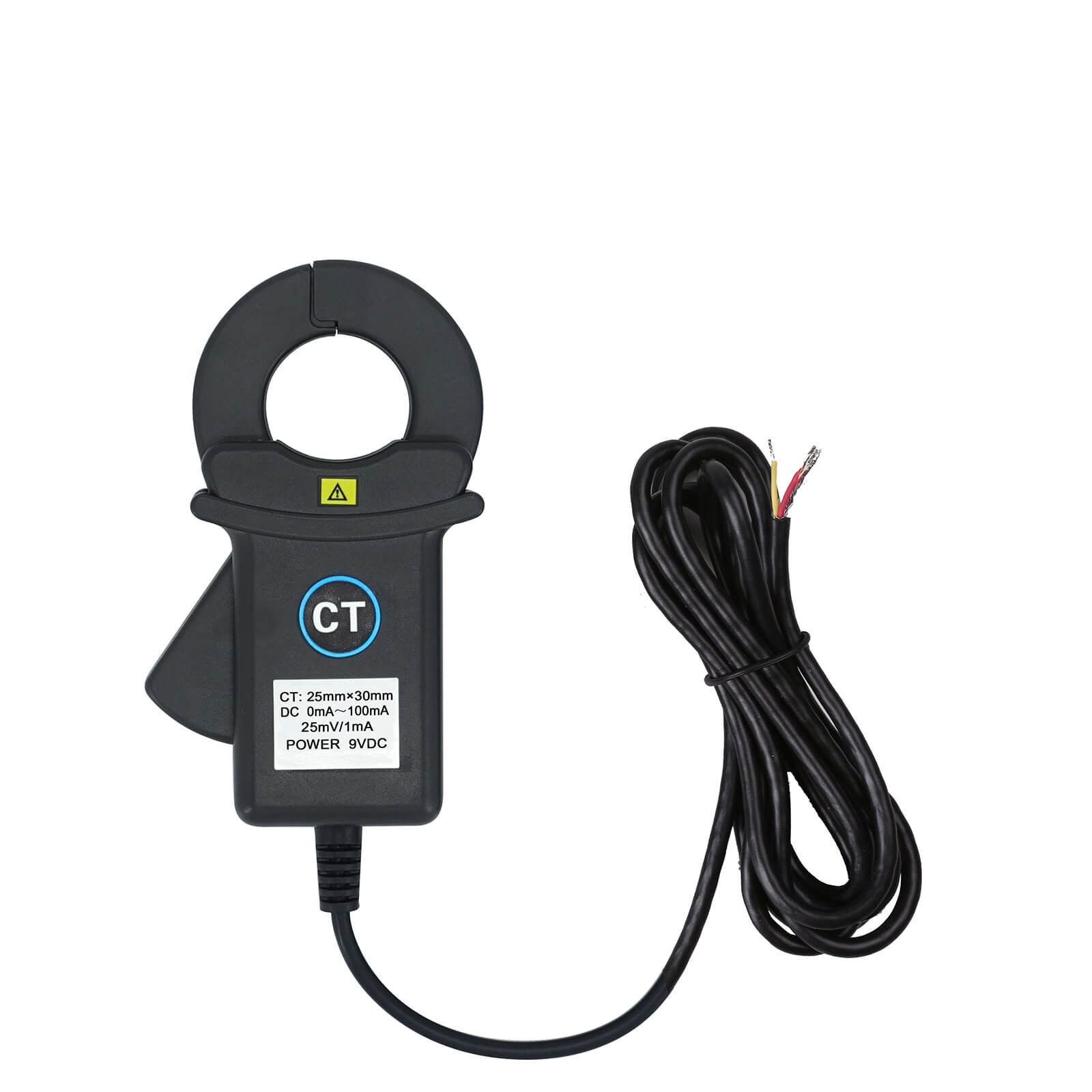

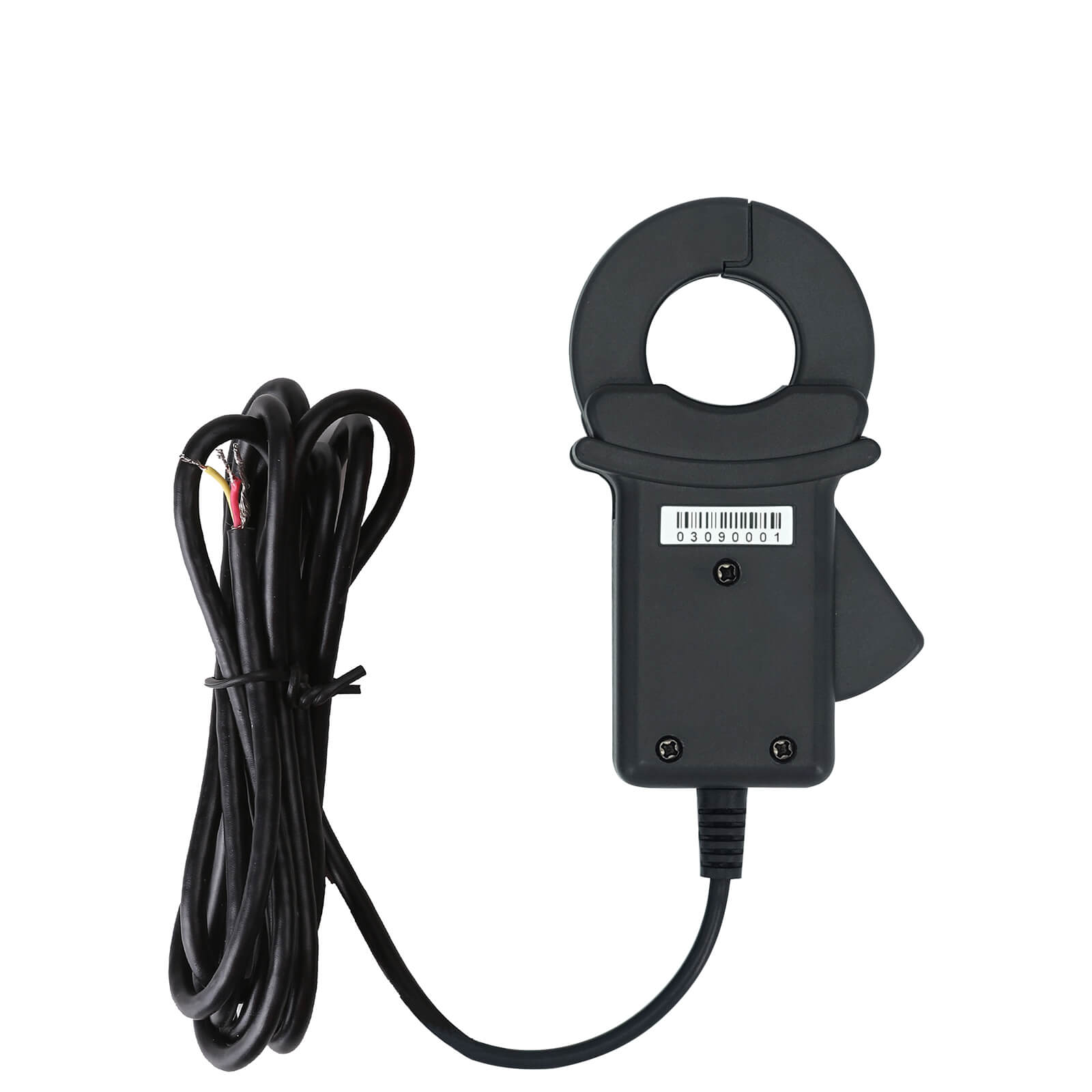

  4. Output interface: 2-core shield wires (Optional), red wire-power output positive; yellow wire-output signal positive; shield wire-power output negative/output signal negative.
  5. Working temperature: -15°C-50°C
  6. Insulating strength: AC3700V/ms ( between the core and coil)
  7. Safety class: CAT Ⅲ 600V
  8. Power supply is required: 9V-12V.



Product ModelMeasurement ParametersOutput SignalClamp Jaw SizeDimensionsWeight
EITAI030Range: 0.1mA-100mA DC
Resolution: 0.1mA DC
Accuracy Class: ±3.0%FS
25mV/1mA25mm×30mm115mm×70mm×33mm180g
Current Sensor1 PCS
Warranty Card / Qualification Certificate1 SET
Product ModelClamp Jaw SizeCurrent Range
EITAI008 SeriesΦ8 mm/Φ14 mm/17mm×18mmAC 0.0mA-20A/100A
EITAI016 SeriesΦ16mm/25mm×30mm/35mm×40mm/Φ68mm/80mm×80mmAC 0.00mA-20A/30A/40A/60A
EITAI030A Series25mm×30mm/35mm×40mm/Φ68mm/80mm×80mmAC 0mA-300A/500A/800A/1000A
EITAI050 SeriesΦ50mm/Φ70mmAC 0mA-600A/1000A
EITAI007AD Series

Φ7mm/16mm×18mm/25mm×30mm/

30mm×35mm/Φ68mm

AC/DC 0mA-100mA/50.0A/1000A/1500A
EITAI030D25mm×30mmDC 0.1mA-100mA
EITAI010K SeriesΦ10mm/Φ25mm/Φ25mm/Φ40mm/Φ80mmAC 0.00mA-20A/30A/60A
EITAI010KD SeriesΦ10mm/Φ25mmDC 0.0mA-100mA
EITAI022KU SeriesΦ22mm/Φ45mm/80mm×21mm/Φ90mmAC 0uA-10A(Solution: 1uA)
EITAI082K Series80×26mm/85×20mmAC 0.00mA-60A
EITAI-FA-FBΦ50mm/Φ100mm/Φ200mm/Φ300mm/Φ500mmAC 0A-6000A
EITAI002F (with Integral)Φ50mm/Φ100mm/Φ200mmAC 0A-6000A
