EITAI082K Series Split Core AC Leakage Current Probe

$169.00
$0.00
$169.00
Model: EITAI085K(AC 0.00mA-60A)
Output Interface: Connection Terminal
Subtotal: $169.00

Free Shipping

Free standard shipping on orders over $99

Deliver in 3-10 business days

Free Returns

30-Day No-Hassle Returns

2-Year Warranty

Safe & Secure Checkout.
EITAI082K Series Split Core AC Leakage Current Probe

EITAI082K Series Split Core AC Leakage Current Probe

$0.00 $169.00

EITAI082K Series Split Core AC Leakage Current Probe

$0.00 $169.00
Model: EITAI085K(AC 0.00mA-60A)
Output Interface: Connection Terminal

EITAI082K Series Split Core Leakage Current Sensor, Performance characteristics of separate leakage current transformer series products:

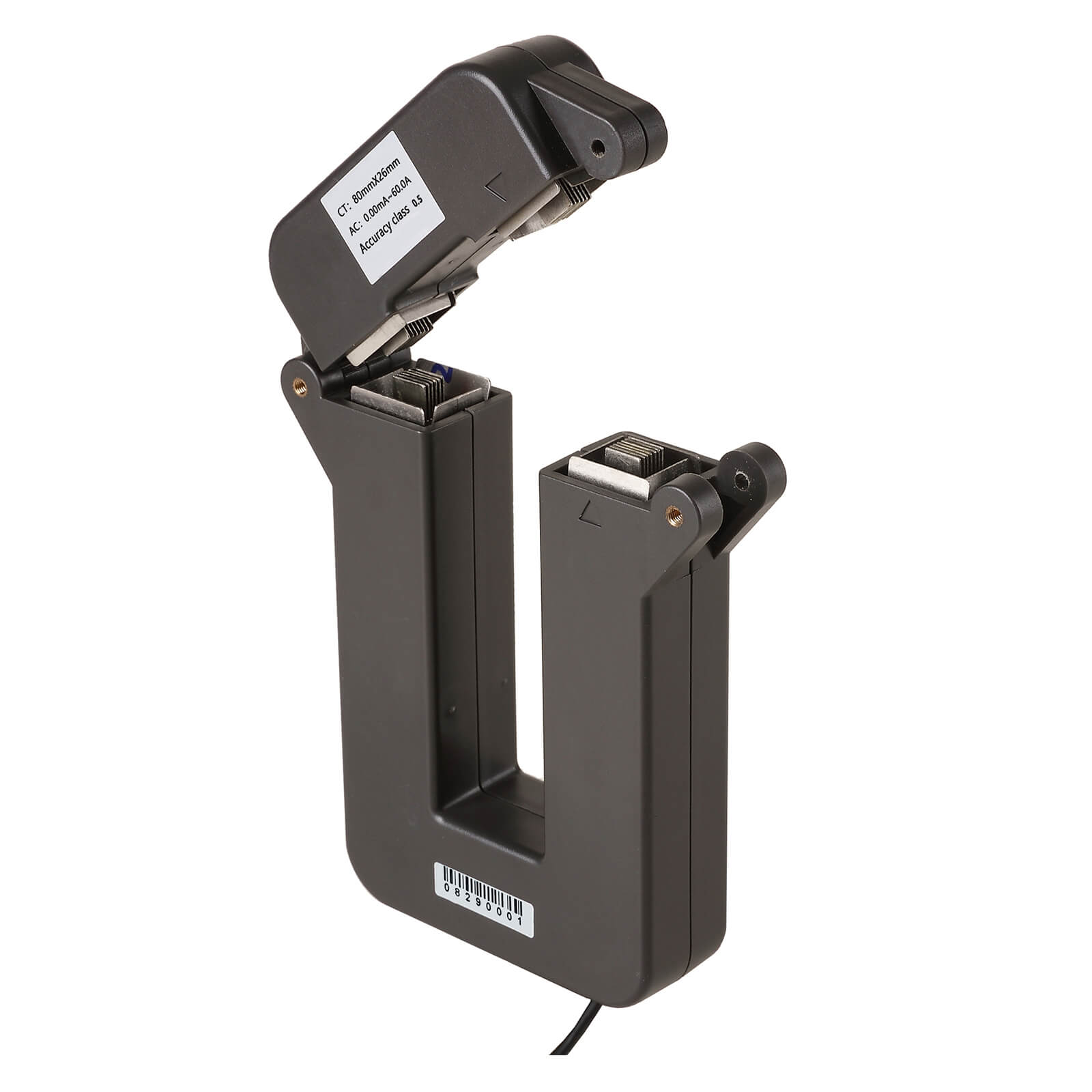

    1. The open-and-close structure does not require power failure and does not need to disconnect the line under test. The installation is fast, safe and reliable, especially suitable for online installation.
    2. It adopts permalloy iron core and double-layer shielding technology, with stable performance and high precision, strong anti-interference ability, and is suitable for complex interference environments.
    3. The firewire and zero wire can be clamped together at the same time to measure the leakage current of cables and electrical equipment.

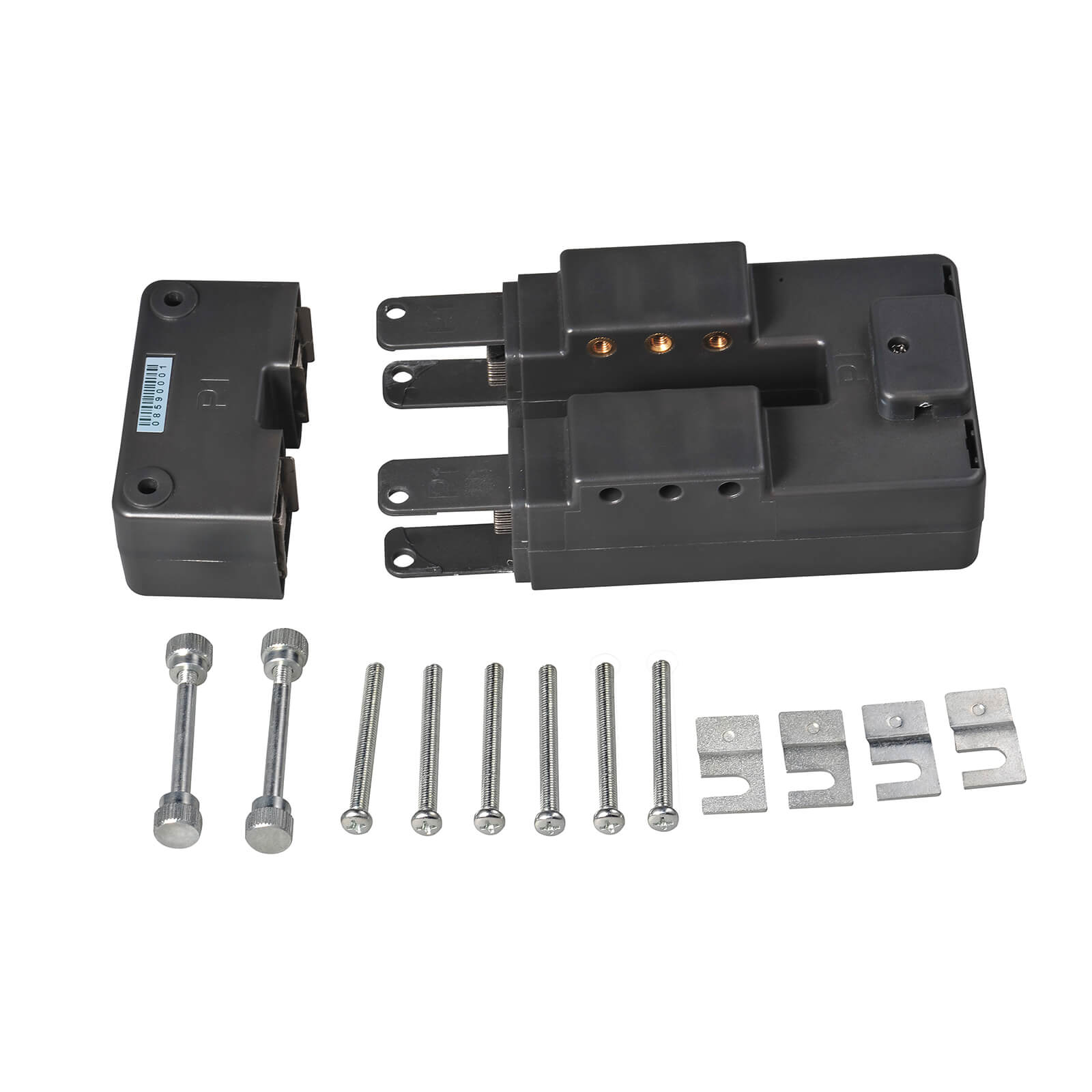

    4. Screw fixing method, especially suitable for testing the leakage current of grounding flat steel.
    5. Output current signal.
    6. Safety level: CATⅢ600V.
    7. Working temperature: -15°C-50°C
    8. Customizable output ratio available: Please contact customer service for consultation. (Note: Customized output ratio products require 3-10 working days for production and are not eligible for returns or exchanges.)



    Product ModelMeasurement ParametersReference LoadClamp Jaw SizeDimensionsWeightOutput Interface

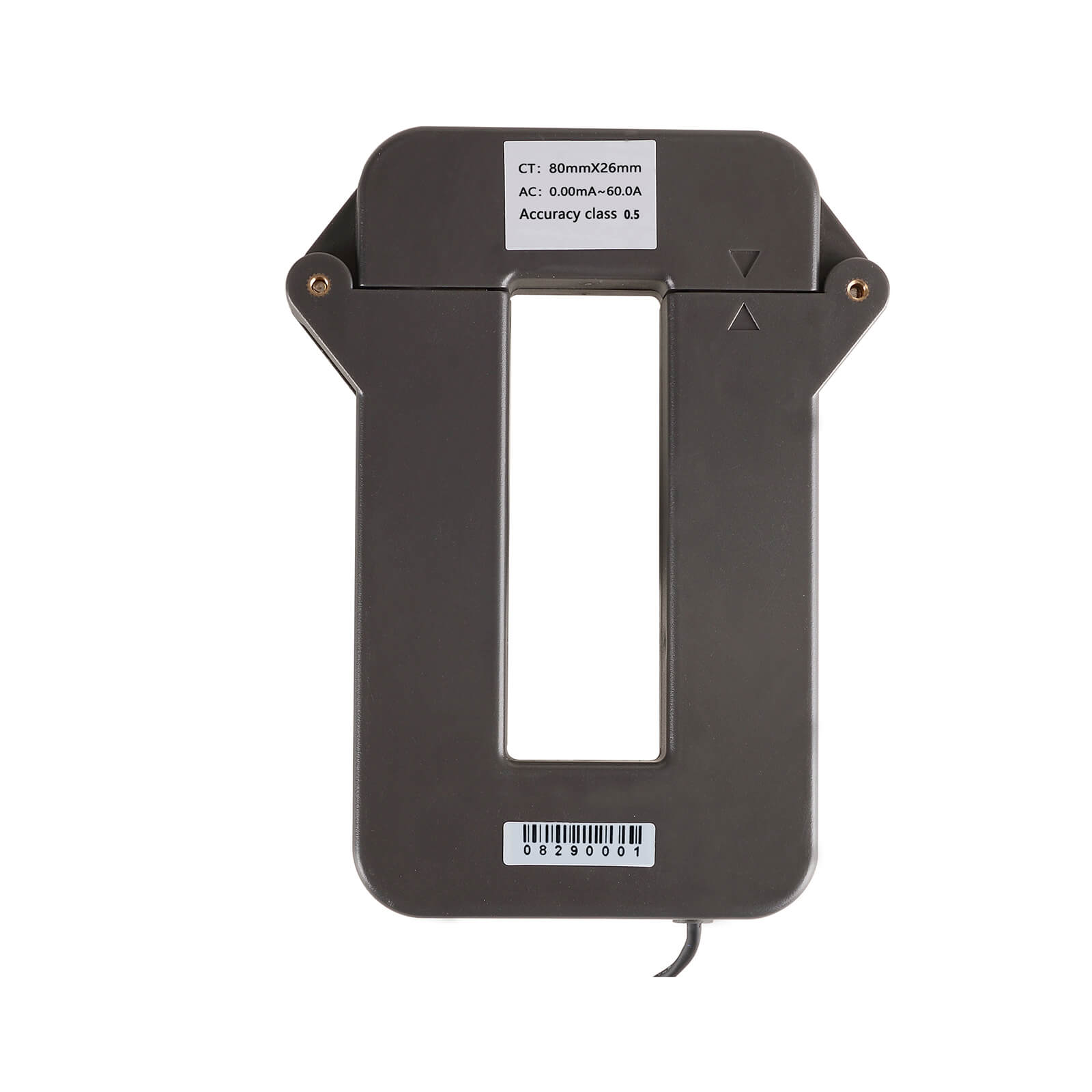

    EITAI082KRange: 0.00mA-60A AC
    Resolution: 0.01mA
    Accuracy level: 0.5
    Phase error: ≤1°
    Variable ratio: 1000:1
    Working frequency: 10Hz-100kHz

    0-600mA≤300Ω
    0-6A≤30Ω
    0-60A≤3Ω

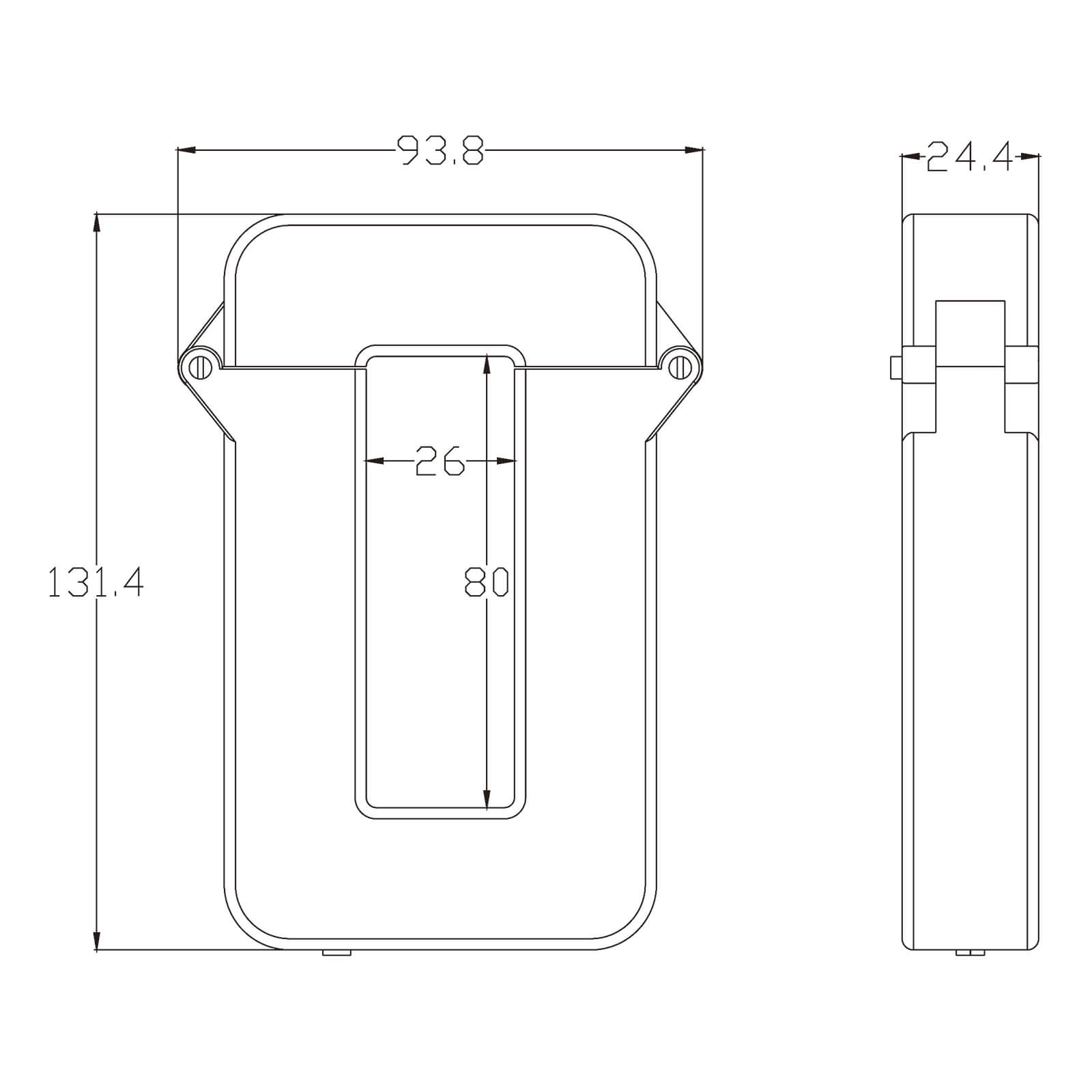

    80mm×26mm132mm×101mm×25mm800g2-core shielded wire

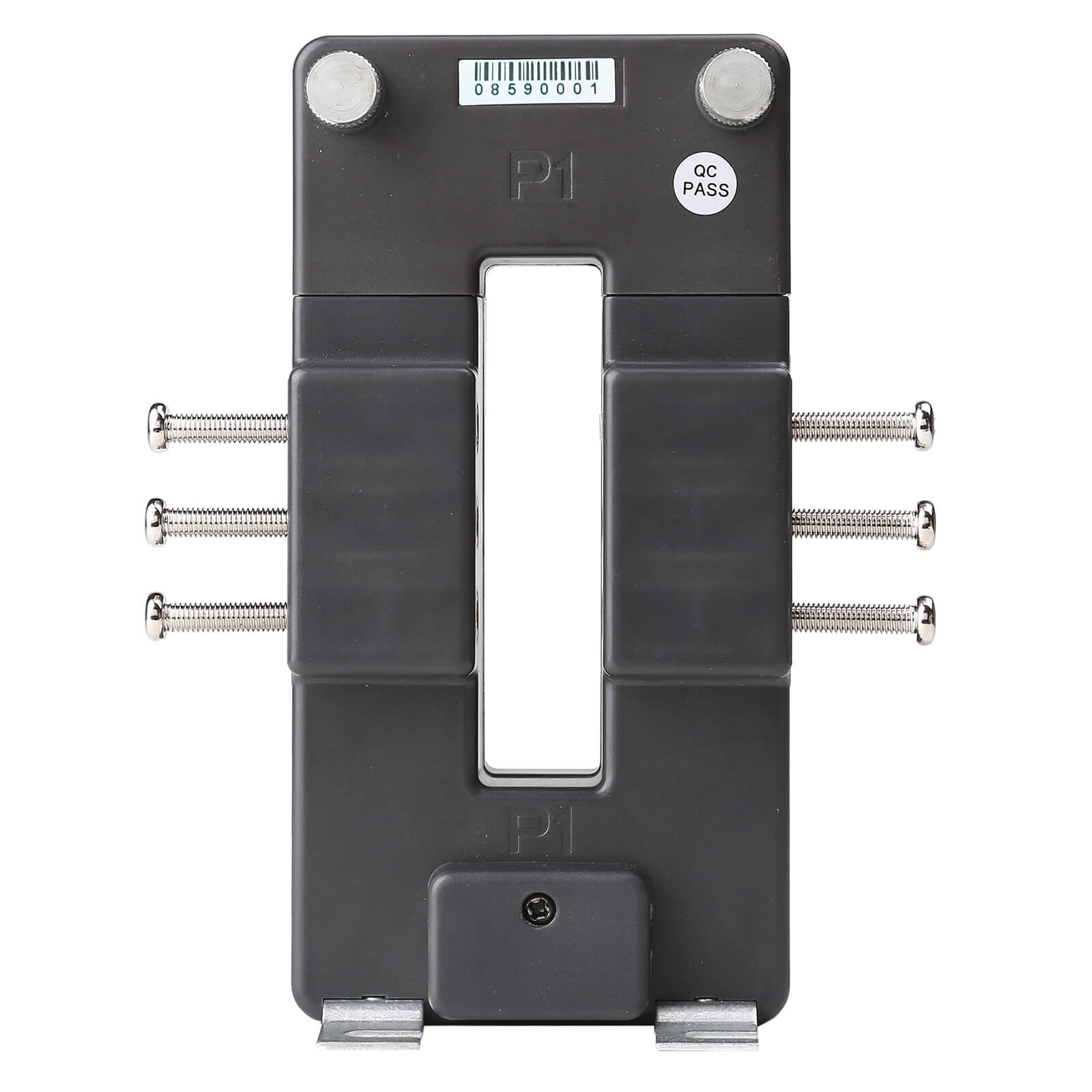

    EITAI085KRange: 0.00mA-60A AC
    Resolution: 0.01mA
    Accuracy level: 0.5
    Phase error: ≤1°
    Variable ratio: 1000:1
    Working frequency: 10Hz-100kHz

    0-600mA≤300Ω
    0-6A≤30Ω
    0-60A≤3Ω

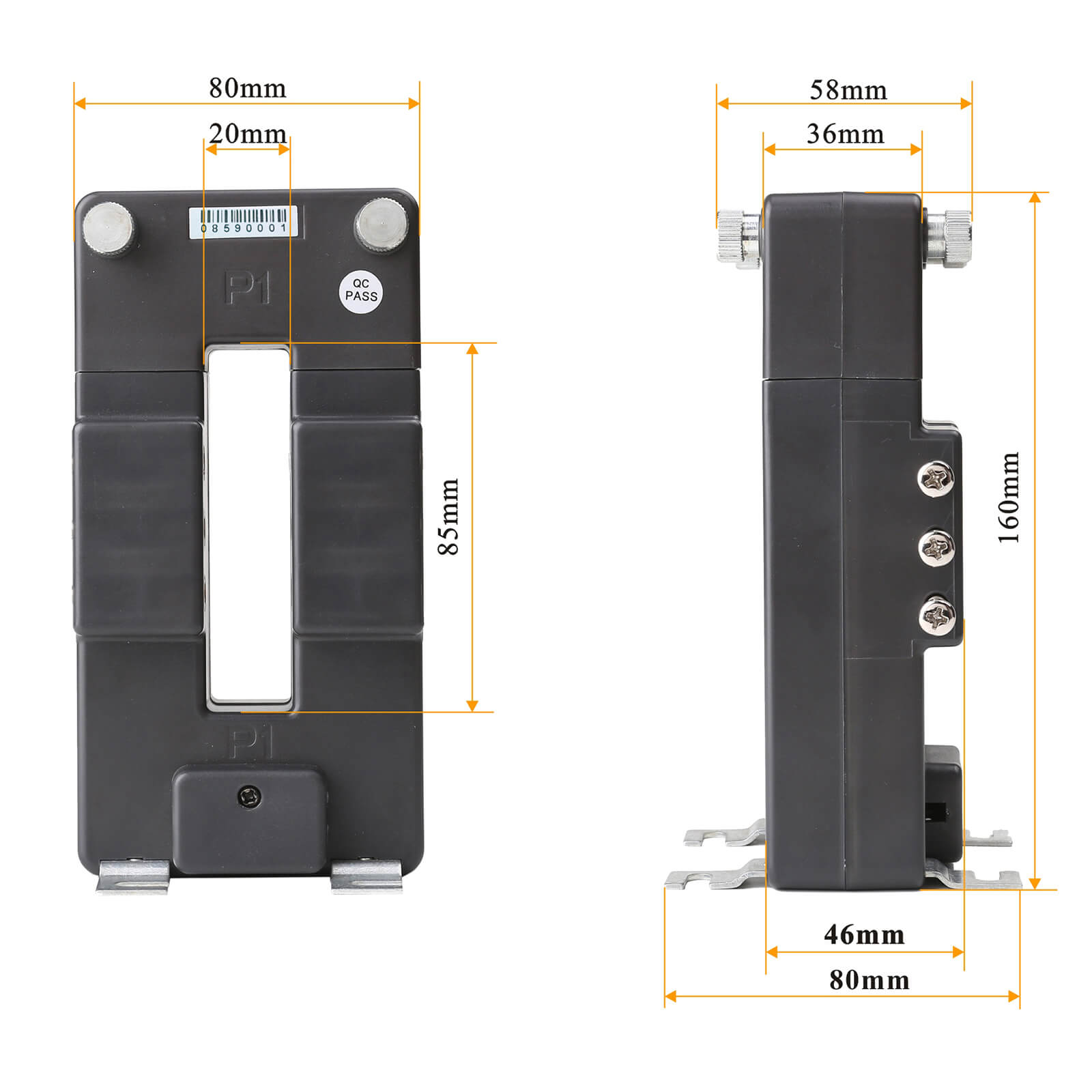

    85mm×20mm160mm×80mm×58mm810gconnection terminal(S1,S2 coil tap terminal, GND shielded
    terminal)
    Current Sensor1 PCS
    Warranty Card / Qualification Certificate1 SET
    Product ModelClamp Jaw SizeCurrent Range
    EITAI008 SeriesΦ8 mm/Φ14 mm/17mm×18mmAC 0.0mA-20A/100A
    EITAI016 SeriesΦ16mm/25mm×30mm/35mm×40mm/Φ68mm/80mm×80mmAC 0.00mA-20A/30A/40A/60A
    EITAI030A Series25mm×30mm/35mm×40mm/Φ68mm/80mm×80mmAC 0mA-300A/500A/800A/1000A
    EITAI050 SeriesΦ50mm/Φ70mmAC 0mA-600A/1000A
    EITAI007AD Series

    Φ7mm/16mm×18mm/25mm×30mm/

    30mm×35mm/Φ68mm

    AC/DC 0mA-100mA/50.0A/1000A/1500A
    EITAI030D25mm×30mmDC 0.1mA-100mA
    EITAI010K SeriesΦ10mm/Φ25mm/Φ25mm/Φ40mm/Φ80mmAC 0.00mA-20A/30A/60A
    EITAI010KD SeriesΦ10mm/Φ25mmDC 0.0mA-100mA
    EITAI022KU SeriesΦ22mm/Φ45mm/80mm×21mm/Φ90mmAC 0uA-10A(Solution: 1uA)
    EITAI082K Series80×26mm/85×20mmAC 0.00mA-60A
    EITAI-FA-FBΦ50mm/Φ100mm/Φ200mm/Φ300mm/Φ500mmAC 0A-6000A
    EITAI002F (with Integral)Φ50mm/Φ100mm/Φ200mmAC 0A-6000A
