EITAI010K Series Split Core High Accuracy AC Leakage Current Probe

EITAI010K Series Split Core High Accuracy AC Leakage Current Probe

$0.00 $39.00

EITAI010K Series Split Core High Accuracy AC Leakage Current Probe

$0.00 $39.00
Model: EITAI025K(AC 0.00mA-30A)
Output Interface: Connection Terminal

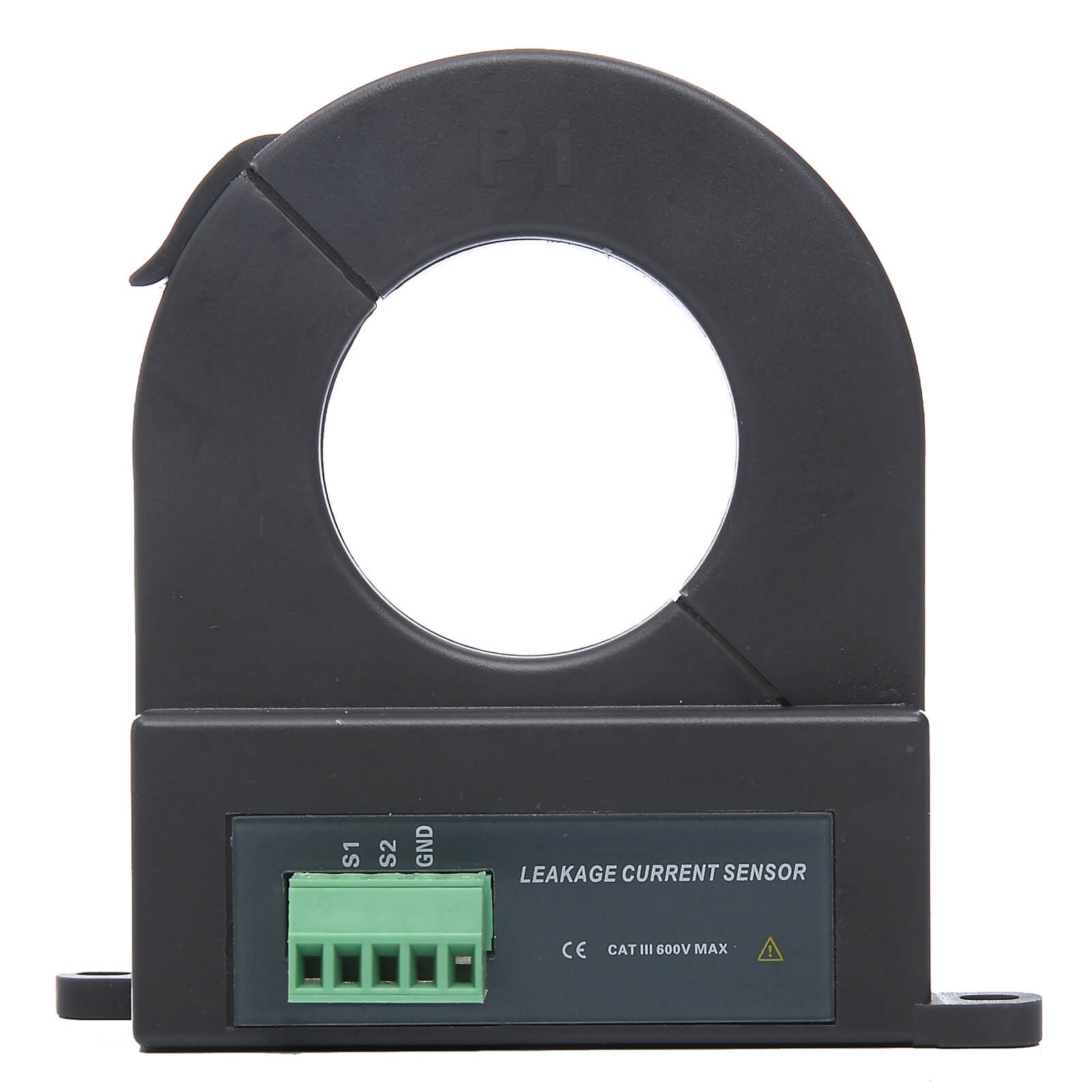

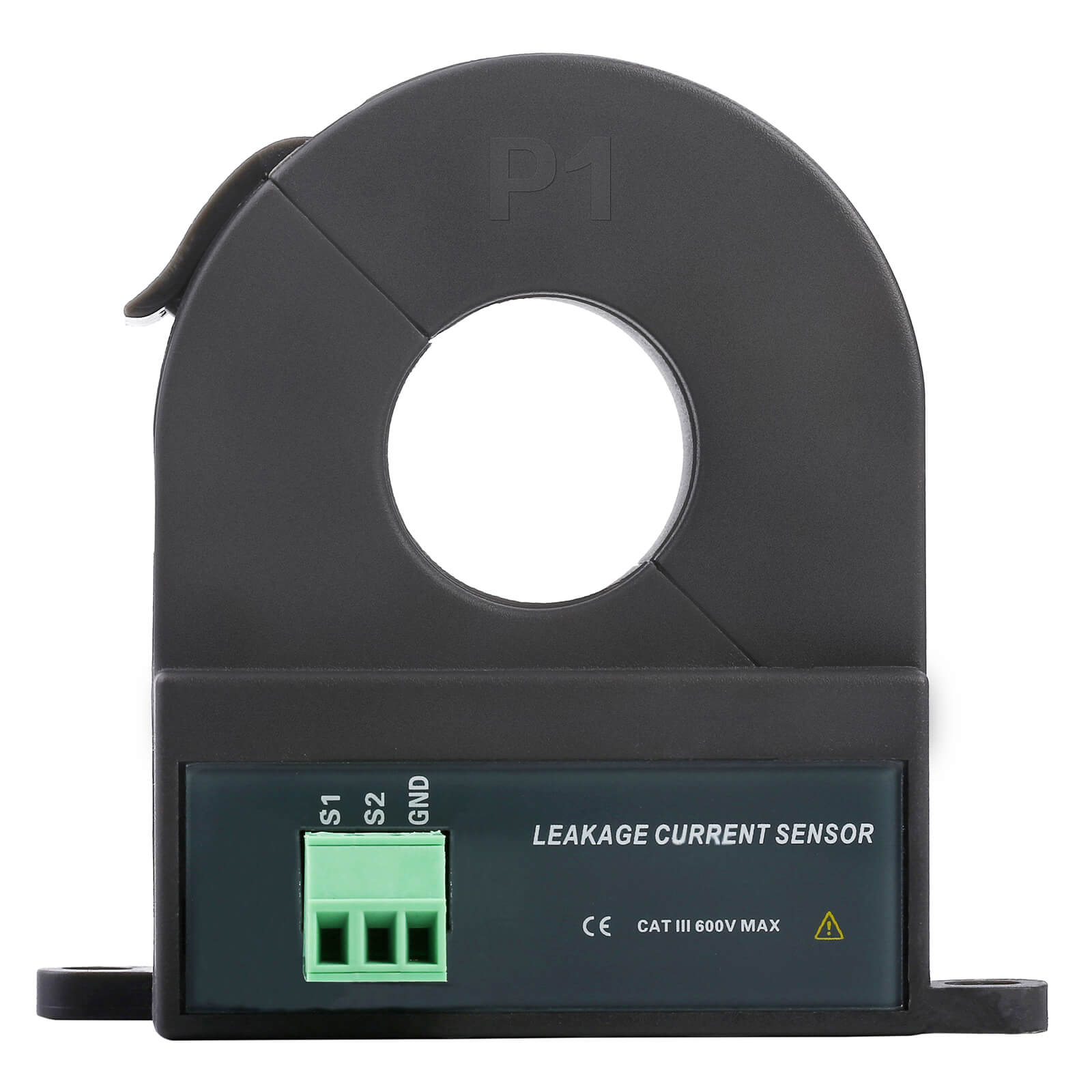

EITAI010K Series Split Core Leakage Current Sensor, Performance characteristics of open and closed leakage current transformer series products:

    1. The open-and-close structure does not require power failure and does not need to disconnect the line under test. The installation is fast, safe and reliable, especially suitable for online installation.
    2. It adopts permalloy iron core and double-layer shielding technology, with stable performance and high precision, strong anti-interference ability, and is suitable for complex interference environments.
    3. The firewire and zero wire can be clamped together at the same time to measure the leakage current of cables and electrical equipment.
    4. Output current signal.
    5. Safety level: CATⅢ600V.
    6. Working temperature: -15°C-50°C
    7. Customizable output ratio available: Please contact customer service for consultation. (Note: Customized output ratio products require 3-10 working days for production and are not eligible for returns or exchanges.)



    Product ModelMeasurement ParametersReference LoadClamp Jaw SizeDimensionsWeight

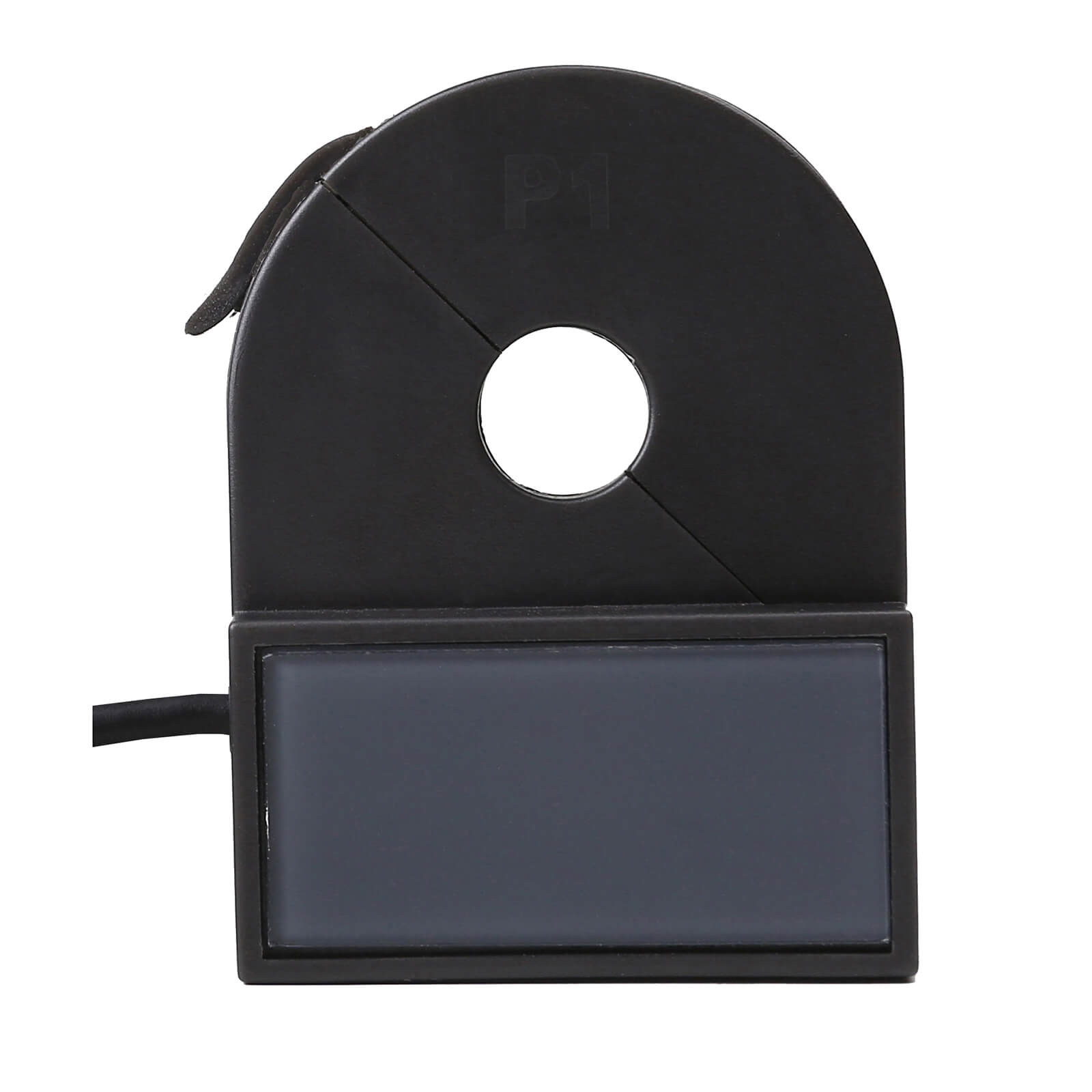

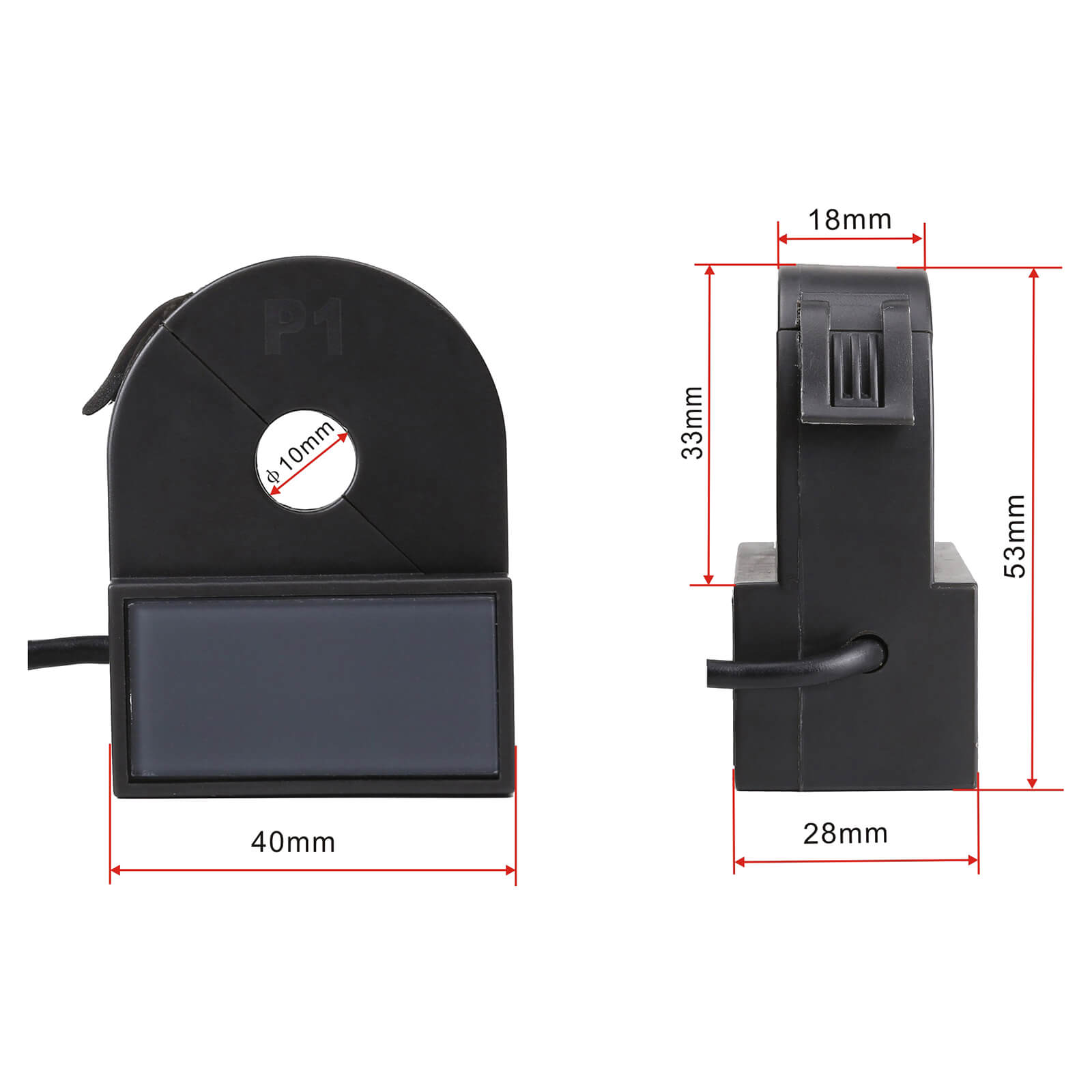

    EITAI010KRange: 0.00mA-20A AC
    Resolution: 0.01mA
    Accuracy level: 0.5
    Phase error: ≤2°
    Variable ratio: 800:1(Optional)
    Working frequency: 10Hz-100kHz
    0-200mA≤300Ω
    0-2A≤30Ω
    0-20A≤3Ω
    Ф10mm53mm×42mm×28mm65g

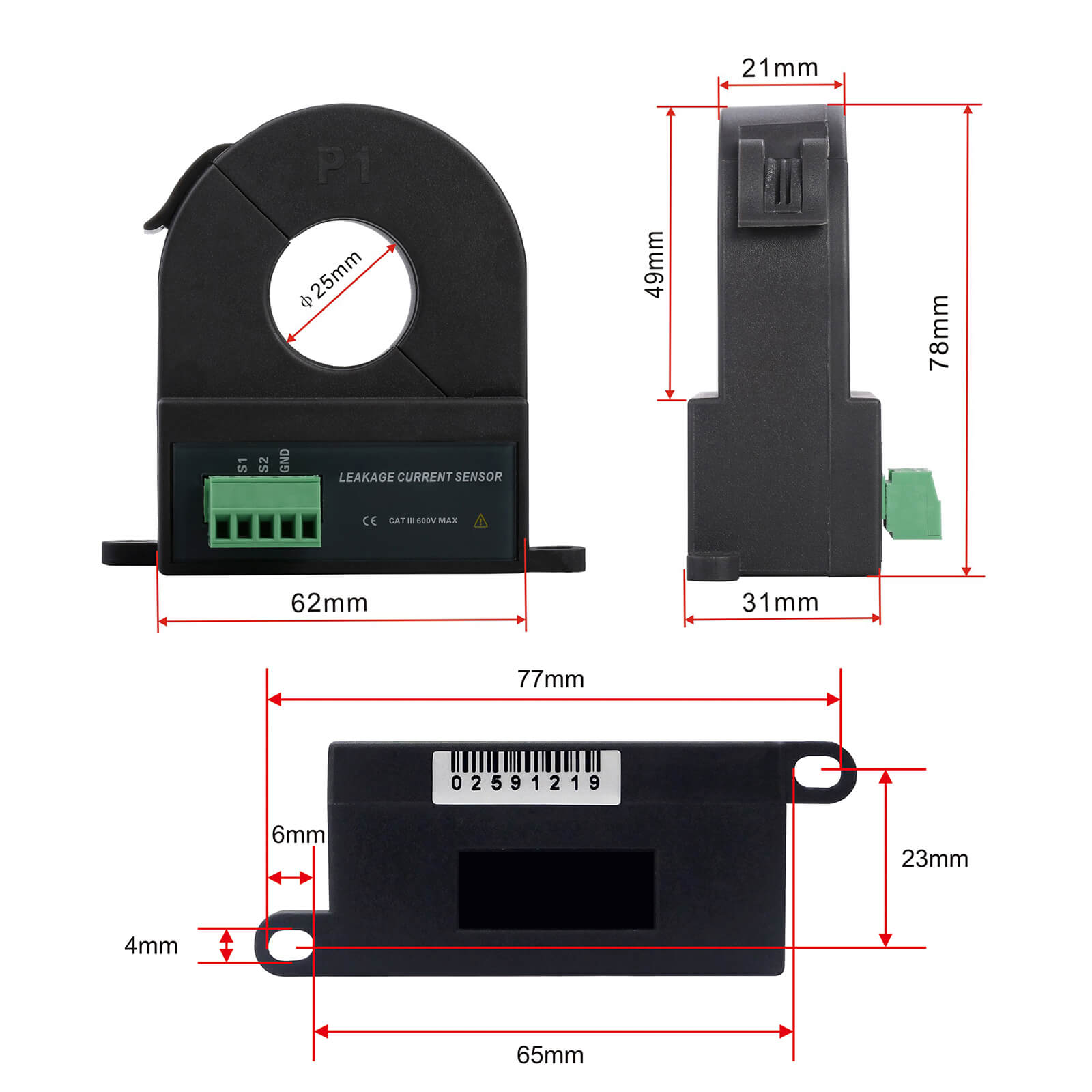

    EITAI025KRange: 0.00mA-30A AC
    Resolution: 0.01mA
    Accuracy level: 0.5
    Phase error: ≤2°
    Variable ratio: 800:1(Optional)
    Working frequency: 10Hz-100kHz
    0-300mA≤300Ω
    0-3A≤30Ω
    0-30A≤3Ω
    Ф25mm78mm×82mm×31mm120g

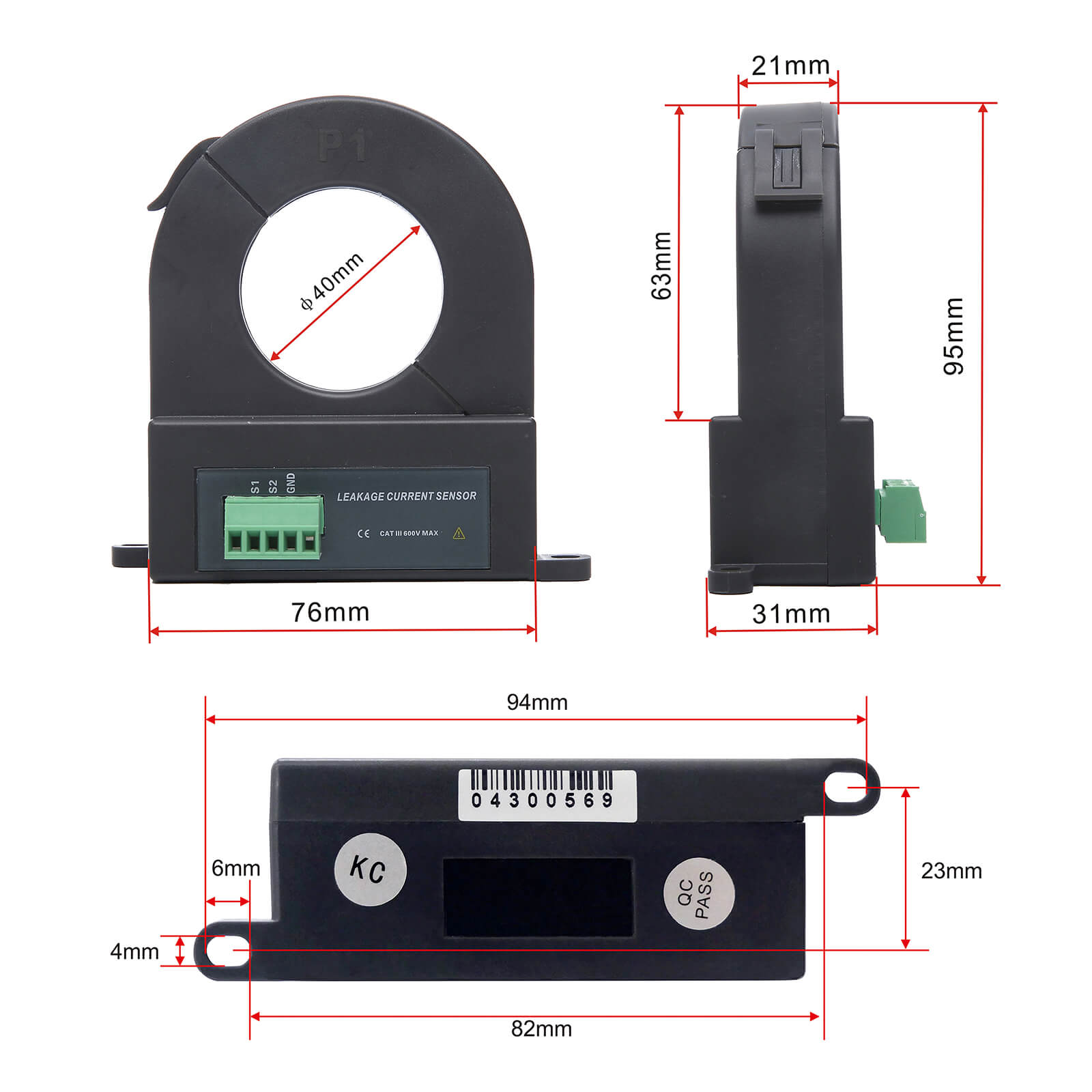

    EITAI040KRange: 0.00mA-60A AC
    Resolution: 0.01mA
    Accuracy level: 0.5
    Phase error: ≤2°
    Variable ratio: 800:1(Optional)
    Working frequency: 10Hz-100kHz
    0-600mA≤300Ω
    0-6A≤30Ω
    0-60A≤3Ω
    Ф40mm95mm×98mm×31mm160g

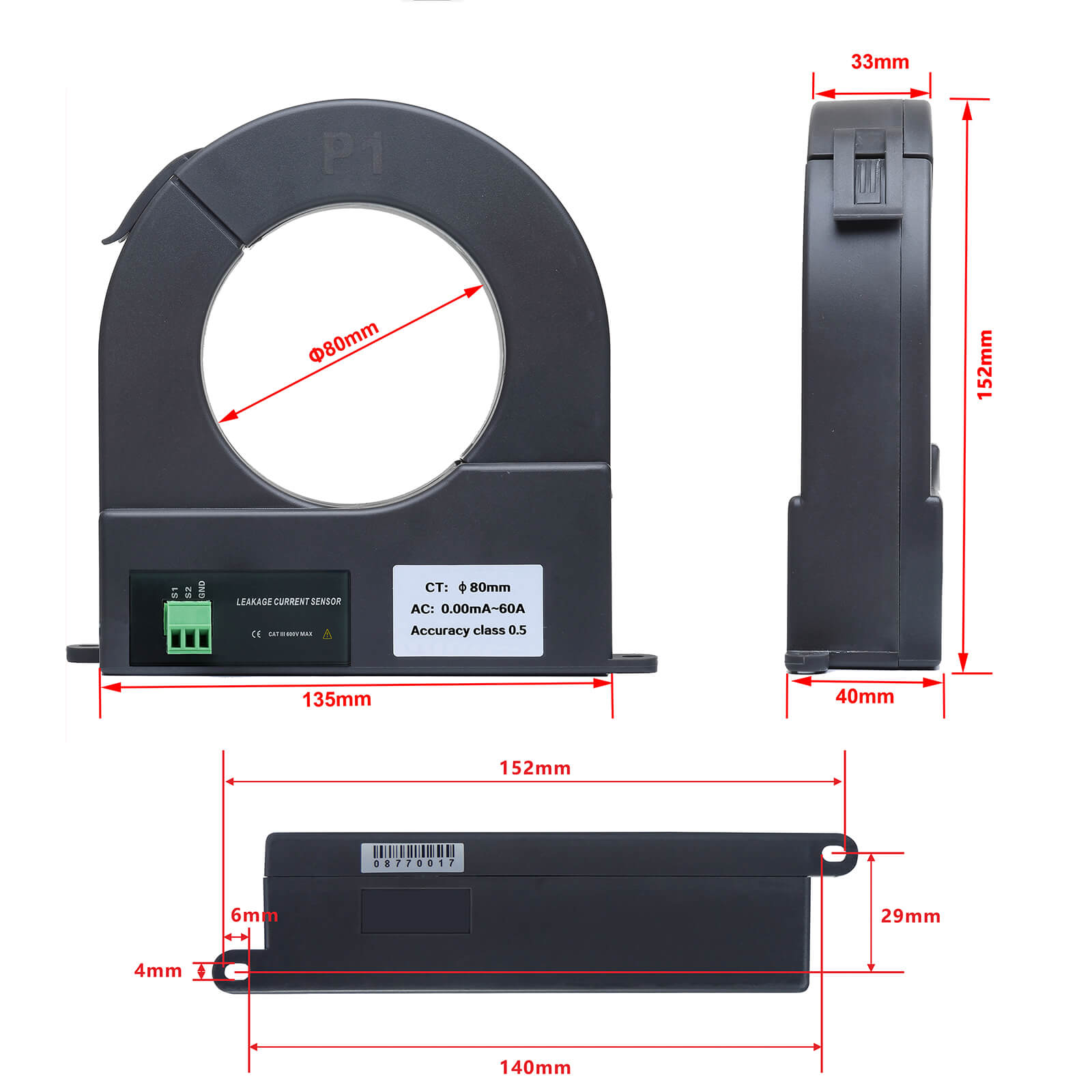

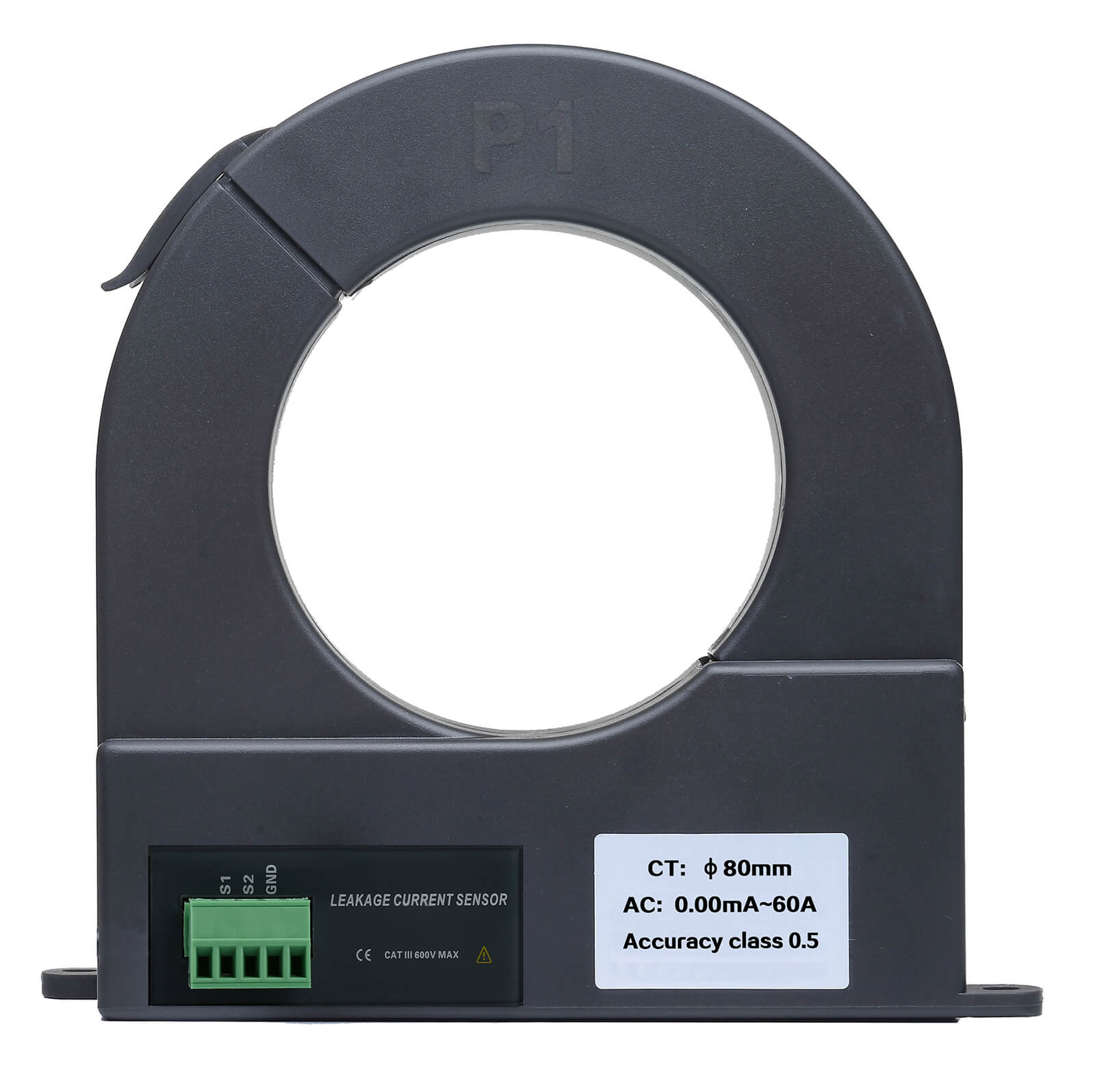

    EITAI080KRange: 0.00mA-60A AC
    Resolution: 0.01mA
    Accuracy level: 0.5
    Phase error: ≤2°
    Variable ratio: 800:1(Optional)
    Working frequency: 10Hz-100kHz
    0-600mA≤300Ω
    0-6A≤30Ω
    0-60A≤3Ω
    Ф80mm135mm×152mm×40mm490g
    Current Sensor1 PCS
    Warranty Card / Qualification Certificate1 SET
    Product ModelClamp Jaw SizeCurrent Range
    EITAI008 SeriesΦ8 mm/Φ14 mm/17mm×18mmAC 0.0mA-20A/100A
    EITAI016 SeriesΦ16mm/25mm×30mm/35mm×40mm/Φ68mm/80mm×80mmAC 0.00mA-20A/30A/40A/60A
    EITAI030A Series25mm×30mm/35mm×40mm/Φ68mm/80mm×80mmAC 0mA-300A/500A/800A/1000A
    EITAI050 SeriesΦ50mm/Φ70mmAC 0mA-600A/1000A
    EITAI007AD Series

    Φ7mm/16mm×18mm/25mm×30mm/

    30mm×35mm/Φ68mm

    AC/DC 0mA-100mA/50.0A/1000A/1500A
    EITAI030D25mm×30mmDC 0.1mA-100mA
    EITAI010K SeriesΦ10mm/Φ25mm/Φ25mm/Φ40mm/Φ80mmAC 0.00mA-20A/30A/60A
    EITAI010KD SeriesΦ10mm/Φ25mmDC 0.0mA-100mA
    EITAI022KU SeriesΦ22mm/Φ45mm/80mm×21mm/Φ90mmAC 0uA-10A(Solution: 1uA)
    EITAI082K Series80×26mm/85×20mmAC 0.00mA-60A
    EITAI-FA-FBΦ50mm/Φ100mm/Φ200mm/Φ300mm/Φ500mmAC 0A-6000A
    EITAI002F (with Integral)Φ50mm/Φ100mm/Φ200mmAC 0A-6000A
