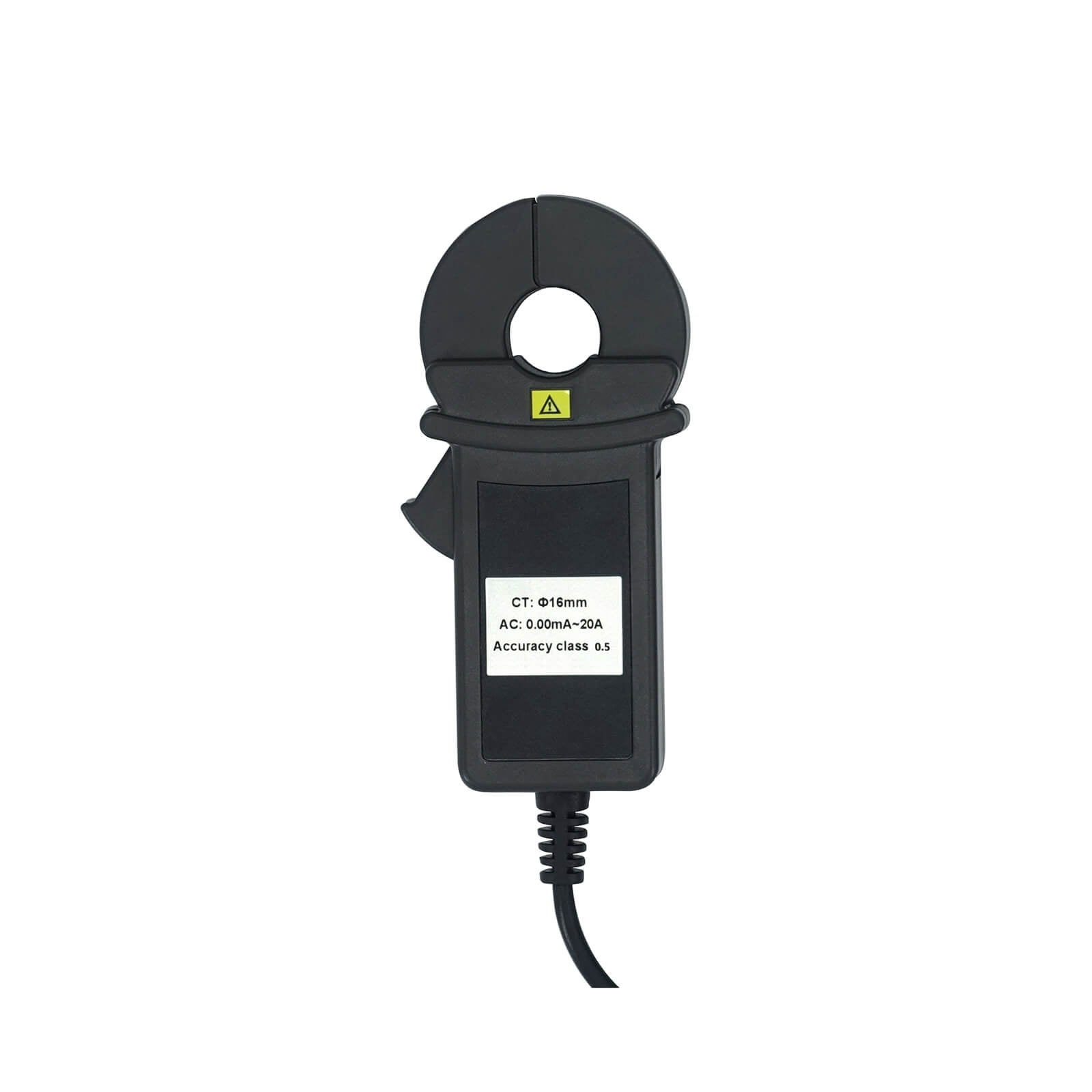

EITAI016 Series AC Clamp Leakage Current Probe

$45.00
$0.00
$45.00
Model: EITAI016(AC 0.00mA-20A)
Output Interface: 3.5mm Audio Plug
Subtotal: $45.00

Free Shipping

Free standard shipping on orders over $99

Deliver in 3-10 business days

Free Returns

30-Day No-Hassle Returns

2-Year Warranty

Safe & Secure Checkout.
EITAI016 Series AC Clamp Leakage Current Probe

EITAI016 Series AC Clamp Leakage Current Probe

$0.00 $45.00

EITAI016 Series AC Clamp Leakage Current Probe

$0.00 $45.00
Model: EITAI016(AC 0.00mA-20A)
Output Interface: 3.5mm Audio Plug

EITAI016 Series Clamp Leakage Current Sensor, Performance characteristics of clamp leakage current transformer series products:

    1. Clamp-shaped structure, no power failure is required, no line under test is disconnected, and it is easy to carry, especially suitable for on-site online testing.
    2. Using permalloy iron core and double-layer shielding technology, it has stable performance and high precision, strong anti-interference ability, and is suitable for complex interference environments.
    3. Various specifications and diameters, large-caliber current pliers can test thick wires or busbars.
    4. Output current signal.
    5. The firewire and zero wire can be clamped together at the same time to measure the leakage current of cables and electrical equipment.
    6. Safety level: CATⅢ600V.
    7. Working temperature: -15°C~50°C
    8. Customizable output ratio available: Please contact customer service for consultation. (Note: Customized output ratio products require 3-10 working days for production and are not eligible for returns or exchanges.)



    Product ModelMeasurement ParametersReference LoadClamp Jaw SizeDimensionsWeight
    EITAI016Range: 0.00mA-20A AC
    Resolution: 0.01mA
    Accuracy level: 0.5
    Phase error: ≤2°
    Variable ratio: 800:1(Optional)
    Working frequency: 10Hz-100kHz

    0-200mA≤300Ω
    0-2A≤30Ω
    0-20A≤3Ω
    Ф16mm

    110mm×53mm

    ×22mm

    138g

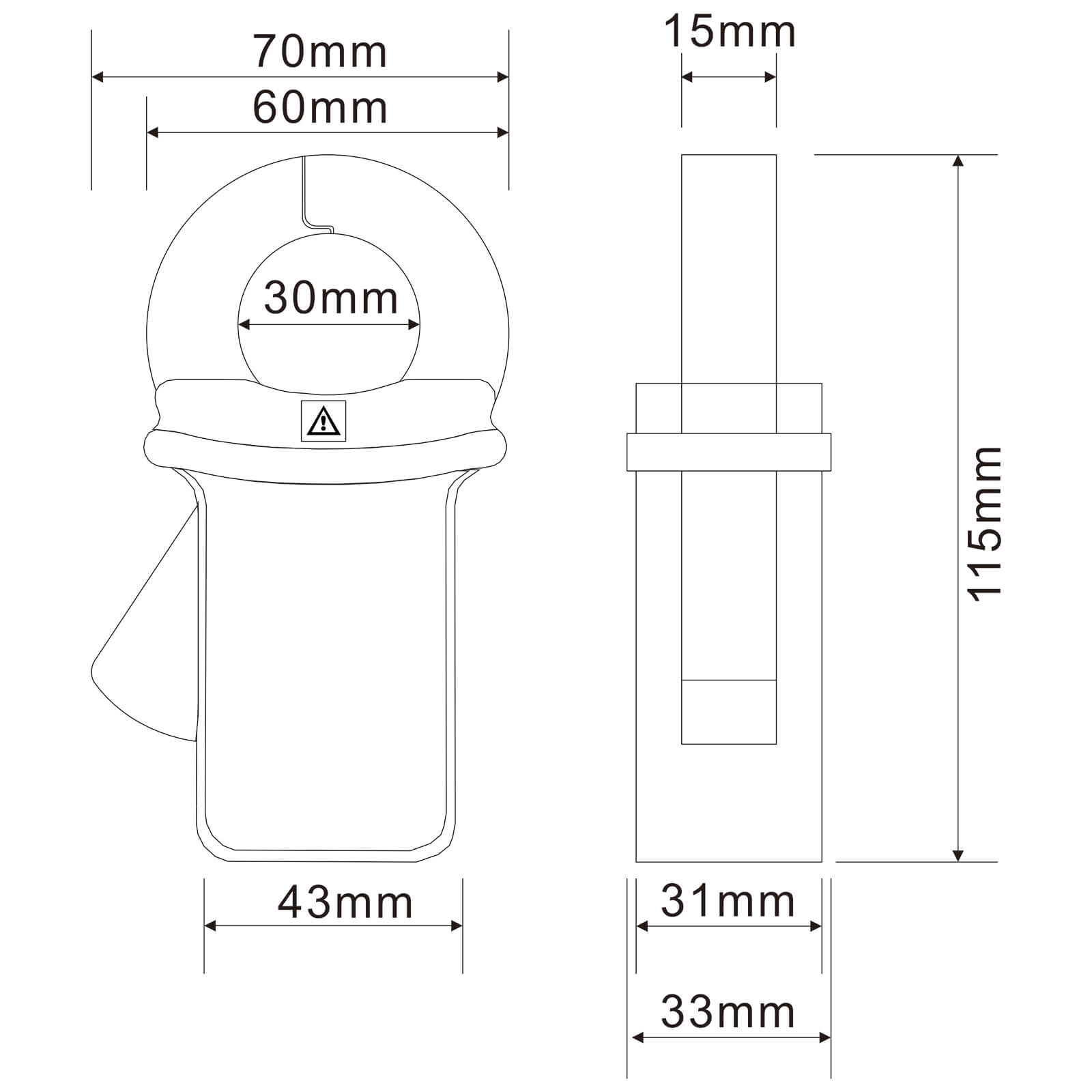

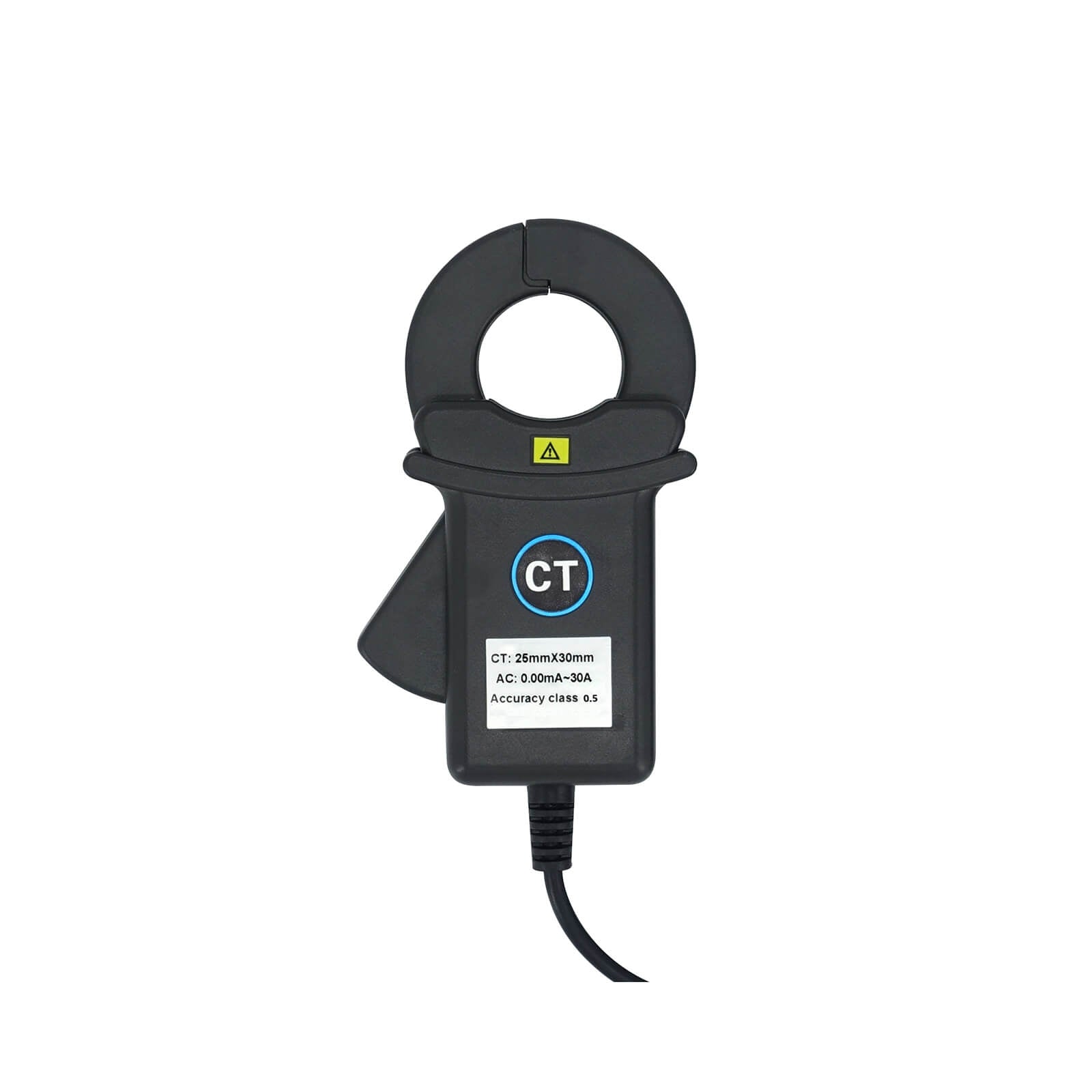

    EITAI030Range: 0.00mA-30A AC
    Resolution: 0.01mA
    Accuracy level: 0.5
    Phase error: ≤2°
    Variable ratio: 800:1(Optional)
    Working frequency: 10Hz-100kHz

    0-300mA≤300Ω
    0-3A≤30Ω
    0-30A≤3Ω
    25mm×30mm

    115mm×70mm

    ×33mm

    163g

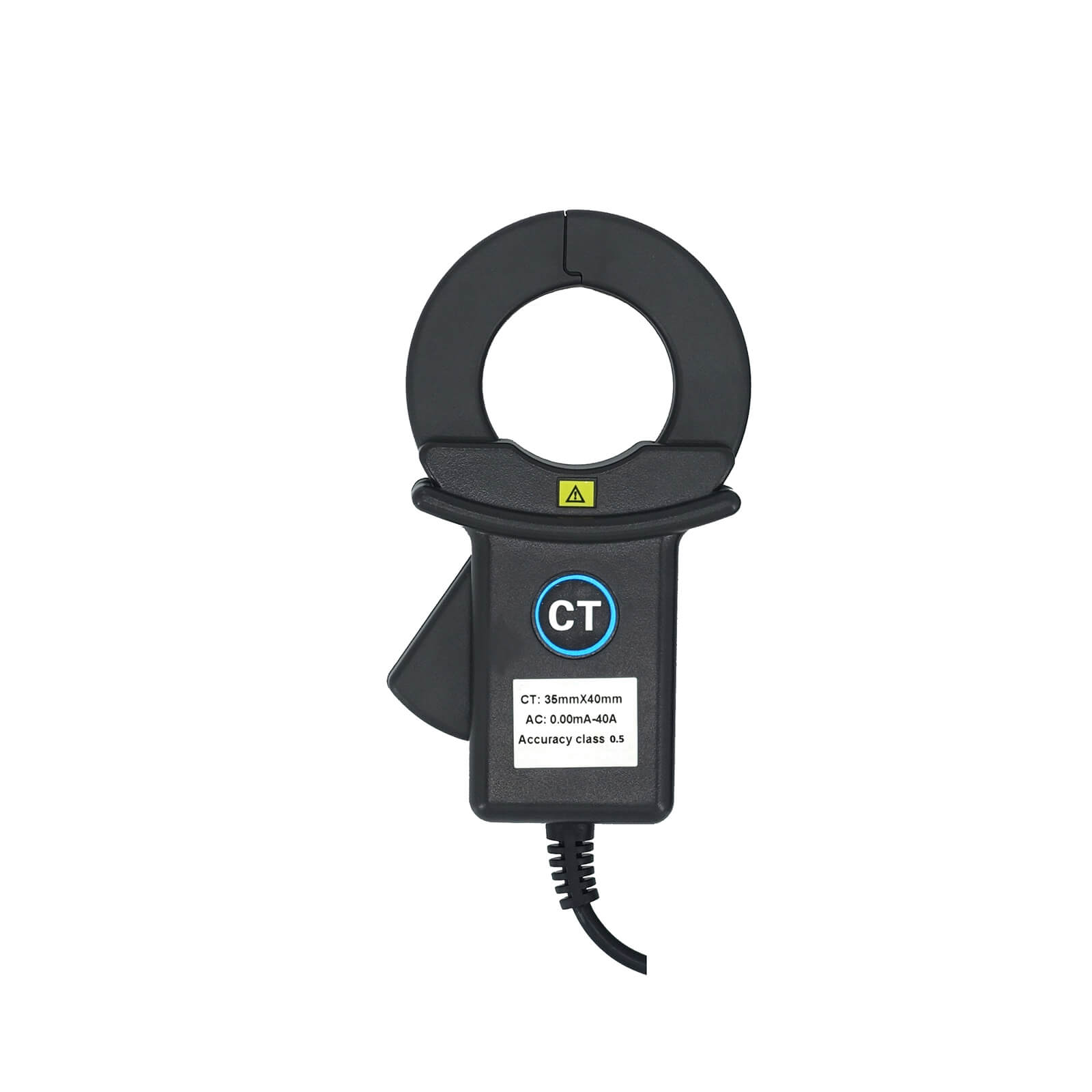

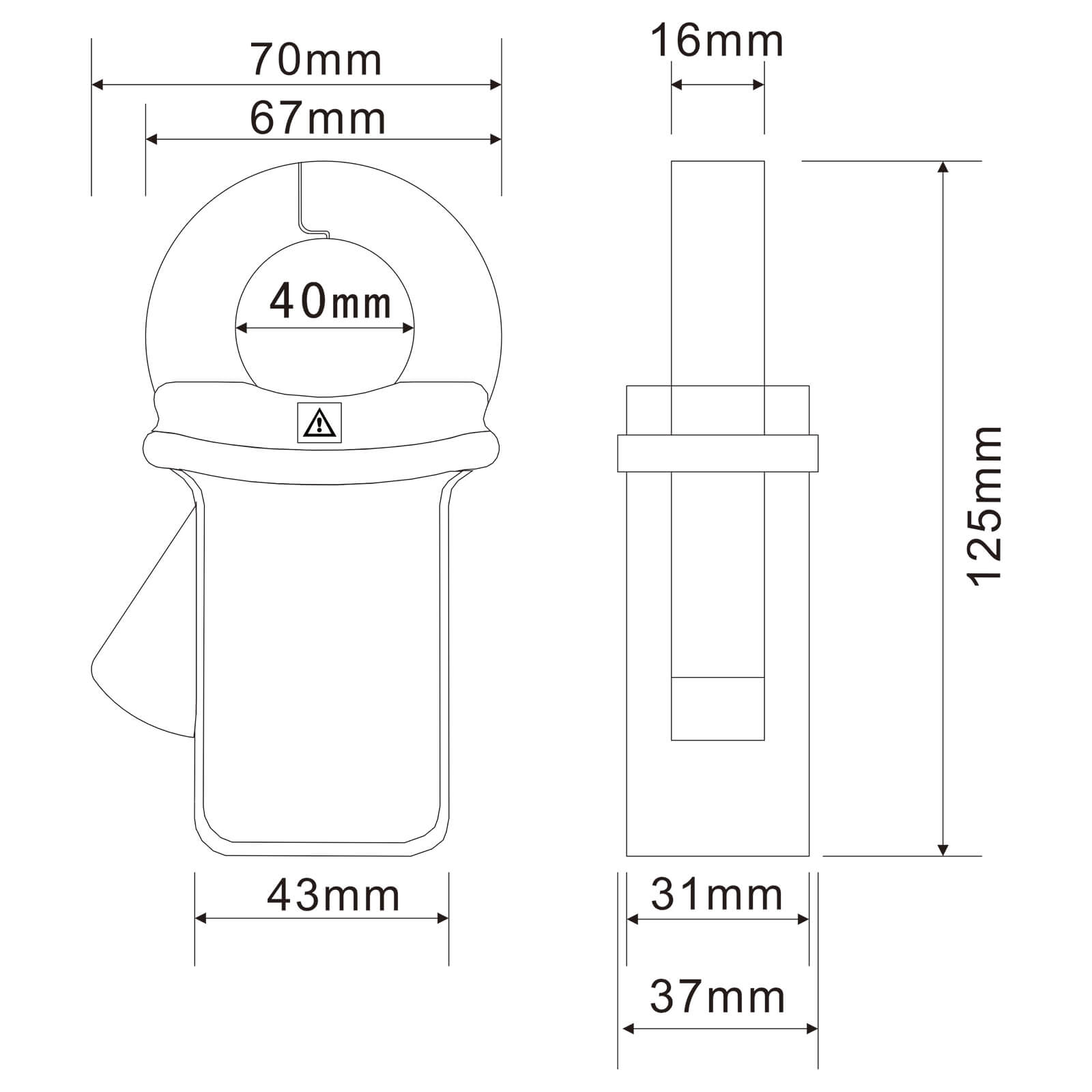

    EITAI040Range: 0.00mA-40A AC
    Resolution: 0.01mA
    Accuracy level: 0.5
    Phase error: ≤2°
    Variable ratio: 800:1(Optional)
    Working frequency: 10Hz-100kHz

    0-400mA≤300Ω
    0-4A≤30Ω
    0-40A≤3Ω
    35mm×40mm

    125mm×70mm

    ×37mm

    190g

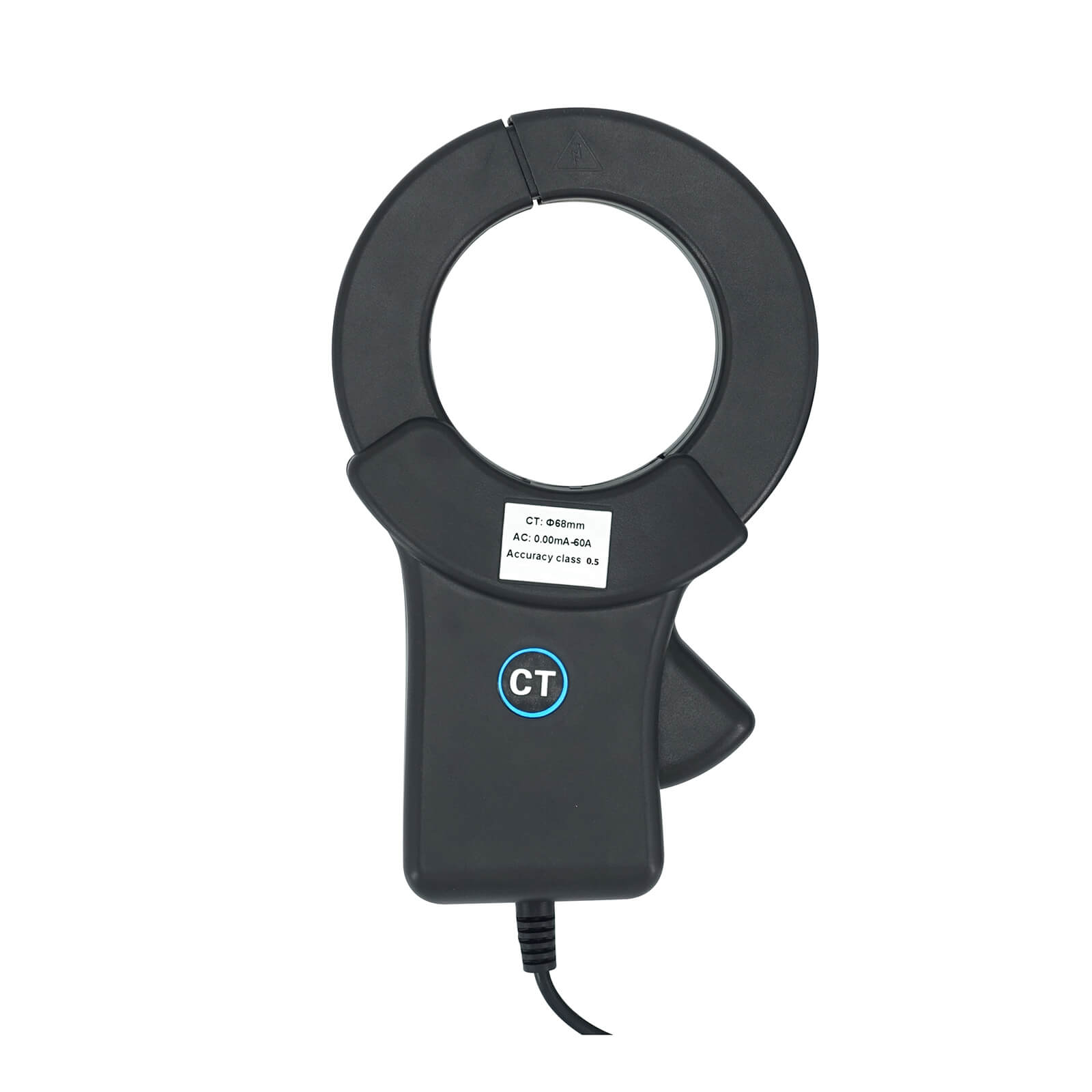

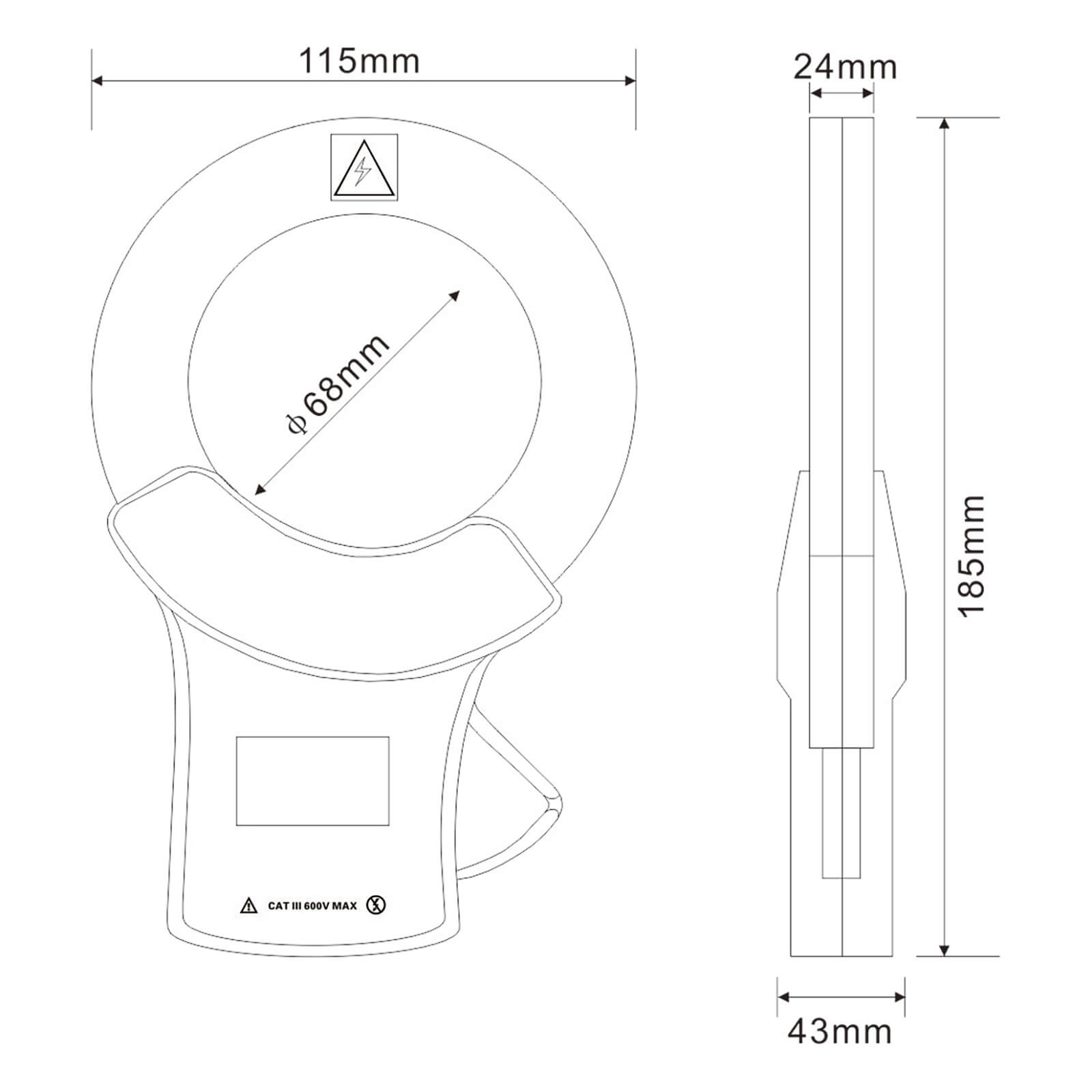

    EITAI068Range: 0.00mA-60A AC
    Resolution: 0.01mA
    Accuracy level: 0.5
    Phase error: ≤2°
    Variable ratio: 800:1(Optional)
    Working frequency: 10Hz-100kHz

    0-600mA≤300Ω
    0-6A≤30Ω
    0-60A≤3Ω
    Ф68mm

    185mm×115mm

    ×43mm

    530g

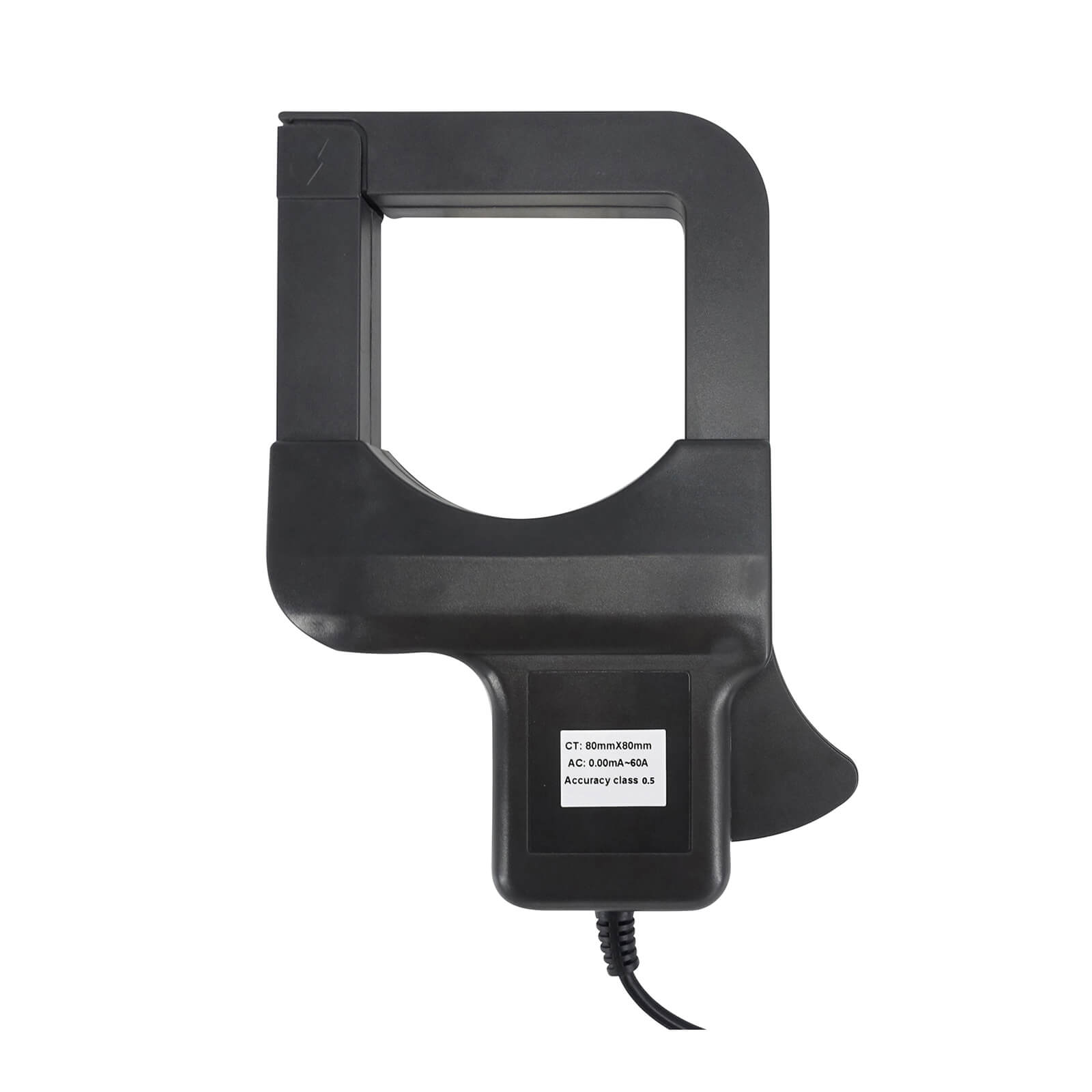

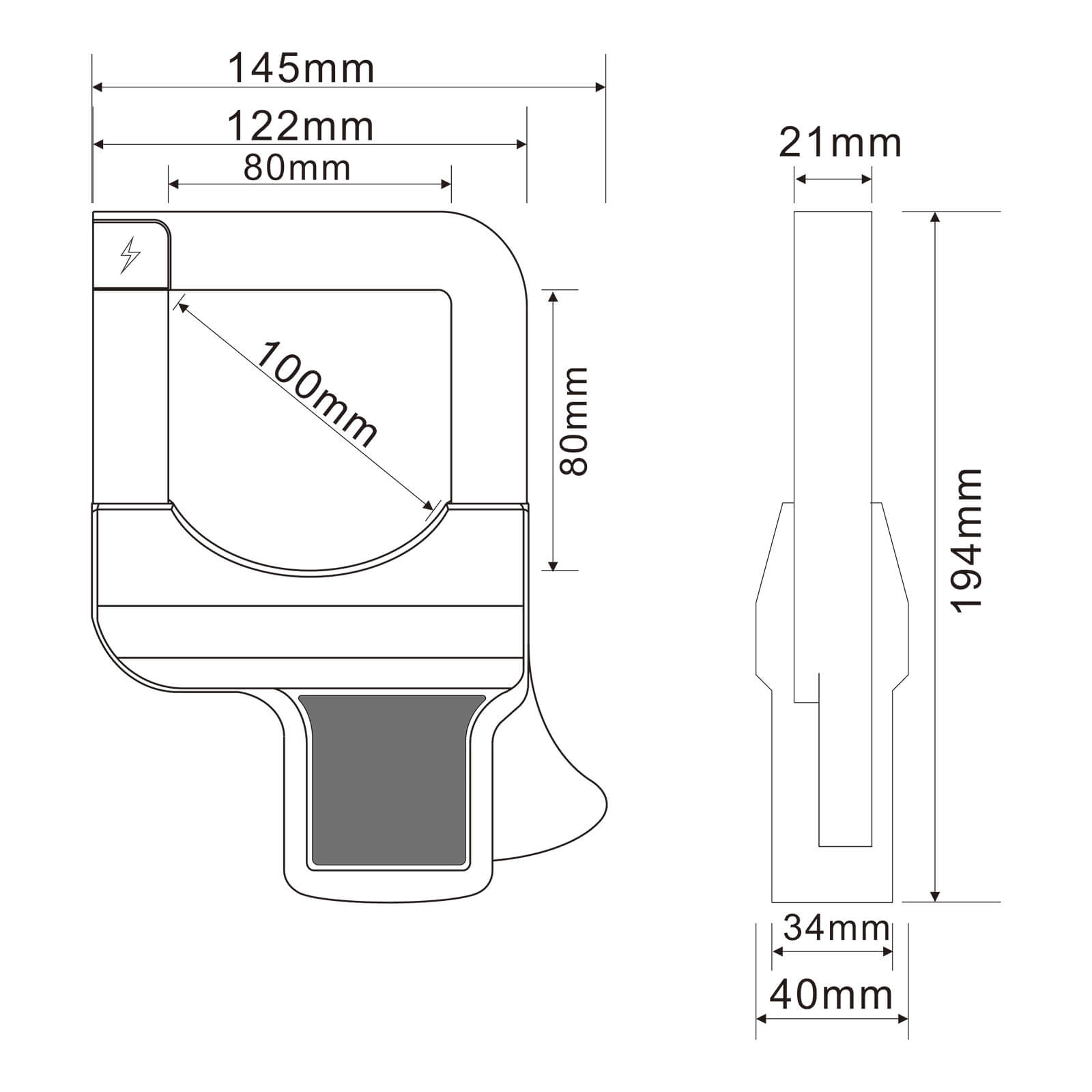

    EITAI080Range: 0.00mA-60A AC
    Resolution: 0.01mA
    Accuracy level: 0.5
    Phase error: ≤2°
    Variable ratio: 800:1(Optional)
    Working frequency: 10Hz-100kHz
    0-600mA≤300Ω
    0-6A≤30Ω
    0-60A≤3Ω
    80mm×80mm194mm×145mm×40mm780g
    Current Sensor1 PCS
    Warranty Card / Qualification Certificate1 SET
    Product ModelClamp Jaw SizeCurrent Range
    EITAI008 SeriesΦ8 mm/Φ14 mm/17mm×18mmAC 0.0mA-20A/100A
    EITAI016 SeriesΦ16mm/25mm×30mm/35mm×40mm/Φ68mm/80mm×80mmAC 0.00mA-20A/30A/40A/60A
    EITAI030A Series25mm×30mm/35mm×40mm/Φ68mm/80mm×80mmAC 0mA-300A/500A/800A/1000A
    EITAI050 SeriesΦ50mm/Φ70mmAC 0mA-600A/1000A
    EITAI007AD Series

    Φ7mm/16mm×18mm/25mm×30mm/

    30mm×35mm/Φ68mm

    AC/DC 0mA-100mA/50.0A/1000A/1500A
    EITAI030D25mm×30mmDC 0.1mA-100mA
    EITAI010K SeriesΦ10mm/Φ25mm/Φ25mm/Φ40mm/Φ80mmAC 0.00mA-20A/30A/60A
    EITAI010KD SeriesΦ10mm/Φ25mmDC 0.0mA-100mA
    EITAI022KU SeriesΦ22mm/Φ45mm/80mm×21mm/Φ90mmAC 0uA-10A(Solution: 1uA)
    EITAI082K Series80×26mm/85×20mmAC 0.00mA-60A
    EITAI-FA-FBΦ50mm/Φ100mm/Φ200mm/Φ300mm/Φ500mmAC 0A-6000A
    EITAI002F (with Integral)Φ50mm/Φ100mm/Φ200mmAC 0A-6000A
