EITAI008 Series AC Clamp Leakage Current Probe

$39.00
$0.00
$39.00
Model: EITAI008(AC 0.00mA-30A)
Output Interface: BNC Plug
Subtotal: $39.00

Free Shipping

Free standard shipping on orders over $99

Deliver in 3-10 business days

Free Returns

30-Day No-Hassle Returns

2-Year Warranty

Safe & Secure Checkout.
EITAI008 Series AC Clamp Leakage Current Probe

EITAI008 Series AC Clamp Leakage Current Probe

$0.00 $39.00

EITAI008 Series AC Clamp Leakage Current Probe

$0.00 $39.00
Model: EITAI008(AC 0.00mA-30A)
Output Interface: BNC Plug

EITAI008 Series Clamp Leakage Current Sensor, Performance characteristics of small-caliber clamp current transformer series products:

    1. Clamp-shaped structure, no power failure is required, no line under test is disconnected, and it is easy to carry, especially suitable for on-site online testing.
    2. Using permalloy iron core, it has stable performance and high precision, strong anti-interference ability, and is suitable for complex interference environments.
    3. The small-caliber structure is suitable for small spaces or places with dense wiring.
    4. Safety level: CATⅢ600V.
    5. Working temperature: -15°C~50°C.
    6. Customizable output ratio available: Please contact customer service for consultation. (Note: Customized output ratio products require 3-10 working days for production and are not eligible for returns or exchanges.)



    ModelMeasurement ParametersReference LoadClamp Jaw Size DimensionsWeight

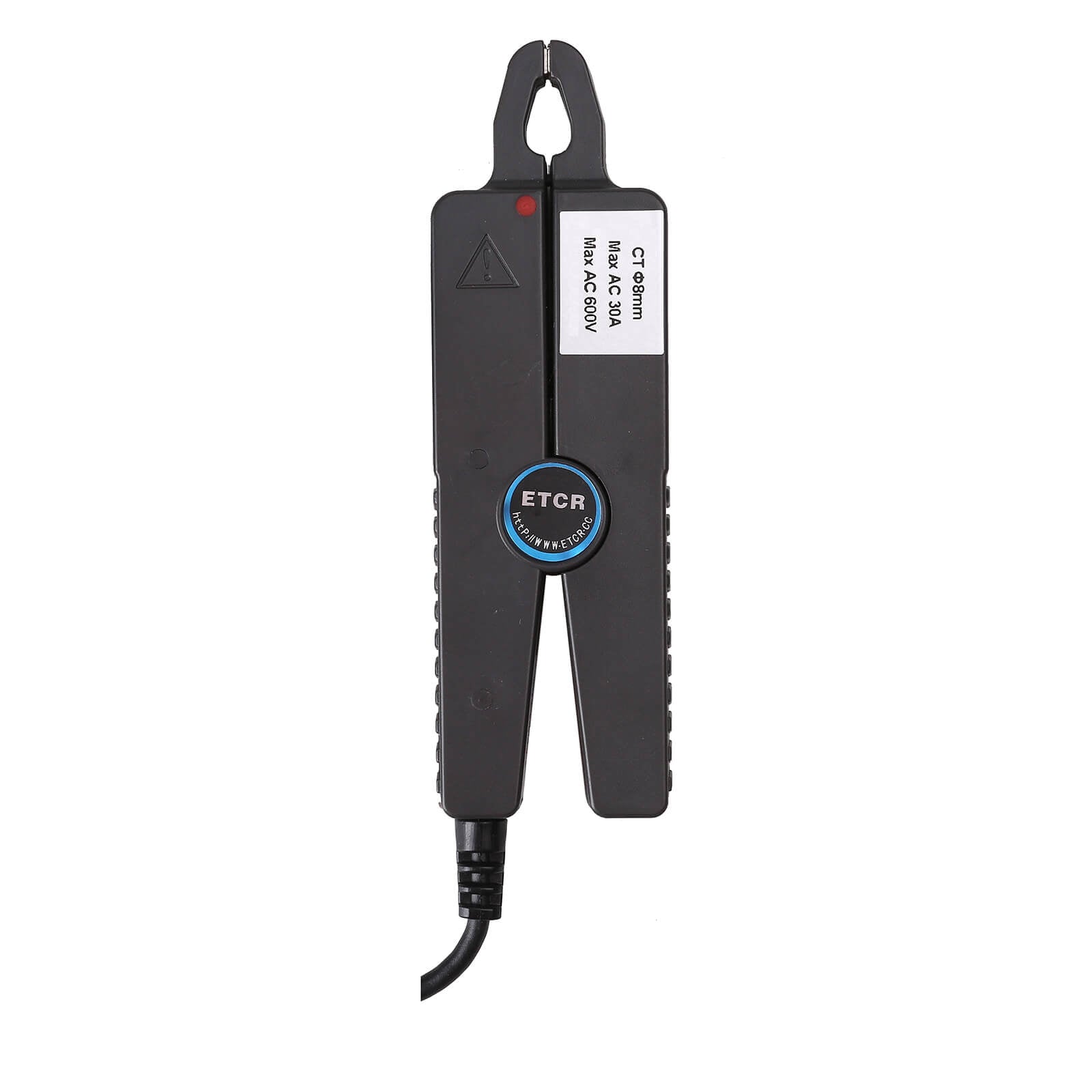

    EITAI008Range: 0.00mA-30A AC
    Resolution: 0.01mA
    Accuracy level: 0.5
    Phase error: ≤2°
    Ratio: 2500:1(Optional)
    Working frequency: 10Hz-100kHz
    0-300mA≤300Ω
    0-3A≤30Ω
    0-30A≤3Ω

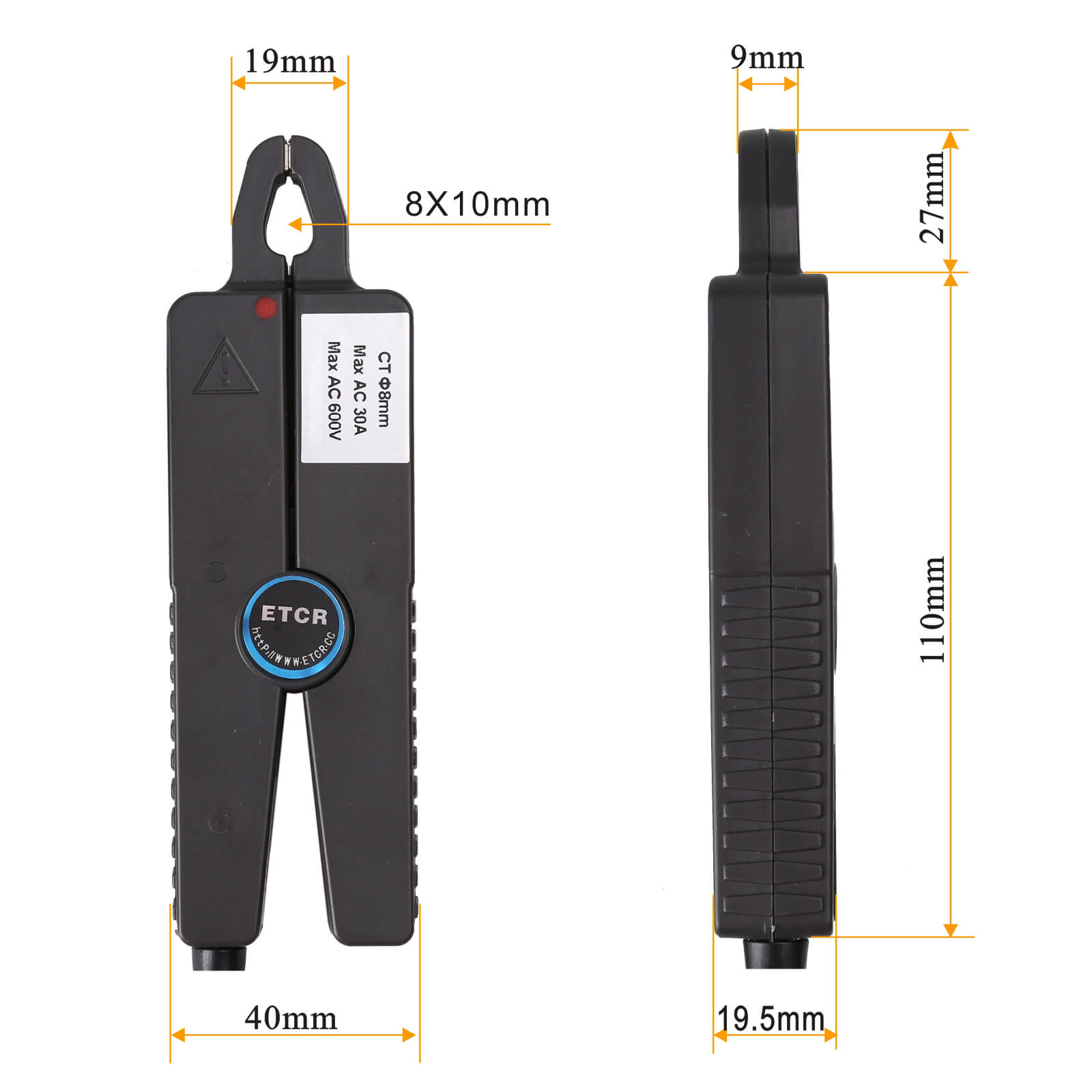

    Ф8mm137mm×40mm×19.5mm175g

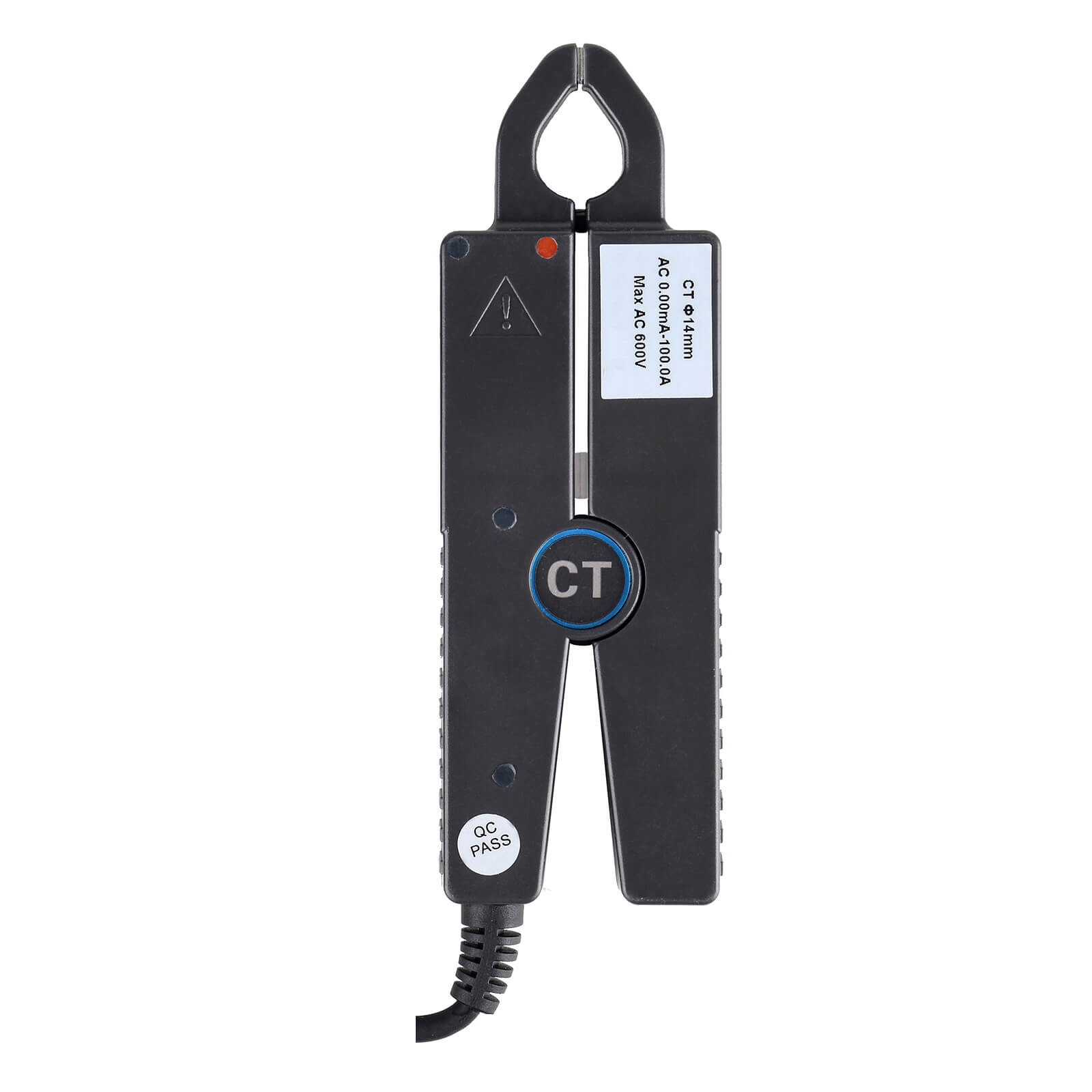

    EITAI014Range: 0.00mA-100A AC
    Resolution: 0.01mA
    Accuracy level: 0.5
    Phase error: ≤2°
    Ratio: 2500:1(Optional)
    Working frequency: 10Hz-100kHz
    0-1A≤300Ω
    0-10A≤30Ω
    0-100A≤3Ω

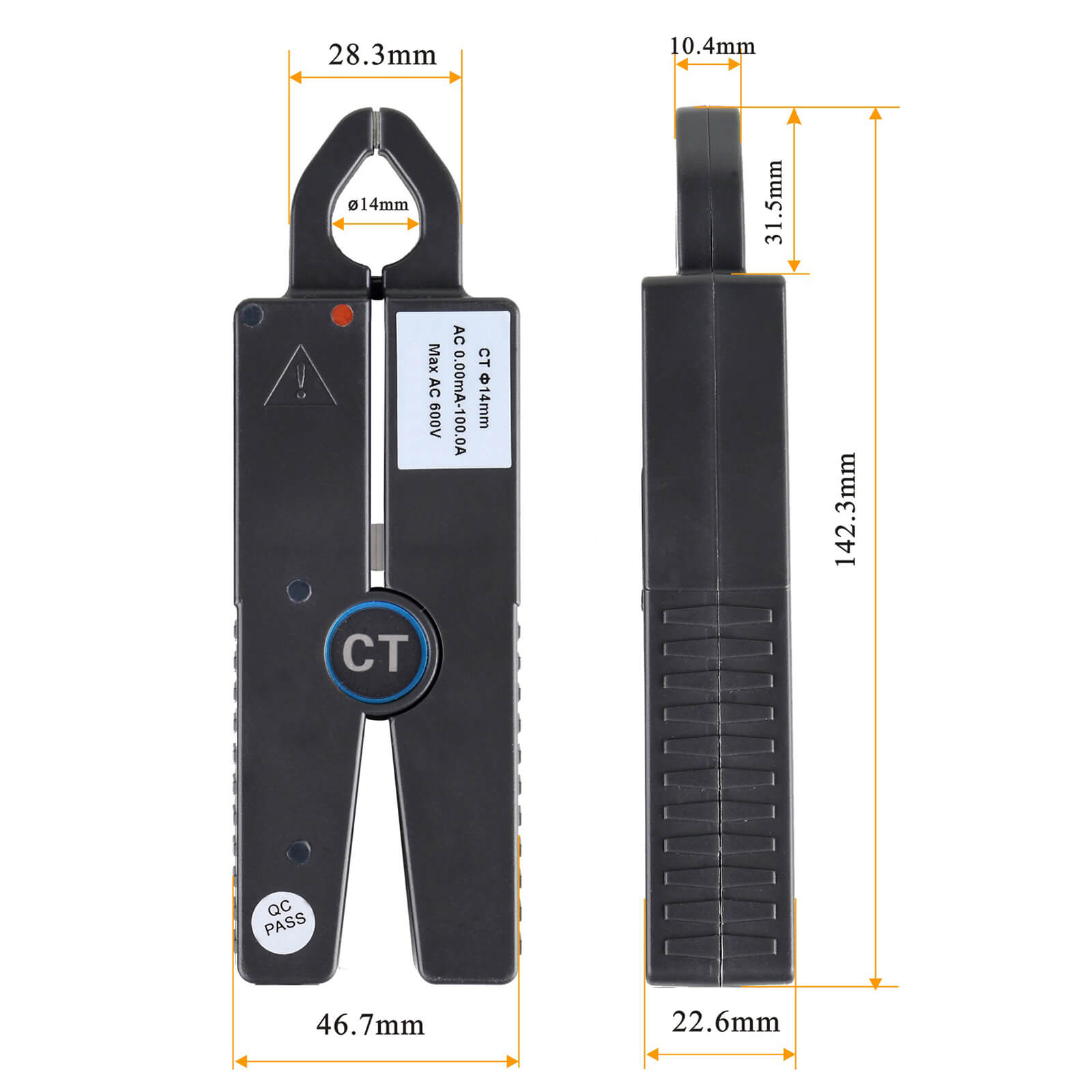

    Ф14mm142mm×46.7mm×22.6mm194g

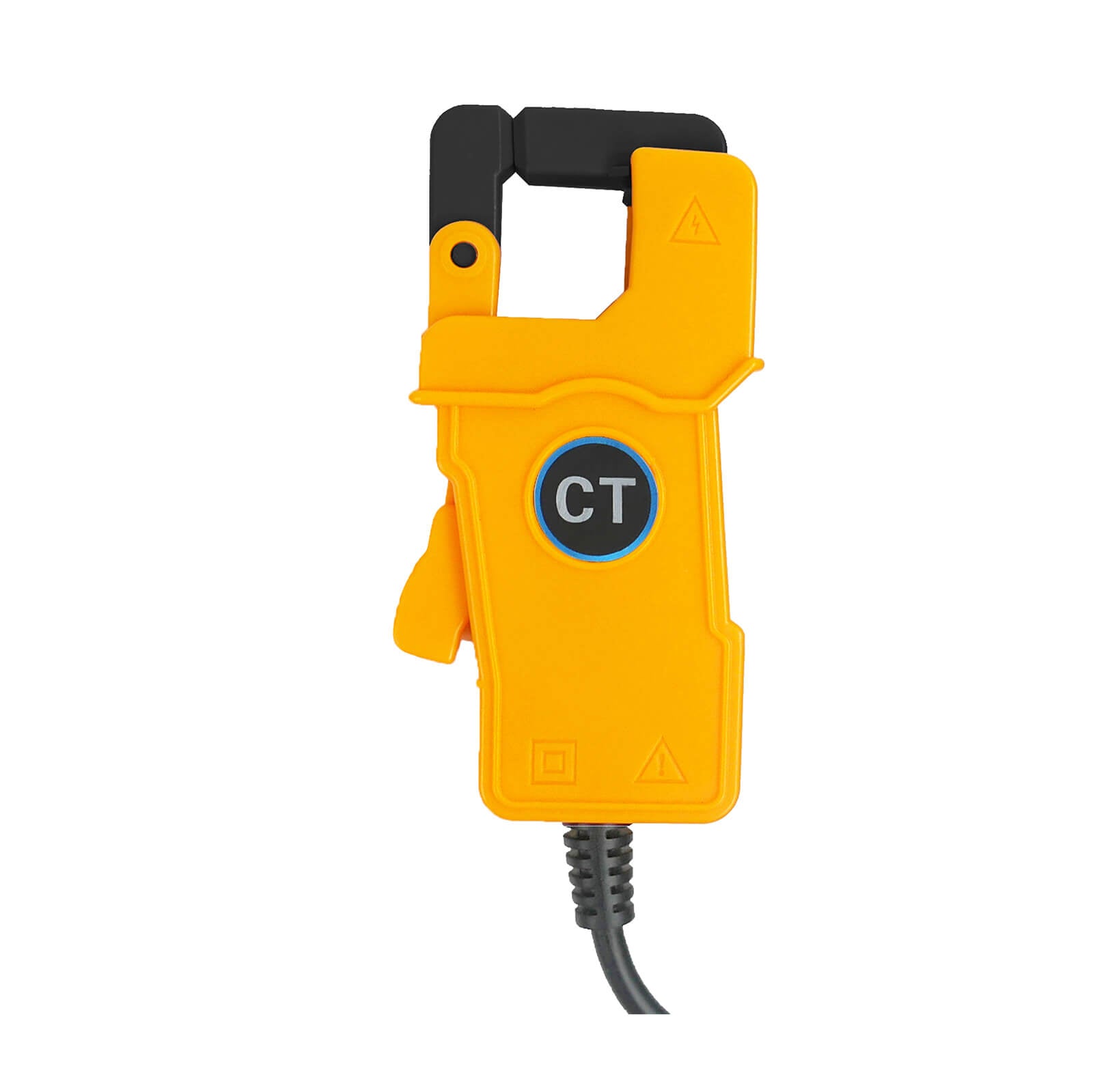

    EITAI015Range: 0.00mA-100A AC
    Resolution: 0.01mA
    Accuracy level: 0.5
    Phase error: ≤2°
    Ratio: 2500:1(Optional)
    Working frequency: 10Hz-100kHz
    0-1A≤300Ω
    0-10A≤30Ω
    0-100A≤3Ω

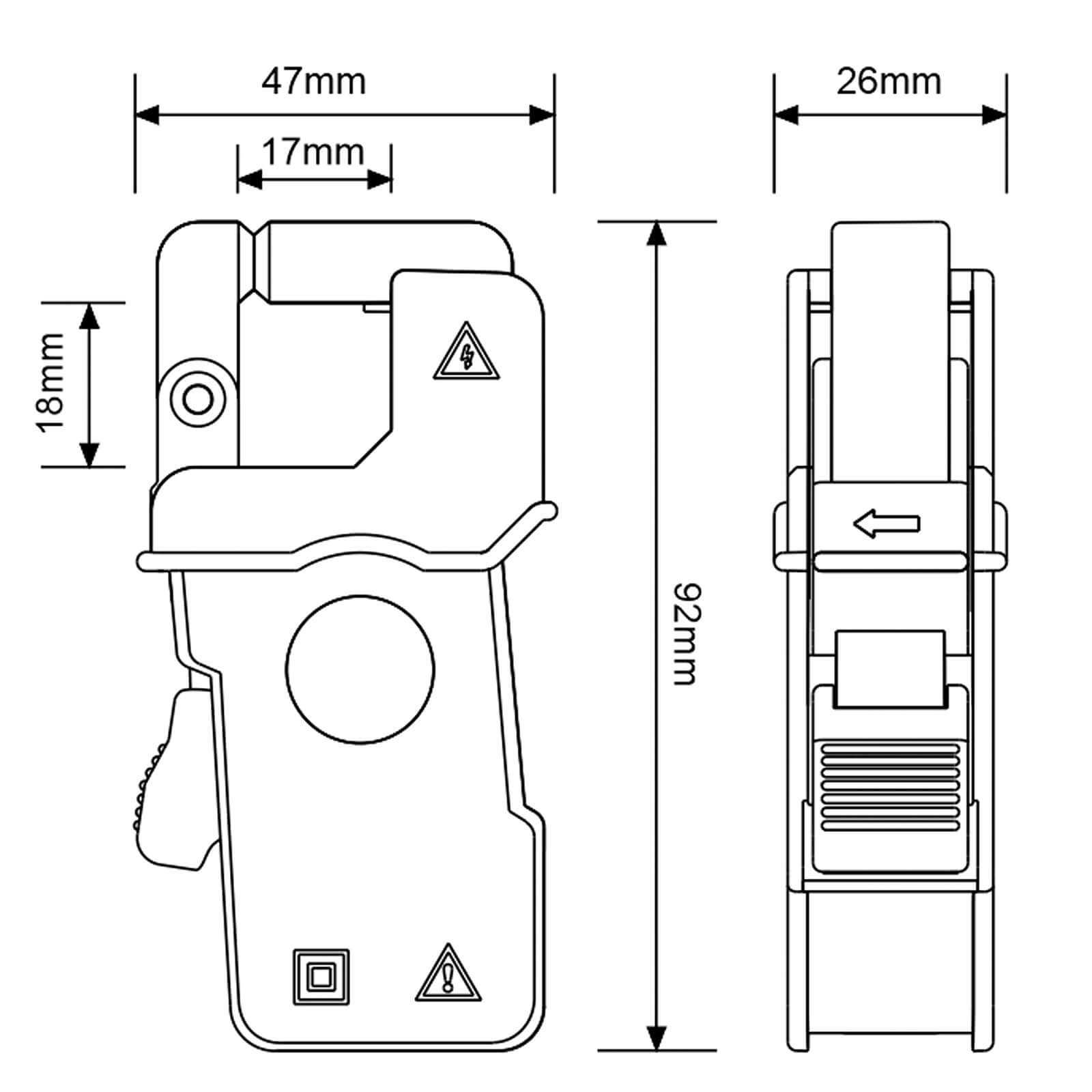

    17mm×18mm47mm×92mm×26mm

    156g
    Current Sensor1 PCS
    Warranty Card / Qualification Certificate1 SET
    Product ModelClamp Jaw SizeCurrent Range
    EITAI008 SeriesΦ8 mm/Φ14 mm/17mm×18mmAC 0.0mA-20A/100A
    EITAI016 SeriesΦ16mm/25mm×30mm/35mm×40mm/Φ68mm/80mm×80mmAC 0.00mA-20A/30A/40A/60A
    EITAI030A Series25mm×30mm/35mm×40mm/Φ68mm/80mm×80mmAC 0mA-300A/500A/800A/1000A
    EITAI050 SeriesΦ50mm/Φ70mmAC 0mA-600A/1000A
    EITAI007AD Series

    Φ7mm/16mm×18mm/25mm×30mm/

    30mm×35mm/Φ68mm

    AC/DC 0mA-100mA/50.0A/1000A/1500A
    EITAI030D25mm×30mmDC 0.1mA-100mA
    EITAI010K SeriesΦ10mm/Φ25mm/Φ25mm/Φ40mm/Φ80mmAC 0.00mA-20A/30A/60A
    EITAI010KD SeriesΦ10mm/Φ25mmDC 0.0mA-100mA
    EITAI022KU SeriesΦ22mm/Φ45mm/80mm×21mm/Φ90mmAC 0uA-10A(Solution: 1uA)
    EITAI082K Series80×26mm/85×20mmAC 0.00mA-60A
    EITAI-FA-FBΦ50mm/Φ100mm/Φ200mm/Φ300mm/Φ500mmAC 0A-6000A
    EITAI002F (with Integral)Φ50mm/Φ100mm/Φ200mmAC 0A-6000A
