EITAI022KU Series Microampere Level Split Core High-precision AC Leakage Current Probe

EITAI022KU Series Microampere Level Split Core High-precision AC Leakage Current Probe

$0.00 $239.00

EITAI022KU Series Microampere Level Split Core High-precision AC Leakage Current Probe

$0.00 $239.00
Model: EITAI045KU(AC 0uA-10A)
Output Interface: Connection Terminal

EITAI022KU Series Microampere Level Split Core Leakage Current Sensor, Performance characteristics of microamp-level open-and-close leakage current transformer series products:

    1. The open-and-close structure does not require power failure and does not need to disconnect the line under test. The installation is fast, safe and reliable, especially suitable for online installation.
    2. It adopts permalloy iron core and double-layer shielding technology, with stable performance and high accuracy, super anti-interference ability, and is suitable for complex interference environments.
    3. The firewire and zero wire can be clamped together at the same time to measure the leakage current of cables and electrical equipment.
    4. Output current signal.
    5. Safety level: CATⅢ600V.
    6. Working temperature: -15°C~50°C.
    7. Customizable output ratio available: Please contact customer service for consultation. (Note: Customized output ratio products require 3-10 working days for production and are not eligible for returns or exchanges.)



    Product ModelMeasurement ParametersReference LoadClamp Jaw SizeDimensionsWeightTerminal Interface

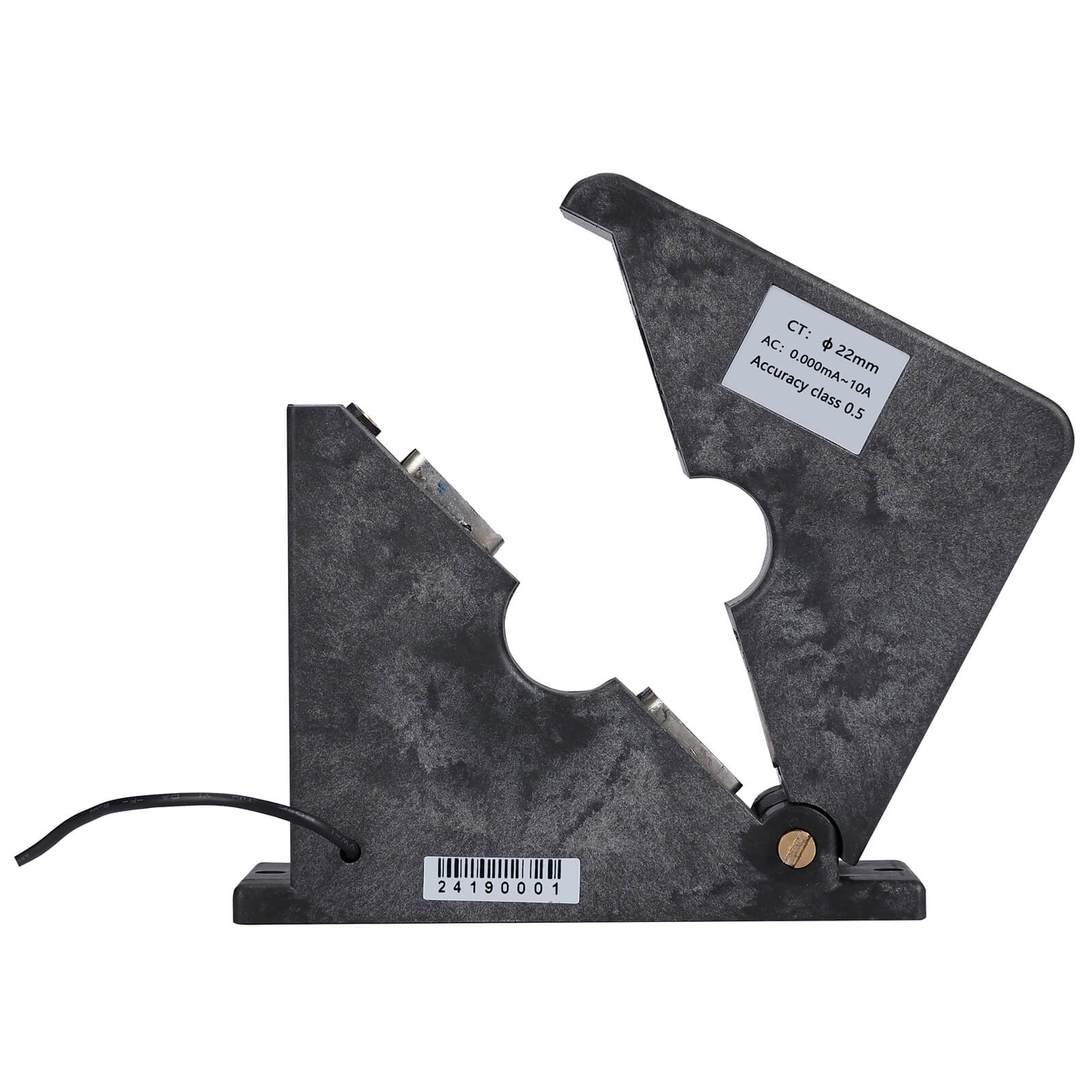

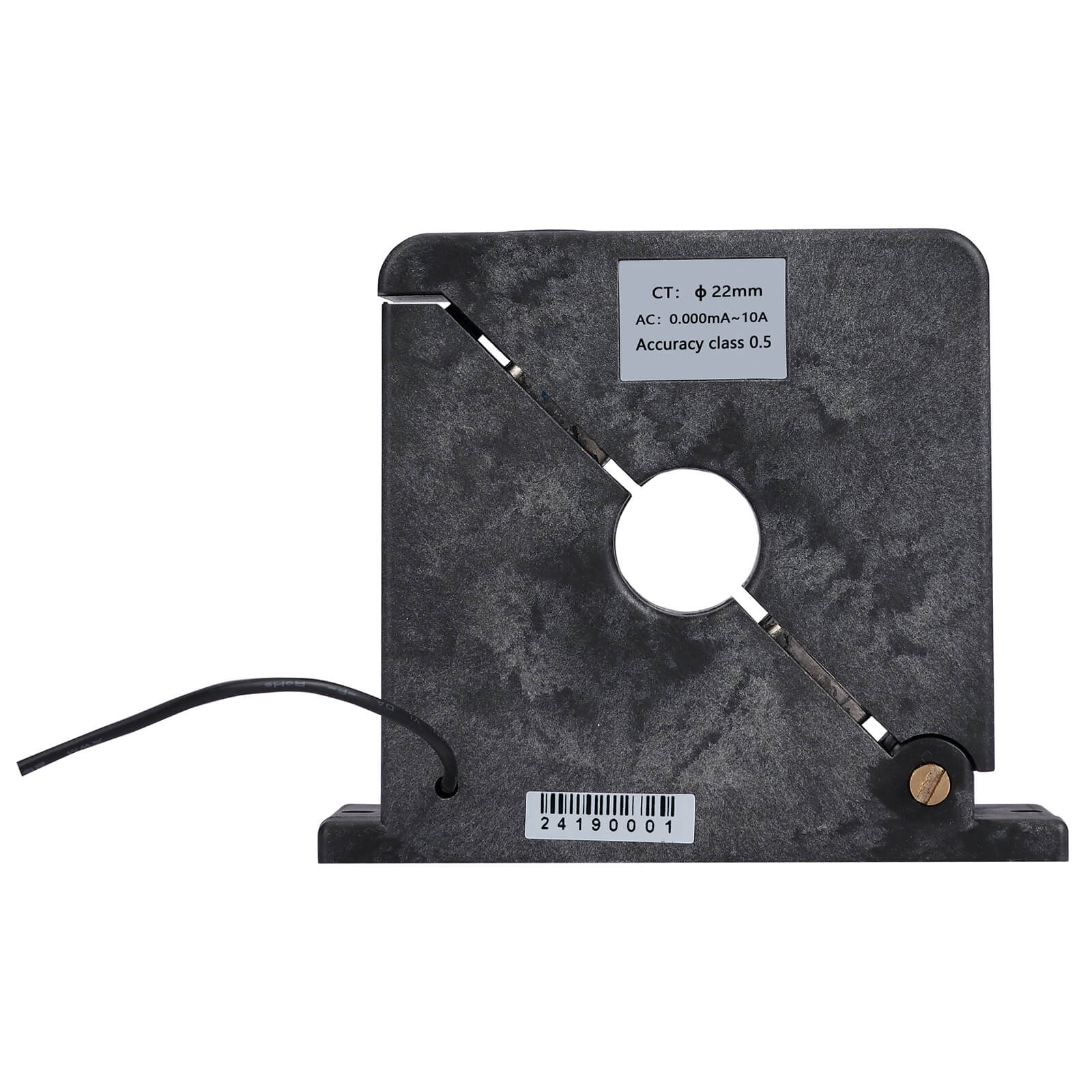

    EITAI020KURange: 0.000mA-10A AC
    Resolution: 1uA
    Accuracy level: 0.5
    Phase error: ≤1°
    Variable ratio: 1000:1(Optional)
    Working frequency: 10Hz-100kHz
    0-100mA≤300Ω
    0-1A≤30Ω
    0-10A≤3Ω

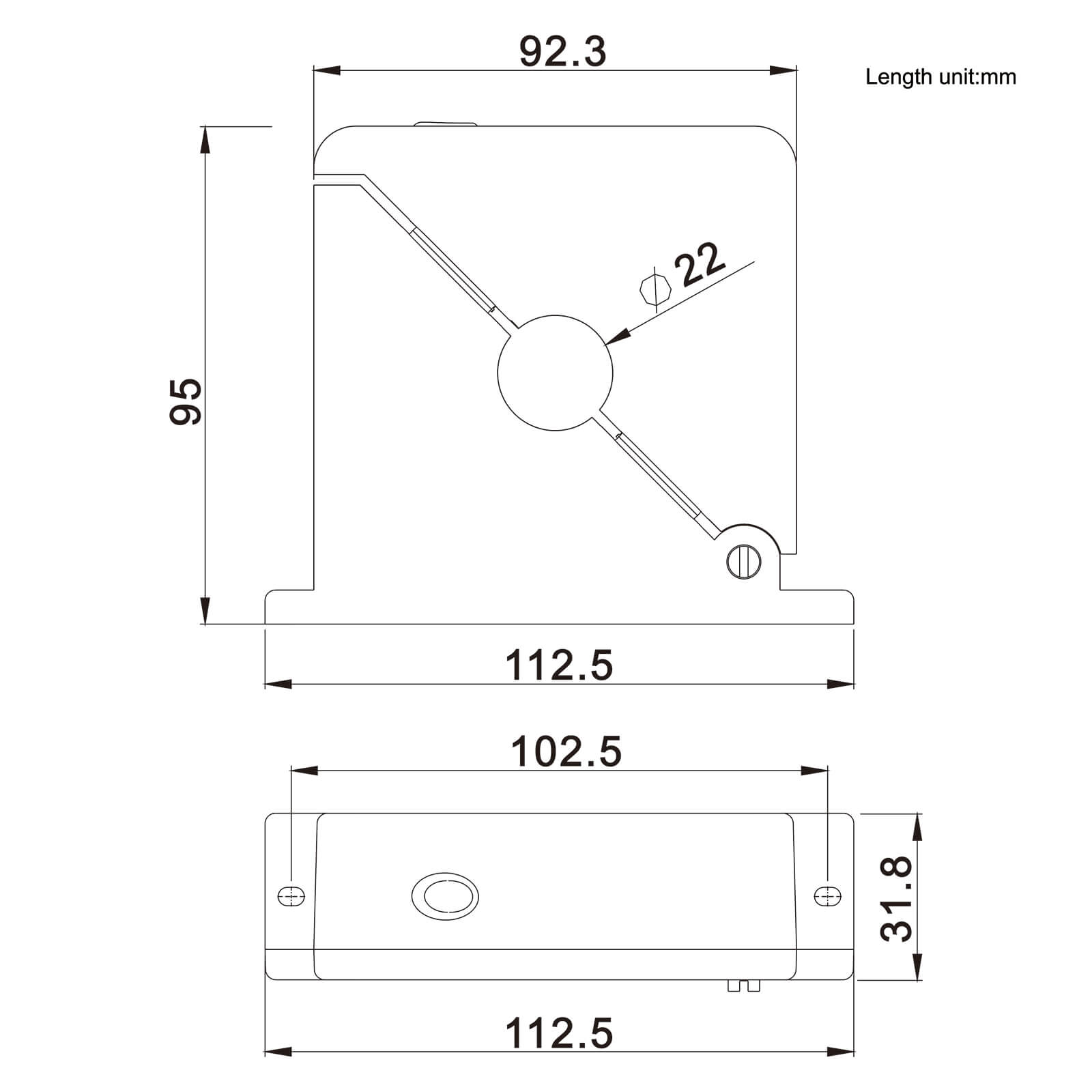

    Ф22mm96mm×94mm×34mm480g2-core shielded wire

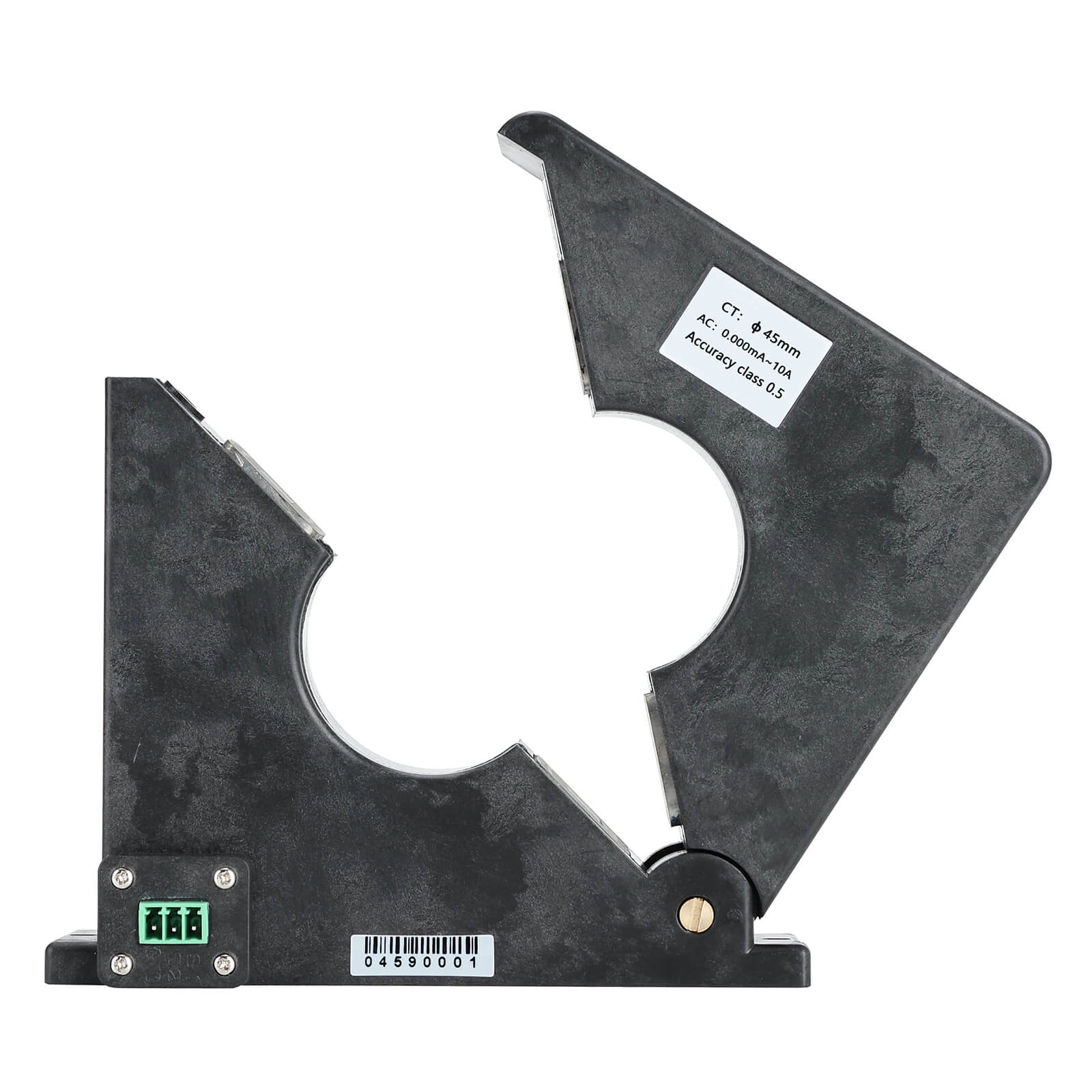

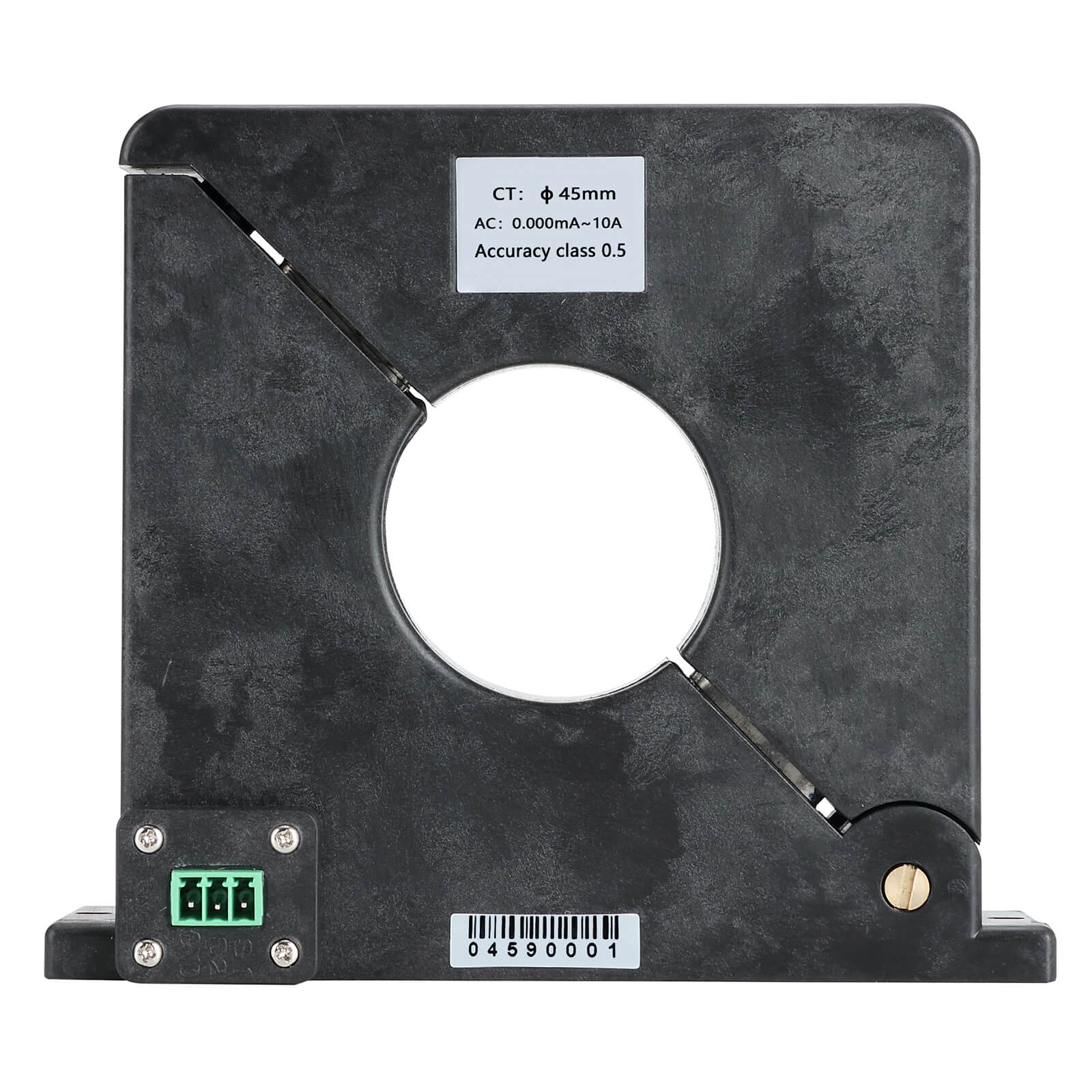

    EITAI045KURange: 0.000mA-10A AC
    Resolution: 1uA
    Accuracy level: 0.5
    Phase error: ≤1°
    Variable ratio: 1000:1(Optional)
    Working frequency: 10Hz-100kHz
    0-100mA≤300Ω
    0-1A≤30Ω
    0-10A≤3Ω

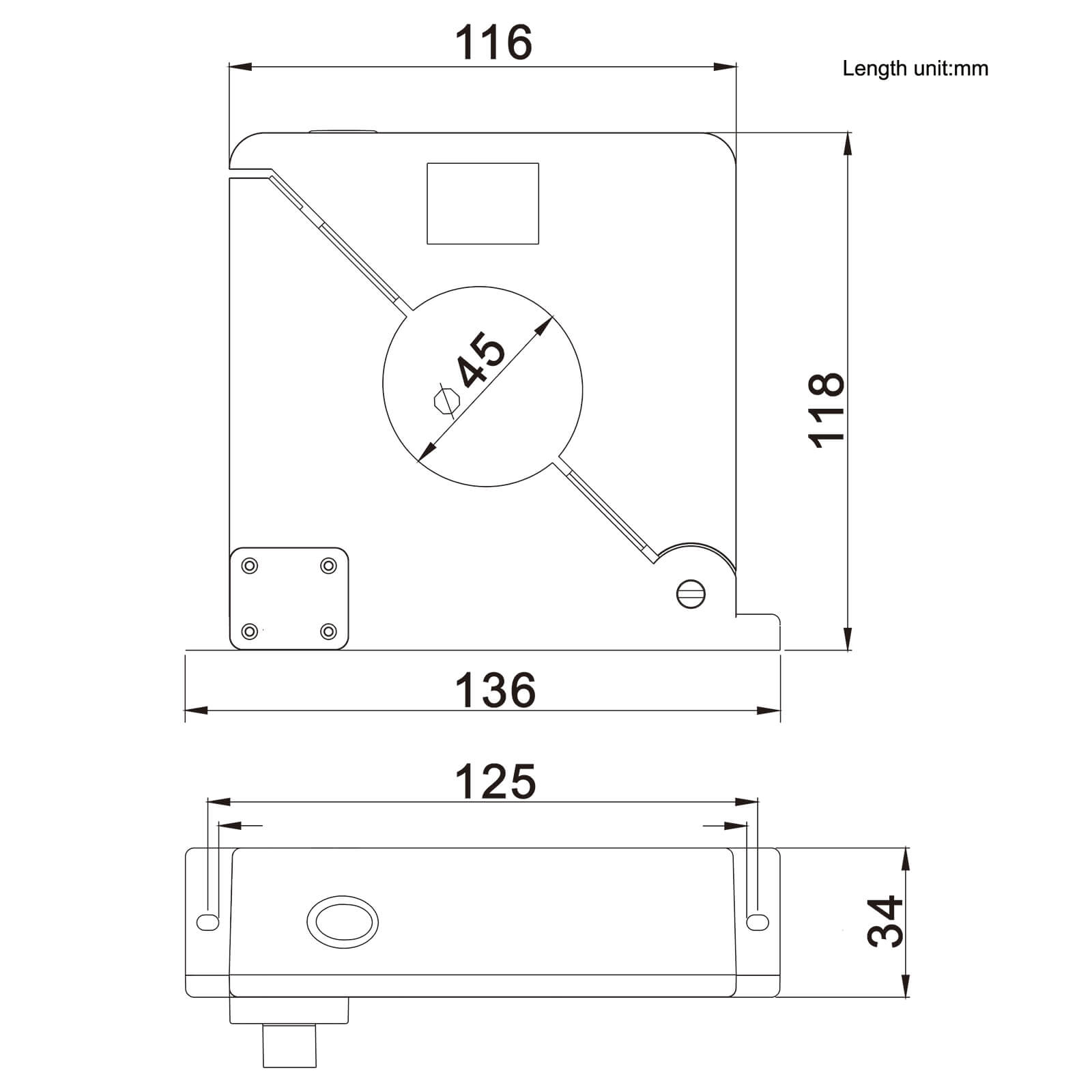

    Ф45mm118mm×116mm×34mm830gconnection terminal(S1,S2 coil tap terminal, GND shielded terminal)

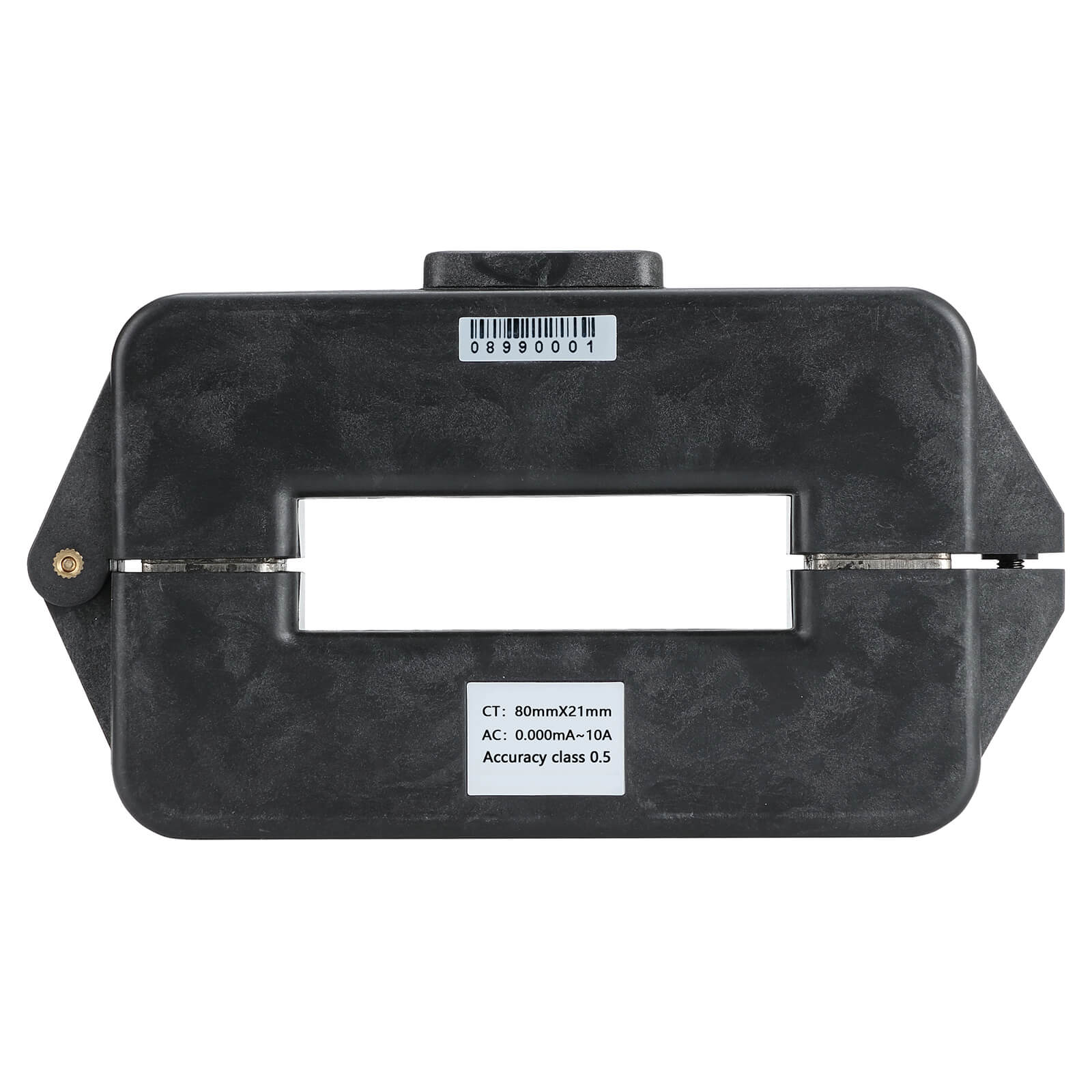

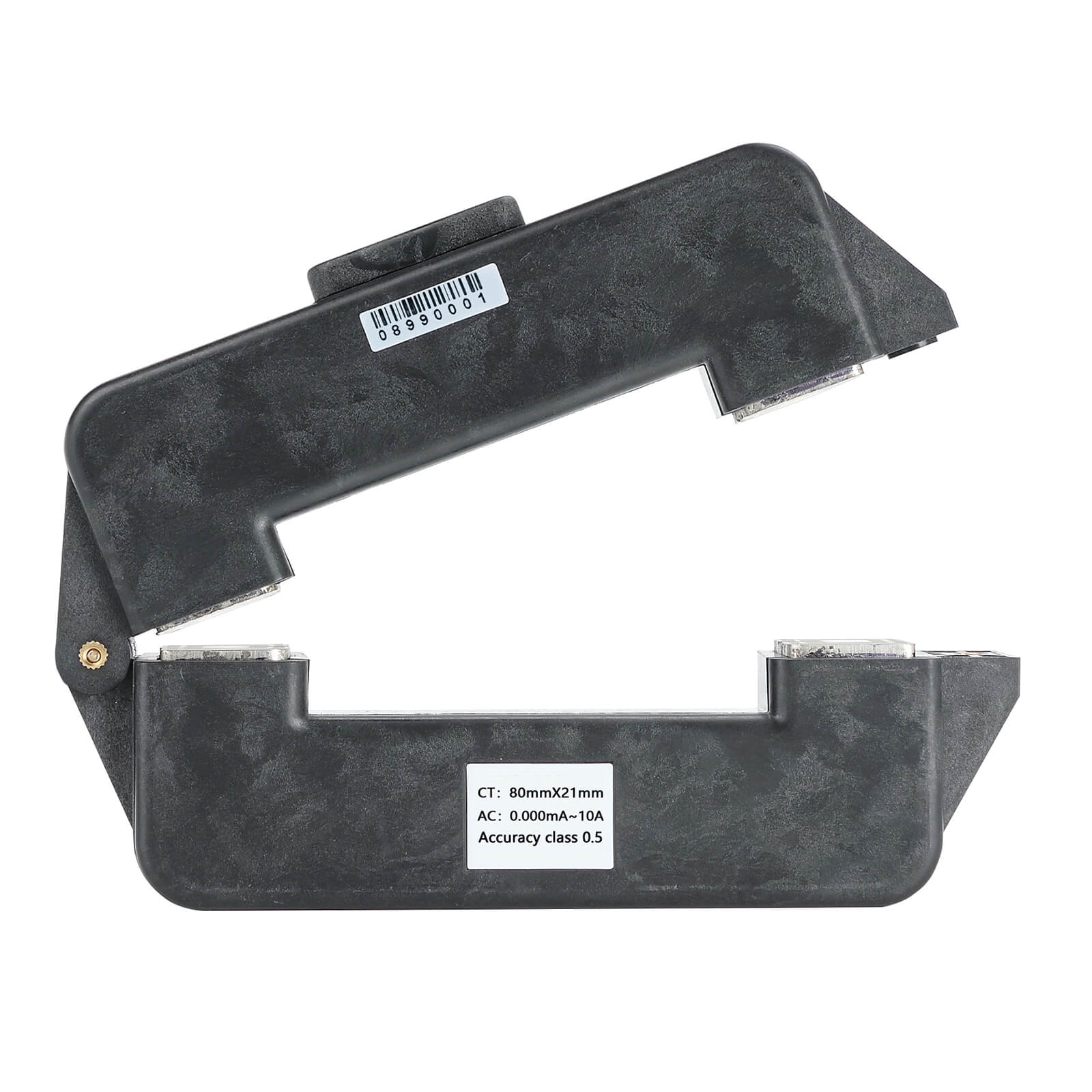

    EITAI080KURange: 0.000mA-10A AC
    Resolution: 1uA
    Accuracy level: 0.5
    Phase error: ≤1°
    Variable ratio: 1000:1(Optional)
    Working frequency: 10Hz-100kHz
    0-100mA≤300Ω
    0-1A≤30Ω
    0-10A≤3Ω

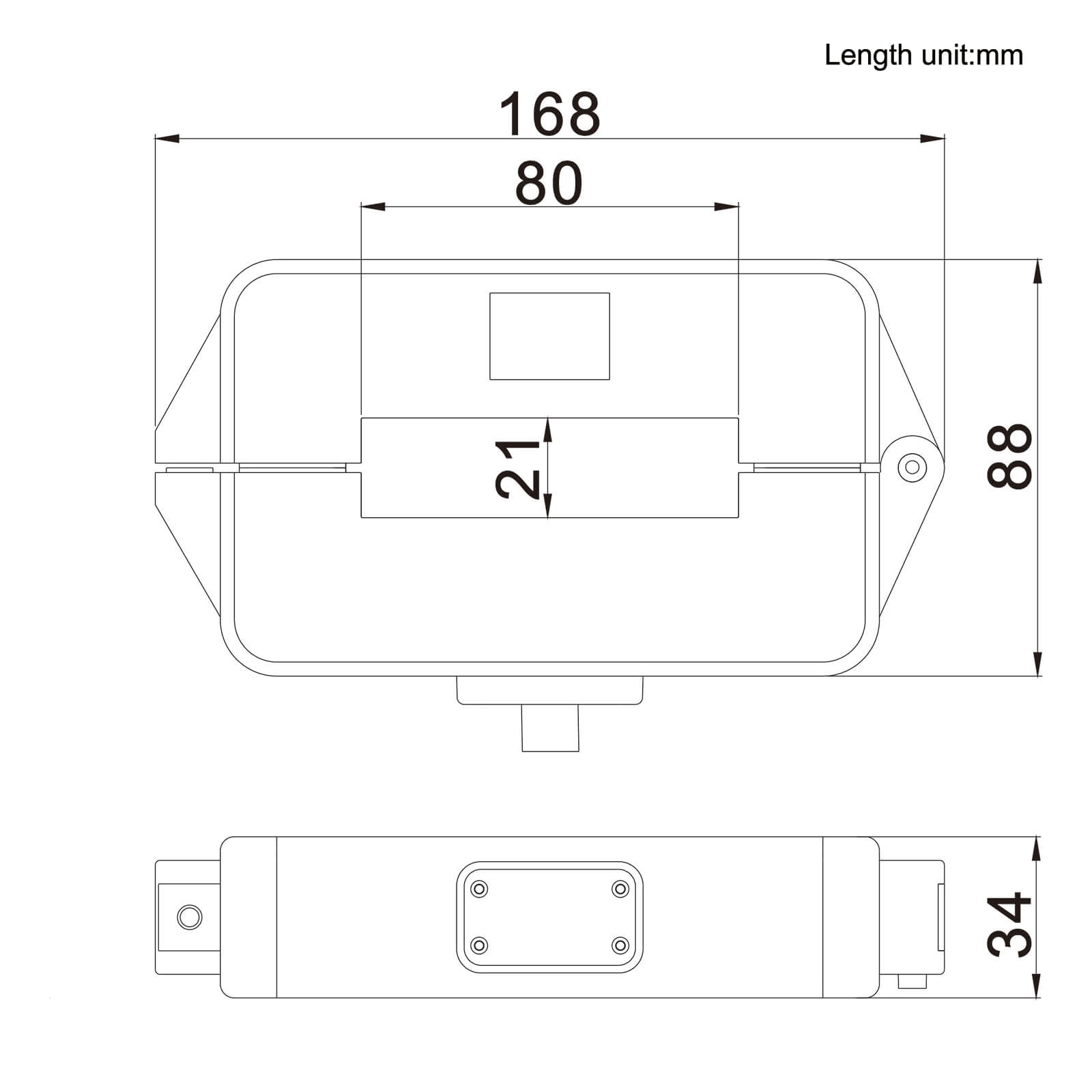

    80mm×20mm165mm×88mm×34mm820gconnection terminal(S1,S2 coil tap terminal, GND shielded terminal)

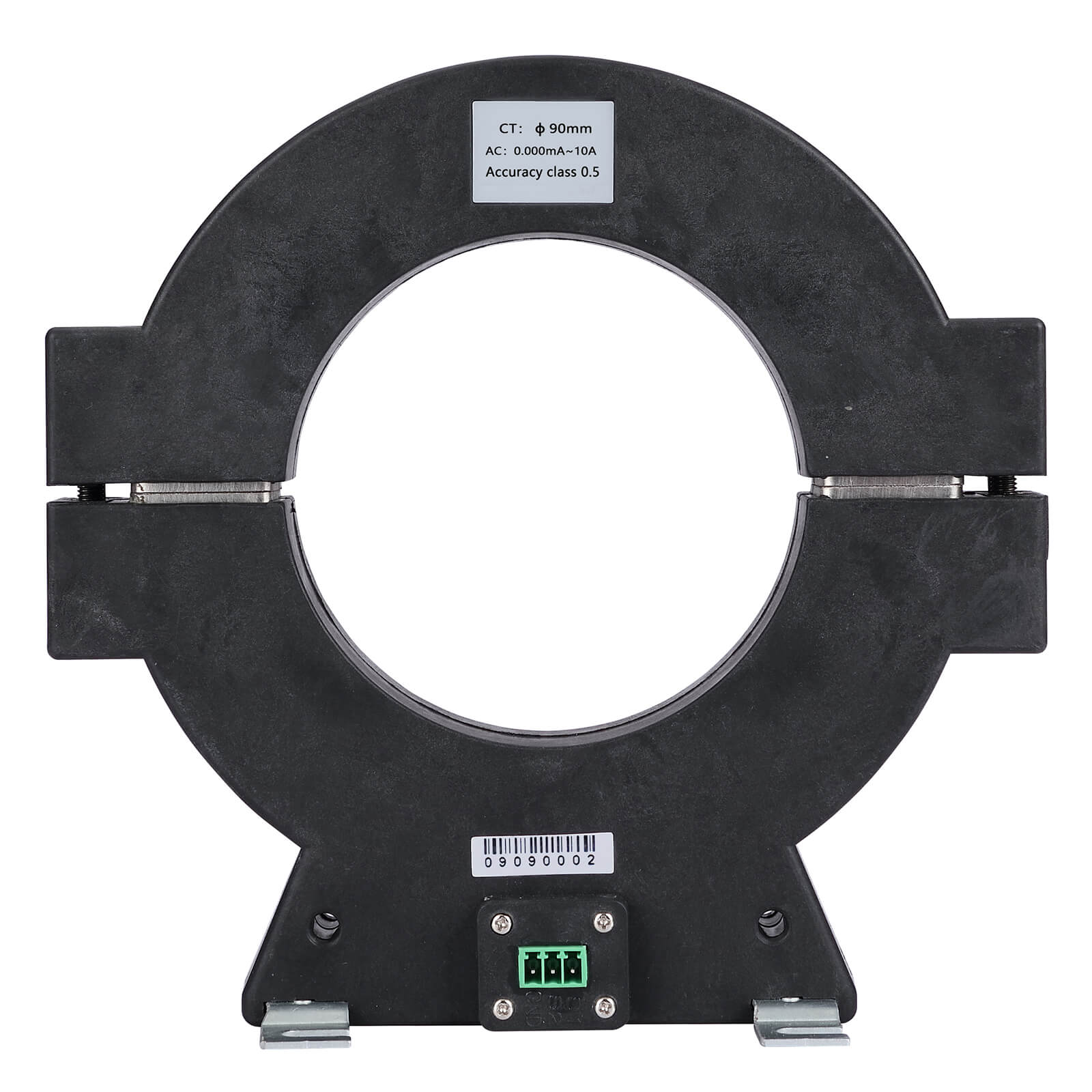

    EITAI090KURange: 0.000mA-10A AC
    Resolution: 1uA
    Accuracy level: 0.5
    Phase error: ≤1°
    Variable ratio: 1000:1(Optional)
    Working frequency: 10Hz-100kHz
    0-100mA≤300Ω
    0-1A≤30Ω
    0-10A≤3Ω

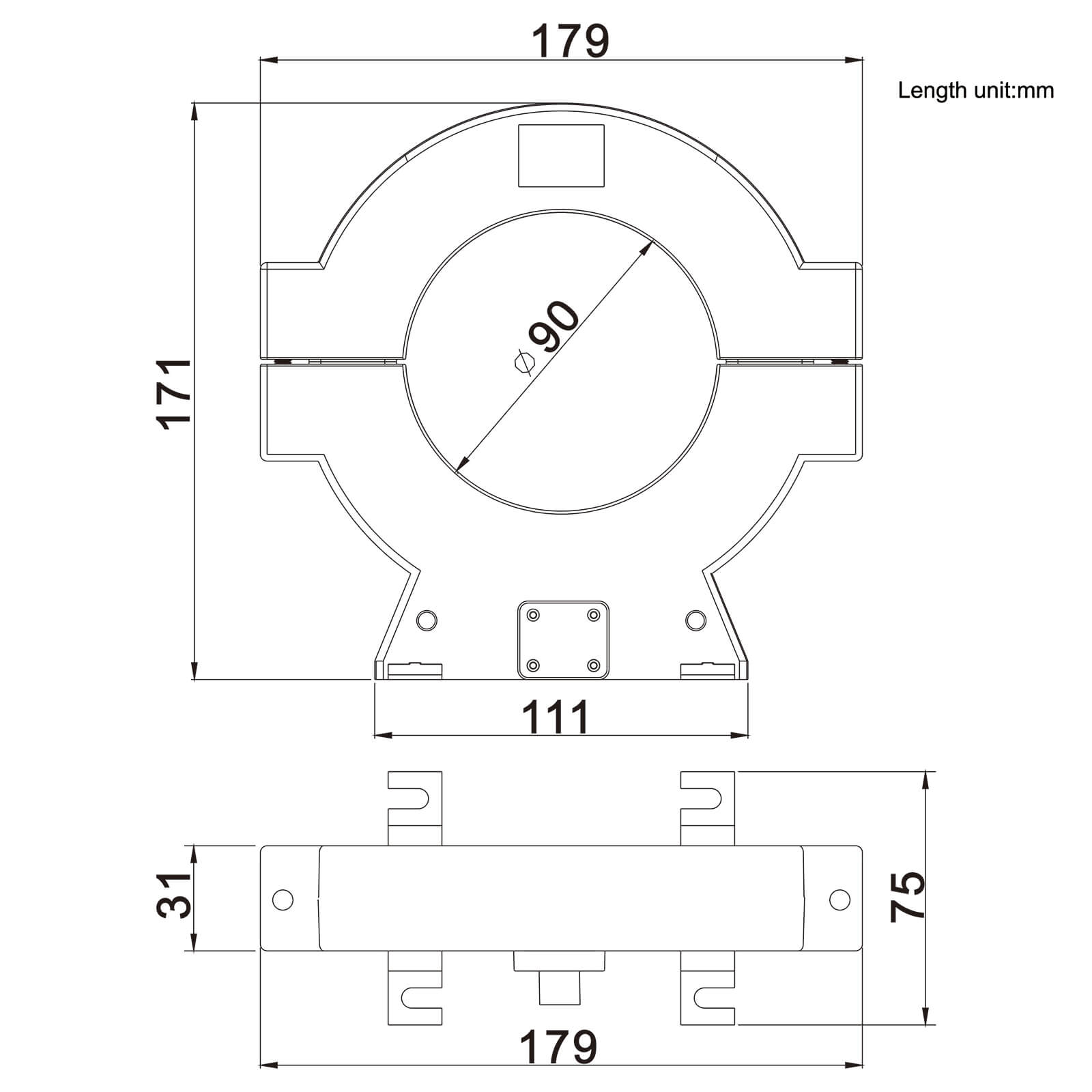

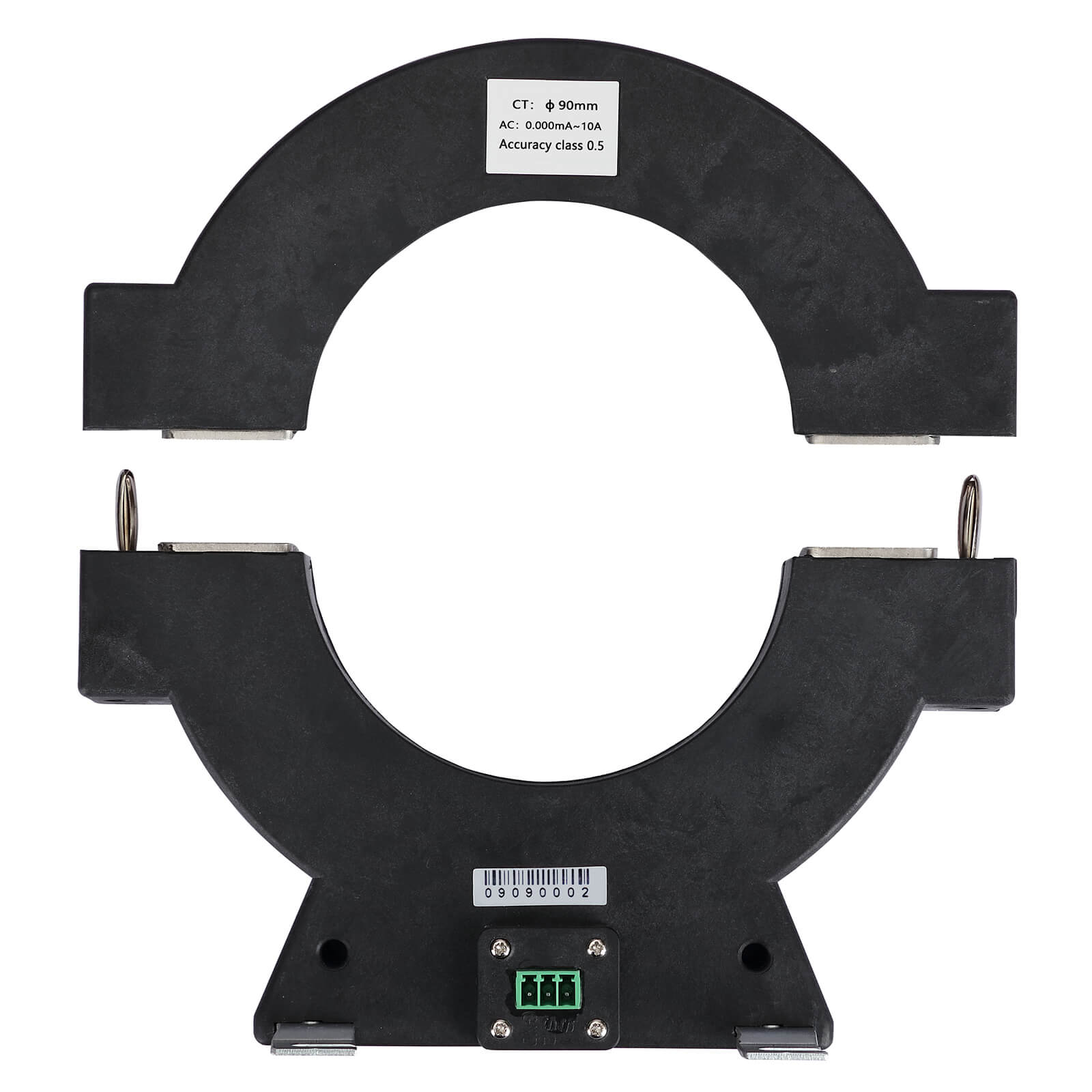

    Ф90mm179mm×171mm×31mm1350gconnection terminal(S1,S2 coil tap terminal, GND shielded terminal)
    Current Sensor1 PCS
    Warranty Card / Qualification Certificate1 SET
    Product ModelClamp Jaw SizeCurrent Range
    EITAI008 SeriesΦ8 mm/Φ14 mm/17mm×18mmAC 0.0mA-20A/100A
    EITAI016 SeriesΦ16mm/25mm×30mm/35mm×40mm/Φ68mm/80mm×80mmAC 0.00mA-20A/30A/40A/60A
    EITAI030A Series25mm×30mm/35mm×40mm/Φ68mm/80mm×80mmAC 0mA-300A/500A/800A/1000A
    EITAI050 SeriesΦ50mm/Φ70mmAC 0mA-600A/1000A
    EITAI007AD Series

    Φ7mm/16mm×18mm/25mm×30mm/

    30mm×35mm/Φ68mm

    AC/DC 0mA-100mA/50.0A/1000A/1500A
    EITAI030D25mm×30mmDC 0.1mA-100mA
    EITAI010K SeriesΦ10mm/Φ25mm/Φ25mm/Φ40mm/Φ80mmAC 0.00mA-20A/30A/60A
    EITAI010KD SeriesΦ10mm/Φ25mmDC 0.0mA-100mA
    EITAI022KU SeriesΦ22mm/Φ45mm/80mm×21mm/Φ90mmAC 0uA-10A(Solution: 1uA)
    EITAI082K Series80×26mm/85×20mmAC 0.00mA-60A
    EITAI-FA-FBΦ50mm/Φ100mm/Φ200mm/Φ300mm/Φ500mmAC 0A-6000A
    EITAI002F (with Integral)Φ50mm/Φ100mm/Φ200mmAC 0A-6000A
