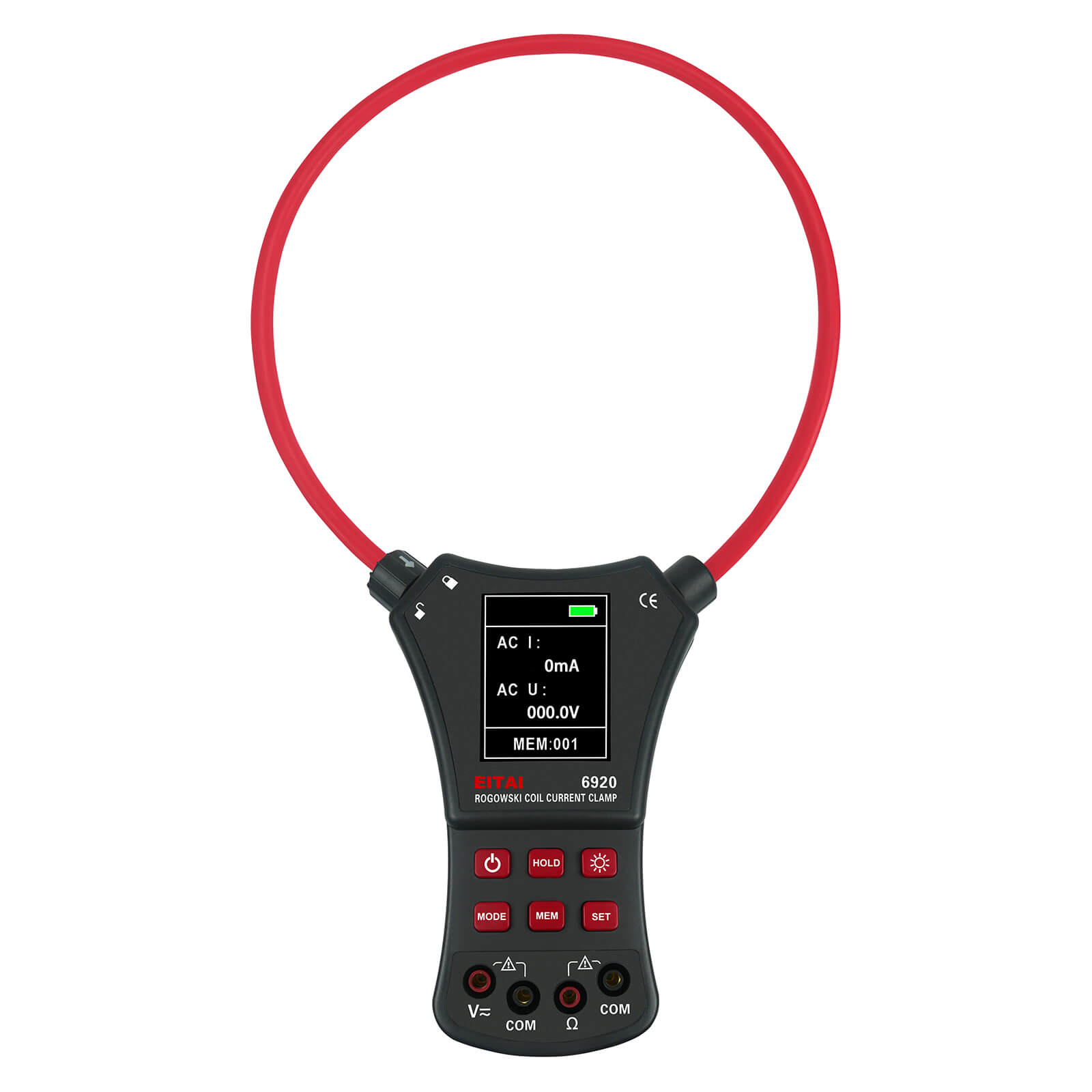

EITAI6920 Series Rogowski Flexible Coil Large Current Clamp Meter

EITAI6920 Series Rogowski Flexible Coil Large Current Clamp Meter

$0.00 $125.00

EITAI6920 Series Rogowski Flexible Coil Large Current Clamp Meter

$0.00 $125.00
Model: EITAI6920(Φ7.9"/200mm)

Overview

  • EITAI6920 Series Rogowski Flexible Coil Large Current Clamp Meter has the following features:
  1. Flexible coil without any exposed metal conductor, non-contact measurement, safe and reliable. Small size, light weight, soft and flexible, suitable for narrow environment and cable densely places, as well as measuring conductor current of large size or irregular shape.
  2. Flexible coil inside diameter is φ200mm/φ300mm, customized size according to user requirements.
  3. Display multiple measurement parameters on same screen, easy to operate.
  4. Can be used as the normal multimeter.
  5. With USB port, can upload the stored data to computer via the software, convenient to view, store and print the data.

Measurement Range & Error

Measurement ParameterMeasurement RangeMax. SolutionBasic Error
CurrentAC 0mA-10000A1mA±2%rdg±5dgt
DC VoltageDC 0.0V-1000.0V0.1V±1.5%rdg±5dgt
AC VoltageAC 0.0V-750.0V0.1V±1.5%rdg±3dgt
Resistance0.000kΩ-2.000kΩ±2%rdg±5dgt





Basic Specifications

Power Supply6V DC(LR03×4 sections Alkaline dry battery)
Display Mode2.8 inch TFT true-color LCD Screen; display area: 58mm×44mm
Clamp Jaw SizeEITAI6920: Φ7.9"/200mm, EITAI6920B: Φ11.8"/300mm
Flexible Coil DiameterΦ0.3"/7.5mm
Wire PositionThe measured wire is in the center position of the clamp.
Memory600 groups
Communication InterfaceCan realize uploading stored data to the computer for easy data analysis.
Communication  LineLength 1.8m
Frequency50Hz/60Hz Automatic identification
Shift GearFully automatic shift
Sampling Rate2 times/second
BacklightYes, Press “*” key to control
Data HoldData hold function: “HOLD”symbol display
Overflow DisplayExceed measure range overflow function: “OL”symbol display
Automatic Shutdown10 Minutes after power on, the meter shut down automatically without any operation to reduce battery consumption
Battery VoltageWhile battery voltage decrease to about 4.8V,low battery voltage symbol display, and remind to replace the battery.
Meter Size300mm×470mm×35mm
WeightMeter: about 272g, total weight: about 755g(include battery & accessory)
Working CurrentBacklight on: 80mA; Backlight off: 40mA
Insulation LengthAC 3700V/rms(between the core and outside shell)
Suitable Safety StandardIEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V)
Working Temperature & Humidity-10℃-40℃; below 80%RH
Storage Temperature & Humidity-10℃-60℃; below 70%RH

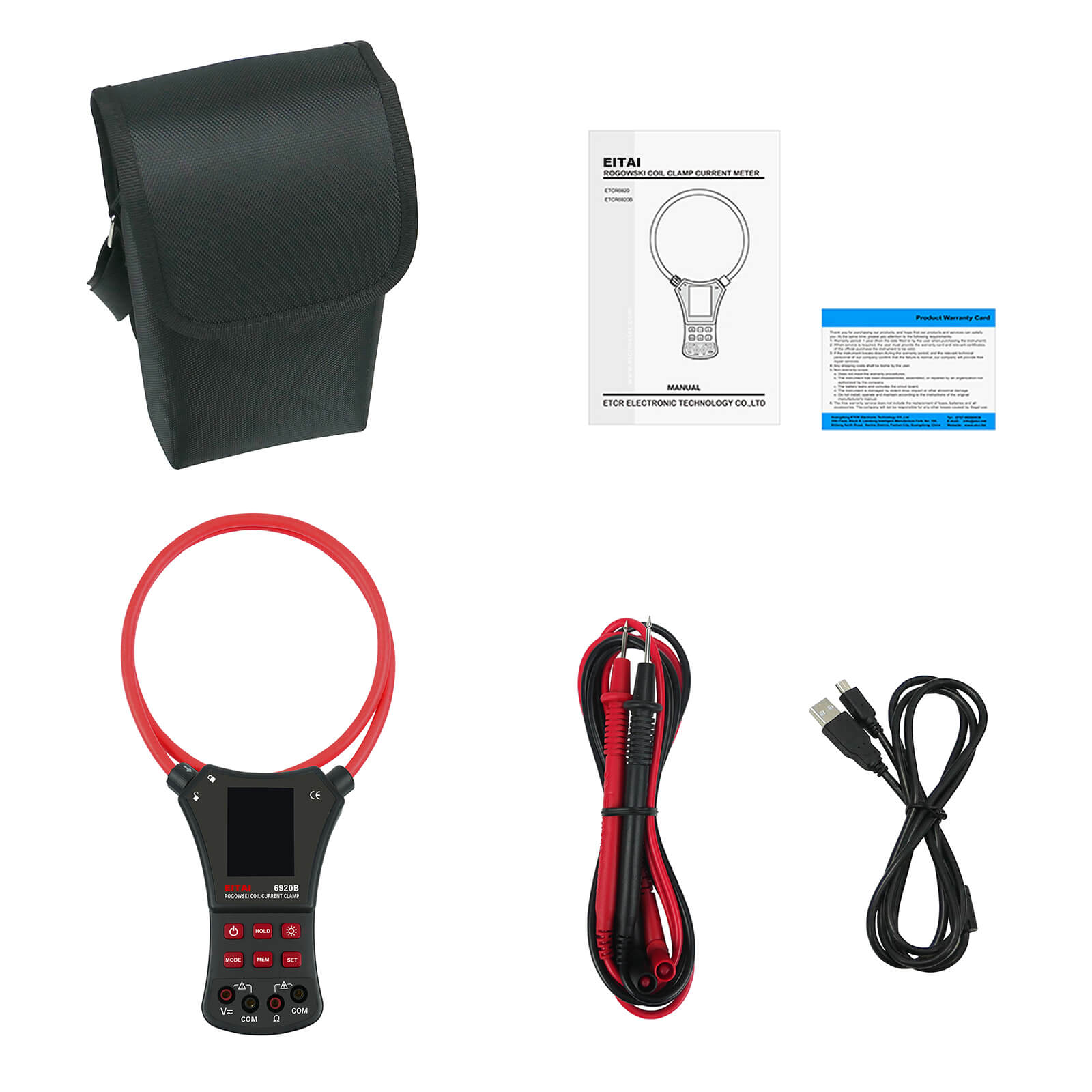

Clamp Meter

1 PCS

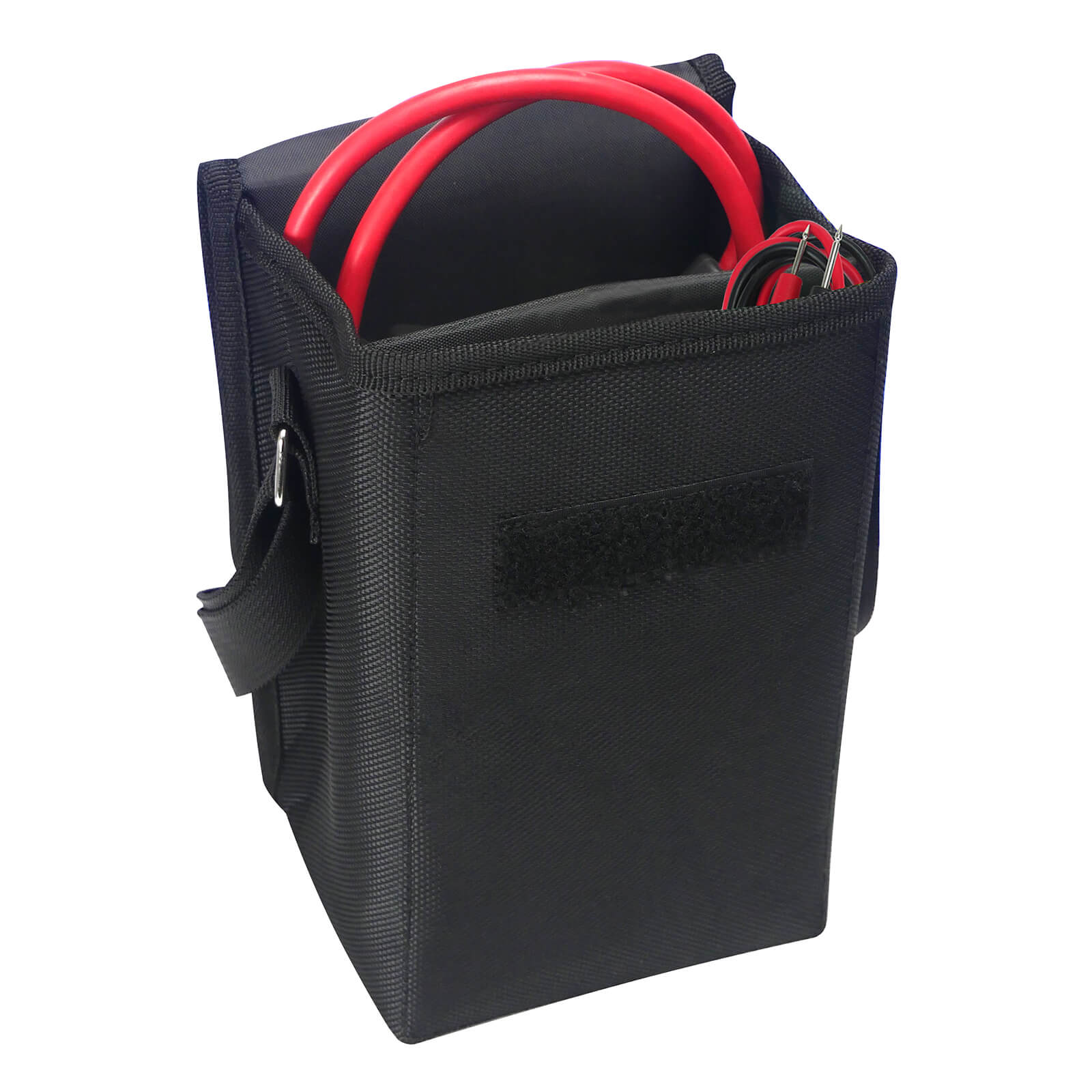

Tool bag

1 PCS

Probe test line2 PCS(red, black each 1pcs)
Communication Cable

1 PCS

Warranty Card / Qualification Certificate

1 SET

User Manual

1 PCS

Product ModelClamp Jaw SizeRangeSolutionCommunication  MethodOthers
EITAI6000Φ7mmAC/DC 0mA-60.0AAC/DC 1mAUSB
EITAI6000B16mm×18mmAC/DC 0mA-60.0AAC/DC 1mAUSB
EITAI630025mm×30 mmAC 0.000mA-60.0AAC 1uAUSB
EITAI6540Φ40mmAC 0.00mA-300AAC 10uA--
EITAI6640Φ40mmAC 0.00mA-300AAC 0.01mABluetoothTrue vitrual value
Harmonics
Flashlight
EITAI6670Φ70mmAC 0.00mA-1200AAC 0.01mABluetoothTrue vitrual value
Harmonics
Flashlight
EITAI668080mm×80mmAC 0.00mA-2000AAC 0.01mABluetoothTrue vitrual value
Harmonics
Flashlight
EITAI6670DΦ70mm

AC 0.0A-1500A

DC 0.0A-2000A

AC/DC 0.1ABluetoothTrue Virtual Value
Harmonic
Flashlight
EITAI6680D80mm×80mm

AC 0.0A-1500A

DC 0.0A-2000A

AC/DC 0.1ABluetoothTrue Virtual Value
Harmonic
Flashlight
EITAI6900Φ200mmAC 0.00A-9999AAC 10mA----
EITAI6920Φ200mm

AC 0mA-10000A

AC 0.1V-750V

DC 0.1V-1000V

0Ω-2kΩ

AC 1mA

AC 0.1V

DC 0.1V

USBSwitching Test

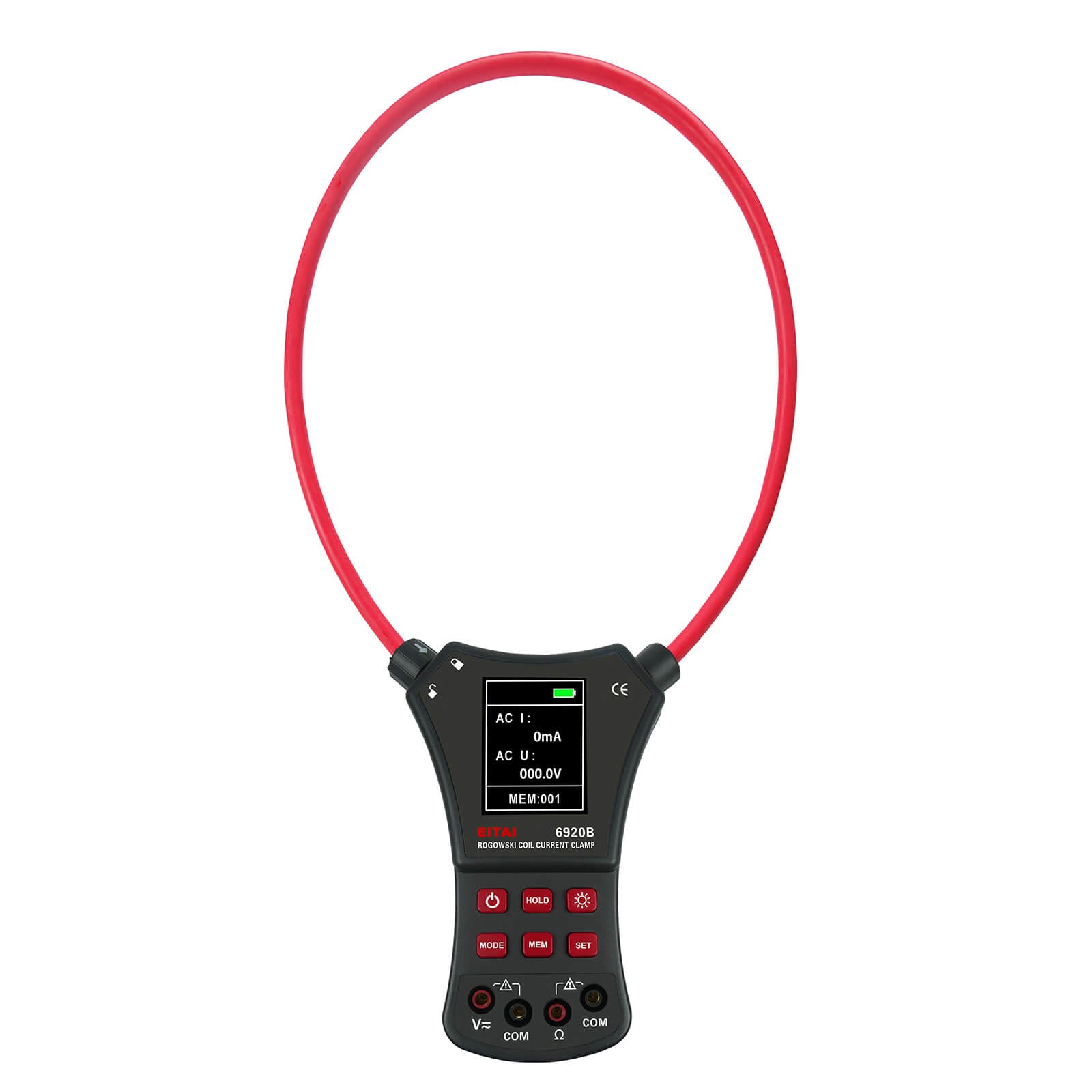

EITAI6920BΦ300mm

AC 0mA-10000A

AC 0.1V-750V

DC 0.1V-1000V

0Ω-2kΩ

AC 1mA

AC 0.1V

DC 0.1V

USBSwitching Test
