EITAI6300 High Accuracy Leakage Current Clamp Meter

$89.00
$0.00
$89.00
Subtotal: $89.00

Free Shipping

Free standard shipping on orders over $99

Deliver in 3-10 business days

Free Returns

30-Day No-Hassle Returns

2-Year Warranty

Safe & Secure Checkout.

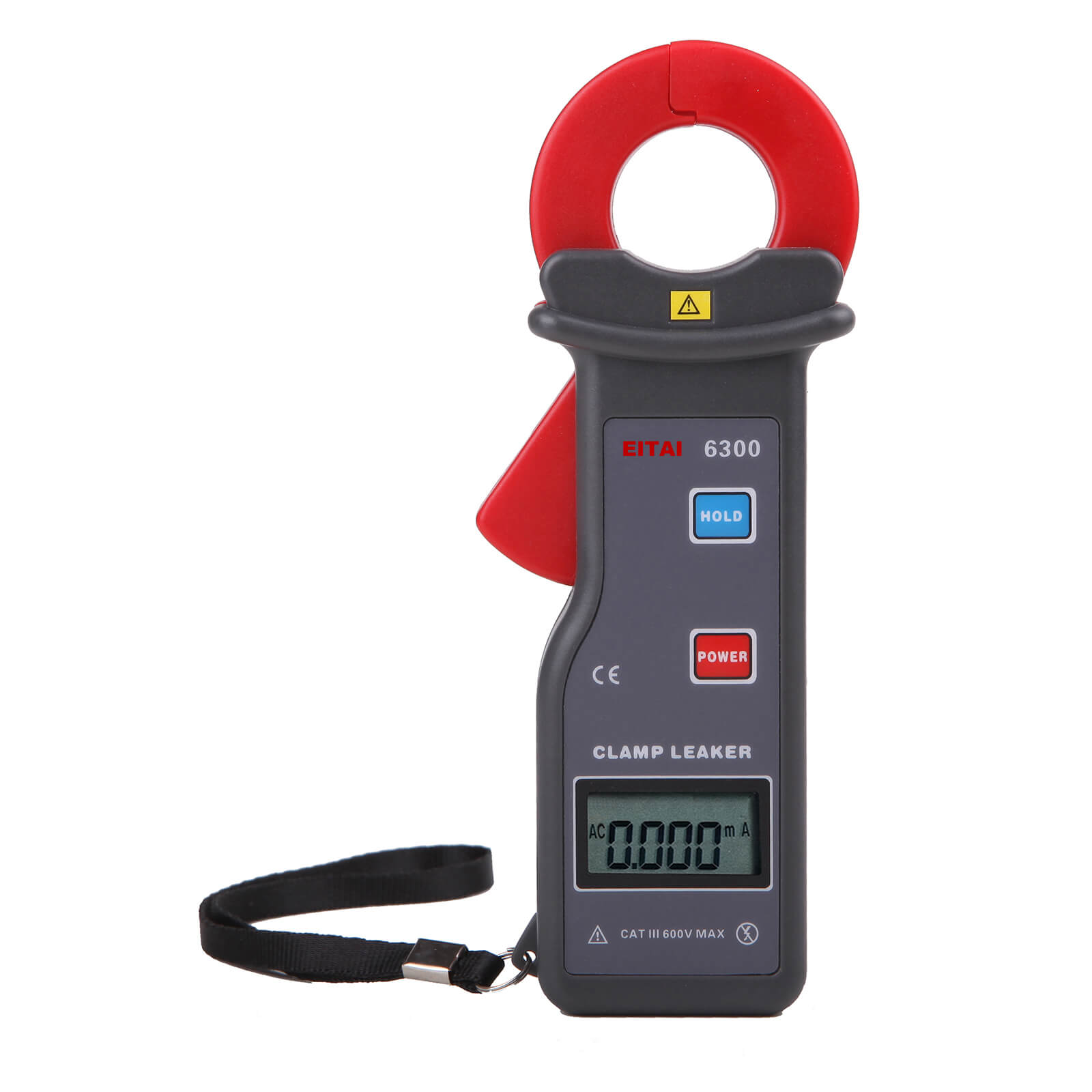

EITAI6300 High Accuracy Leakage Current Clamp Meter

EITAI6300 High Accuracy Leakage Current Clamp Meter

$0.00 $89.00

EITAI6300 High Accuracy Leakage Current Clamp Meter

$0.00 $89.00

EITAI6300 High Accuracy Leakage Current Clamp Meter with peak hold, data hold, data storage and other functions. The meter equipped with USB communication function, it can be monitored in real-time online on the PC through USB interface and upper computer software, dynamically displaying maximum, minimum, and average values. It also has alarm value setting and indication function, as well as functions such as historical data reading, saving, and analysis.

  1. The clamp meter has small volume, easy to carry, making it an essential tool for electrical safety testing.
  2. Double-layer shielding technology, high accuracy, strong anti-interference ability and 1uA solution.
  3. Peak hold function.
  4. Memory function.
  5. USB communication function.

EITAI6300 High Precision Leakage Current Clamp Meter, also known as clamp type leakage current tester, high accuracy clamp type current meter, which is used for Measurement of AC leakage current, AC current. The iron core of meter adopts slope film alloy technology and double-layer shielding technology, almost unaffected by the external magnetic field, ensuring high precision, high stability and high reliability of uninterrupted measurement all year, which is widely used in fields of electricity, communication, meteorology, railway, oil field, construction, metrology, scientific research and teaching unit, industrial and mining enterprise, etc.

Power SupplyAlkaline dry battery 6LR61 9V
Display Mode4 digits LCD display
LCD Size35mm×21.5mm; display area: 32mm×15mm
Current Measurement Range0.000mA~60.00A
Solution1uA
Measurement Accuracy±1.5%rdg±5dgt
Clamp Jaw Size25mm(0.98'')×30mm(1.18'')
Meter Size175mm×70mm×38mm
Weight210g(include battery)
Test ModeClamp CT, integration method
Sampling Modeabout 2 times/second
Frequency50Hz, 60Hz Automatic identification
Shift GearFully automatic shift
Line VoltageLine measurement below DC 600V
Memory99 groups, flicker to display ”FULL” symbol indicate storage full
Peak HoldPeak capture and hold function, long press HOLD key and not release can display peak value in measurement.
Data HoldData hold function: “DH”symbol display
Overflow DisplayExceed measure range overflow function: “OL”symbol display
Communication InterfaceUSB interface
Auto Shut Down5 Minutes after power on, the meter shut down automatically without any operation to reduce battery consumption
Battery VoltageWhile battery voltage decrease to about 2.8V,low battery voltage symbol display, and remind to replace the battery.
Working Current5mA
Insulating StrengthAC2kV/rms(between the core and outside shell)
Suitable Safety StandardIEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V)
Working Temperature & Humidity0℃-40℃; below 80%RH
Storage Temperature & Humidity-10℃-60℃; below 70%RH

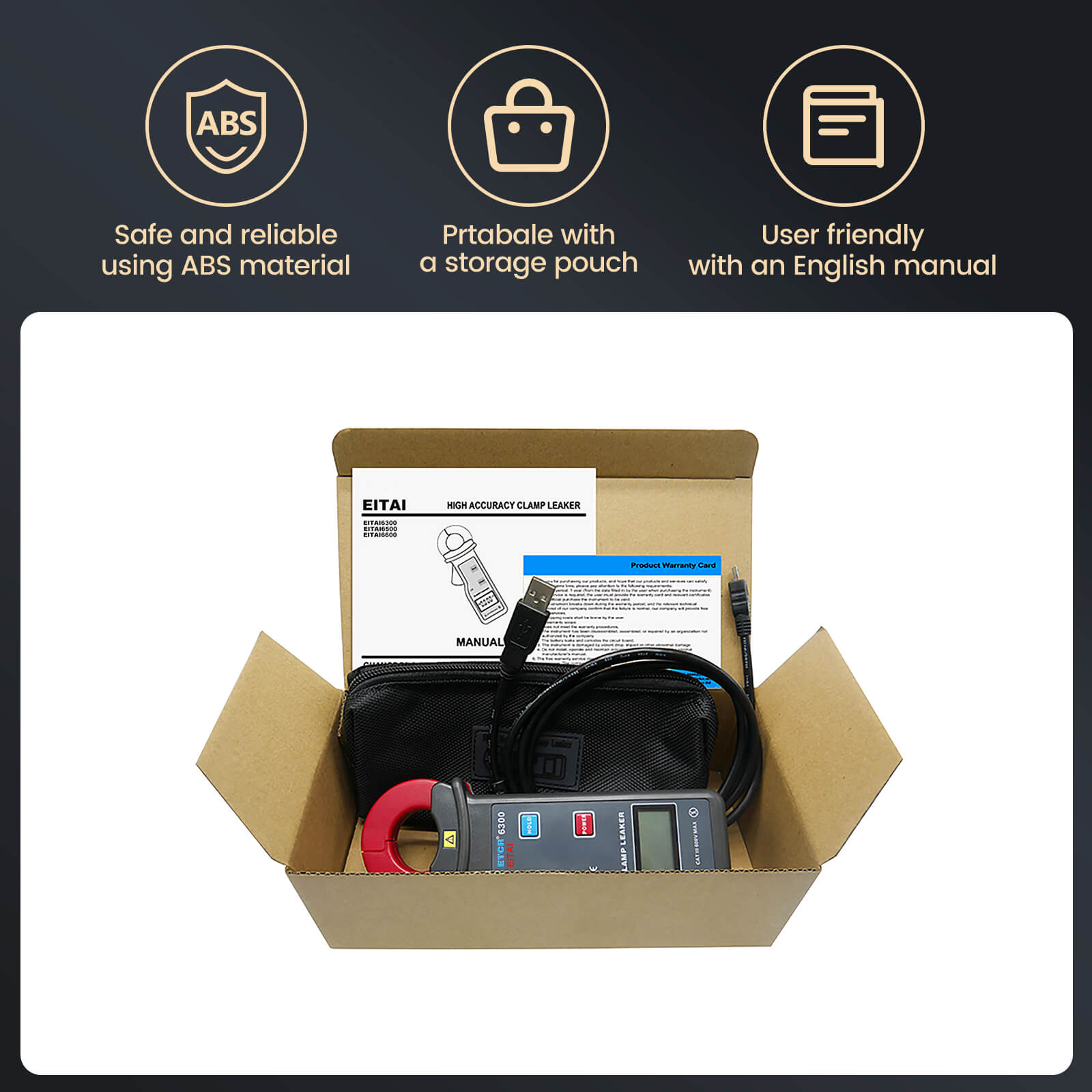

Clamp Meter

1 PCS

Tool bag

1 PCS

Data Software

1 PCS

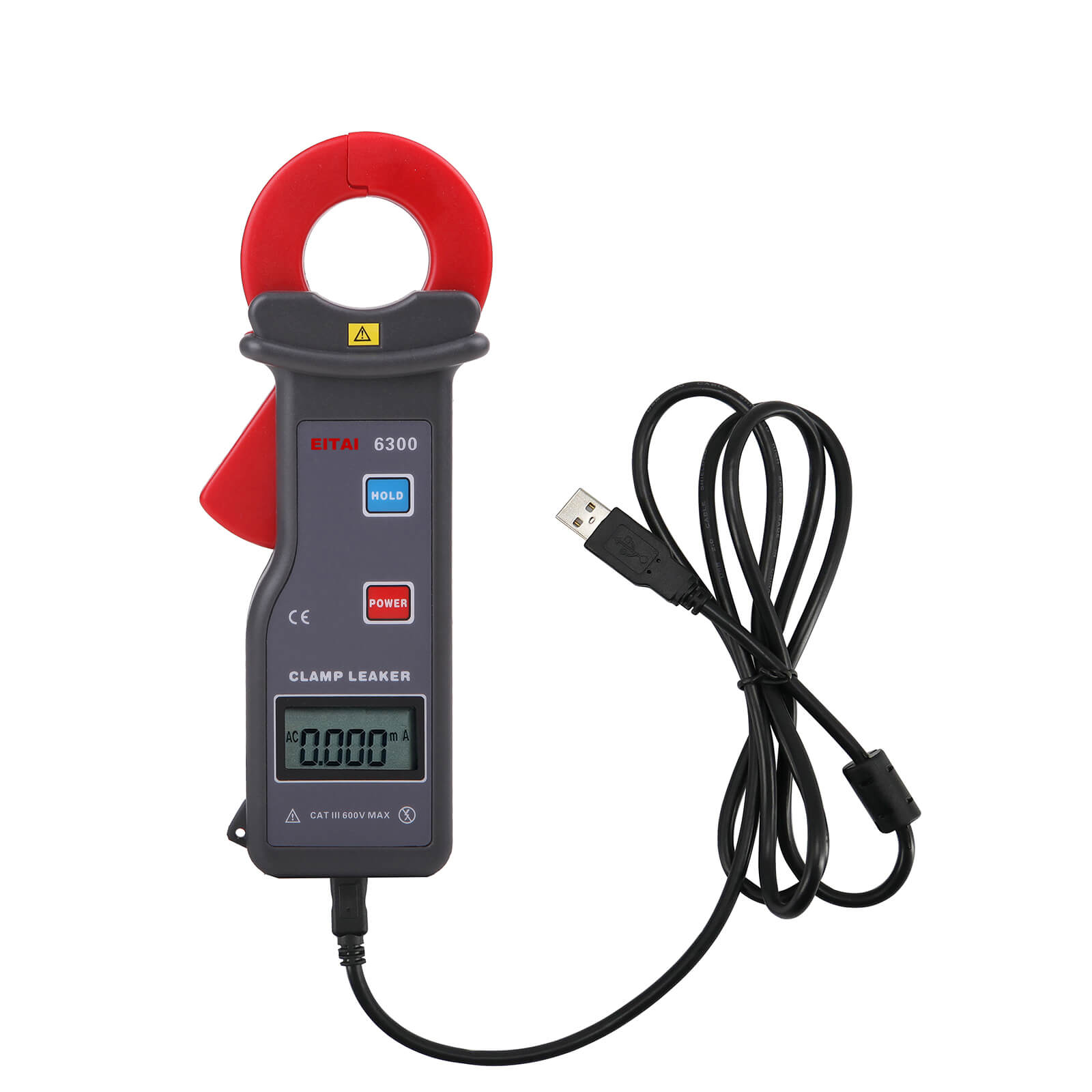

USB communication cable

1 PCS

Warranty Card / Qualification Certificate

1 SET

User Manual

1 PCS

Product ModelClamp Jaw SizeRangeSolutionCommunication  MethodOthers
EITAI6000Φ7mmAC/DC 0mA-60.0AAC/DC 1mAUSB
EITAI6000B16mm×18mmAC/DC 0mA-60.0AAC/DC 1mAUSB
EITAI630025mm×30 mmAC 0.000mA-60.0AAC 1uAUSB
EITAI6540Φ40mmAC 0.00mA-300AAC 10uA--
EITAI6640Φ40mmAC 0.00mA-300AAC 0.01mABluetoothTrue vitrual value
Harmonics
Flashlight
EITAI6670Φ70mmAC 0.00mA-1200AAC 0.01mABluetoothTrue vitrual value
Harmonics
Flashlight
EITAI668080mm×80mmAC 0.00mA-2000AAC 0.01mABluetoothTrue vitrual value
Harmonics
Flashlight
EITAI6670DΦ70mm

AC 0.0A-1500A

DC 0.0A-2000A

AC/DC 0.1ABluetoothTrue Virtual Value
Harmonic
Flashlight
EITAI6680D80mm×80mm

AC 0.0A-1500A

DC 0.0A-2000A

AC/DC 0.1ABluetoothTrue Virtual Value
Harmonic
Flashlight
EITAI6900Φ200mmAC 0.00A-9999AAC 10mA----
EITAI6920Φ200mm

AC 0mA-10000A

AC 0.1V-750V

DC 0.1V-1000V

0Ω-2kΩ

AC 1mA

AC 0.1V

DC 0.1V

USBSwitching Test
EITAI6920BΦ300mm

AC 0mA-10000A

AC 0.1V-750V

DC 0.1V-1000V

0Ω-2kΩ

AC 1mA

AC 0.1V

DC 0.1V

USBSwitching Test
