EITAI6900 Rogowski Flexible Coil Large Current Clamp Meter

EITAI6900 Rogowski Flexible Coil Large Current Clamp Meter

$0.00 $72.00

EITAI6900 Rogowski Flexible Coil Large Current Clamp Meter

$0.00 $72.00

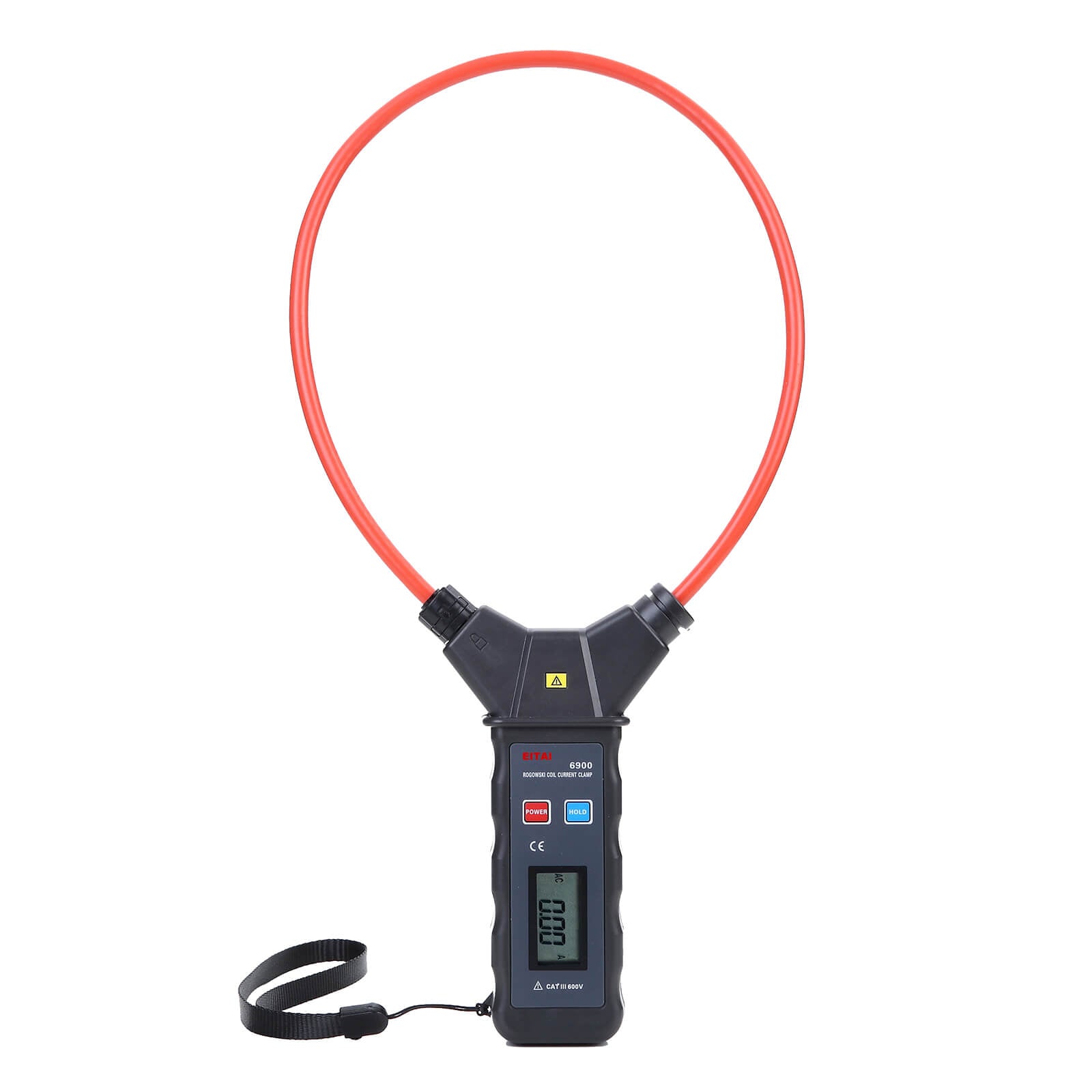

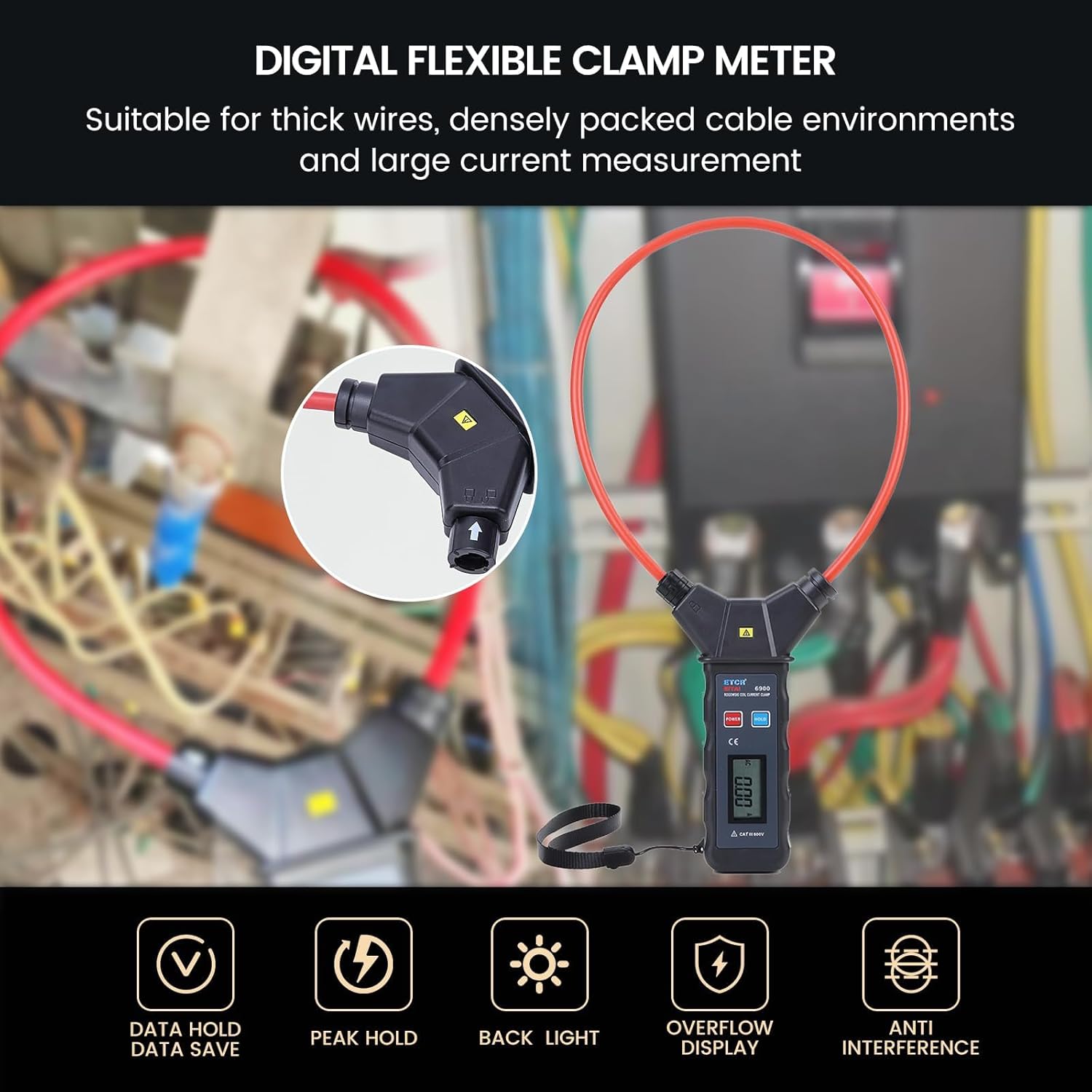

EITAI6900 Rogowski Flexible Coil Large Current Clamp Meter is designed and manufactured for field testing of AC large current. Widely used in electric power, communications, meteorology, railway, oil field, construction, measurement, scientific research and teaching units, industrial and mining enterprises and other fields. Especially suitable for the flat cable dense place, current test of transformer grounding core, thick wire and cable, relay protection, silicon-controlled rectifier, frequency conversion speed regulation, semiconductor switch, power electronic conversion equipment, arc welding and other industrial environment with serious signal distortion.

  1. The clamp meter has small volume, easy to carry, making it an essential tool for electrical safety testing.
  2. Flexible structure, suitable for measuring thick wires, large current measurement, range up to 9999A AC.
  3. Peak hold function.
  4. Memory function.
  5. Date Hold function.













  • Flexible current clamp sensor is a loop coil uniformly wound on non-ferromagnetic materials, with no hysteresis effect, almost zero phase error, no magnetic saturation, high linearity and strong anti-interference ability. The output signal is the differential of the current with respect to time. By integrating the output voltage signal, the input current can be truly restored. The measured current ranges from milliamperes up to ten thousand of amperes. Flexible coil without any exposed metal conductor, non-contact measurement, safe and reliable. Small size, light weight, soft and flexible, suitable for narrow environment and flat cable dense places. High measurement accuracy, strong reliability, wide response frequency band, the user can customize the coil length according to demand.
  • The meter has the functions of peak hold, data hold and data storage etc., convenient to use, which is an essential tool for electrical safety inspection.



Power SupplyZn-Mn dry battery 6F22 9V
LCD Size35mm×21.5mm; display area: 32mm×15mm

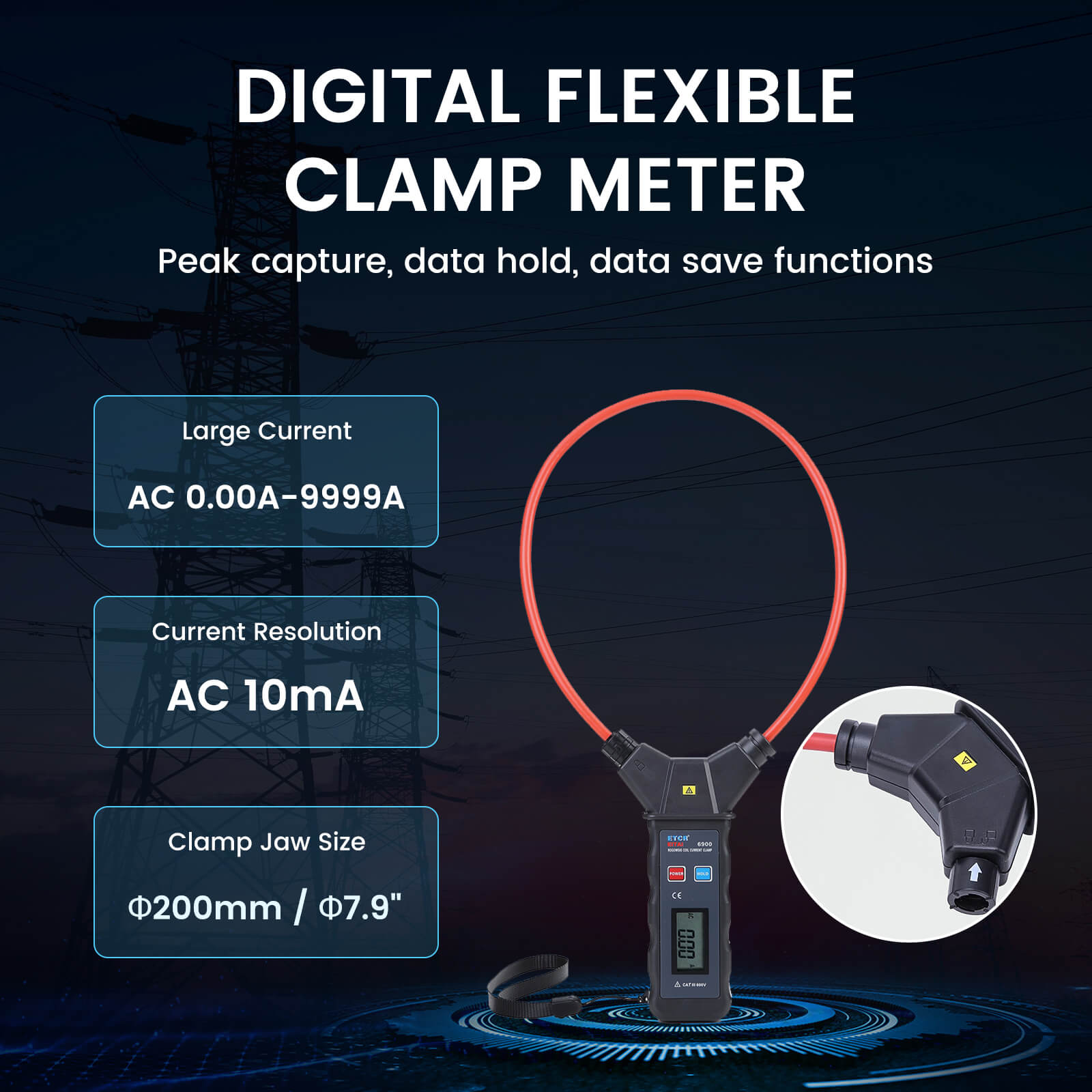

Measurement RangeAC 0.00A-9999A
ResolutionAC 10mA
Accuracy±2%rdg±3dgt(the wire is at the center of the flexible coil,23℃±2℃)
Coil Diameterφ200mm
Coil Thicknessφ7.5mm
The Measured Current Frequency50Hz/60Hz(Automatic)
Backlightwith backlight, convenient to use in dark site
Meter Size190mm×370mm×40mm
WeightMeter: about 200g(include battery);total weight: about 0.38kg(include accessory)
Electric Field
Interference
No hysteresis effect, strong anti-interference ability

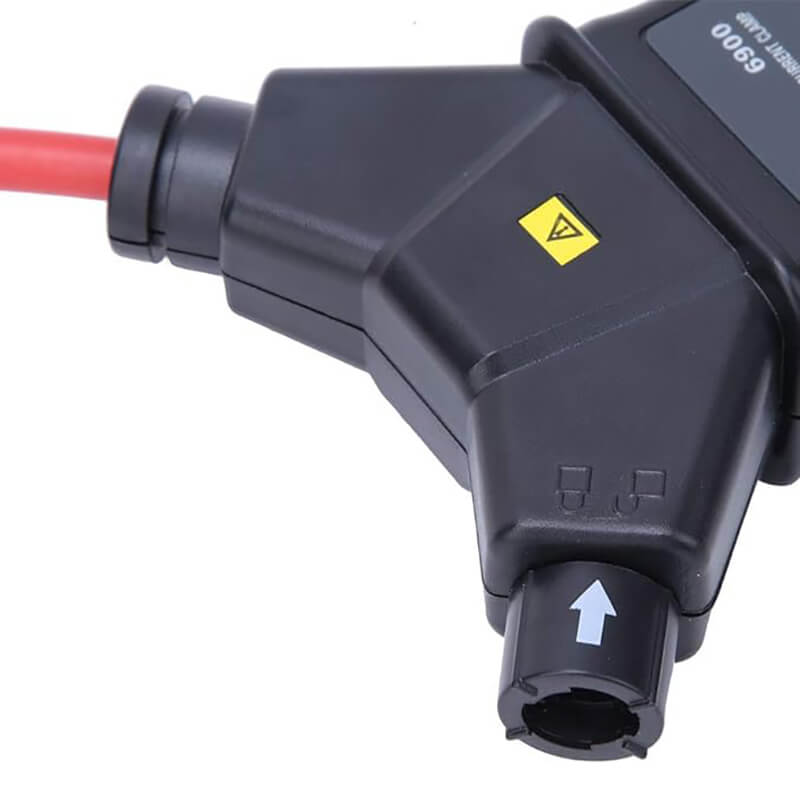

Position ErrorThe measured wire should be in the center of the flexible coil as far as possible, not close to the opening and closing mouth, the test error at the opening and closing mouth will increase by one times or more
Sampling Rate2 times /second
Memory99 groups,flicker to flash display "FULL" symbol indicate storage full
Peak HoldPeak value capture and hold function, long press POWER key display peak value, and the peak value symbol display
Data HoldData hold function: "DH" symbol display
Line VoltageLine measurement below AC600V
Overflow DisplayExceed measure range overflow function: “OL”symbol display
Battery LevelWhile battery voltage is lower than 7.2V. low battery voltage symbol display, remind to replace the battery
Rated CurrentAbout 8mA
Insulation Resistance100MΩ or larger, 1000V
Suitable Safety StandardIEC1010-1, IEC1010-2-032, Pollution level 2, CAT VI(1000V) IEC61326(EMC standard)
Working Temperature & Humidity-10℃-40℃; below 80%RH
Storage Temperature & Humidity-10℃-60℃; below 70%RH

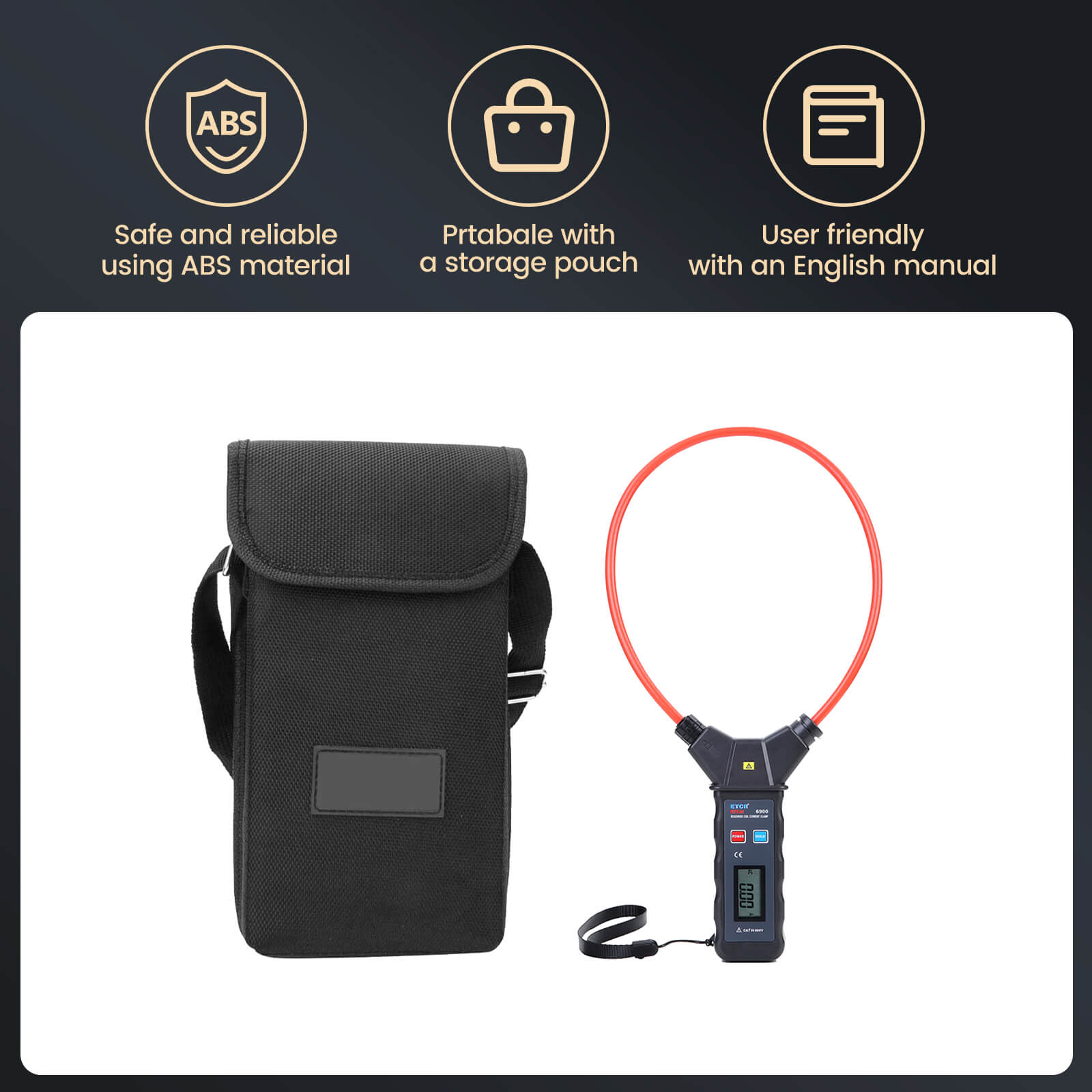

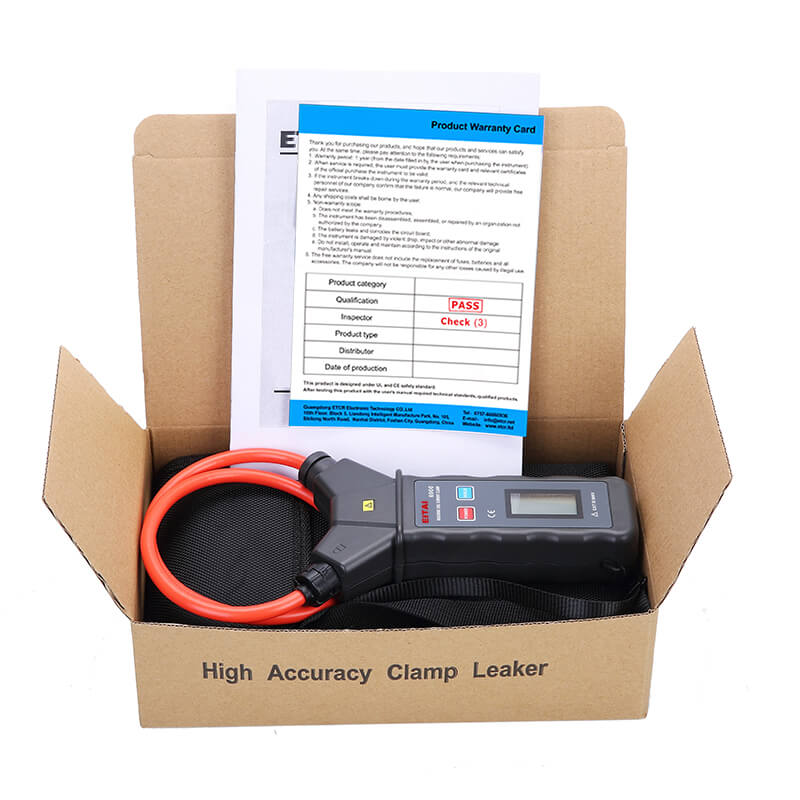

Clamp Meter

1 PCS

Tool bag

1 PCS

Warranty Card / Qualification Certificate

1 SET

User Manual

1 PCS

Product ModelClamp Jaw SizeRangeSolutionCommunication  MethodOthers
EITAI6000Φ7mmAC/DC 0mA-60.0AAC/DC 1mAUSB
EITAI6000B16mm×18mmAC/DC 0mA-60.0AAC/DC 1mAUSB
EITAI630025mm×30 mmAC 0.000mA-60.0AAC 1uAUSB
EITAI6540Φ40mmAC 0.00mA-300AAC 10uA--
EITAI6640Φ40mmAC 0.00mA-300AAC 0.01mABluetoothTrue vitrual value
Harmonics
Flashlight
EITAI6670Φ70mmAC 0.00mA-1200AAC 0.01mABluetoothTrue vitrual value
Harmonics
Flashlight
EITAI668080mm×80mmAC 0.00mA-2000AAC 0.01mABluetoothTrue vitrual value
Harmonics
Flashlight
EITAI6670DΦ70mm

AC 0.0A-1500A

DC 0.0A-2000A

AC/DC 0.1ABluetoothTrue Virtual Value
Harmonic
Flashlight
EITAI6680D80mm×80mm

AC 0.0A-1500A

DC 0.0A-2000A

AC/DC 0.1ABluetoothTrue Virtual Value
Harmonic
Flashlight
EITAI6900Φ200mmAC 0.00A-9999AAC 10mA----
EITAI6920Φ200mm

AC 0mA-10000A

AC 0.1V-750V

DC 0.1V-1000V

0Ω-2kΩ

AC 1mA

AC 0.1V

DC 0.1V

USBSwitching Test
EITAI6920BΦ300mm

AC 0mA-10000A

AC 0.1V-750V

DC 0.1V-1000V

0Ω-2kΩ

AC 1mA

AC 0.1V

DC 0.1V

USBSwitching Test
