EITAI6670D Series AC/DC Leakage Current Clamp Meter

$139.00
$0.00
$139.00
Model: EITAI6670D(1500A, Φ2.76''/70mm)
Subtotal: $139.00

Free Shipping

Free standard shipping on orders over $99

Deliver in 3-10 business days

Free Returns

30-Day No-Hassle Returns

2-Year Warranty

Safe & Secure Checkout.

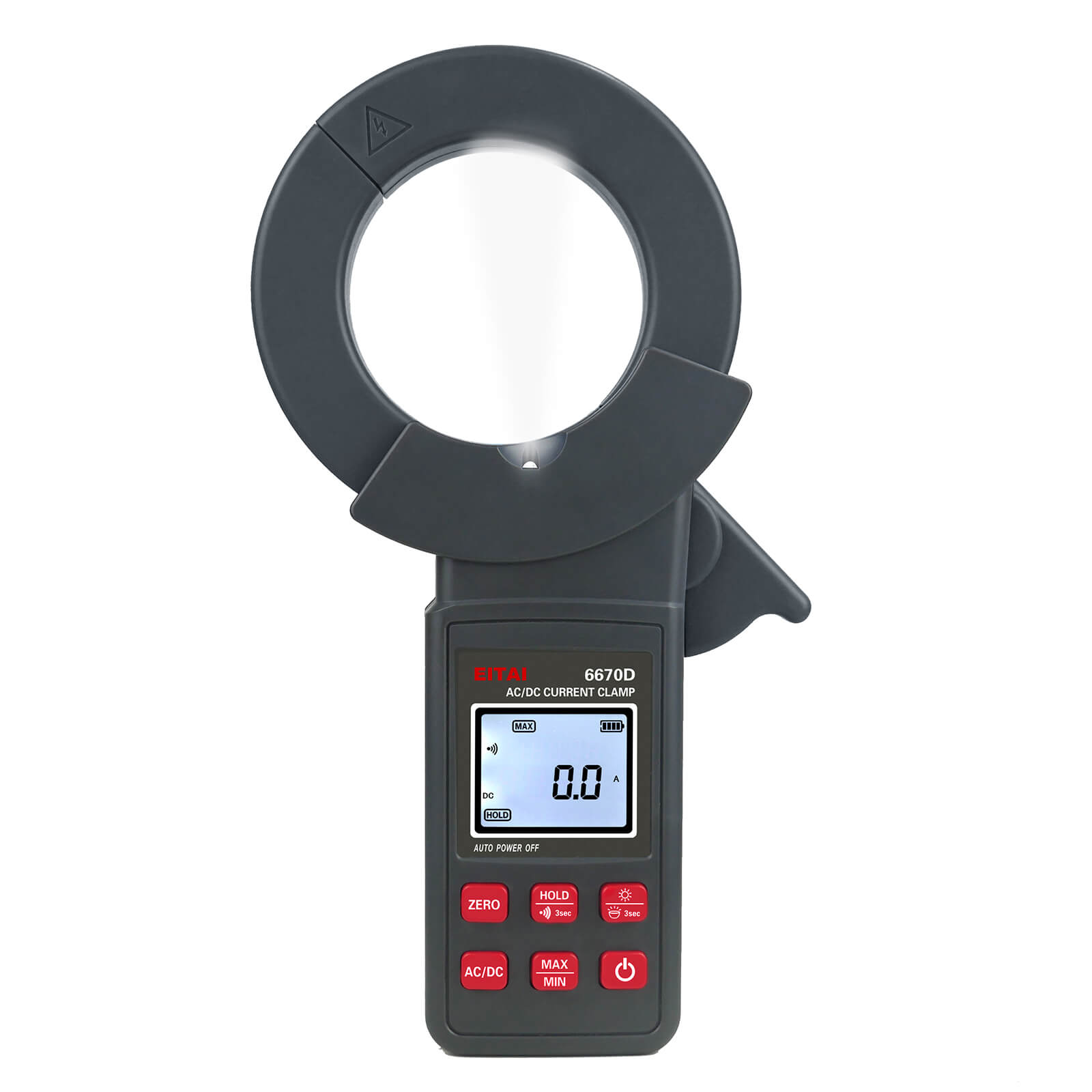

EITAI6670D Series AC/DC Leakage Current Clamp Meter

EITAI6670D Series AC/DC Leakage Current Clamp Meter

$0.00 $139.00

EITAI6670D Series AC/DC Leakage Current Clamp Meter

$0.00 $139.00
Model: EITAI6670D(1500A, Φ2.76''/70mm)

EITAI6670D Series Large Caliber DC/AC Leakage Current Clamp Meter, also known as clamp type current meter, which is used for measurement of AC/DC current. The meter adopt with Hall effect sensor and unique CT digital integration technology, the characteristics of small size, high precision and perfect function, which widely used in power, communications, meteorology, railways, oil fields, construction, metrology, scientific research and teaching units, industrial and mining enterprises and other fields.

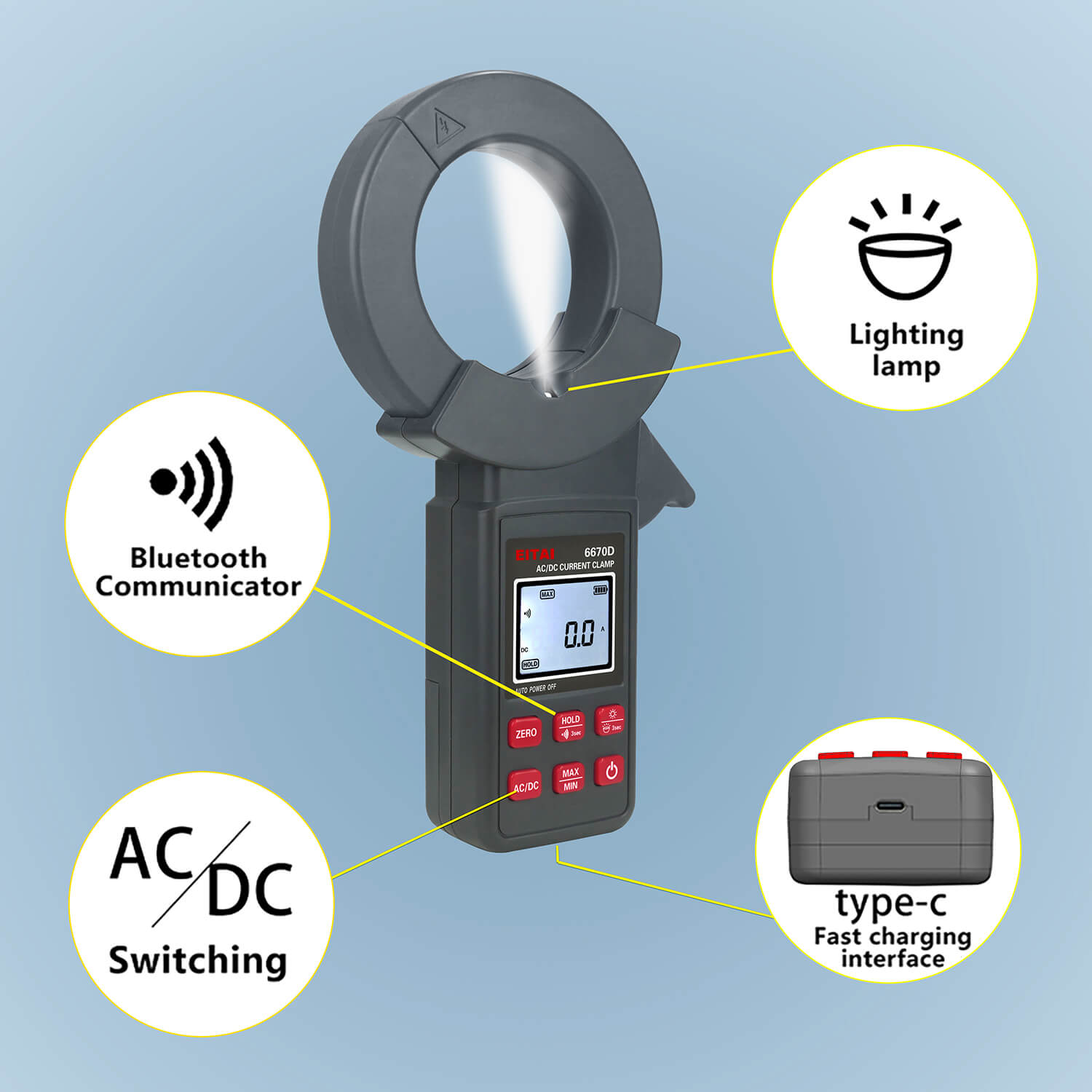

EITAI6670D Series Large Caliber DC/AC Clamp Current Meter with DC/AC true RMS measurement, maximum value / minimum value / average value and other test functions. The meter with data hold function, Bluetooth communication function, equipped with large capacity rechargeable lithium battery and type-c charging port, which is new type essential tool for electrical safety testing.

  1. The meter adopt with Hall effect sensor and digital integration technology, high precision of measurement, stable performance.
  2. The meter with DC/AC true RMS measurement, maximum value / minimum value / average value and other test functions.
  3. Memory: data storage 2000 groups.
  4. Bluetooth communication function.
  5. Flashlight function
  6. Lithium battery(Type-C charging port).
Power SupplyLithium battery DC 3.7V/1000mAh
LCD Size43mm×38mm; display area: 36.5mm×29mm
Measurement Range

DC 0.0A-2000A,

AC 0.0A-1500A (EITAI6670D)

AC 0.0A-1000A (EITAI6680D)

Measurement Accuracy0.0A-99.9A:   ±2%rdg±5dgt
100A-2000A:   ±2.5%rdg±5dgt
Clamp Jaw Size

EITAI6670D: Φ70mm/2.76''
EITAI6680D: 80mm×80mm(3.15''x3.15'')
Meter Size

EITAI6670D: 237mm×131mm×40mm
EITAI6680D: 253mm×145mm×40mm
Weight

EITAI6670D: 477g (include battery)
EITAI6680D: 664g (include battery)
LCD BacklightYes
FlashlightYes
Max/Min ValueYes
Average ValueYes
Data HoldYes
Memory2000 groups (store via app)
Overflow DisplayExceed measure range overflow function: “OL”symbol display
Bluetooth CommunicationYes, can test or view the test results on mobile after install the App.
Automatic Shutdown5 Minutes after power on, the meter shut down automatically without any operation to reduce battery consumption
Battery Level4-cell display
Sampling Rate2 times/second
Working Current60mA (open flashlight 72mA)
Line VoltageLine measurement below AC600V
Insulating StrengthAC 3700V/rms(between the core and outside shell)
Suitable Safety StandardIEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V)
Working Condition-10℃-50℃; below 80%RH
Storage Condition-20℃-60℃; below 70%RH

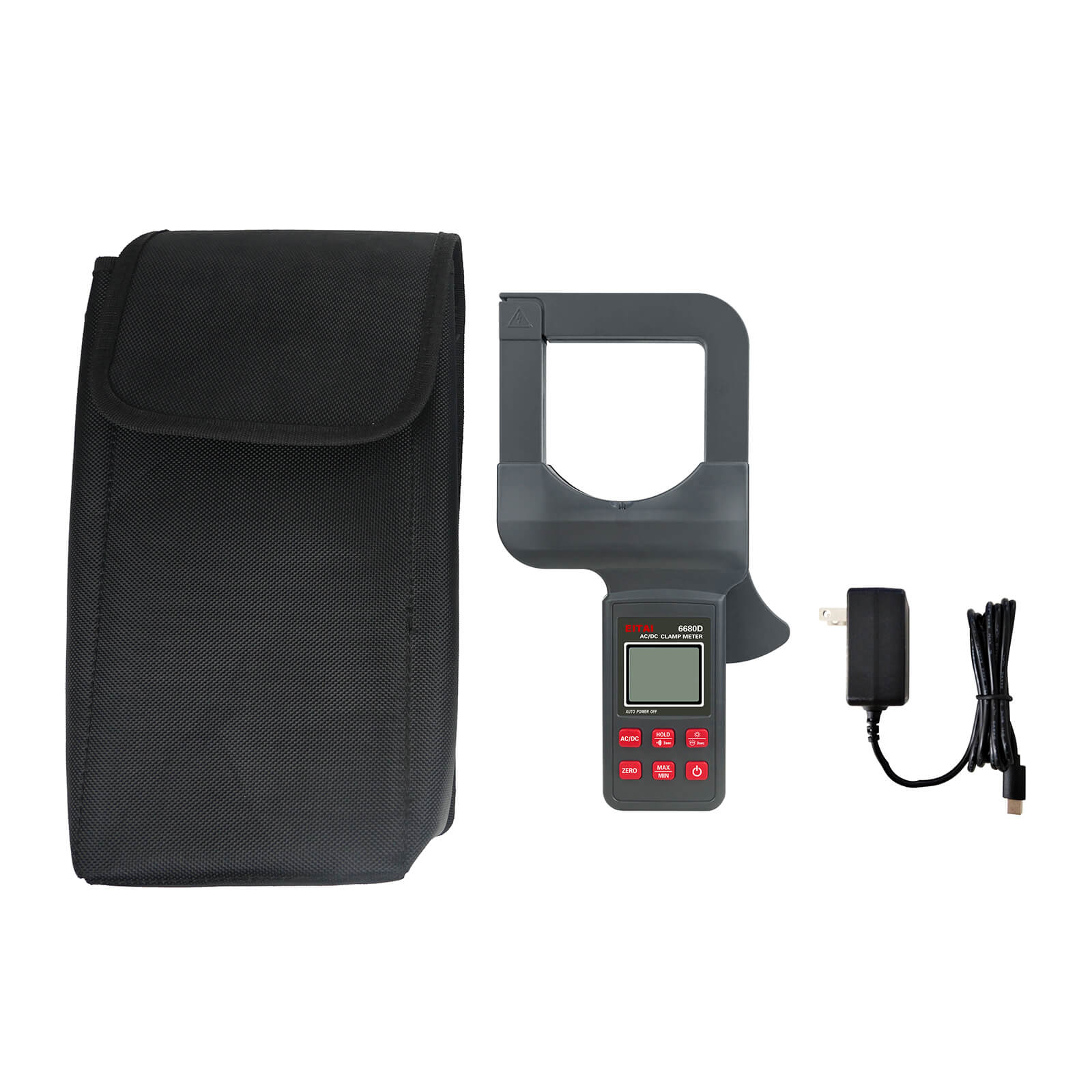

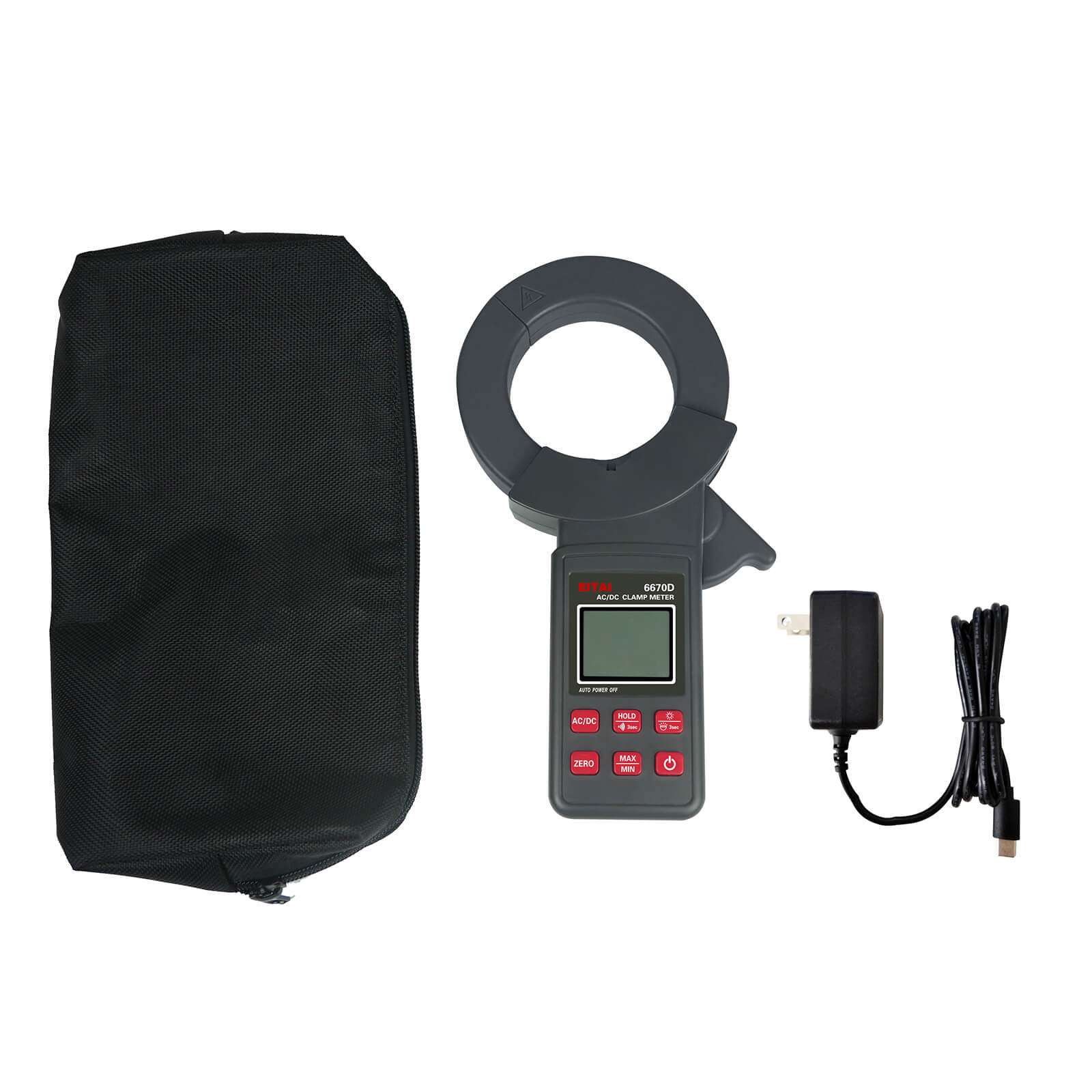

Clamp Meter

1 PCS

Tool bag

1 PCS

Charger

1 PCS

Warranty Card / Qualification Certificate

1 SET

User Manual

1 PCS



Product ModelClamp Jaw SizeRangeSolutionCommunication  MethodOthers
EITAI6000Φ7mmAC/DC 0mA-60.0AAC/DC 1mAUSB
EITAI6000B16mm×18mmAC/DC 0mA-60.0AAC/DC 1mAUSB
EITAI630025mm×30 mmAC 0.000mA-60.0AAC 1uAUSB
EITAI6540Φ40mmAC 0.00mA-300AAC 10uA--
EITAI6640Φ40mmAC 0.00mA-300AAC 0.01mABluetoothTrue vitrual value
Harmonics
Flashlight
EITAI6670Φ70mmAC 0.00mA-1200AAC 0.01mABluetoothTrue vitrual value
Harmonics
Flashlight
EITAI668080mm×80mmAC 0.00mA-2000AAC 0.01mABluetoothTrue vitrual value
Harmonics
Flashlight
EITAI6670DΦ70mm

AC 0.0A-1500A

DC 0.0A-2000A

AC/DC 0.1ABluetoothTrue Virtual Value
Harmonic
Flashlight
EITAI6680D80mm×80mm

AC 0.0A-1500A

DC 0.0A-2000A

AC/DC 0.1ABluetoothTrue Virtual Value
Harmonic
Flashlight
EITAI6900Φ200mmAC 0.00A-9999AAC 10mA----
EITAI6920Φ200mm

AC 0mA-10000A

AC 0.1V-750V

DC 0.1V-1000V

0Ω-2kΩ

AC 1mA

AC 0.1V

DC 0.1V

USBSwitching Test
EITAI6920BΦ300mm

AC 0mA-10000A

AC 0.1V-750V

DC 0.1V-1000V

0Ω-2kΩ

AC 1mA

AC 0.1V

DC 0.1V

USBSwitching Test
