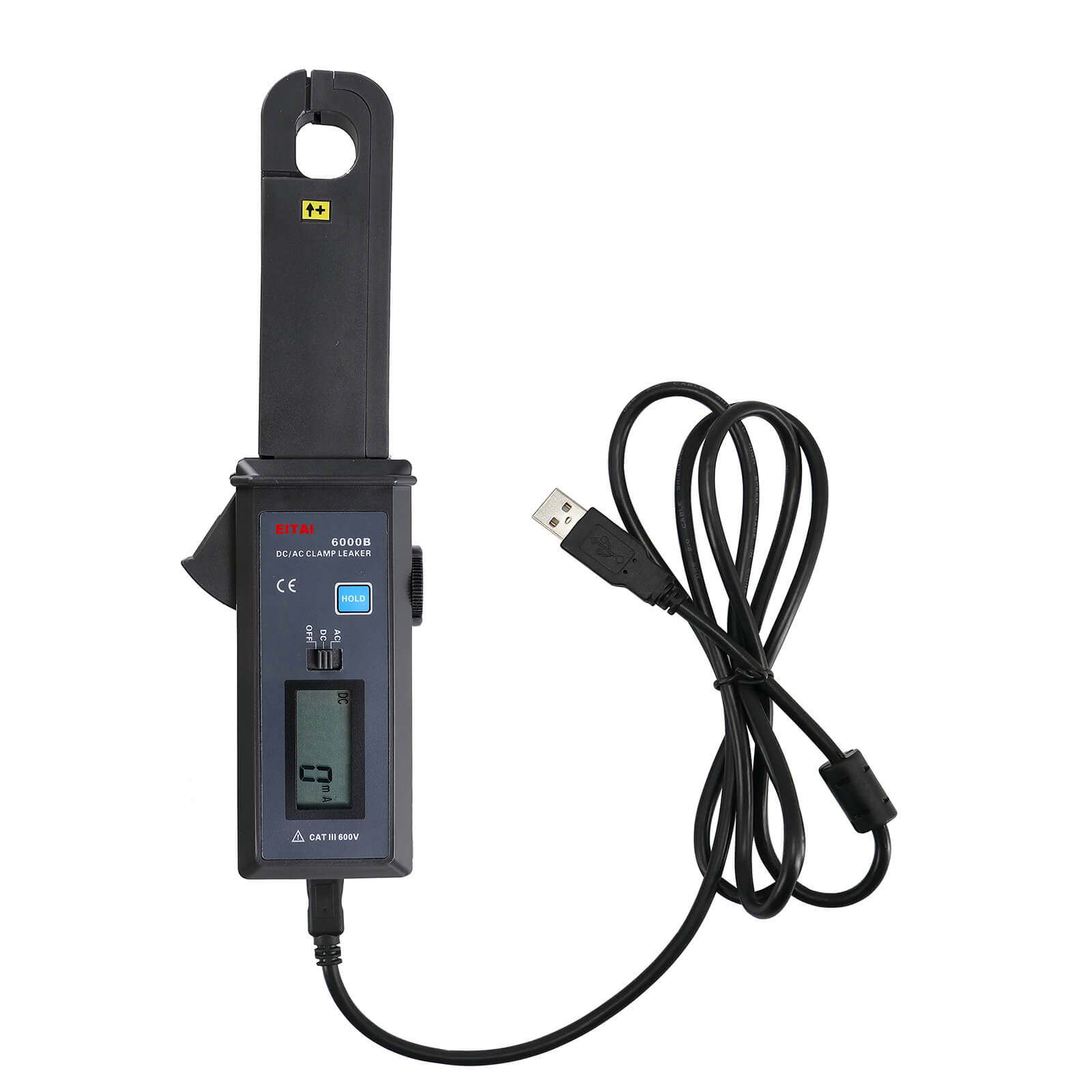

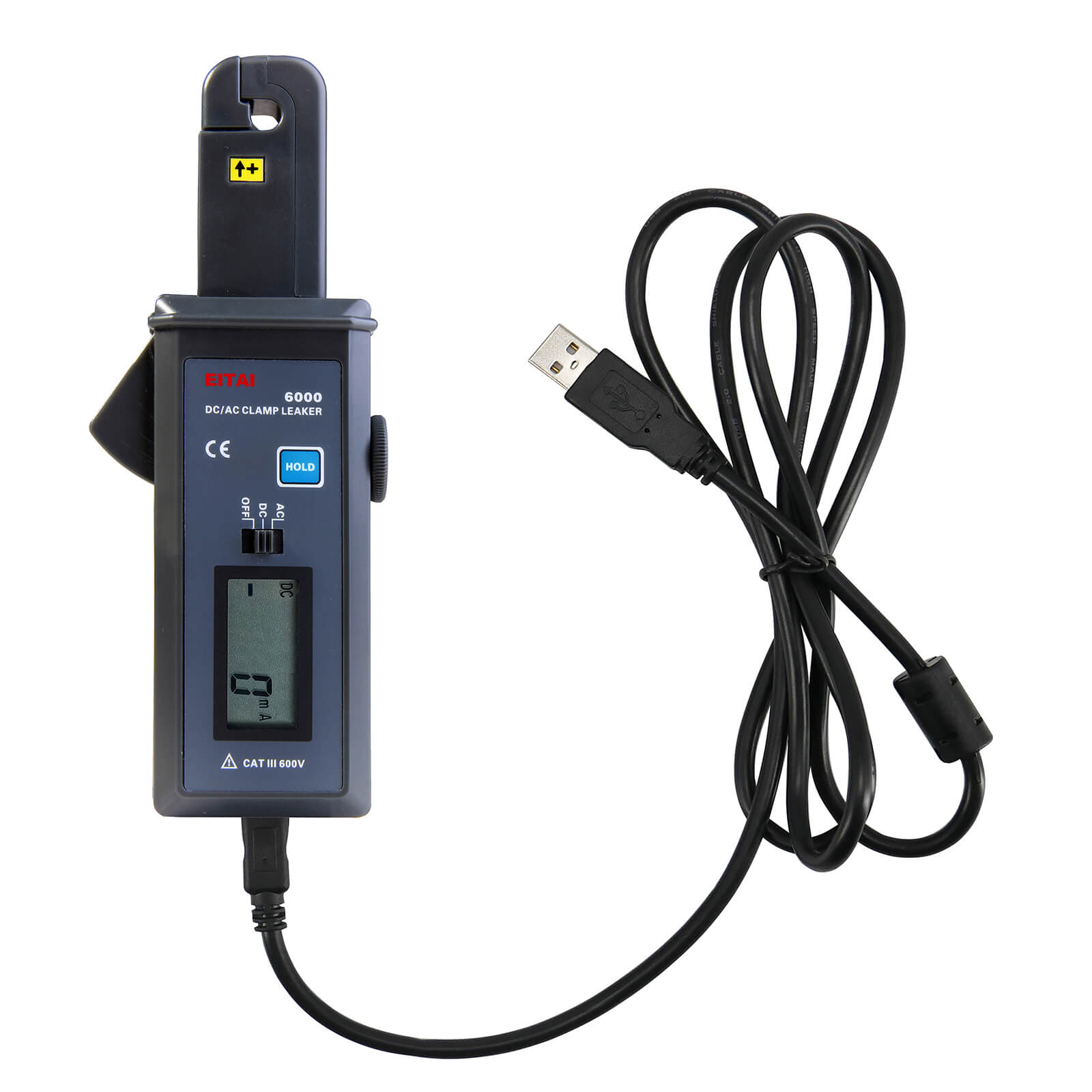

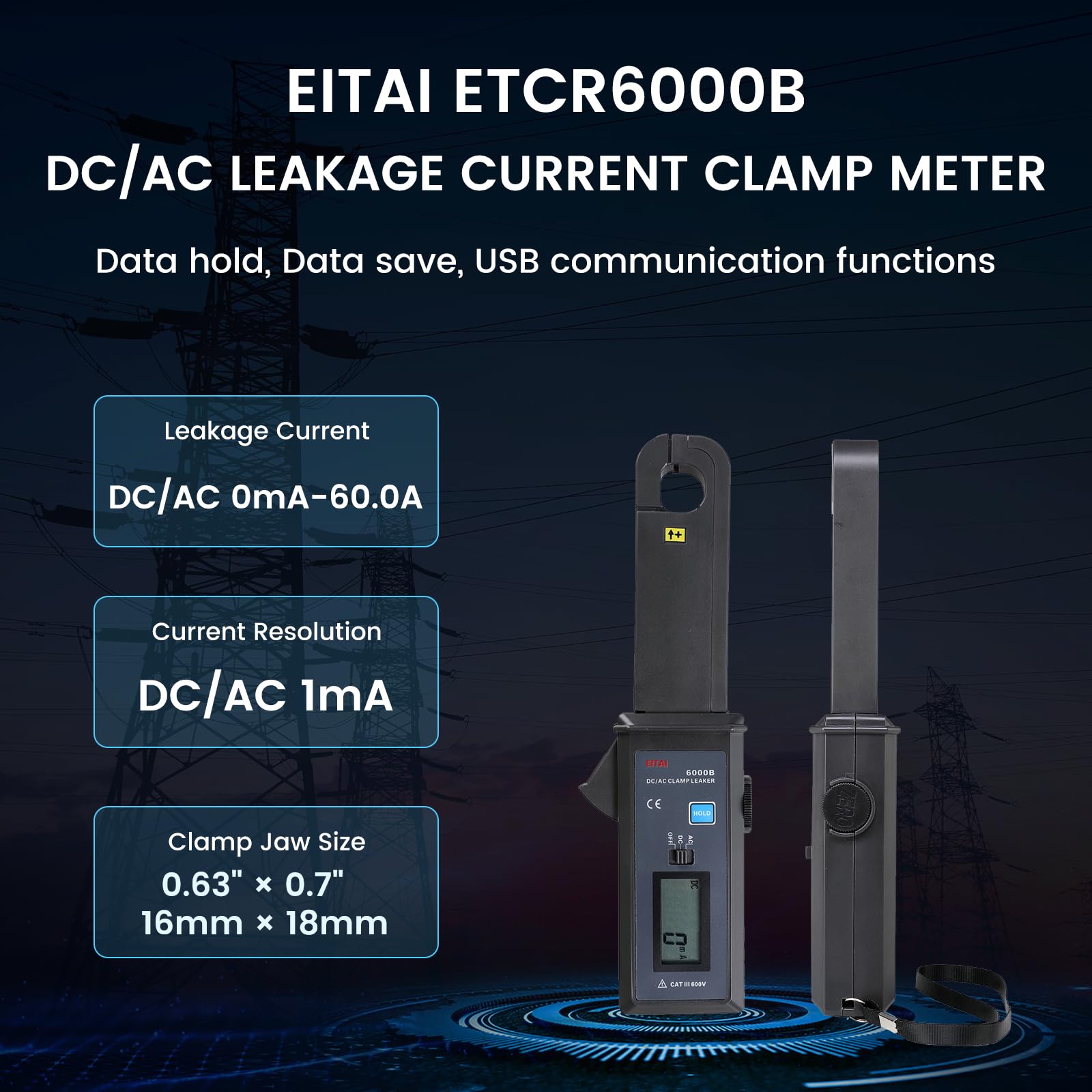

EITAI6000 Series AC/DC Clamp Leakage Current Meter

EITAI6000 Series AC/DC Clamp Leakage Current Meter

$0.00 $79.00

EITAI6000 Series AC/DC Clamp Leakage Current Meter

$0.00 $79.00
Model: EITAI6000

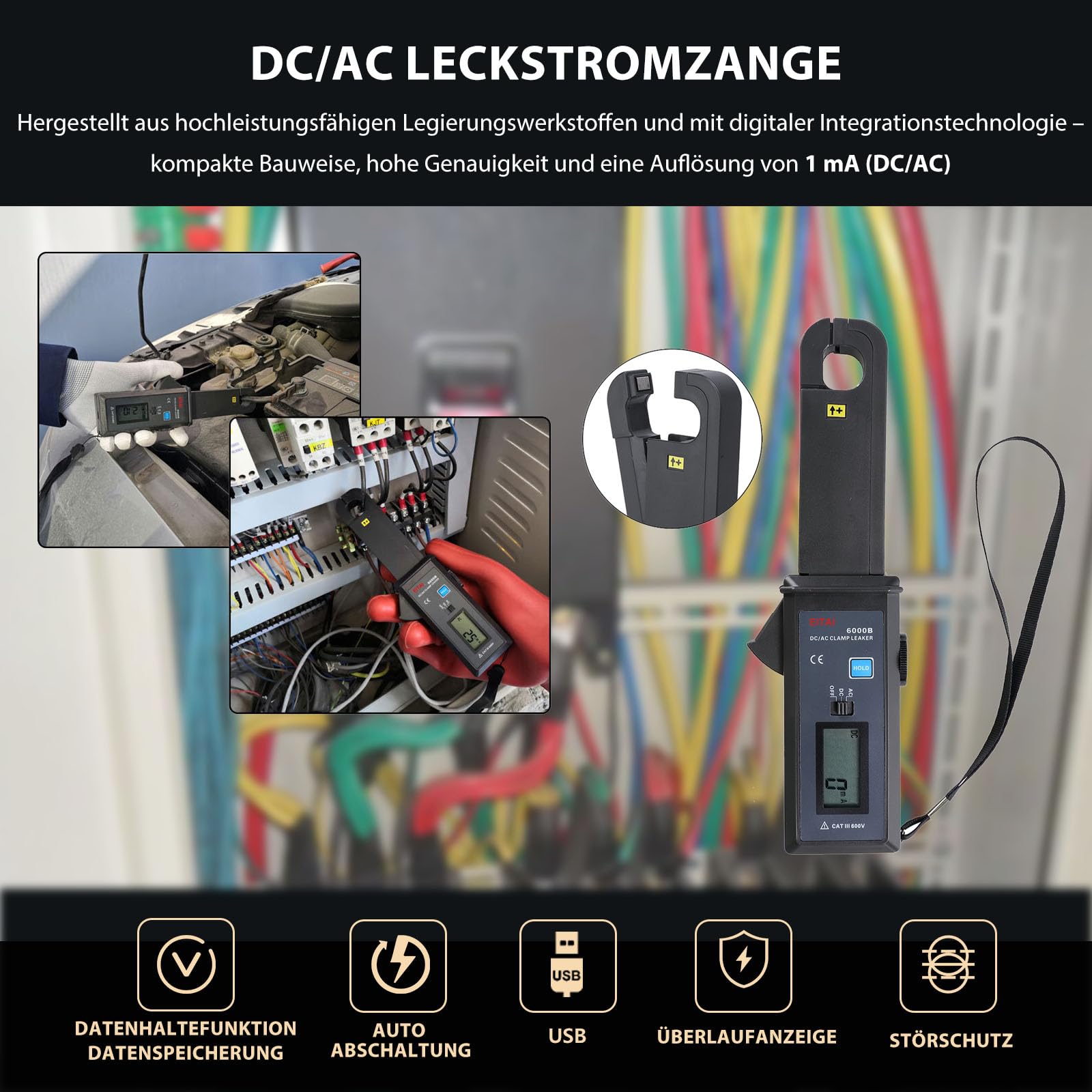

EITAI6000 Series AC/DC Clamp Leakage Current Meter, also known as car leakage current clamp meter, car dark current clamp meter, car charging current tester, etc. which is used for quick detection of automotive leakage current and power consumption current, and it can quickly find faults such as broken wiring harnesses, electrical leakage, line boarding, etc.and measure the starting current of motor and charging current of generator. The meter adopt with Hall induction technology and digital integration technology, non-contact measurement, no need to disconnect the circuit line, fast, safe and reliable. The meter has characteristics of small size, high precision, strong anti-interference ability, automatic shift, which is widely used in automobile maintenance, automobile factory inspection, automobile parts production inspection, telecom machine room current inspection, electric power maintenance, meteorology, oil field inspection, etc.

EITAI6000 Series AC/DC Clamp Leakage Current Meter with the functions of data hold and data storage, and is equipped with USB interface, communication cable and monitoring software, which can real time monitoring and query history online via the computer, and display dynamically, has the maximum, the minimum and the average value indication, with the historical data reading, save, print and other functions.
1.The meter has characteristics of small size, high precision, stable performance.
2.Memory: data storage 99 groups
3.USB communication function, storage data can be upload to computer for reading, saving and printing.

Power SupplyZn-Mn dry battery 6F22 9V
Display Mode4 digits LCD display
LCD Size35mm×21.5mm; display area: 32mm×15mm
Measurement MethodClamp CT, Non-contact measurement
Measurement Range0mA-60.0A AC/DC
Resolution1mA AC/DC
Accuracy±2%rdg±5dgt(23℃±5℃, below 75%rh)

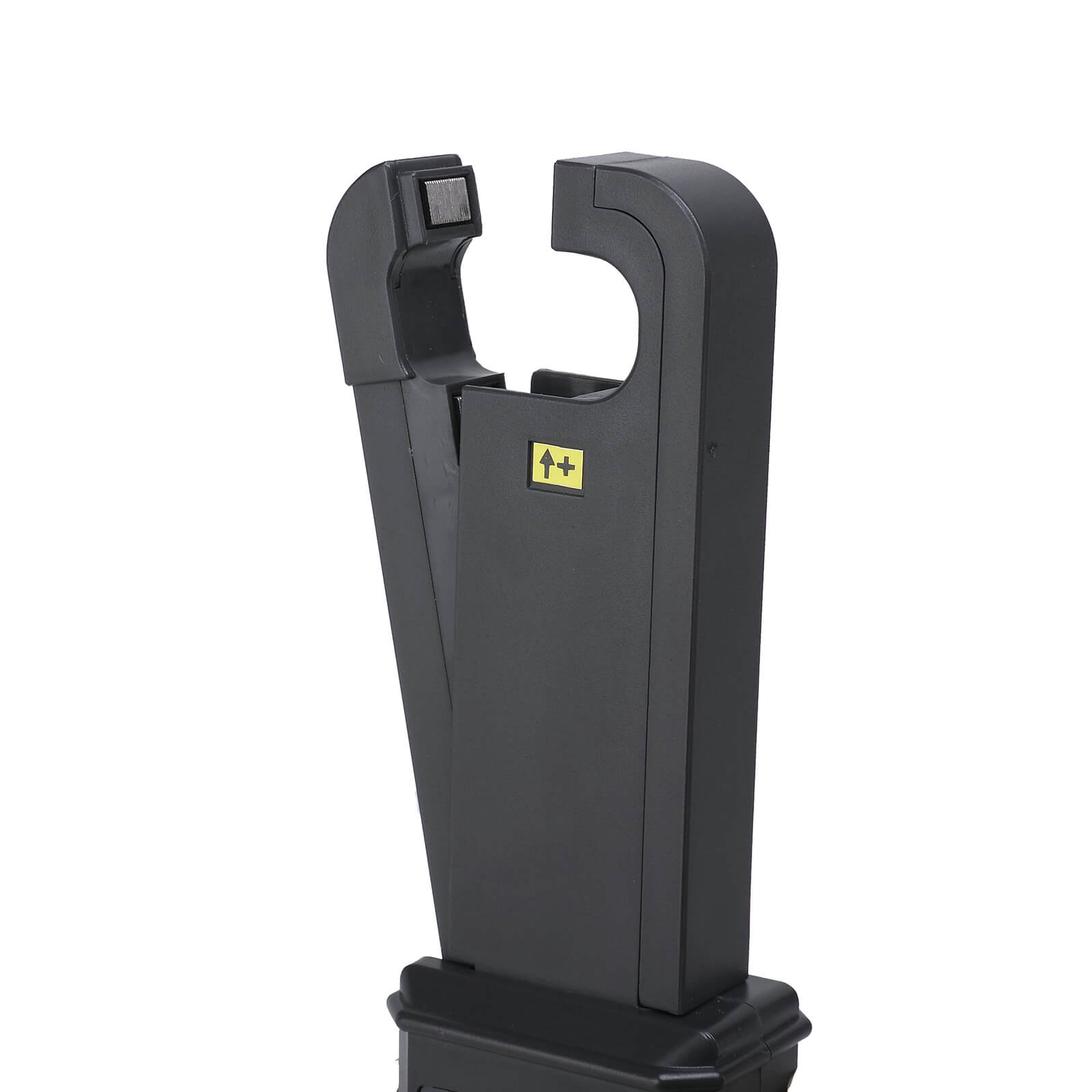

Clamp Jaw SizeEITAI6000: φ7mm, EITAI6000B: 16mm×18mm
Sampling Rate2 times/second
Polar IndicationAutomatic identification when testing current, display “-” symbol
Wire PositionThe tested wire in the center of the clamp jaw
Shift GearFully automatic shift
Line VoltageLine measurement below 600V
USB Interfacestorage data can be uploaded to compute, save and print.
Memory99 groups, flicker to display “FULL”symbol indicate storage full
Data HoldData hold function: “DH”symbol display
Overflow DisplayExceed measure range overflow function: “OL A”symbol display
Auto Shut Down5 Minutes after power on, the meter shut down automatically without any operation to reduce battery consumption
Battery VoltageWhile battery voltage decrease to about 7.2V,low battery voltage symbol display, and remind to replace the battery.
Meter SizeEITAI6000:168mm×65mm×34mm, EITAI6000B: 215mm×61mm×32mm
Weight220g(include battery)
Working CurrentMax 10mA
Insulating StrengthAC 3700V/rms(between the core and outside shell)
Suitable Safety StandardIEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V)
Working Temperature & Humidity-10℃-50℃; below 80%rh
Storage Temperature & Humidity-10℃-60℃; below 70%rh

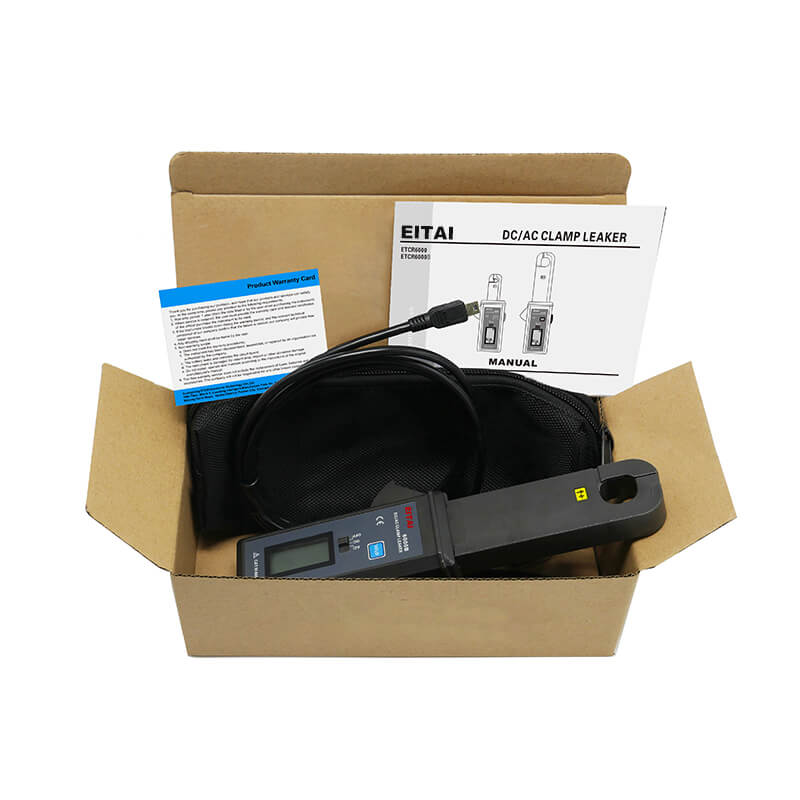

Clamp Meter

1 PCS

Tool bag

1 PCS

Data Software

1 PCS

USB communication cable

1 PCS

Warranty Card / Qualification Certificate

1 SET

User Manual

1 PCS

Product ModelClamp Jaw SizeRangeSolutionCommunication  MethodOthers
EITAI6000Φ7mmAC/DC 0mA-60.0AAC/DC 1mAUSB
EITAI6000B16mm×18mmAC/DC 0mA-60.0AAC/DC 1mAUSB
EITAI630025mm×30 mmAC 0.000mA-60.0AAC 1uAUSB
EITAI6540Φ40mmAC 0.00mA-300AAC 10uA--
EITAI6640Φ40mmAC 0.00mA-300AAC 0.01mABluetoothTrue vitrual value
Harmonics
Flashlight
EITAI6670Φ70mmAC 0.00mA-1200AAC 0.01mABluetoothTrue vitrual value
Harmonics
Flashlight
EITAI668080mm×80mmAC 0.00mA-2000AAC 0.01mABluetoothTrue vitrual value
Harmonics
Flashlight
EITAI6670DΦ70mm

AC 0.0A-1500A

DC 0.0A-2000A

AC/DC 0.1ABluetoothTrue Virtual Value
Harmonic
Flashlight
EITAI6680D80mm×80mm

AC 0.0A-1500A

DC 0.0A-2000A

AC/DC 0.1ABluetoothTrue Virtual Value
Harmonic
Flashlight
EITAI6900Φ200mmAC 0.00A-9999AAC 10mA----
EITAI6920Φ200mm

AC 0mA-10000A

AC 0.1V-750V

DC 0.1V-1000V

0Ω-2kΩ

AC 1mA

AC 0.1V

DC 0.1V

USBSwitching Test
EITAI6920BΦ300mm

AC 0mA-10000A

AC 0.1V-750V

DC 0.1V-1000V

0Ω-2kΩ

AC 1mA

AC 0.1V

DC 0.1V

USBSwitching Test
