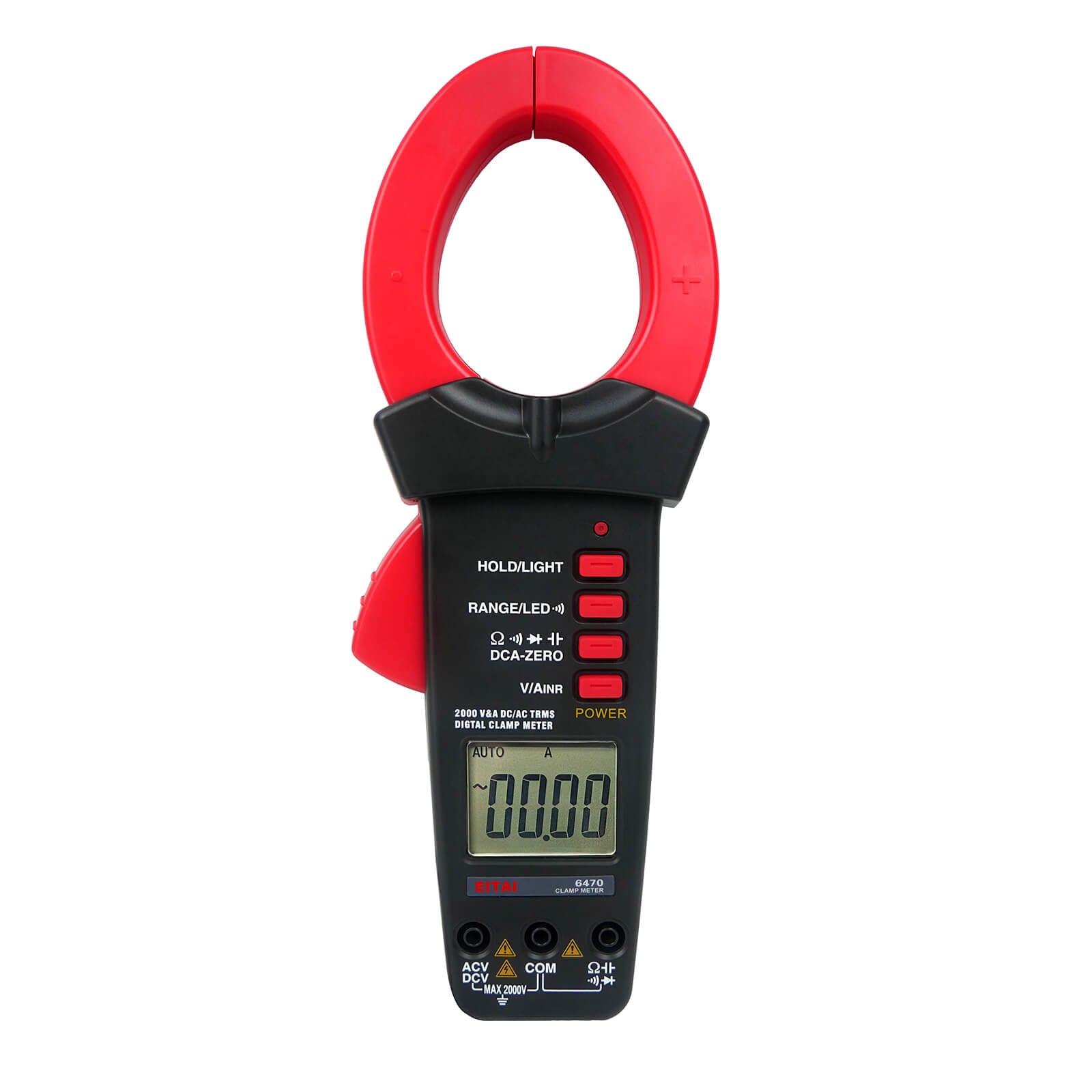

EITAI6470 Digital Clamp Multimeter

EITAI6470 Digital Clamp Multimeter

$0.00 $95.00

EITAI6470 Digital Clamp Multimeter

$0.00 $95.00

EITAI6470 Digital Clamp Multimeter, also known as multifunctional clamp type ammeter, is a 3 1/2 digits portable digital clamp type meter for measurement of maximum AC/DC voltage of 2000V and AC current of 2000A. lts whole circuit design is based on the core of new specific MCU, with overload protection for all functions to prevent the meter burned out. The clamp multimeter adopt with button type to function switching, and with high reliability, high safety, automatic range and other characteristics.

The meter has large digital displayer, data hold function, under voltage indication, auto shutdown function, has true effective value (TRMS) measurement function which can accurately measure variable frequency voltage, non-sinusoidal wave voltage, and can measure the true effective value (TRMS) of the surge current with a period of 80mS, which suitable for measuring large motor and compressor starting current. lt can measure AC/DC current,AC/DC voltage, resistance, capacitance, continuity test, diode forward voltage drop, LED working voltage,and other parameters.

EITAI6470 Digital Clamp Multimeter with compact structure, easy operation and portability, which is an ideal tool for electrical measurement. Especially suitable for the measuring the site of large current and starting current.

  1. The perfect combination of clamp meter and multimeter, adopt with new type MCU processor with high performance, portability, which is an ideal tool for electrical measurement.
  2. Suitable for the measuring the site of large current and starting current.
  3. No rotary switch of the multimeter, with high reliability, high safety, automatic range and other characteristics.
  4. With large digital displayer, data hold function, under voltage indication, auto shutdown function.



Power Supply9V DC 6F22×1 PCS alkaline dry battery
LCD Size45.8mm×39.5mm
DC VoltageRange: 2V/20V/200V/2000V                       ±(0.5%+5)
AC VoltageRange: 2V/20V/200V/2000V                       ±(0.8%+5)
DC CurrentRange: 20A/200A/2000A                          ±(1.9%+10)
AC CurrentRange: 20A/200A/2000A                          ±(1.9%+10)
ResistanceRange: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ          ±(1%+5)
CapacitanceRange: 20uF/200uF/2uF/20uF/200uF/2000uF        ±(3%+10)
Automatic Measurement Range
DisplayTrue effective value (Sine wave effective value calibration)
Overload Protection
Automatic Shutdown
Diode TestDC forward current about 0.5mA
DC reverse voltage about 3.2V
Open circuit voltage about 0.6V
Short Circuit Buzzer
Low Voltage lndicator
Input ImpedanceAbout 10MΩ
Data Hold
Surge Current Measurement
Clamp Jaw SizeCan measure max wire diameter Ф55mm/2.17''
Meter Size270x100x46mm
WeightAbout 460g (include battery)
Working Temperature0℃ - 40℃  relative humidity <75%
Store Temperature-10℃ - 50℃ relative humidity <80%

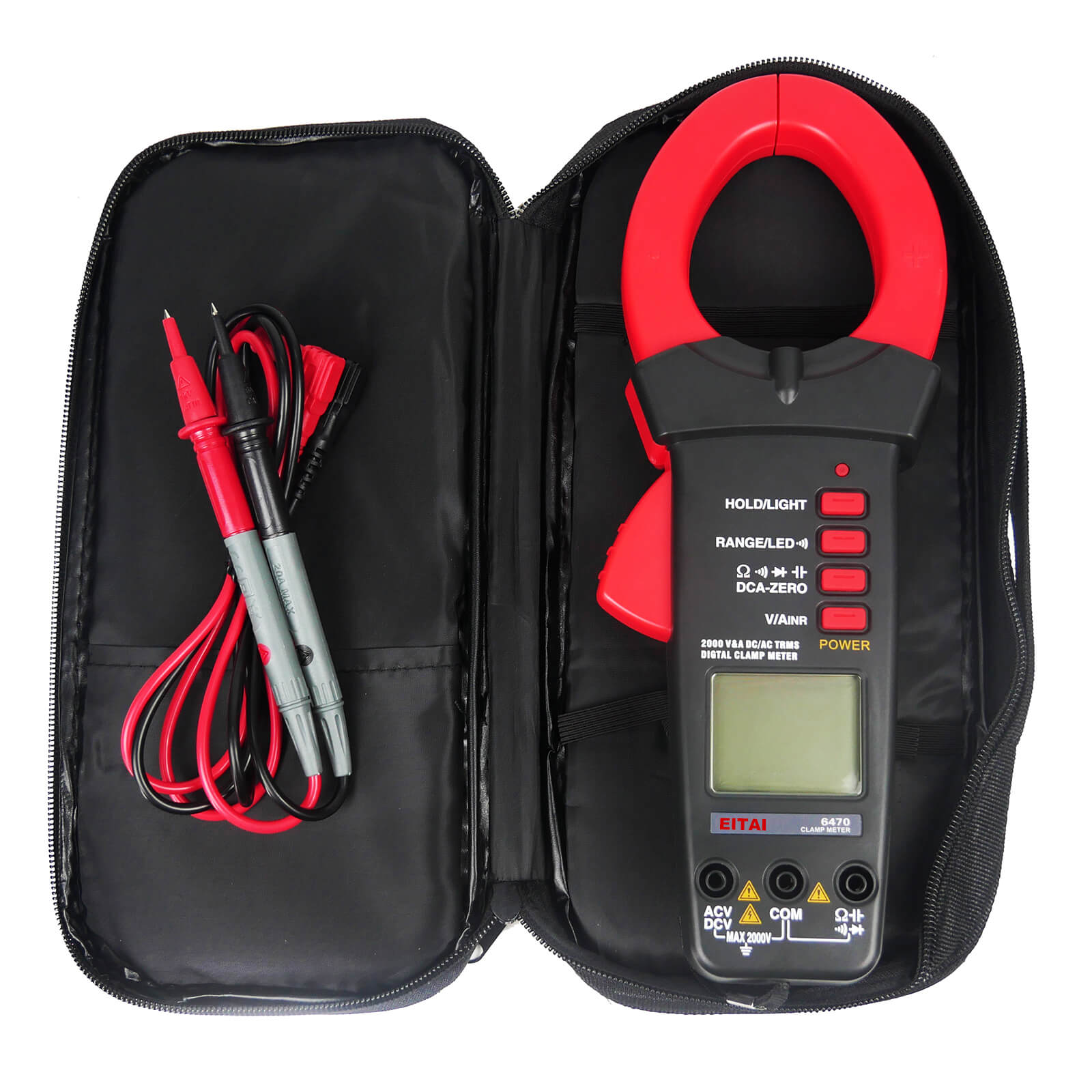

Meter1 PCS
Probe1 SET
Temperature Transducer1 SET
Meter Bag1 PCS
Warranty Card/Certification1 PCS
User Manual1 PCS
Product  ModelClamp Jaw SizeVoltage RangeCurrent RangeResistance RangeCapacitanceFrequency  Temperature
ETCR6420Φ27mmAC/DC 600VAC 600A40MΩ10mF40MHz-50℃-1000℃
ETCR6450Φ52mm

AC 1000V

DC 600V

AC/DC 1000A40MΩ10mF40MHz-50℃-1000℃
ETCR6470Φ55mmAC/DC 2000VAC/DC 2000A20MΩ2000uF----
