EITAI6420 Digital Clamp Multimeter

EITAI6420 Digital Clamp Multimeter

$0.00 $39.00

EITAI6420 Digital Clamp Multimeter

$0.00 $39.00

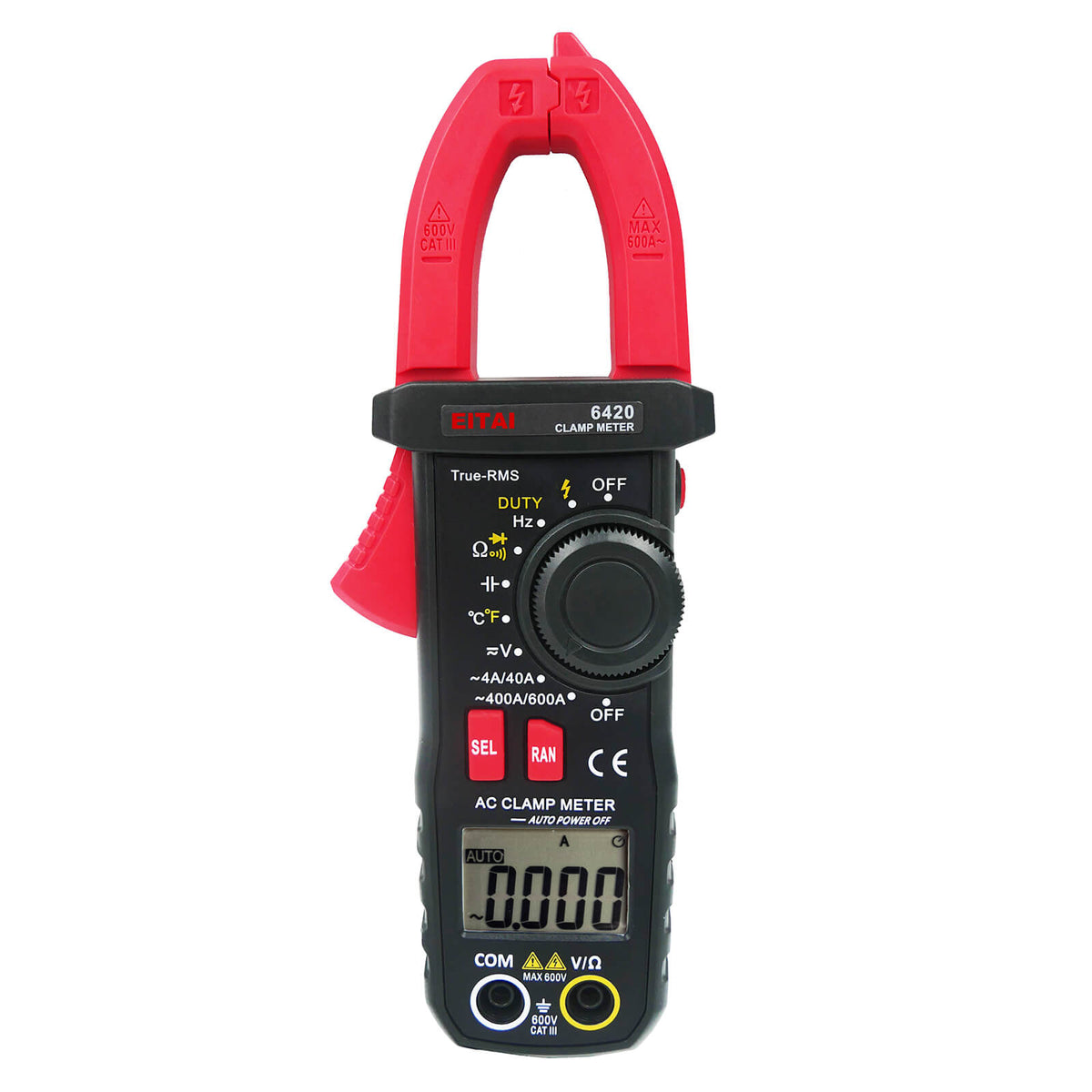

EITAI6420 Digital Clamp Multimeter, also known as the multifunctional clamp type ammeter, is a portable type clamp digital multimeter. The multimeter with a small structure, easy to operate and portable. lt is an ideal instrument for electrical measurement, which provides a safe, accurate and convenient new electric power meter for electric inspectors, and is an essential tool for electrical safety inspection.

  • Perfect combination of clamp meter and multimeter:With a compact structure, easy operation, and convenient portability, is an ideal tool for electrical measurement.
  • Multifunctional: Measure DC voltage, AC voltage, current true effective value (TRMS), resistance, frequency, on-off test, temperature, forward voltage drop of the diode and other parameters.
  • Wide Range: The capacitance measurement range is up to 10mF and the measurement speed of large capacitance is fast.
Power Supply3V DC LR03×2 PCS alkaline dry battery
LCD Size39.2mm×26.3mm
DC VoltageRange: 400mV/4V/40V/400V/600V                                       ±(0.5%+5)
AC VoltageRange: 4V/40V/400V/600V                                                    ±(1.2%+5)
AC CurrentRange: 4A/40A/400A/600A                                                    ±(2%+10)
ResistanceRange: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ                        ±(1%+5)
CapacitanceRange: 10nF/100nF/1uF/10uF/100uF/1000uF/10mF             ±(3%+5)
FrequencyRange: 100Hz/1kHz/10kHz/100kHz/1MHz/10MHz/40MHz   ±(0.5%+3)
TemperatureRange: -50°C~1000°C                                                             ±(1%+4)
Automatic Range
Manual Range
AC Conversion TypeTrue effective value(TRMS)
Input Protection
Automatic ShutdownAbout 10 minutes, can be set to no automatic shutdown
Diode TestCan measure the LED work voltage below 3V
Duty Ratio Measurement
NCV (Live line) Measurement
Short Circuit Buzzer
Low Voltage lndicator
Input ImpedanceAbout 10MΩ
Data Hold
Blue Backlight
Clamp Jaw SizeCan measure max wire diameter Ф27mm/1.06''
Meter Size213×80×35mm
WeightAbout 230g (include battery)
Working Temperature0℃~40℃  relative humidity <75%
Store Temperature-10℃~ 50℃ relative humidity <80%

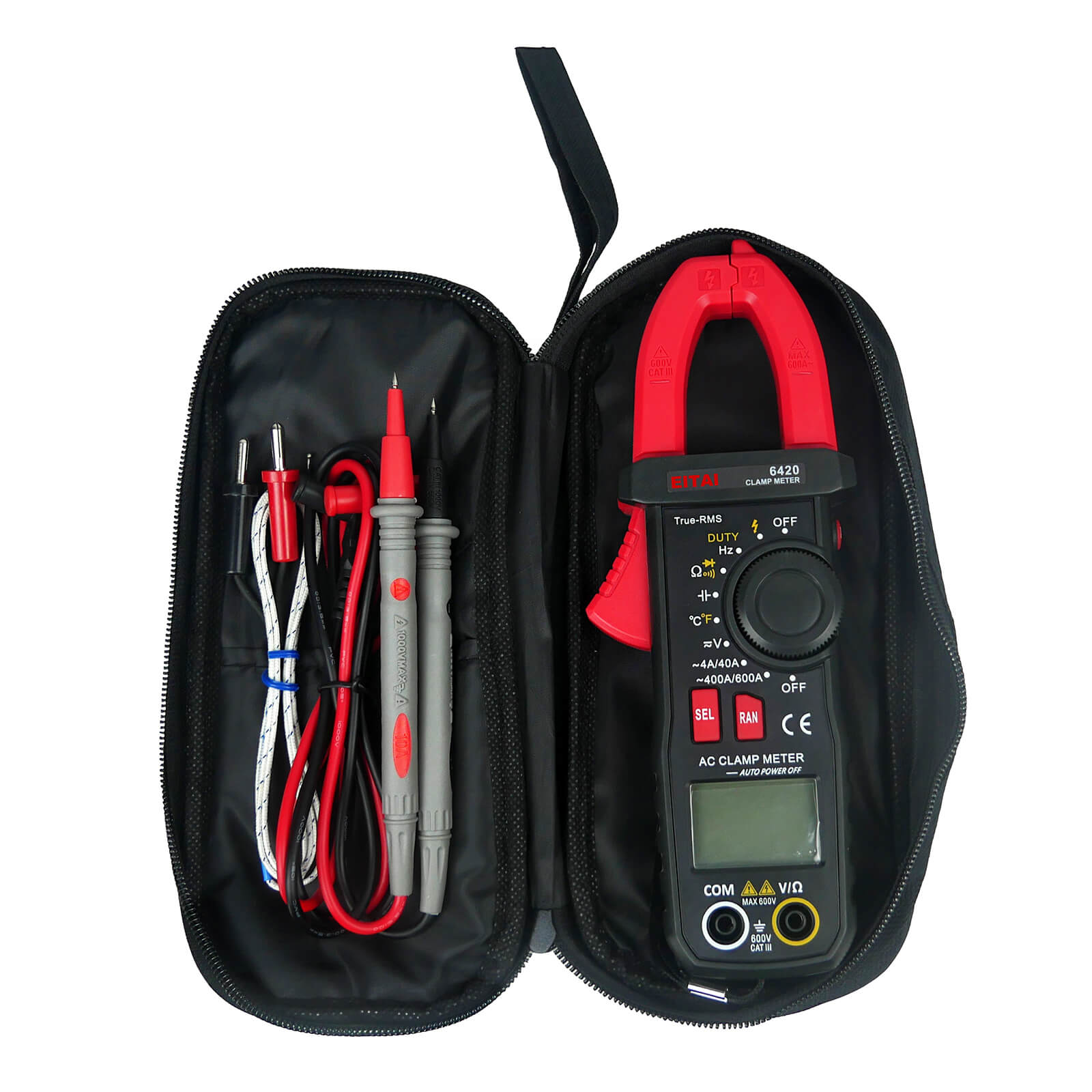

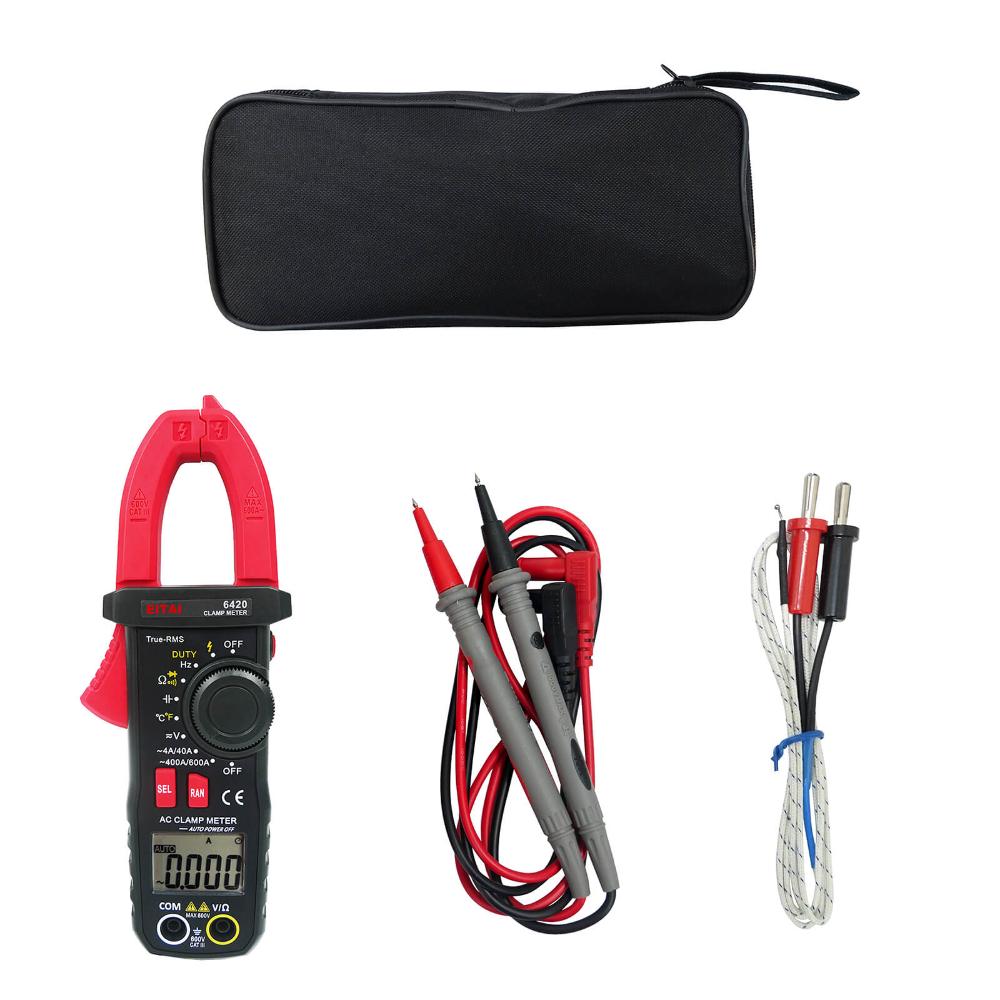

Meter1 PCS
Probe1 SET
Temperature Transducer1 SET
Meter Bag1 PCS
Warranty Card/Certification1 PCS
User Manual1 PCS
Product  ModelClamp Jaw SizeVoltage RangeCurrent RangeResistance RangeCapacitanceFrequency  Temperature
ETCR6420Φ27mmAC/DC 600VAC 600A40MΩ10mF40MHz-50℃-1000℃
ETCR6450Φ52mm

AC 1000V

DC 600V

AC/DC 1000A40MΩ10mF40MHz-50℃-1000℃
ETCR6470Φ55mmAC/DC 2000VAC/DC 2000A20MΩ2000uF----
