EITAI6450 Digital Clamp Multimeter

EITAI6450 Digital Clamp Multimeter

$0.00 $75.00

EITAI6450 Digital Clamp Multimeter

$0.00 $75.00

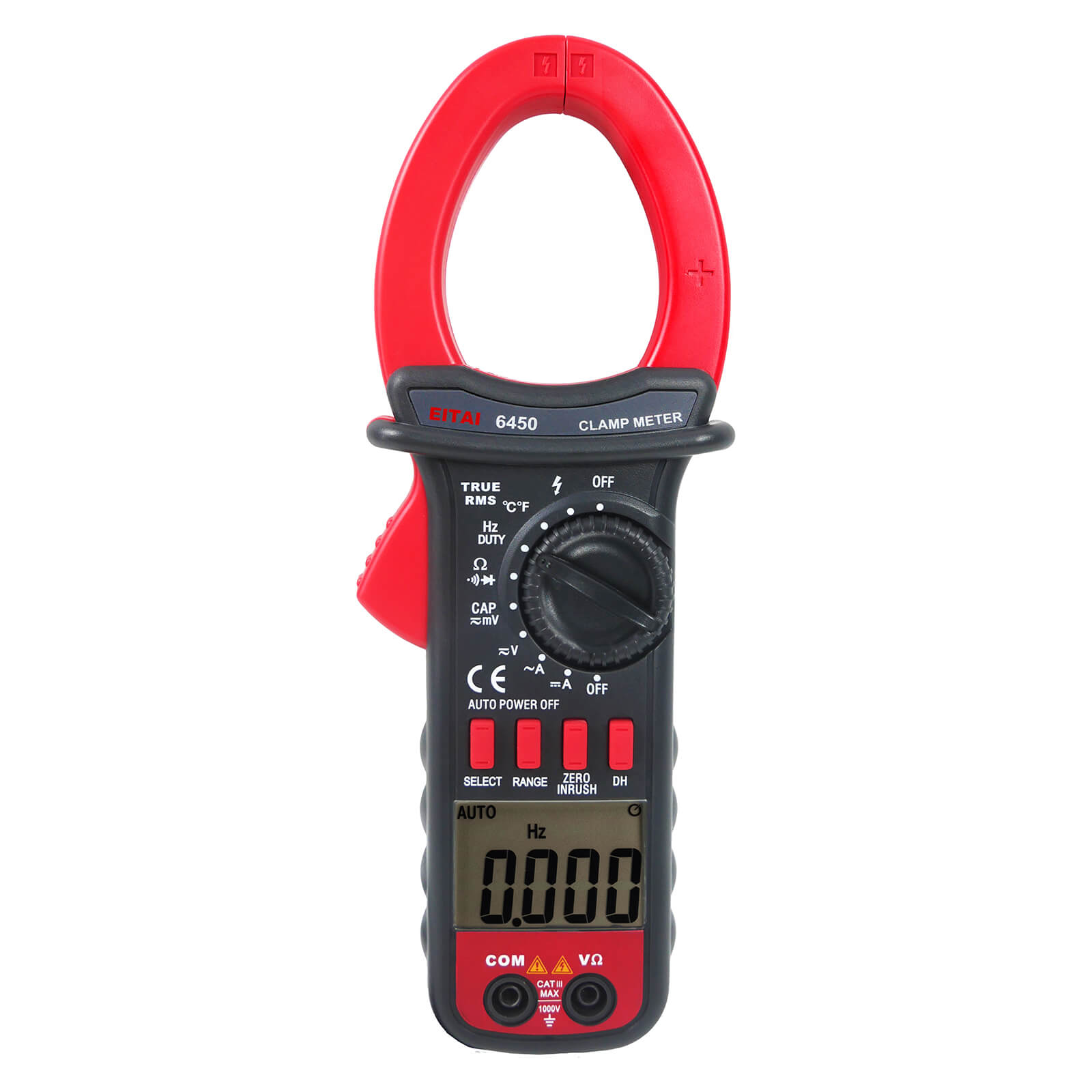

EITAI6450 Digital Clamp Multimeter, also known as multifunctional clamp type ammeter, the multimeter adopt with new type MCU processor with high performance, and with extremely high cost performance ratio, also has the characteristics of high reliability, high safety, automatic range, handheld clamp meter, etc.

With large digital screen, full range overload protection, data hold, undervoltage prompt, automatic shutdown function, true effective value (TRMS) can accurately measure frequency conversion voltage, non-sine wave voltage, surge current can measure the effective value of surge current with a period of 80mS. The multimeter also equipped with temperature measurement function that can accurately measure -50~1000℃, making this instrument very suitable for inverter power supply, air conditioning, refrigerator and other refrigeration equipment, motor performance testing, etc. DC 40A, 400A, 1000A DC current range function is widely used in electroplating, DC welding machine, auto testing and all kinds of DC current measurement occasions above 500mA.

EITAI6450 Digital Clamp Multimeter can be used in Various colleges and universities, smelting, communications, manufacturing, petroleum, national defense, electric power, electronics, and power equipment testing, maintenance and repair ideal tools. It provides a safe, accurate and convenient new type of power meter for electricity inspectors, which is an essential tool for electrician safety testing.

  1. The perfect combination of clamp meter and multimeter, using new type MCU processor with high performance, easy to carry, is an ideal tool for electrical measurement.
  2. It can measure the effective value of the surge current with a period of 80mS.
Power Supply9V DC 6F22×1 PCS alkaline dry battery
LCD Size50.8mm×37mm
DC VoltageRange: 400mV/4V/40V/400V/1000V                     ±(0.8%+2)
AC VoltageRange: 400mV/4V/40V/400V/700V                      ±(1.2%+5)
DC CurrentRange: 40A/400A/1000A                               ±(2%+5)
AC CurrentRange: 4A/40A/400A/1000A                            ±(2%+10)
ResistanceRange: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ               ±(1%+3)
CapacitanceRange: 10nF/100nF/1uF/10uF/100uF/1000uF/10mF       ±(3%+20)
FrequencyRange:10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz/40MHz      ± (0.5%+3)
TemperatureRange: -50°C~1000°C                                 ±(1%+4)
Automatic Range
Manual Range
AC Conversion TypeTrue effective value(TRMS)
Input Protection
Automatic ShutdownAbout 10 minutes, can be set to no automatic shutdown
Diode TestCan measure the LED work voltage below 3V
Duty Ratio Measurement
Voltage Frequency Measurement
NCV (Live line) Measurement
Short Circuit Buzzer
Low Voltage lndicator
Input ImpedanceAbout 10MΩ
Data Hold
Surge Signal Measurement
Clamp Jaw SizeCan measure max wire diameter Ф52mm/2.05''
Meter Size249mm×89mm×38mm
WeightAbout 360g (include battery); total weight: about 0.6kg (include accessory)
Working Temperature0℃ - 40℃  relative humidity <75%
Store Temperature-10℃ - 50℃ relative humidity <80%

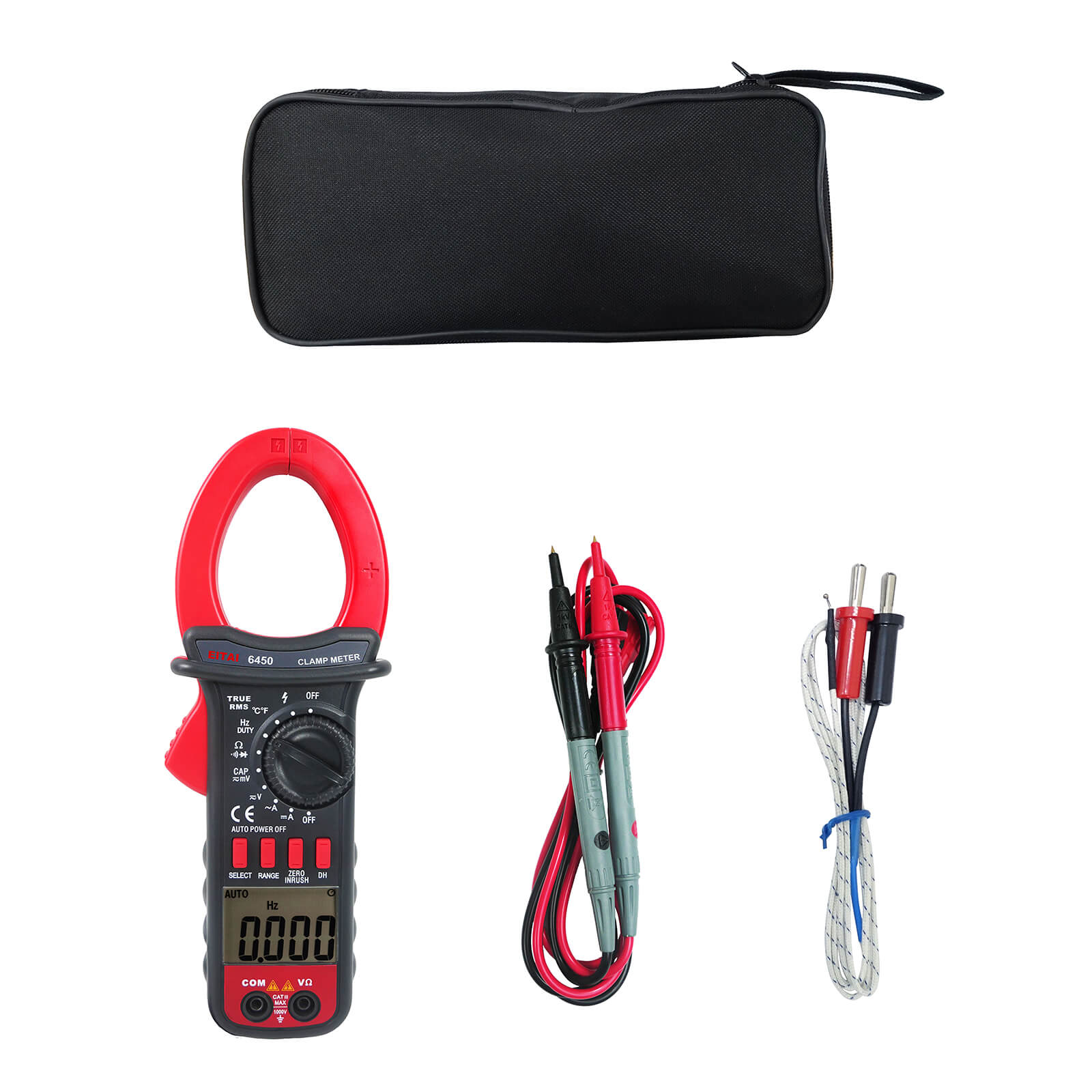

Meter1 PCS
Probe1 SET
Temperature Transducer1 SET
Meter Bag1 PCS
Warranty Card/Certification1 PCS
User Manual1 PCS
Product  ModelClamp Jaw SizeVoltage RangeCurrent RangeResistance RangeCapacitanceFrequency  Temperature
ETCR6420Φ27mmAC/DC 600VAC 600A40MΩ10mF40MHz-50℃-1000℃
ETCR6450Φ52mm

AC 1000V

DC 600V

AC/DC 1000A40MΩ10mF40MHz-50℃-1000℃
ETCR6470Φ55mmAC/DC 2000VAC/DC 2000A20MΩ2000uF----
