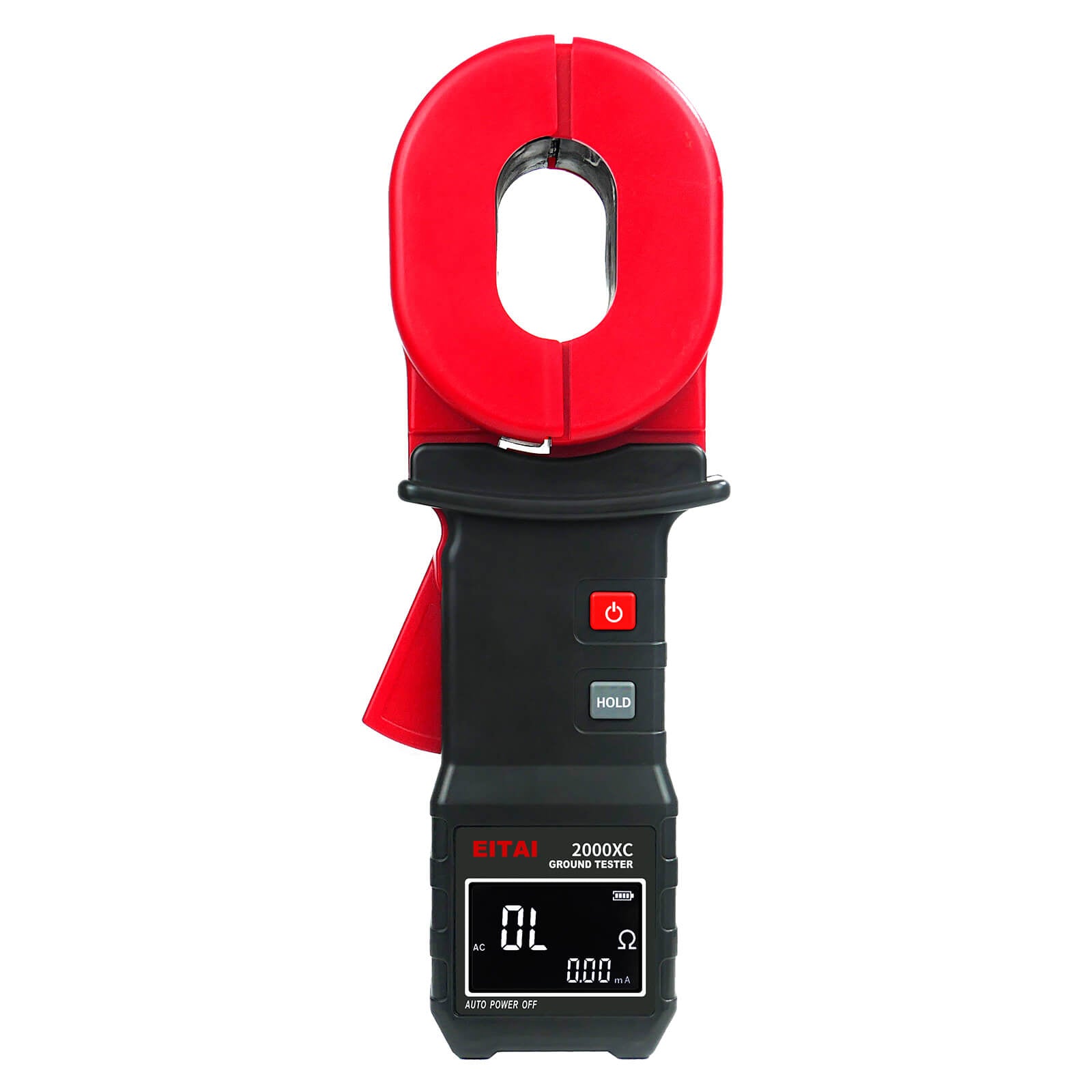

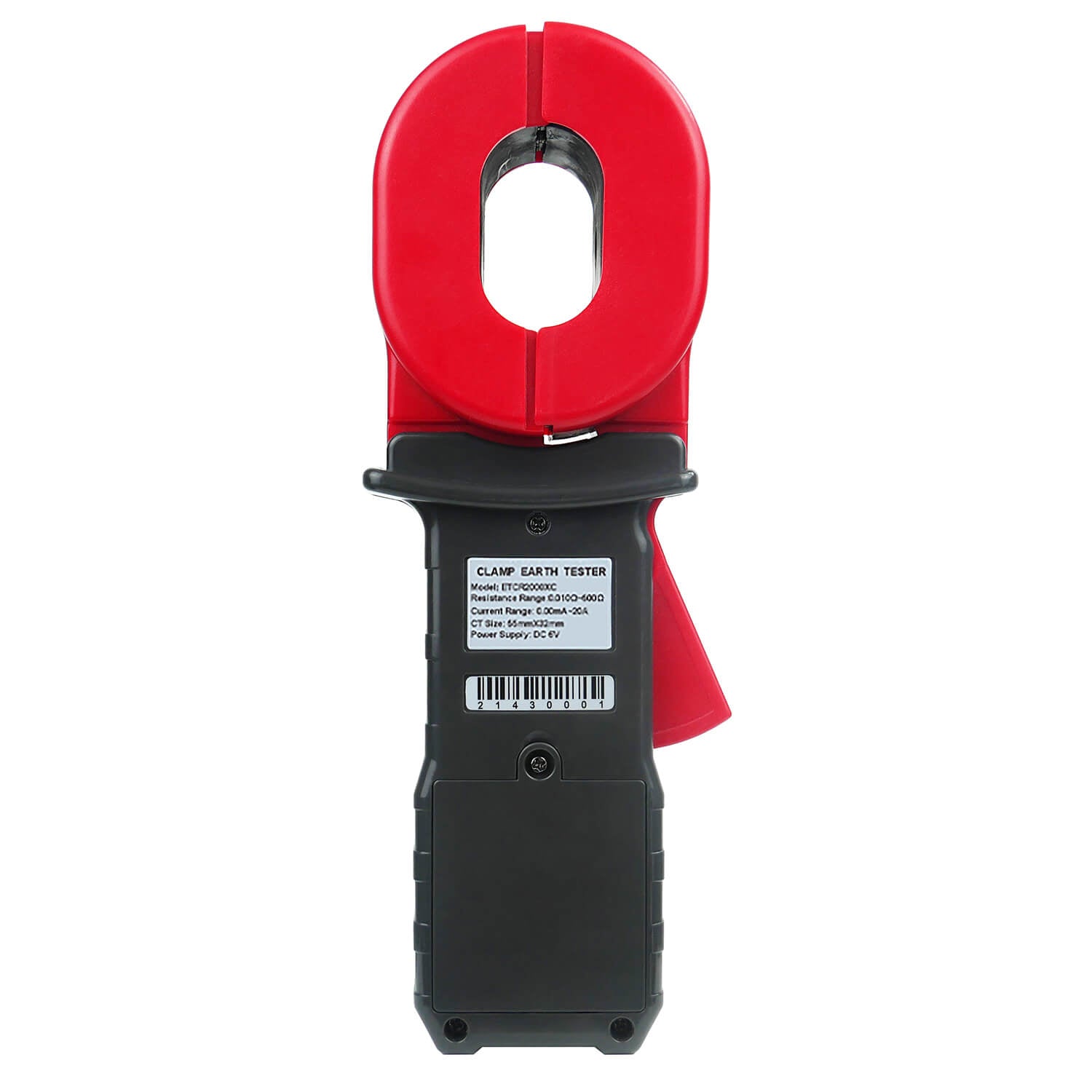

EITAI2000X Series Clamp Ground Resistance Meter

$169.00
$0.00
$169.00
Model: EITAI2000X(0.010Ω-500Ω)
Subtotal: $169.00

Free Shipping

Free standard shipping on orders over $99

Deliver in 3-10 business days

Free Returns

30-Day No-Hassle Returns

2-Year Warranty

Safe & Secure Checkout.
EITAI2000X Series Clamp Ground Resistance Meter

EITAI2000X Series Clamp Ground Resistance Meter

$0.00 $169.00

EITAI2000X Series Clamp Ground Resistance Meter

$0.00 $169.00
Model: EITAI2000X(0.010Ω-500Ω)

EITAI2000X Series Clamp Ground Resistance Tester, also known as clamp type earth resistance tester, earth resistance tester, loop resistance tester, single clamp earth resistance tester, which is used for measurement of earth resistance, loop resistance, and grounding fault judgment.In the loop grounding system measurement, no need to disconnect the grounding down lead, and not request the auxiliary grounding pole, which is safe, fast and convenient to use.

  1. Non-contact measurement is safe and fast. When measuring the loop grounding system, no need to disconnect the grounding down lead, and not request the auxiliary grounding pole, which is saving time and efficient.
  2. The clamp earth resistance tester can measure ground faults that cannot be measured by traditional methods, and can apply to the site which cannot be measured by traditional methods.
  3. With data hold function, memory function.

Measurement Range & Accuracy

Measurement ModeMeasuring RangeResolutionAccuracy
Resistance Range0.010Ω~0.099Ω0.001Ω±(1%rdg+0.01Ω)
0.10Ω~0.99Ω0.01Ω±(1%rdg+0.01Ω)
1.0Ω~49.9Ω0.1Ω±(1%rdg+0.1Ω)
50.0Ω~99.5Ω0.5Ω±(1.5%rdg+0.5Ω)
100Ω~199Ω±(2%rdg+1Ω)
200Ω~395Ω±(5%rdg+5Ω)
400Ω~500Ω10Ω±(10%rdg+10Ω)

Current Range

(EITAI2000XC ONLY)

0.00mA~9.95mA0.05mA±(2.5%rdg+1mA)
10.0mA~99.0mA0.1mA±(2.5%rdg+5mA)
100mA~299mA1mA±(2.5%rdg+10mA)
0.30A~2.99A0.01A±(2.5%rdg+0.1A)
3.0A~9.9A0.1 A±(2.5%rdg+0.3A)
10.0A~20A0.1 A±(2.5%rdg+0.5A)



Technical Specification

Power Supply6V DC(4  PCS 5 alkaline dry batteries)
LCD Displayer4-digit LCD digital display, 47mm×28.5mm
Resistance Measurement Range0.010Ω~500Ω
Resistance Measurement Resolution0.001Ω
Current Measurement Range0.00mA~20A
Current Measurement Resolution0.05mA
Clamp Jaw Size55mm×32mm
Tester Size275mm×100mm×56mm
WeightAbout 950g (include battery)
Protection LevelDouble insulation
Structural FeatureMethod of clamp
Measurement Range Gear ShiftAutomatic
Single Measurement Time0.5 Second
Resistance Measurement Frequency>1kHz
Memory500 groups
External Magnetic Field<40A/m
External Electric Field<1V/m
Working Temperature-10℃~55℃
Relative Humidity10%~90%

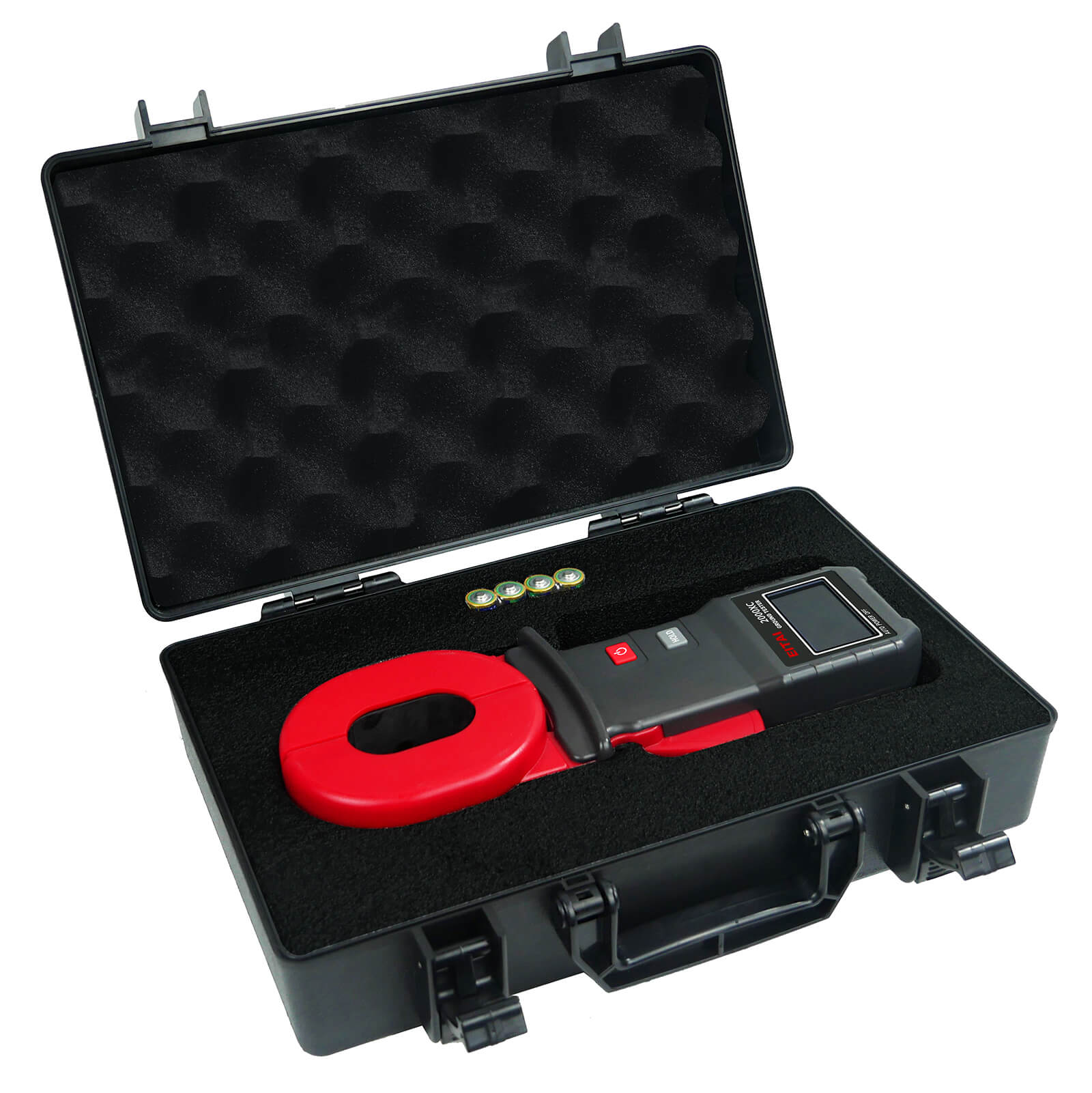

Earth Resistance Tester

1 PCS

Test Ring

1 PCS

Meter Case

1 PCS

Warranty Card / Qualification Certificate

1 SET

User Manual

1 PCS

Product ModelClamp Jaw SizeResistance RangeCurrent RangeAlarm FunctionOthers
EITAI2100A+Φ32mm0.010Ω-200Ω--Yes
EITAI2100+Φ32mm0.010Ω-1200Ω--Yes
EITAI2100C+Φ32mm0.010Ω-1200Ω0.00mA-20AYes
EITAI2000A+65mm×32mm0.010Ω-200Ω--Yes
EITAI2000+65mm×32mm0.010Ω-1200Ω--Yes
EITAI2000C+65mm×32mm0.010Ω-1200Ω0.00mA-20AYes
EITAI2000B+65mm×32mm0.010Ω-1200Ω--YesExplosion proof
EITAI2000X55mm×32mm0.010Ω-500Ω----
EITAI2000XC55mm×32mm0.010Ω-500Ω0.00mA-20A--
