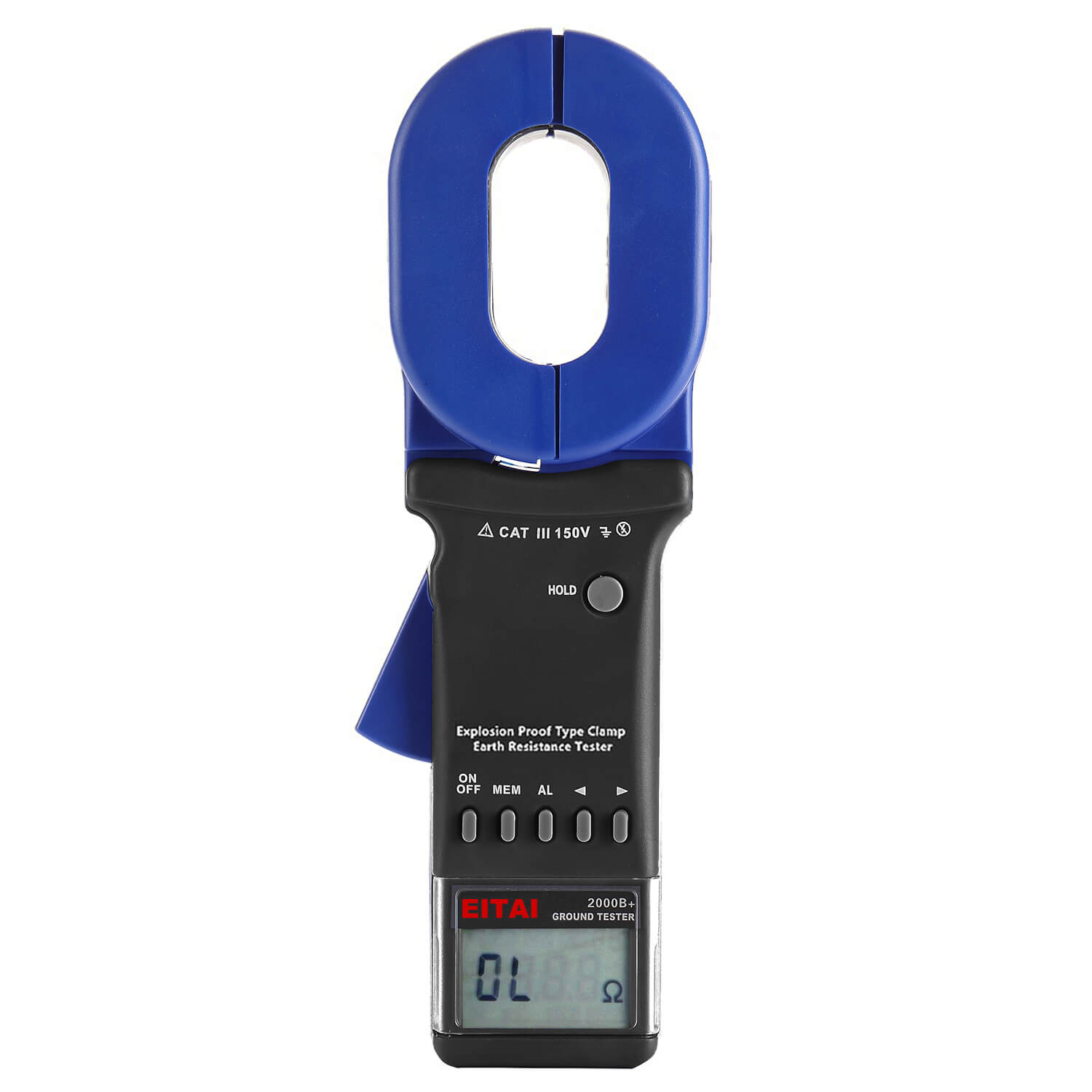

EITAI2000B+ Explosion Proof Clamp Ground Resistance Meter

EITAI2000B+ Explosion Proof Clamp Ground Resistance Meter

$0.00 $329.00

EITAI2000B+ Explosion Proof Clamp Ground Resistance Meter

$0.00 $329.00

EITAI2000B+ Explosion Proof Clamp Earth Resistance Meter has passed explosion proof certification and meets the requirements of GB/T 3836.1-2021 and GB/T 3836.4-2021.Its explosion-proof mark is ExiaⅡBT3Ga.Explosion-proof certificate number: CE23.3879. It can be applied to the corresponding flammable and explosive environment.

  1. Non-contact measurement is safe and fast. When measuring the loop grounding system, no need to disconnect the grounding down lead, and not request the auxiliary grounding pole, which is saving time and efficient.
  2. The clamp earth resistance tester can measure ground faults that cannot be measured by traditional methods, and can apply to the site which cannot be measured by traditional methods.
  3. With data hold function, storage function, alarm function.
  4. EITAI2000B+ Explosion Proof Clamp Earth Resistance Tester can be used in the corresponding environment, and the shell is made of anti-static engineering plastics, which is safer.
  5. Explosion-proof mark: ExiaⅡBT3Ga, Explosion-proof certificate number: CE23.3879.



Measurement Range & Accuracy

Measurement ModeMeasuring RangeResolutionAccuracy
Resistance0.010Ω~0.099Ω0.001Ω±(1%rdg+0.01Ω)
0.10Ω~0.99Ω0.01Ω±(1%rdg+0.01Ω)
1.0Ω~49.9Ω0.1Ω±(1%rdg+0.1Ω)
50.0Ω~99.5Ω0.5Ω±(1.5%rdg+0.5Ω)
100Ω~199Ω±(2%rdg+1Ω)
200Ω~395Ω±(5%rdg+5Ω)
400Ω~590Ω10Ω±(10%rdg+10Ω)
600Ω~880Ω20Ω±(20%rdg+20Ω)
900Ω~1200Ω30Ω±(25%rdg+30Ω)



Technical Specification

Power Supply6V DC(4 PCS 5 alkaline dry batteries)
LCD Displayer4-digit LCD digital display, 47mm×28.5mm
Resistance Range0.010Ω~1200Ω
Resistance Resolution0.001Ω
Memory99 groups
Sound & Light Alarm"Du-Du-Du-" Alarm sound, press the AL Button to turn on and turn off
Alarm Threshold Setting RangeResistance: 1Ω~199Ω
Explosion Proof MarkExiaⅡBT3Ga
Clamp Jaw Size65mm×32mm
Clamp Opening Size32mm
Tester Size285mm×85mm×56mm
WeightAbout 1100g (include battery)
Protection LevelDouble insulation
Structure featureClamp type
Measurement Range Gear ShiftFully automatic shifting
External Magnetic Field, Electric Field<40A/m;<1V/m
Single Measurement Time0.5 second
Resistance Measurement Frequency>1kHz
Working Temperature & Humidity-20℃~55℃;10%RH~90%RH
Earth Resistance Tester

1 PCS

Test Ring

1 PCS

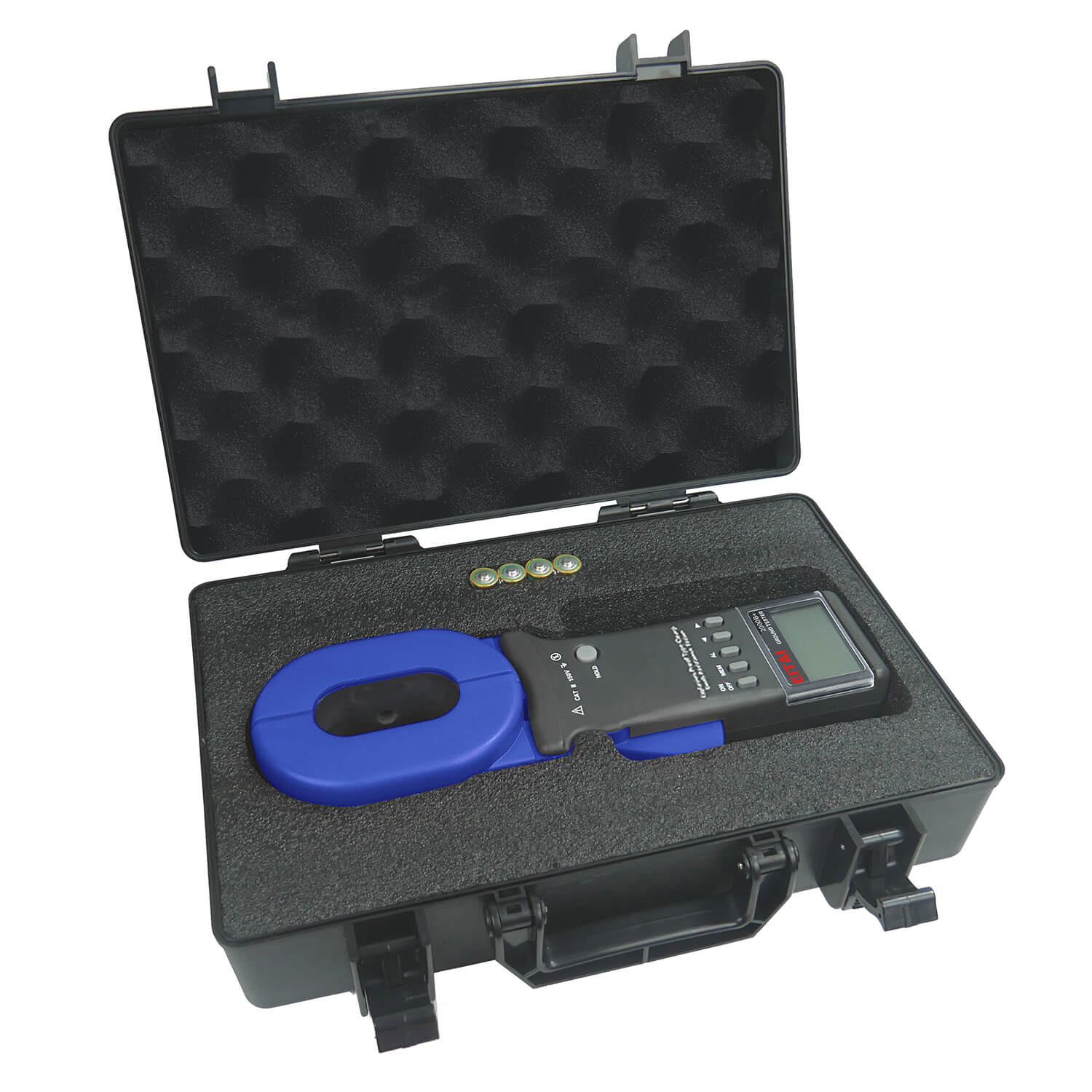

Meter Case

1 PCS

Warranty Card / Qualification Certificate

1 SET

User Manual

1 PCS

Product ModelClamp Jaw SizeResistance RangeCurrent RangeAlarm FunctionOthers
EITAI2100A+Φ32mm0.010Ω-200Ω--Yes
EITAI2100+Φ32mm0.010Ω-1200Ω--Yes
EITAI2100C+Φ32mm0.010Ω-1200Ω0.00mA-20AYes
EITAI2000A+65mm×32mm0.010Ω-200Ω--Yes
EITAI2000+65mm×32mm0.010Ω-1200Ω--Yes
EITAI2000C+65mm×32mm0.010Ω-1200Ω0.00mA-20AYes
EITAI2000B+65mm×32mm0.010Ω-1200Ω--YesExplosion proof
EITAI2000X55mm×32mm0.010Ω-500Ω----
EITAI2000XC55mm×32mm0.010Ω-500Ω0.00mA-20A--
