EITAI2000+ Series Clamp Ground Resistance Meter

EITAI2000+ Series Clamp Ground Resistance Meter

$0.00 $229.00

EITAI2000+ Series Clamp Ground Resistance Meter

$0.00 $229.00
Model: EITAI2000+(0.010-1200Ω)

Overview

EITAI2000+ Series Clamp Ground Resistance Tester is our company's technology research and development team on technical quality of the pursuit of excellence, through continuous innovation to improve, upgrade with the old product. Its performance is mainly reflected in:

  • Breakthrough in self-test the boot a long time to waiting, start immediately into the test.
  • Breakthrough relay self-test mode, using the most advanced processing algorithms and digital integration technology.
  • Breakthrough the old product too heavy issues, more in line with characteristics of hand-held devices.
  • New design, panel operation with 6 buttons, better performance.
  • Increase sound and light alarm function, with "beep-beep-beep” alarm sound.
  • Increase the interference signal recognition indicator function, with "beep-beep-beep” indicator.
  • Measurement range: 0.010Ω-1200Ω
  • Stored data 99 Units. Lower power consumption, Maximum operating current less than 50mA.

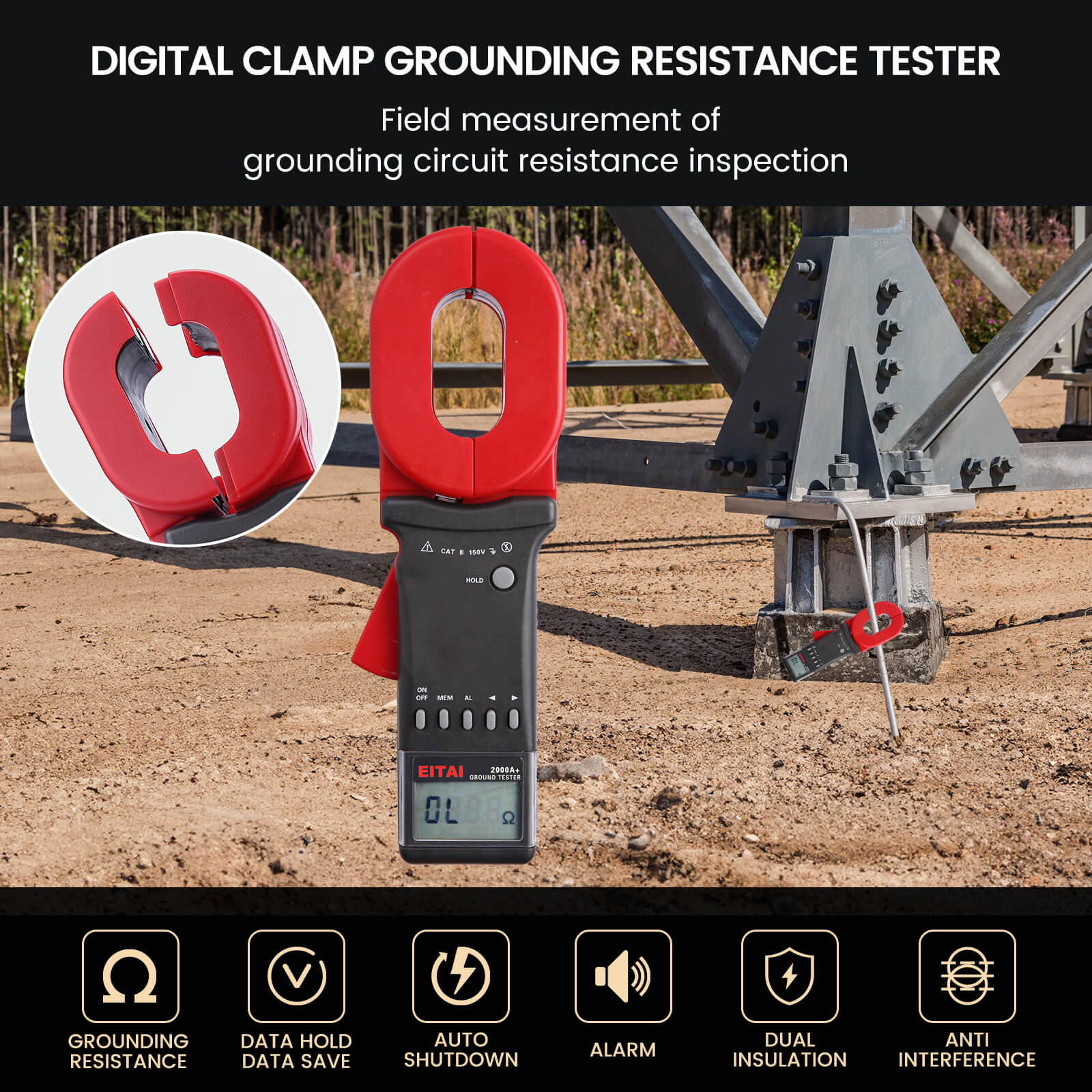

EITAI2000+ Series Clamp Earth Resistance Tester is widely used in the grounding resistance measurement of the power, telecommunications, meteorology, oilfield, construction and the industrial and electrical equipment. In the measurement of a grounding system with loop, does not require breaking down the grounding down lead, and no need the auxiliary electrode. It is safe, fast and simple in use. The tester can measure ground faults which cannot be measured by traditional methods. It can be used in applications where traditional methods cannot be measured, because the EITAI series clamp grounding resistance meter measures the combined value of grounding body resistance and grounding lead resistance.



Field Application

The application of machine room earth resistance measurement

  • The machine room of telecommunication system normally in the upper deck of the building. It is hard to use the meg-ohm meter to measure. However, EITAI Clamp meters are very convenient to test.

The application of substation earth resistance measurement

  • EITAI series clamp meter can use to test the situation of contact and connect of circuit. With the help of one test line, it can be used to test the connect situation of equipment in station and the grounding system. Single point grounding measurement is allowed for the measurement of grounding resis.

The application of building lightning protection grounding system measurement

  • If the earth poles of the building are independent of each other, the earth resistance can be measured by clamp to testing any of the earth poles, and the earth resistance can also be measured by clamp the building roof lightning arrester.When the measured value is less than the allowable value, the earth electrode is qualified.If the measurement value of the clamp meter is larger than the allowable value, please use ingle earth point method to measurement.

From the measuring principle, EITAI series Meter can only measure the loop resistance, the single-point grounding is not measured. However, users are able to use a testing line very near to the earth electrode of the grounding system to artificially create a loop for testing. For details, please read user manuals.

Measurement Range & Accuracy

Measurement ModeMeasuring RangeResolutionAccuracy
Resistance0.010Ω-0.099Ω0.001Ω±(1%rdg+0.01Ω)
0.10Ω-0.99Ω0.01Ω±(1%rdg+0.01Ω)
1.0Ω-49.9Ω0.1Ω±(1%rdg+0.1Ω)
50.0Ω-99.5Ω0.5Ω±(1.5%rdg+0.5Ω)
100Ω-199Ω±(2%rdg+1Ω)
200Ω-395Ω±(5%rdg+5Ω)
400Ω-590Ω10Ω±(10%rdg+10Ω)
600Ω-880Ω20Ω±(20%rdg+20Ω)
900Ω-1200Ω30Ω±(25%rdg+30Ω)

Current

(EITAI2000C+ only)

0.00mA-9.95mA0.05mA±(2.5%rdg+1mA)
10.0mA-99.0mA0.1mA±(2.5%rdg+5mA)
100mA-300mA1mA±(2.5%rdg+10mA)
0.30A-2.99A0.01A±(2.5%rdg+0.1A)
3.0A-9.9A0.1A±(2.5%rdg+0.3A)
10.0A-20.0A0.1 A±(2.5%rdg+0.5A)



Technical Specification

Power Supply6V DC(4 PCS 5 alkaline dry batteries)
LCD Displayer4-digit LCD digital display, 47mm×28.5mm
Resistance Measurement Range0.010Ω-1500Ω
Resistance Measurement Resolution0.001Ω
Current Range0.00mA-20.0A
Current Resolution0.05mA
Memory99 groups
Sound & Light Alarm"Du-Du-Du-" Alarm sound, press the AL Button to turn on and turn off
Alarm Threshold Setting RangeResistance: 1Ω-199Ω; Current: 1mA-499mA

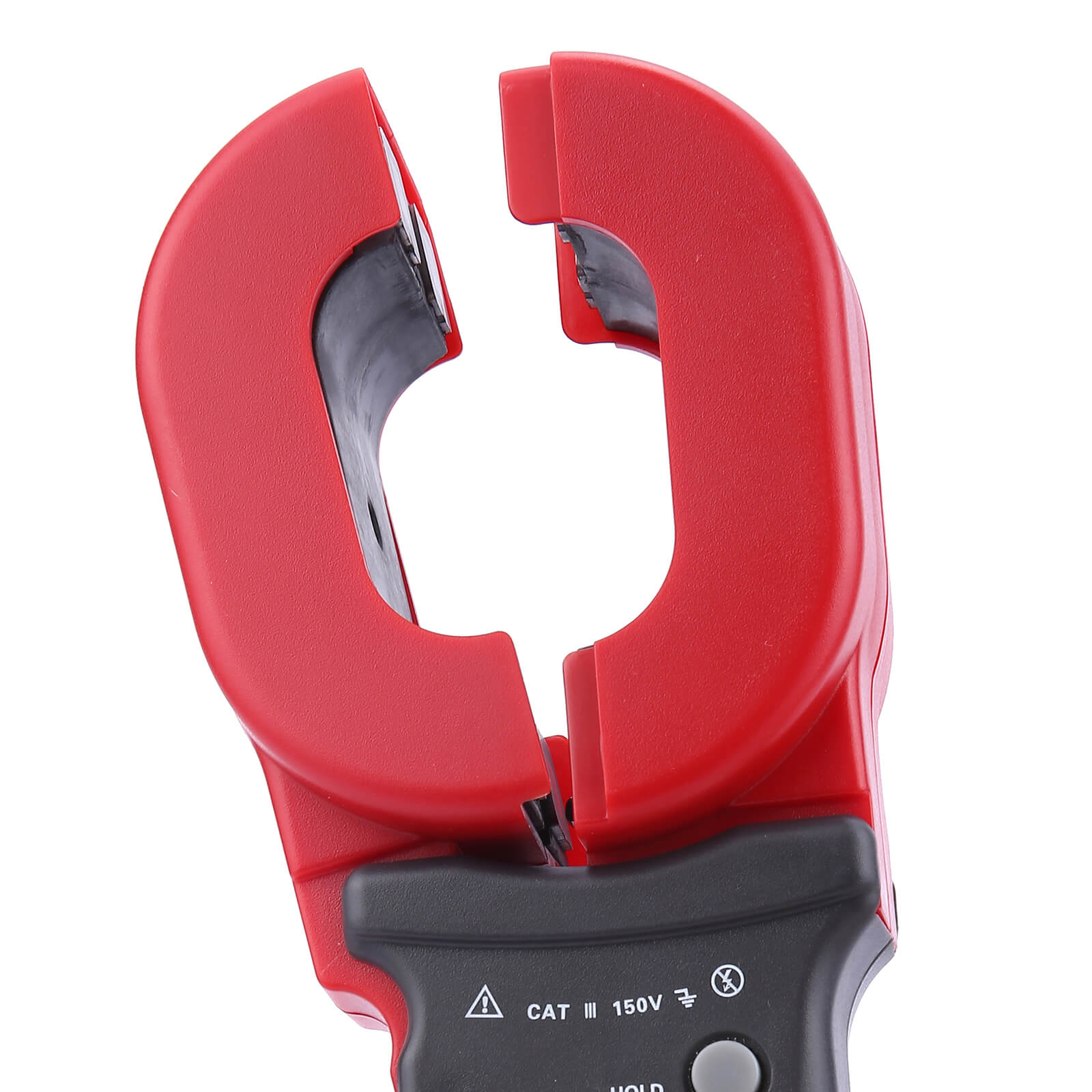

Clamp Jaw Size65mm×32mm
Clamp Opening Size32mm
Tester Size285mm×85mm×56mm
WeightAbout 1100g (include battery)
Protection LevelDouble insulation
Structure FeatureClamp type
Measurement Range Gear ShiftFully automatic shifting
External Magnetic Field, electric Field<40A/m;<1V/m
Single Measurement Time0.5 second
Resistance Measurement Frequency>1kHz
Measured Current Frequency50Hz/60Hz Automatic
Working Temperature & Humidity-20℃-55℃; 10%RH-90%RH

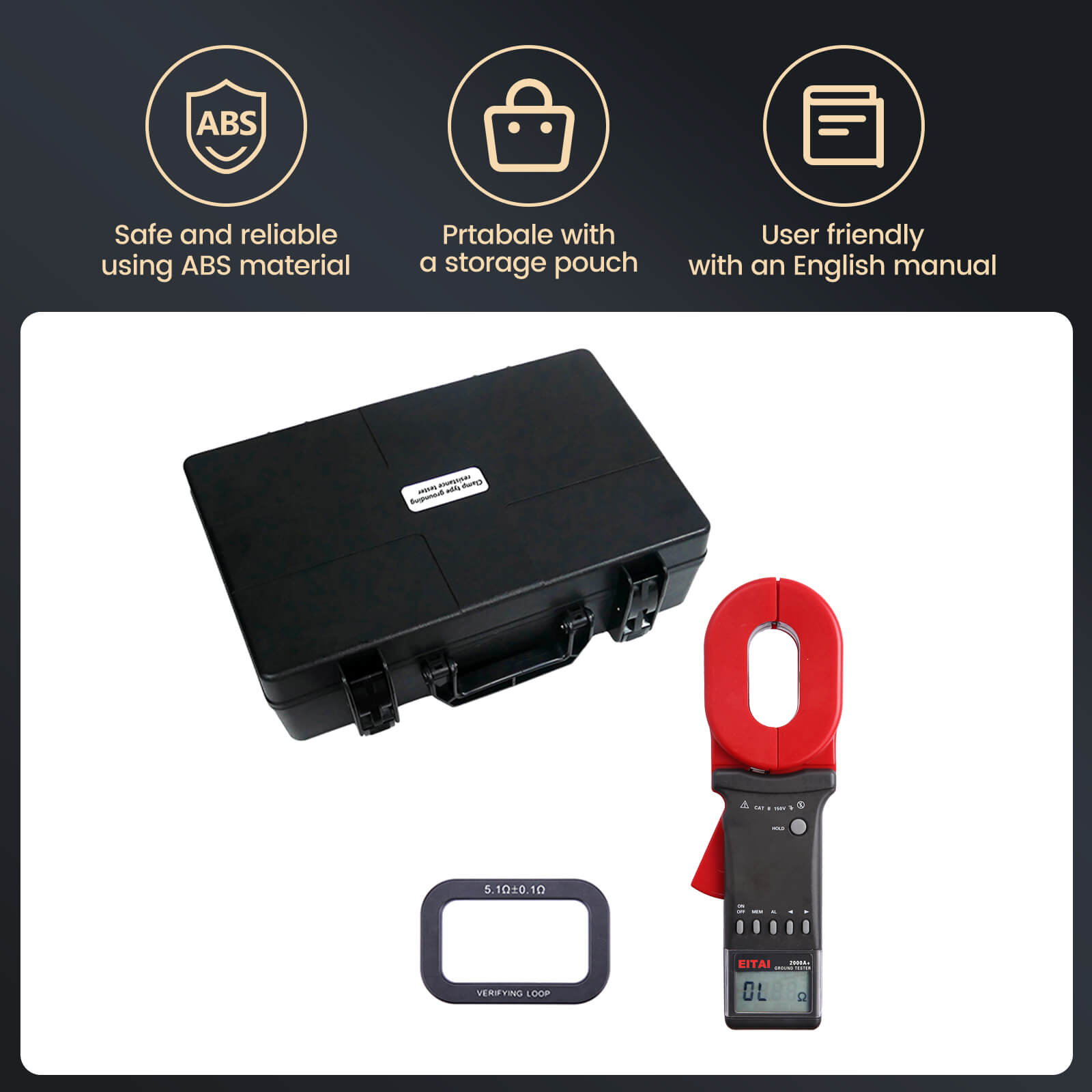

Earth Resistance Tester

1 PCS

Test Ring

1 PCS

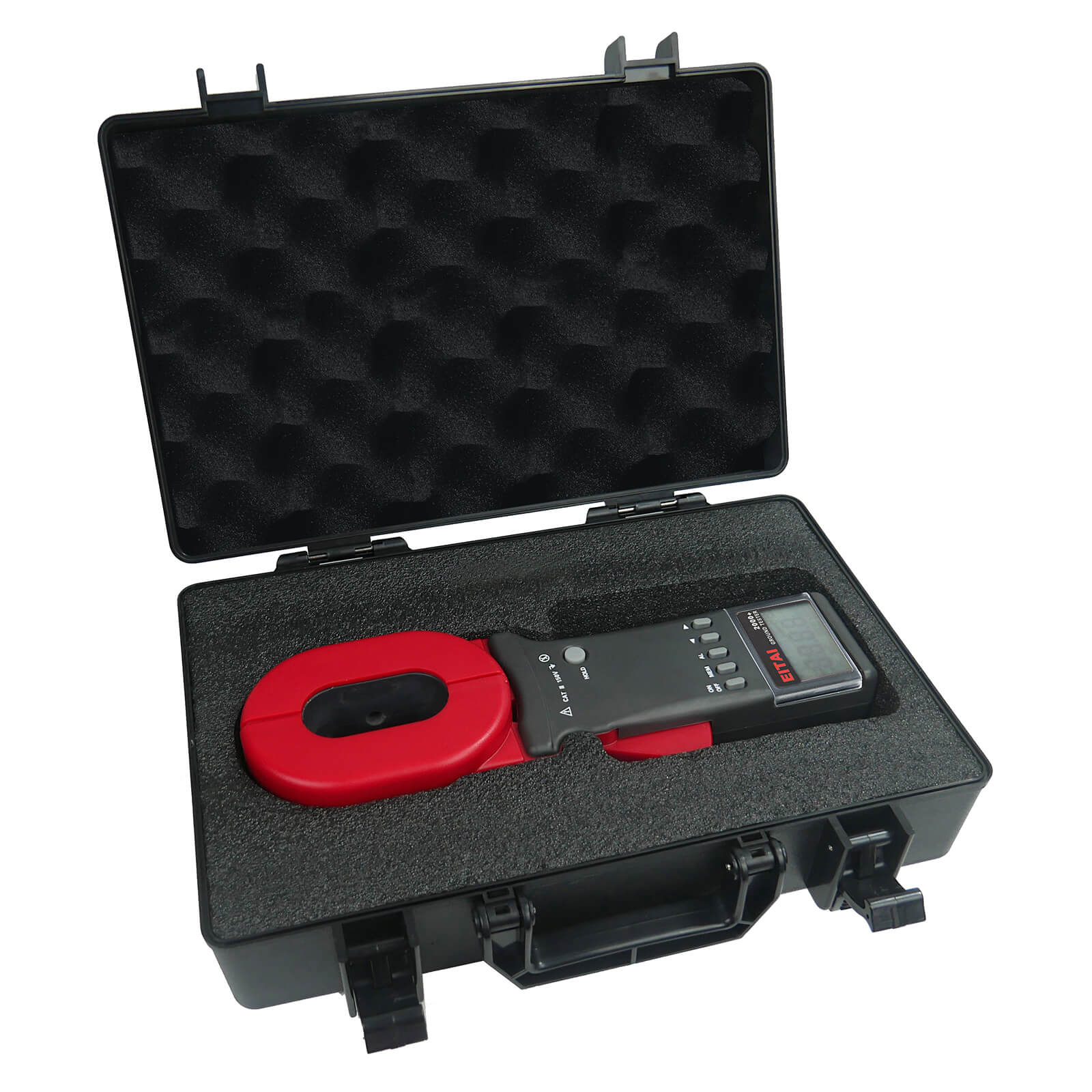

Meter Case

1 PCS

Warranty Card / Qualification Certificate

1 SET

User Manual

1 PCS

Product ModelClamp Jaw SizeResistance RangeCurrent RangeAlarm FunctionOthers
EITAI2100A+Φ32mm0.010Ω-200Ω--Yes
EITAI2100+Φ32mm0.010Ω-1200Ω--Yes
EITAI2100C+Φ32mm0.010Ω-1200Ω0.00mA-20AYes

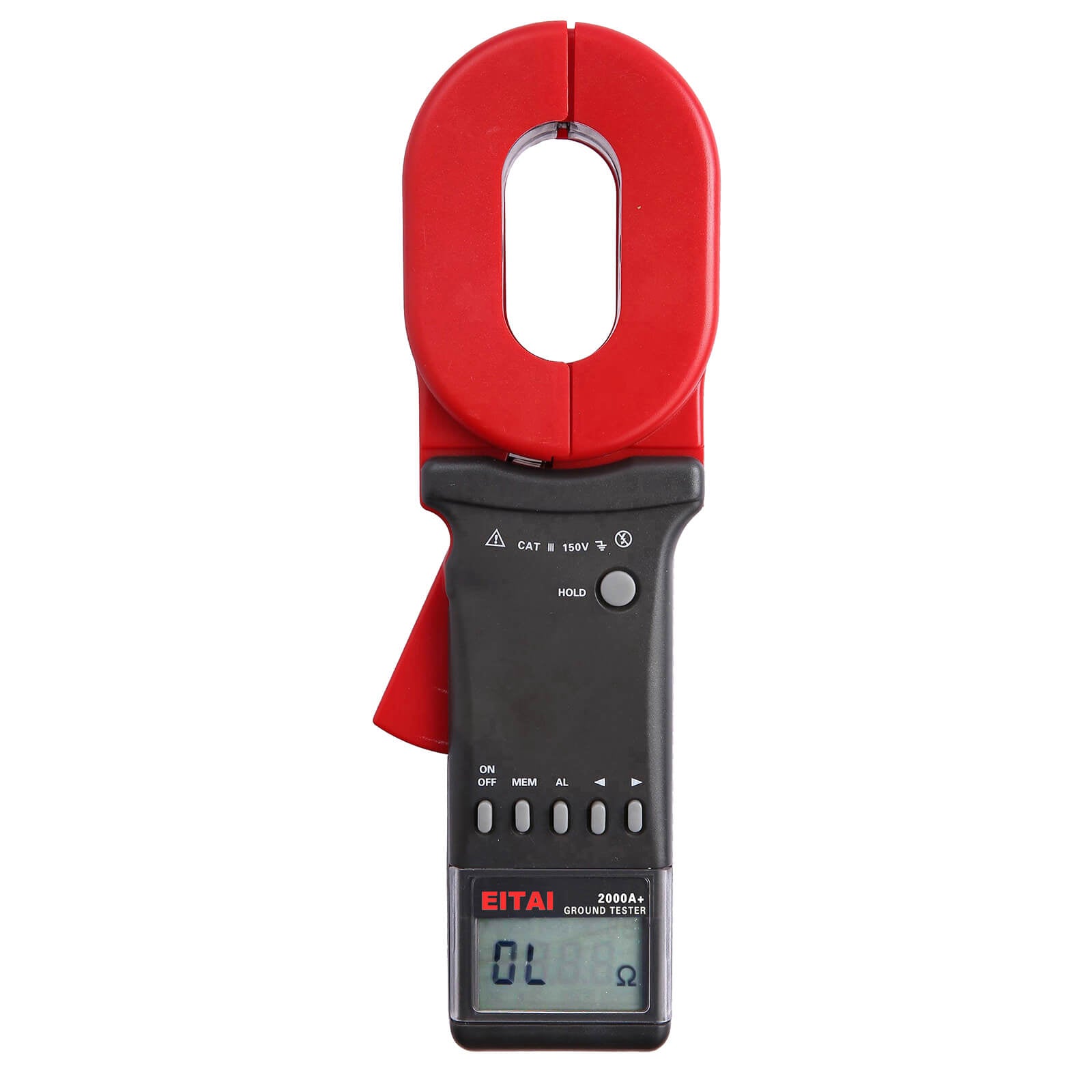

EITAI2000A+65mm×32mm0.010Ω-200Ω--Yes
EITAI2000+65mm×32mm0.010Ω-1200Ω--Yes

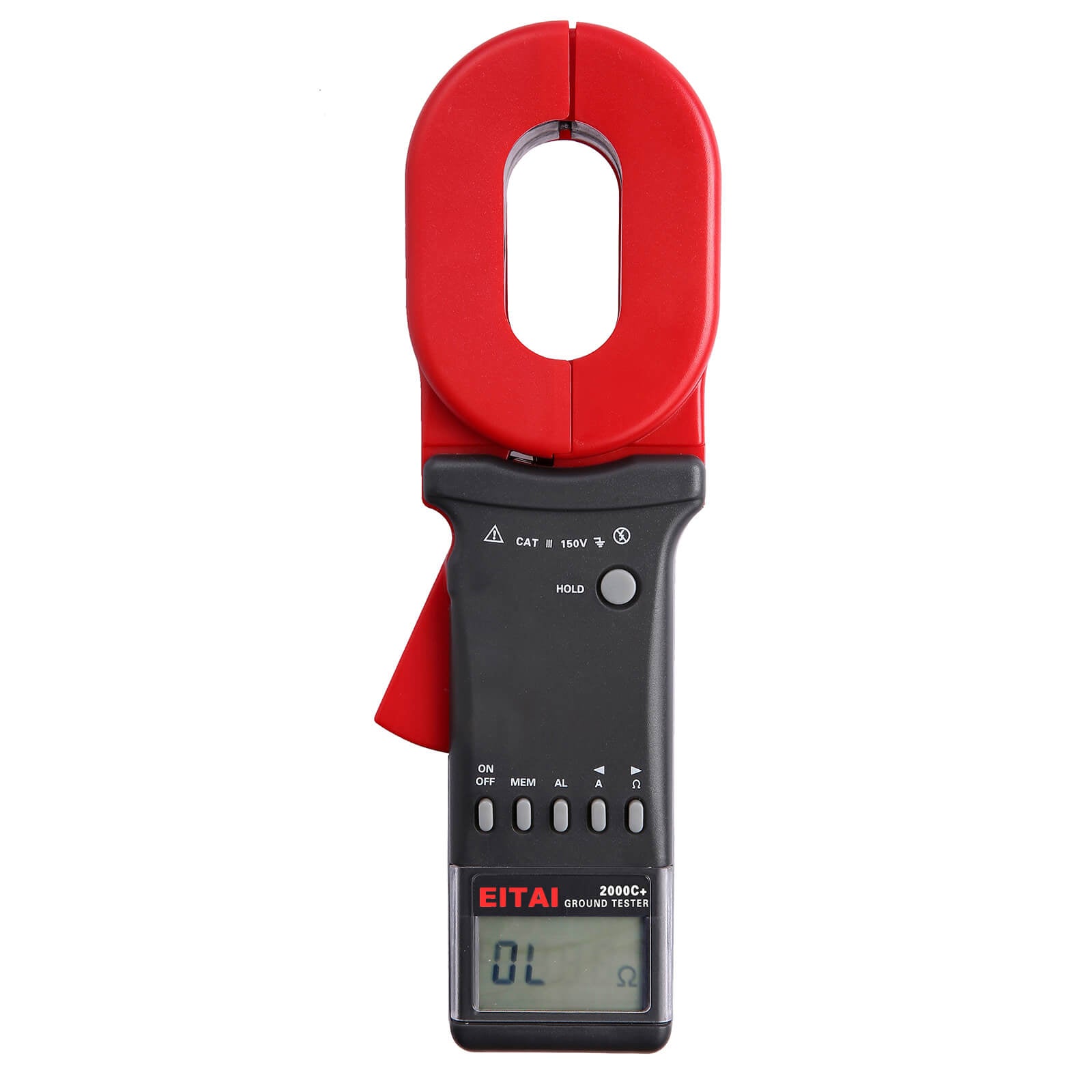

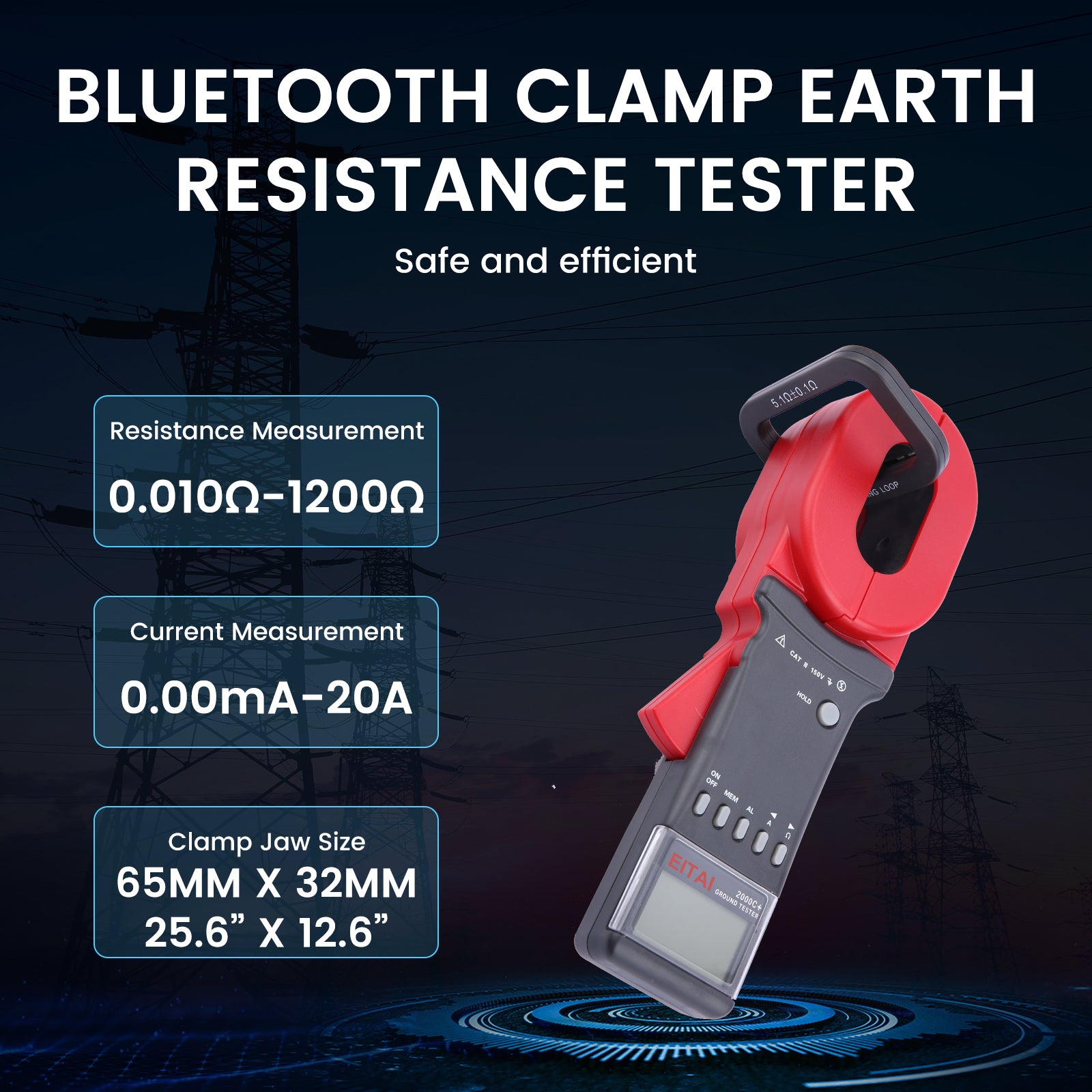

EITAI2000C+65mm×32mm0.010Ω-1200Ω0.00mA-20AYes
EITAI2000B+65mm×32mm0.010Ω-1200Ω--YesExplosion proof
EITAI2000X55mm×32mm0.010Ω-500Ω----
EITAI2000XC55mm×32mm0.010Ω-500Ω0.00mA-20A--
