EITAI5960 Digital Multimeter

EITAI5960 Digital Multimeter

$0.00 $34.00

EITAI5960 Digital Multimeter

$0.00 $34.00

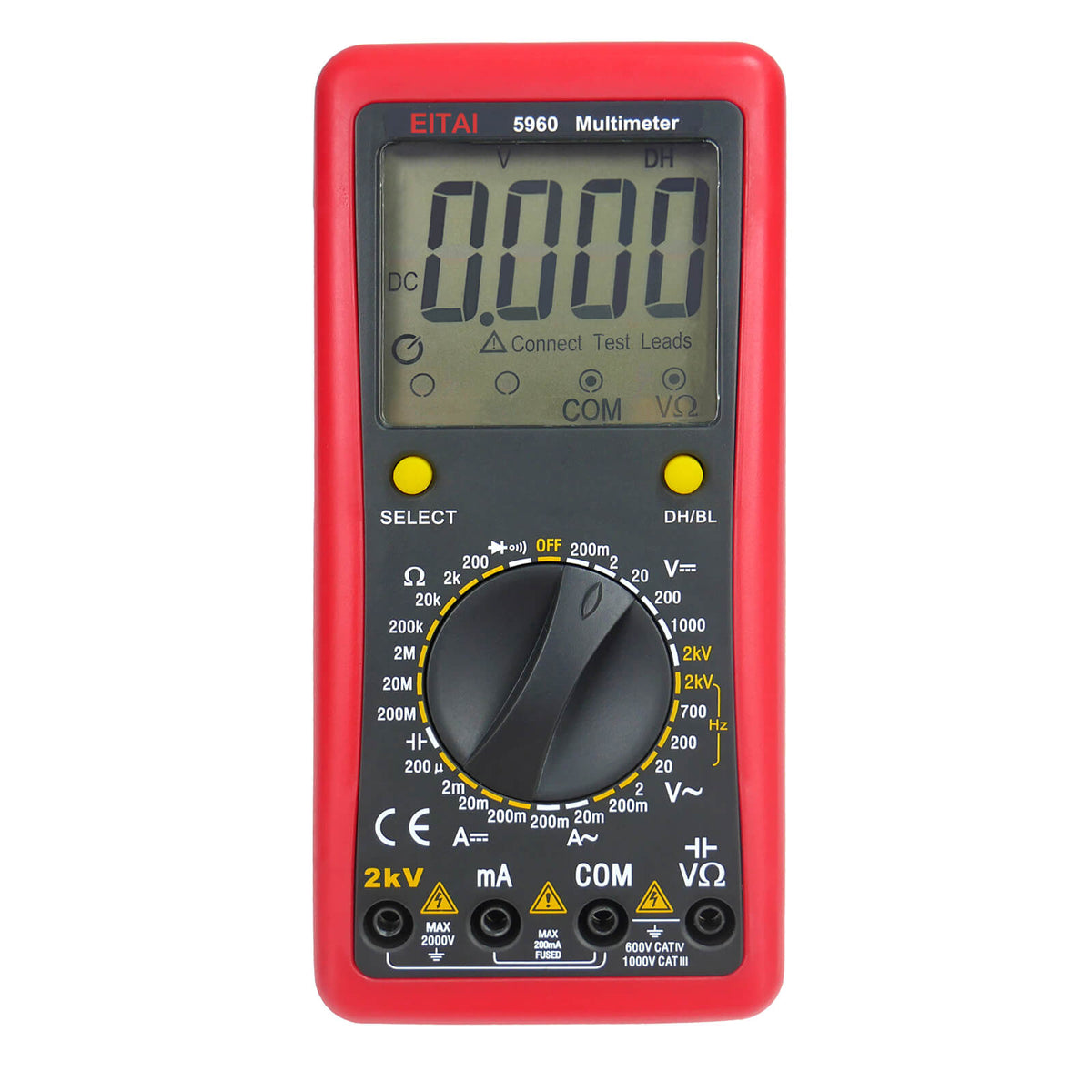

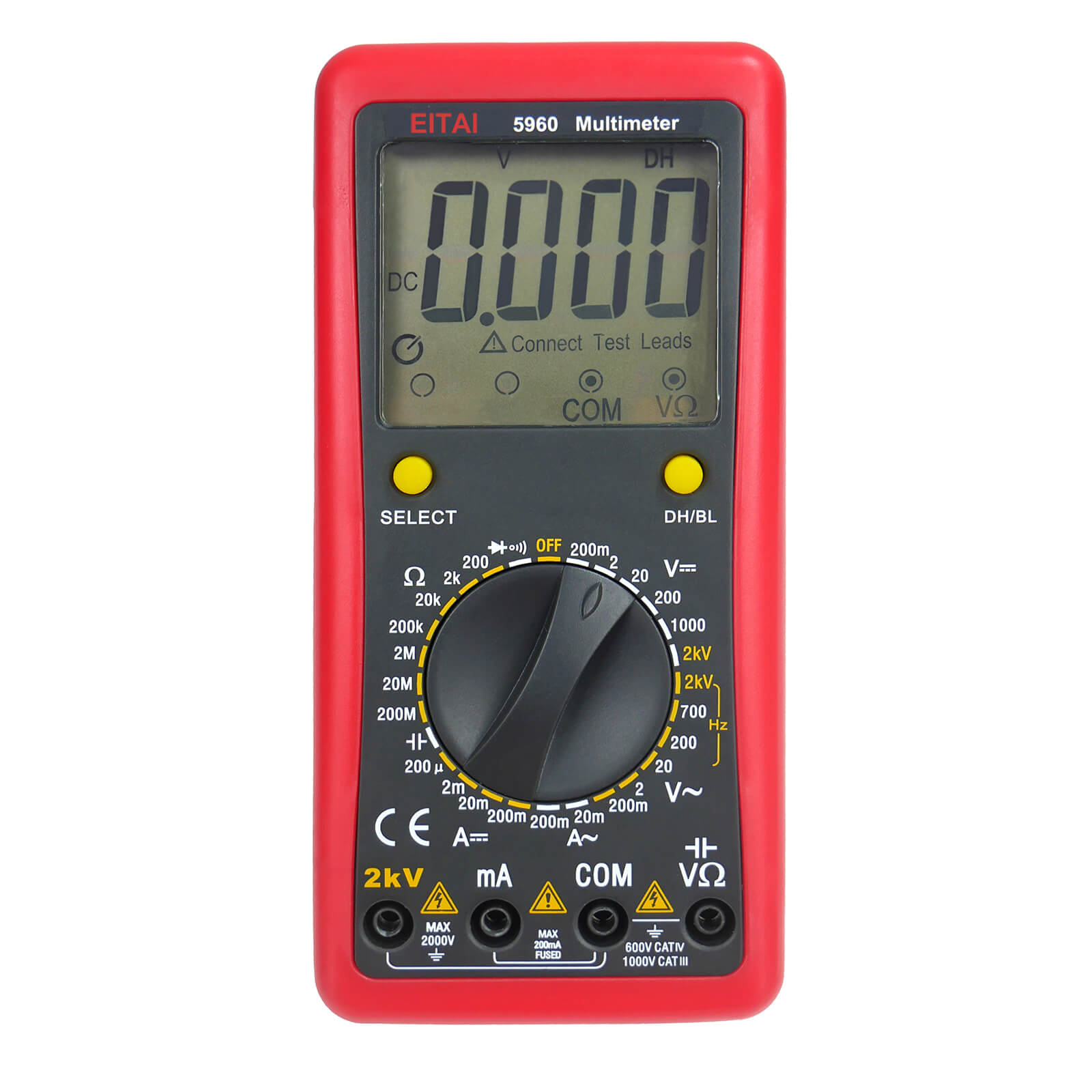

ETCR5960 Digital Multimeter, also known as smart multimeter, which is a stable and battery-powered digital multimeter with high reliability. The multimeter is managed by single chip microcomputer and has full function of overload protection. The meter can show the position of each pen and socket, and remind you not to insert the wrong position. The instrument can measure DC voltage and current AC true RMS voltage and current, resistance, capacitance, diode forward voltage drop, circuit on-off, etc. Accurate measurement, stable performance, safe and reliable, is your ideal test and repair tool.
  1. The multimeter is managed by single chip microcomputer and has full function of overload protection.
  2. Equipped with backlight, read data hold function, making it convenient for user to read measurement value in dark place.
  3. With automatic shutdown, data hold function.
Power Supply9V DC 6F22×1 PCS alkaline dry battery
LCD Size60mm×50mm; Max display: 1999
Voltage MeasurementRange: DC 0.0mV~2000V      Max solution: 0.1mV       Max accuracy: ±(0.5%+5)
Range: AC 0.0mV~2000V      Max solution: 0.1mV       Max accuracy: ±(0.8%+5)
Current MeasurementRange: DC 0.0uA~200mA      Max solution: 0.1uA       Max accuracy: ±(0.8%+5)
Range: AC 0uA~200mA        Max solution: 10uA        Max accuracy: ±(1%+5)
Resistance MeasurementRange: 0.0Ω~200MΩ        Max solution: 0.1Ω       Max accuracy: ±(1%+5)
Capacitance MeasurementRange: 0pF~2000uF          Max solution: 10pF        Max accuracy: ±(3%+10)
Frequency Range40Hz~1kHz
Meter Size180mm×85mm×42mm
WeightMeter: about 379g (include battery); Total weight: 680g (include accessory)
BacklightYes
Data HoldYes
Continuity TestYes
Sampling Rate2.5 times/second
Automatic ShutdownAfter 15minutes will automatic shutdown without any operation
Overflow DisplayExceed measurement range overflow function: "OL" symbol display
Overload ProtectionYes
Input ImpedanceAbout 10MΩ
Battery VoltageWhen the low battery indicator symbol is displayed, remind to replace the battery
Line VoltageLine measurement below AC 600V
Working Temperature0℃- 40℃  relative humidity <75%
Store Temperature-10℃- 50℃ relative humidity <80%

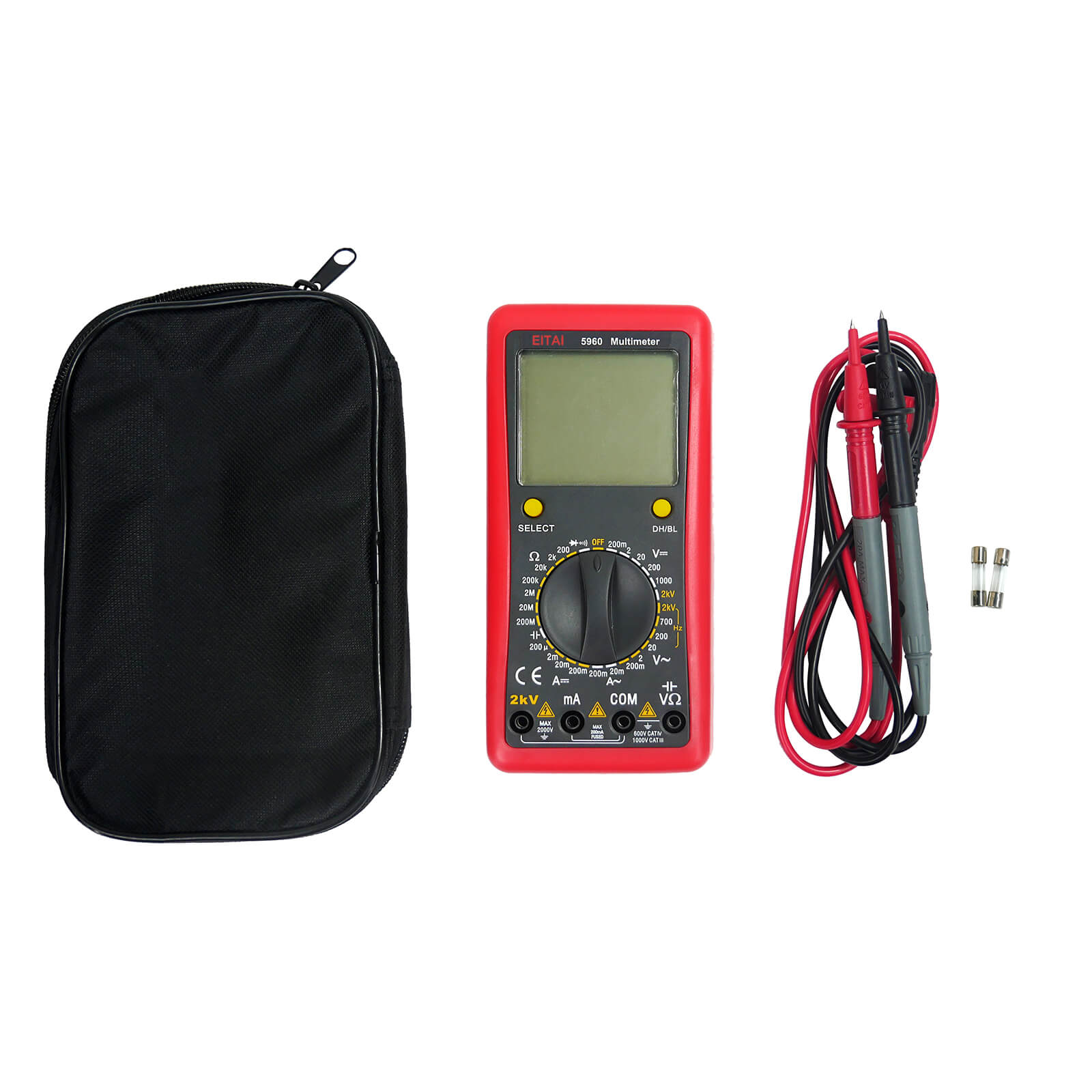

Meter

1 PCS

Tool bag

1 PCS

Probe

1 SET

200mA Fuse

1 PCS

Warranty Card / Qualification Certificate

1 SET

User Manual

1 PCS

Product Model NameVoltage RangeCurrent RangeResistance RangeCapacitanceFrequency   Temperature
EITAI5930 Digital MultimeterAC/DC 600VAC/DC 10A20MΩ2mF20Mhz0℃-1000℃
EITAI5940 Digital MultimeterAC/DC 1000VAC/DC 10A60MΩ10mF20Mhz0℃-1000℃
EITAI5960 Digital MultimeterAC/DC 2000VAC/DC 200mA20MΩ2mF----
