EITAI5940 Digital Multimeter

EITAI5940 Digital Multimeter

$0.00 $27.00

EITAI5940 Digital Multimeter

$0.00 $27.00

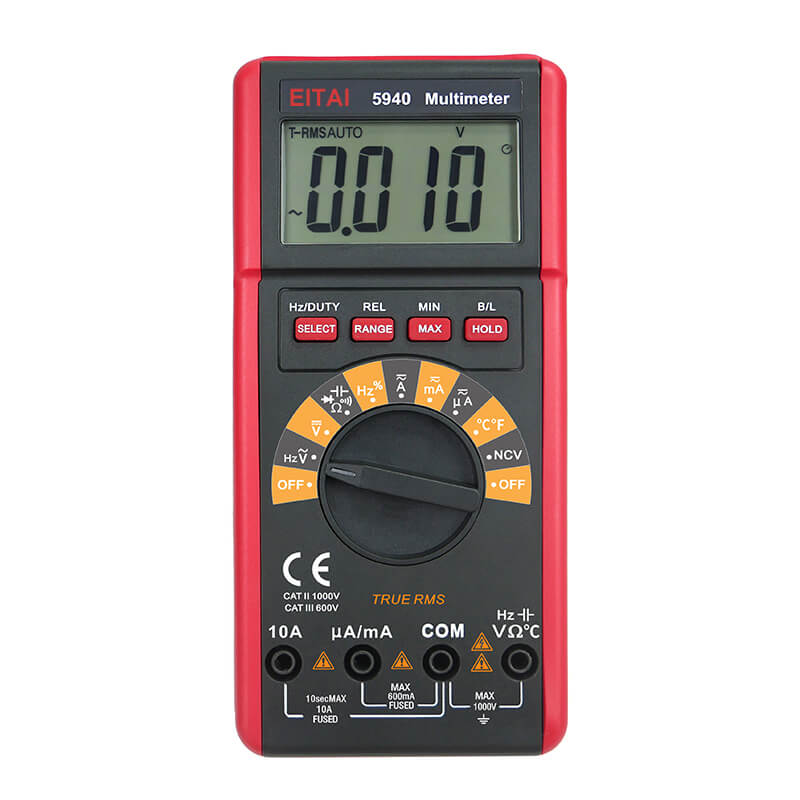

EITAI5940 Digital Multimeter, also known as smart multimeter, which is a 3 5/6 bit portable automatic range digital multimeter that can measure AC voltage true RMS (TRMS), DC voltage, AC current true RMS (TRMS), DC current, resistance, frequency, capacitance, temperature, on-off test, diode forward voltage drop, etc. The instrument is compact in structure, easy to operate and carry, which is an ideal tool for electrical and electronic measurement.
  1. 3/5/6 bit portable automatic range digital multimeter, compact in structure, easy to operate and carry, which is an ideal tool for electrical and electronic measurement.
  2. Equipped with backlight, read data hold, which is convenient for user to read out the measured value in dark place.
  3. With automatic shutdown, data hold function.
  4. Frequency, duty ratio measurement function.
Power Supply3V DC LR03×2 PCS alkaline dry battery
LCD Size58mm×31mm; Max display: 6000
Voltage MeasurementRange: DC 0mV-1000V          Max solution: 1mV       Max accuracy: ±(0.5%+5)
Range: AC 0mV-1000V          Max solution: 1mV      Max accuracy: ±(1.2%+5)
Current MeasurementRange: DC 0.0uA-10A          Max solution: 0.1uA    Max accuracy: ±(1%+5)
Range: AC 0.0uA-10A          Max solution: 0.1uA    Max accuracy: ±(1%+5)
Resistance MeasurementRange: 0.0Ω-60MΩ         Max solution: 0.1Ω    Max accuracy: ±(0.8%+5)
Capacitance MeasurementRange: 0.000nF-9.999mF     Max solution: 0.001nF   Max accuracy: ±(3%+30)
Frequency MeasurementRange: 0.000Hz-20MHz       Max solution: 0.001Hz    Max accuracy: ±(0.5%+3)
Temperature MeasurementRange: 0℃-1000℃          Max solution: 1℃        Max accuracy: ±(1.2%+4)
Meter Size178mm×85mm×35mm
WeightMeter: about 283g (include battery); Total weight: 396g (include accessory)
BacklightYes
Data HoldYes
Continuity MeasurementYes
Diode forward voltage dropYes
Automatic ShutdownAfter 15minutes will automatic shutdown without any operation
Overflow DisplayExceed measurement range overflow function: "OL" symbol display
Overload ProtectionYes
Input ImpedanceAbout 10MΩ
Battery VoltageWhen the low battery indicator symbol is displayed, remind to replace the battery
Line VoltageLine measurement below AC 600V
Working Temperature0℃- 40℃  relative humidity <75%
Store Temperature-10℃- 50℃ relative humidity <80%

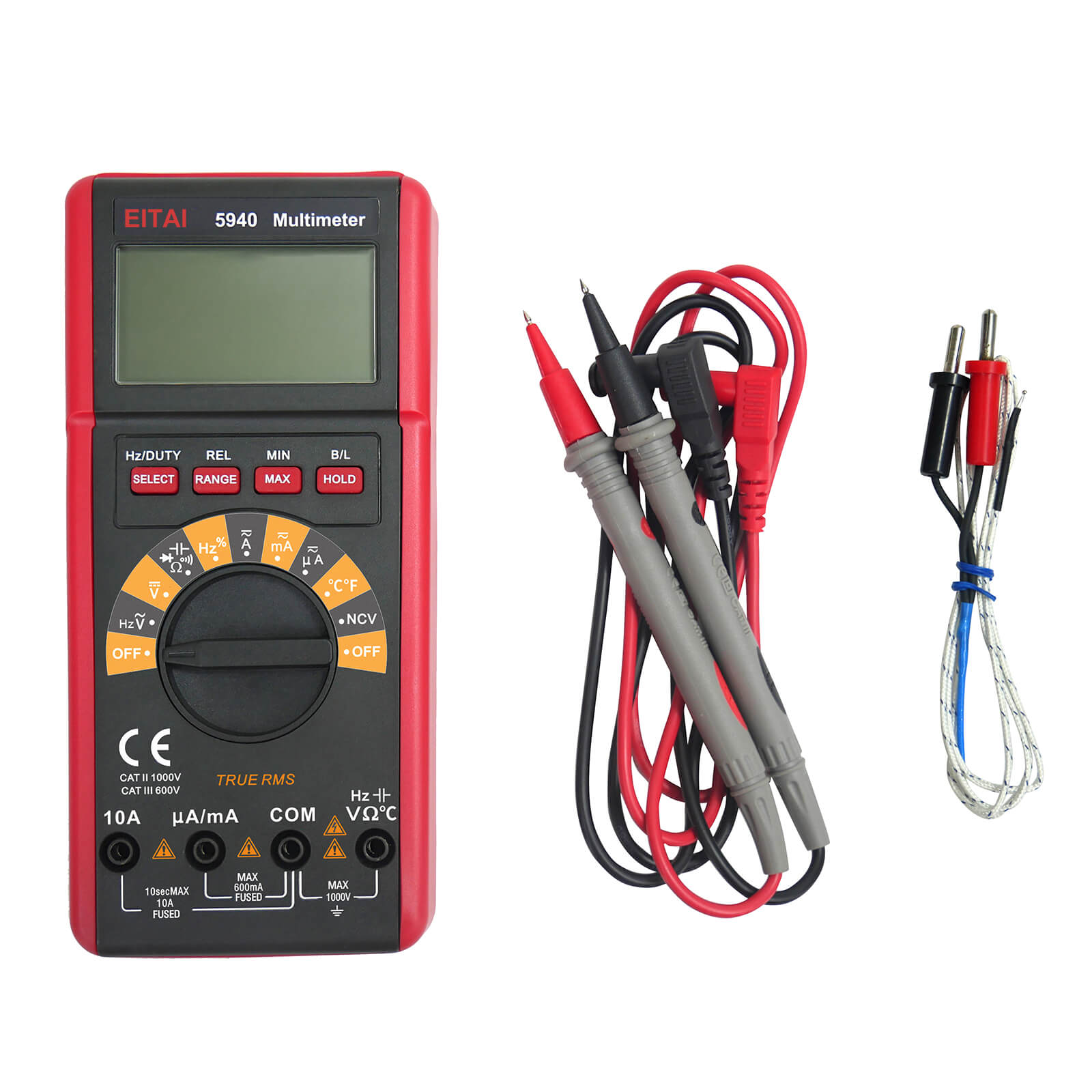

Meter

1 PCS

Tool bag

1 PCS

Probe

1 SET

Temperature Transducer

1 PCS

Warranty Card / Qualification Certificate

1 SET

User Manual

1 PCS

Product Model NameVoltage RangeCurrent RangeResistance RangeCapacitanceFrequency   Temperature
EITAI5930 Digital MultimeterAC/DC 600VAC/DC 10A20MΩ2mF20Mhz0℃-1000℃
EITAI5940 Digital MultimeterAC/DC 1000VAC/DC 10A60MΩ10mF20Mhz0℃-1000℃
EITAI5960 Digital MultimeterAC/DC 2000VAC/DC 200mA20MΩ2mF----
