EITAI7350 Rogowski Flexible Coil Clamp Power Meter

EITAI7350 Rogowski Flexible Coil Clamp Power Meter

$0.00 $239.00

EITAI7350 Rogowski Flexible Coil Clamp Power Meter

$0.00 $239.00

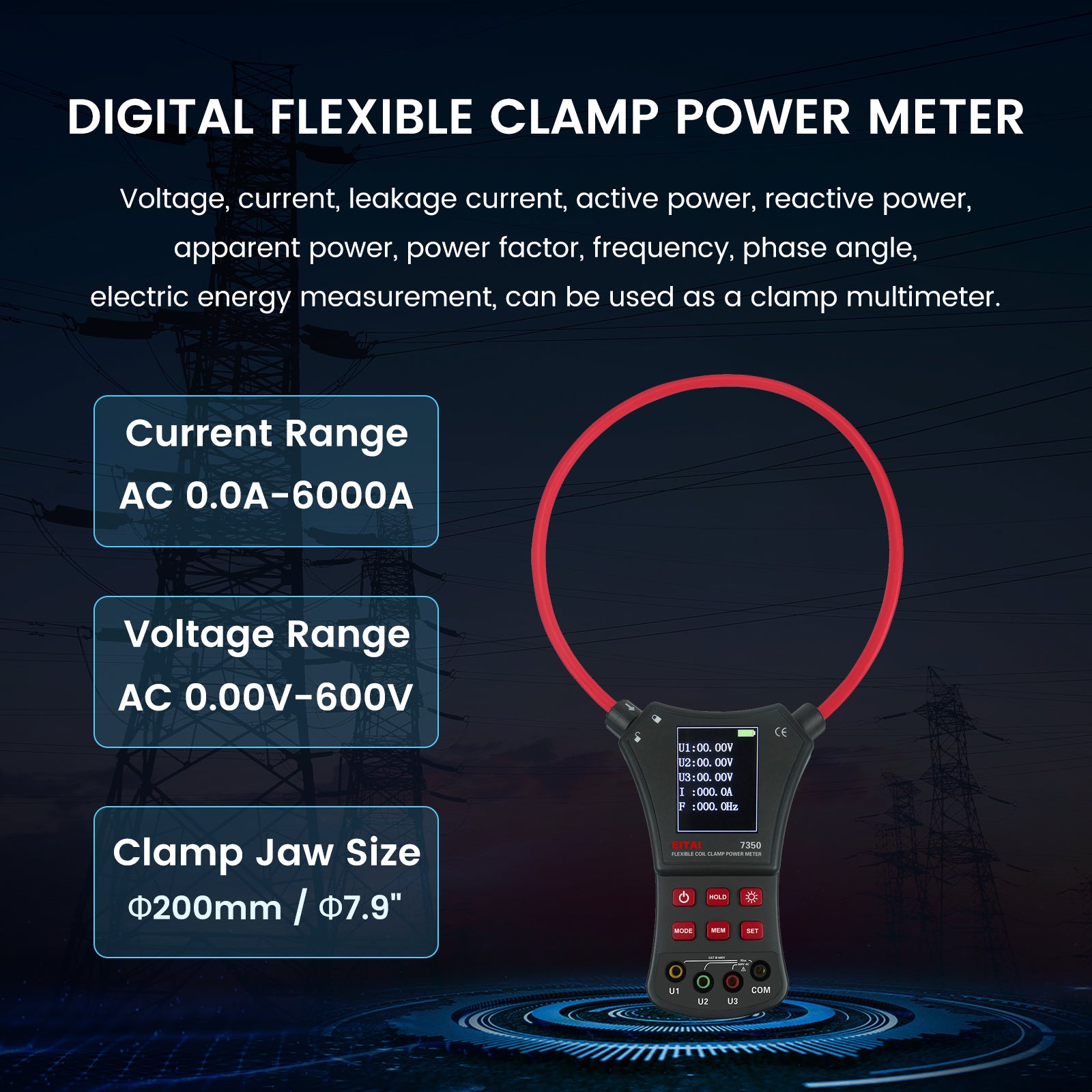

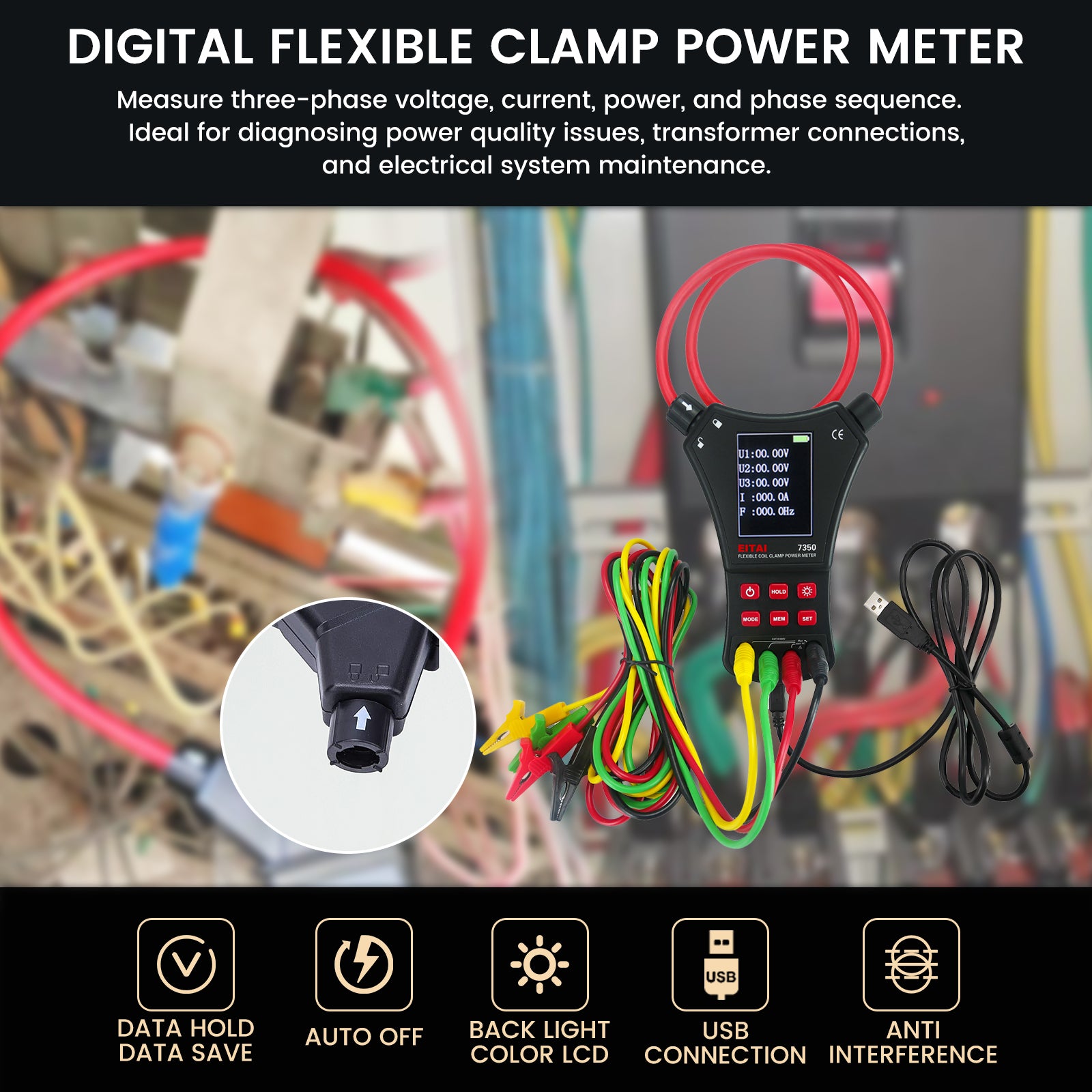

EITAI7350 Rogowski Flexible Coil Clamp Power Meter, also known as Rogowski coil power meter, which is used for measurement of AC voltage, current, voltage phase, voltage and current phase, frequency, phase sequence, active power, reactive power, apparent power, power factor, total power and other parameter of electrical energy. It can also be used to distinguish transformer wiring group, inductive and capacitive circuit, figure out the phase relationship between different CT groups of differential protection, check the correctness of the wiring of the electricity meter, repair line equipment, etc., providing a safe, accurate, and convenient new type of power meter for electricity inspectors.

EITAI7350 Rogowski Flexible Coil Clamp Power Meter without any exposed metal conductor, small size, light weight, soft and flexible, especially suitable for large size conductor, narrow environment and cable dense place, which can be use to measure the current of the industrial environment with serious signal distortion. The meter can store 200 groups data, storage data can be uploaded to computer via system software and USB communication interface, achieving reading, saving, printing and other functions of historical data.

  1. Flexible coil without any exposed metal conductors, small size, light weight, soft and flexible, especially suitable for large size conductor, narrow environment and cable dense place.
  2. No magnetic saturation, strong anti-interference ability. Especially suitable for the relay protection, silicon controlled rectifier, frequency conversion speed regulation, semiconductor switch, power electronic conversion equipment, arc welding and other industrial environment with serious signal distortion.
  3. Display multiple measurement parameters on same screen, easy to operate. Can be used as the normal multimeter.
  4. Memory: data storage 200 groups
  5. USB communication interface.

Measurement Range & Accuracy

Measurement FunctionMeasurement RangeAccuracySolution
AC Voltage0.00V-60.00V±0.5%Fs0.01V
60.0V-600.0V±0.5%Fs0.1V
AC Current0.0A-600.0A±0.5%Fs0.1A
600A-6000A±0.5%Fs1A
Frequency25.0Hz-600.0Hz±0.5Hz0.1Hz
Active Power0.00W-36.00W±1%Fs0.01W
36.0W-360.0W±1%Fs0.1W
360W-3600W±1%Fs1W
3.60kW-36.00kW±1%Fs0.01kW
36.00kW-360.0kW±1%Fs0.1kW
360kW-3600kW±1%Fs1kW
Apparent Power0.00VA-36.00VA±1%Fs0.01VA
36.0VA-360.0VA±1%Fs0.1VA
360VA-3600VA±1%Fs1VA
3.60kVA-36.00kVA±1%Fs0.01kVA
36.00kVA-360.0kVA±1%Fs0.1kVA
360kVA-3600kVA±1%Fs1kVA
Reactive Power0.00var-36.00var±1%Fs0.01var
36.0var-360.0var±1%Fs0.1var
360var-3600var±1%Fs1var
3.60kvar-36.00kvar±1%Fs0.01kvar
36.00kvar-360.0kvar±1%Fs0.1kvar
360kvar-3600kvar±1%Fs1kvar
Power Factor0.300-1.000±0.5%Fs0.001
Phase Angle0°-360°±0.5°0.1°
Specific Accuracy Of Current Phase Angle5.0A-20.0A±4°0.1°
20.0A-40.0A±2°
40.0A-60.0A±1°
>60.0A±0.5°
Electric Energy0.00Wh-36.00Wh±1%Fs0.01Wh
36.0Wh-360.0Wh±1%Fs0.1Wh
360Wh-3600Wh±1%Fs1Wh
3.60kWh-36.00kWh±1%Fs0.01kWh
36.00kWh-360.0kWh±1%Fs0.1kWh
360kWh-360000kWh±1%Fs1kWh



Basic Specifications

Power Supply6V DC(LR03×4 sections Alkaline dry battery)
Display Mode2.8 inch TFT true-color LCD screen; display area: 58mm×44mm
Clamp Jaw Size

ETCR7350: φ200mm
Wire PositionThe measured wire is in the center position of the clamp.
Memory200 groups
Communication InterfaceStorage data can be uploaded to computer, convenient to data analyze.
Frequency50Hz/60Hz Automatic identification
Shift GearFully automatic shift
Sampling Rate2 times/second
Line VoltageLine measurement below AC 600V
BacklightYes, Press “*” key to control
Data HoldData hold function: “HOLD”symbol display
Overflow DisplayExceed measure range overflow function: “OL”symbol display
Automatic Shutdown15 Minutes after power on, the meter shut down automatically without any operation to reduce battery consumption
Battery VoltageWhile battery voltage decrease to about 4.8V,low battery voltage symbol display, and remind to replace the battery.
Meter Size

ETCR7350: 200mm×370mm×35mm
Weight

ETCR7350: about 266g (include battery)
Working CurrentBacklight on: 80mA; Backlight off: 50mA
Insulation LengthAC 3700V/rms(between the core and outside shell)
Working Temperature & Humidity-10℃-40℃; below 80%rh
Meter

1 PCS

Tool bag

1 PCS

Data Upload Software(CD)

1 PCS

Communication Cable

1 PCS

Warranty Card / Qualification Certificate

1 SET

User Manual

1 PCS

Product ModelClamp Jaw SizeCurrent RangeVoltage RangeFrequencyPower RangElectric Power RangeOthers
EITAI730080mm×80 mm

AC 0.00mA-1200A

Solution: 0.01mA

AC 0.00V-600V

Solution: 0.01V

25.0Hz-100.0Hz

Solution: 0.1Hz

720kW

Solution: 0.01W

72000kWh

Solution: 0.1Wh

USB
EITAI7300A80mm×80 mm

AC 0.0A-2000A

Solution: 0.1A

AC 0.00V-600V

Solution: 0.01V

25.0Hz-100.0Hz

Solution: 0.1Hz

1200kW

Solution: 0.1KW

72000kWh

Solution: 0.1Wh

USB
EITAI7350Φ200mm

AC 0mA-6000A

Solution: 0.1A

AC 0.00V-600V

Solution: 0.01V

25.0Hz-600.0Hz

Solution: 0.1Hz

3600kW

Solution: 0.01W

360000kWh

Solution: 0.01Wh

USB
