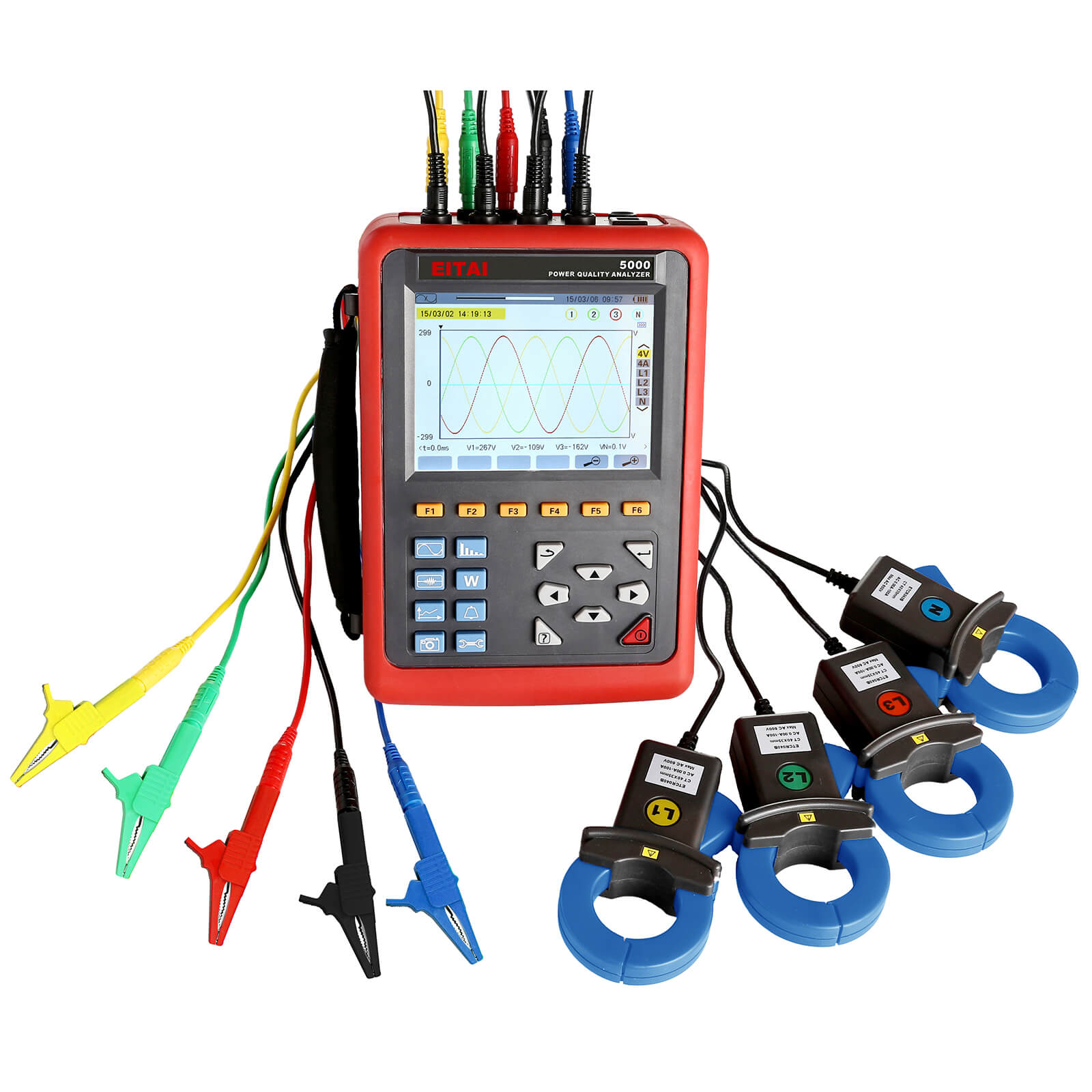

EITAI5000 Power Quality Analyzer

Major Functions

  • Waveform real-time display (4 channels voltage/4 channels current).
  • True RMS values of voltages and currents.
  • The DC components of voltages.
  • Peak current and voltage values.
  • Minimum and maximum half-cycle RMS current and voltage values.
  • Phasor diagram display.
  • Measurement of each harmonic up to order 50.
  • Bar charts show harmonic ratios of current and voltage of each phase.
  • Total harmonic distortion (THD).
  • Active, reactive, apparent power, by phase and cumulative.
  • Active, reactive, apparent energy, by phase and cumulative.
  • Transformer K factor.
  • Power factors (PF) and displacement factors (DPF or COSΦ).
  • Short-term voltage flicker (PST).
  • Three phase unbalance (current and voltage)

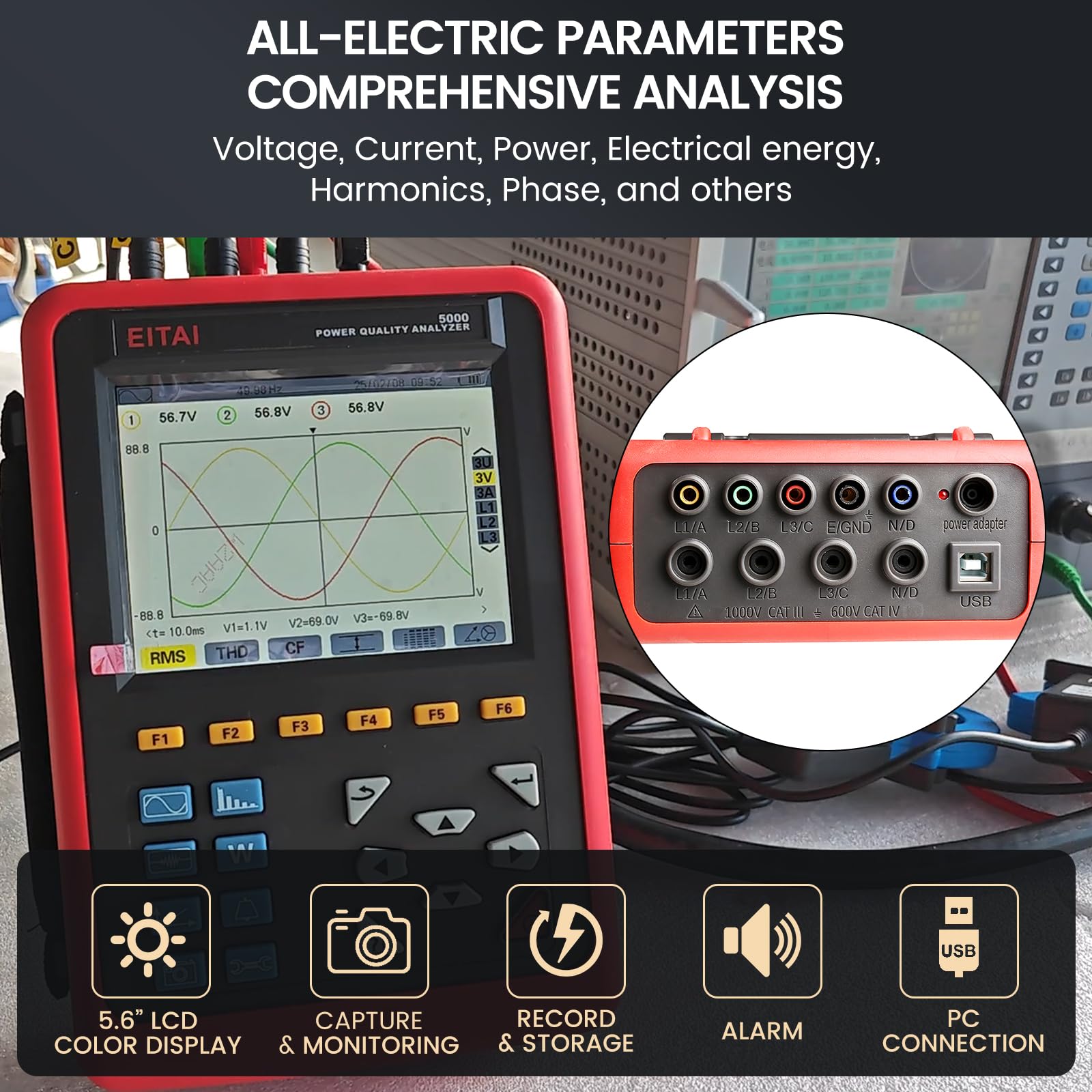

  • This backlit 640×480 pixel graphic liquid crystal screen displays all measurement with their curves, the parame ters of the unit, the curves selected, the instantaneous values of the signals, and the type of measurement se lected. When the device powered up, it automatically displays the Waveform screen.
  • When an alarm campaign is initiated or a search for transients, an inrush current capture, or a trend recording is pending or in progress, the device is not automatic switching off. In other test mode, 15 minutes without keystrokes, automatic switching off after prompt 1 minute.

The menu, invoked by the yellow key icon, defines the current sensors and ratios. The device can select 3 current sensors, meanwhile, it can choose optional current transformer, and set the turns ratio according need.

  • Date/Time: Date and time settings.
  • Display: Screen contrast and brightness settings. Definition of voltage curve and current curve colors.
  • Calculation method: Choice of reactive parameters (with or without harmonics).
  • Connection: Choice of type of connection to the network (attention: some calculations depend upon the type of connection).
  • Sensor and ratios: Configuration of the ratios of the current sensors (008B current clamp, 040B current clamp, 068B current clamp, transformer). Configuration of voltage ratios.
  • Transient mode: Choice of current thresholds to be detected. Choice of voltage thresholds to be detected.
  • Trend mode: Choice of parameters to be recorded for.
  • Alarm Mode: Definition of alarms to be detected.
  • Erase data: Choice of total or partial deletion of user data.
  • About: Serial number, software and hardware version numbers, and capacity of on-board memory card.

Measurement Accuracy

Measurement SpecificationsMeasurement RangeDisplay SolutionMax. Error Within The Reference Range
Frequency40Hz-70Hz0.01Hz±(0.03)Hz
True Effective Value Of Phase Voltage1.0V-1000VMin. Solution 0.1V±(0.5%rdg+5dgt)
True Effective Value Of Line Voltage1.0V-2000VMin. Solution 0.1V±(0.5%rdg+5dgt)
DC Voltage1.0V-1000VMin. Solution 0.1V±(1.0%rdg+5dgt)
True Effective Value Of Current10mA-6000AMin. Solution 1mA±(0.5%rdg+2dgt)
Peak phase voltage1.0V-1414VMin. Solution 0.1V±(1.0%rdg+5dgt)
Peak line voltage1.0V-2828VMin. Solution 0.1V±(1.0%rdg+5dgt)
Peak Current Value10mA-6000AMin. Solution 1mA±(1.0%rdg+5dgt)
Peak Factor1.00-3.990.01±(1%rdg+2dgt)
4.00-9.990.01±(5%rdg+2dgt)
Active Factor0.000W-9999.9kWMin. Solution 0.001W±(1%rdg+3dgt); Cosφ≥0.8
±(1.5%rdg+10dgt);0.2≤Cosφ<0.8
Reactive Power Inductive & Capacitive0.000VAR-9999.9kVARMin. Solution 0.001VAR±(1%rdg+3dgt);Sinφ≥0.5
±(1.5%rdg+10dgt); 0.2≤Sinφ<0.5
Apparent Power0.000VA-9999.9kVAMin. Solution 0.001VA±(1%rdg+3dgt)
Power Factor-1.000-1.0000.001±(1.5%rdg+3dgt);Cosφ≥0.5
±(1.5%rdg+10dgt);0.2≤Cosφ<0.5
Active Electrical Energy0.000Wh-9999.9MWhMin. Solution 0.001Wh±(1%rdg+3dgt);osφ≥0.8
±(1.5%rdg+10dgt);0.2≤Cosφ<0.8
Reactive Power Inductive & Capacitive0.000VARh-9999.9MVARhMin. Solution 0.001VARh±(1%rdg+3dgt);Sinφ≥0.5
±(1.5%rdg+10dgt);0.2≤Sinφ<0.5
Apparent Electrical Energy0.000VAh-9999.9MVAhMin. Solution 0.001VAh±(1%rdg+3dgt)
Phase Angle-179°-180°±(2°)
Tanφ(VA≥50VA)-32.768-32.768Min. Solution 0.001±(1%rdg+5dgt)
Displacement Power Factor(DPF)-1.000-1.0000.001±(1%rdg+5dgt)
Harmonic Ratio (Vrms>50V)0.0 %-99.9 %0.1 %±(1%rdg+5dgt)
Harmonic Angle(Vrms>50V)-179°-180°±(3°)harmonic 1-25 times
±(10°)harmonic 26-50 times
Total Harmonic Rate (DF orTHD-F)≤500.0 %-99.9 %0.1 %±(1%rdg+5dgt)
Distortion Factor (DF or THD-R)≤500.0 %-99.9 %0.1 %±(1%rdg+10dgt)
Transformer K-factor1.00-99.990.01±(5 %)
Three-phase Imbalance0.0%-100 %0.1 %±(1 %)



General Specifications

Power SupplyRechargeable lithium battery pack 9.6V, external battery charger.
Display ModeLCD true-color screen, 640dots×480dots, 5.6 inch, display area 116mm×88mm.
Battery Level IndicationThe battery symbol 5 cells displays the battery levels. When the battery level is lower, it will shut down automatically after 1 minutes.
Working CurrentAbout 490mA, The battery works continuously for about 8 hours at full power.

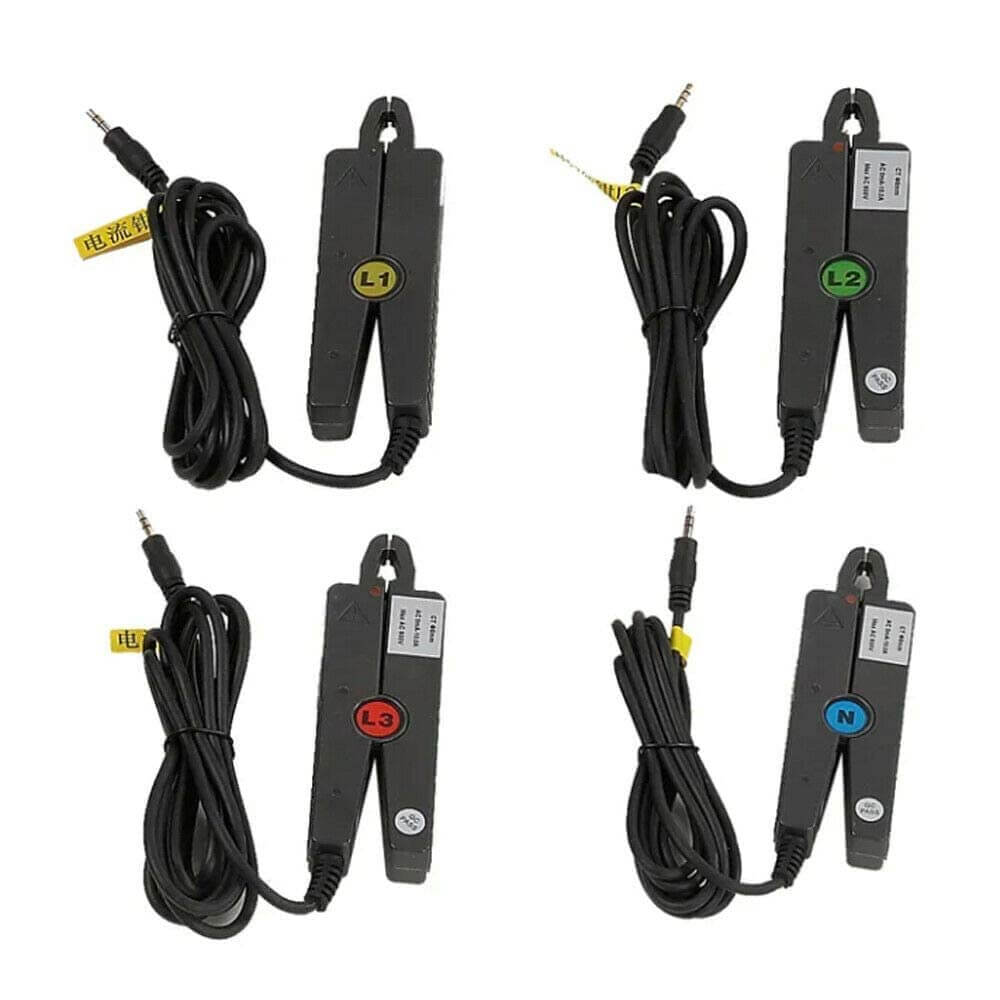

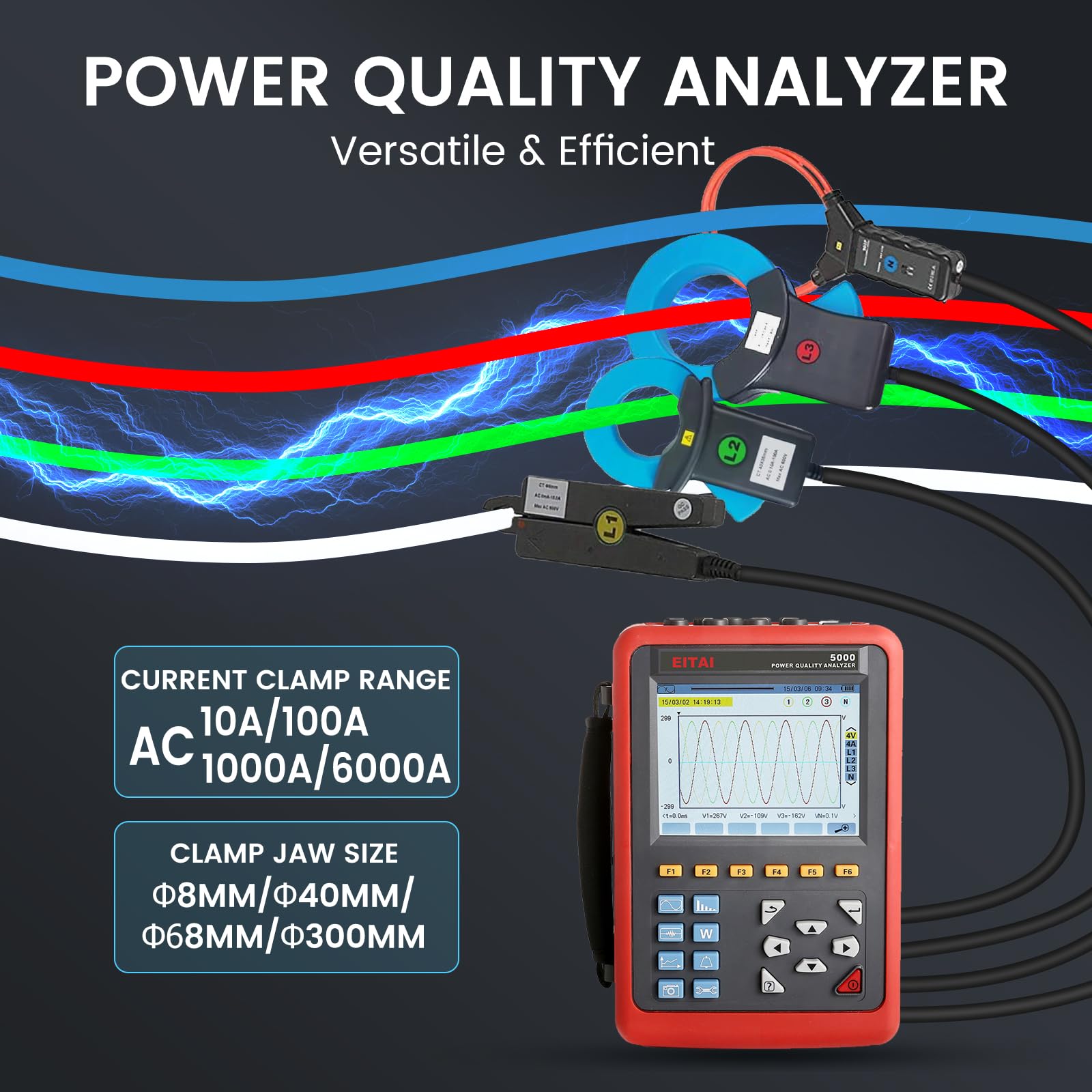

Clamp Jaw Size008B Pointed small current clamp: Φ8mm; (option)

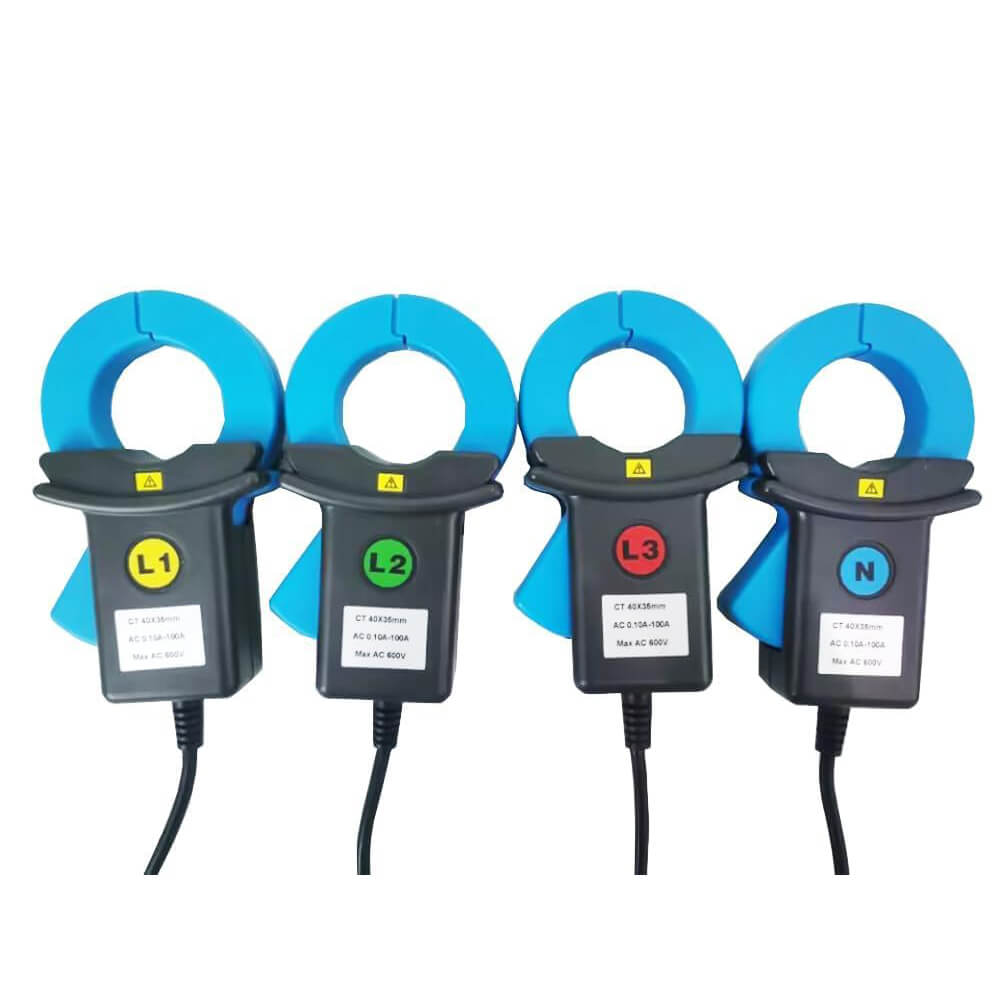

040B Round mouth current clamp: 35mm×40mm; (option)

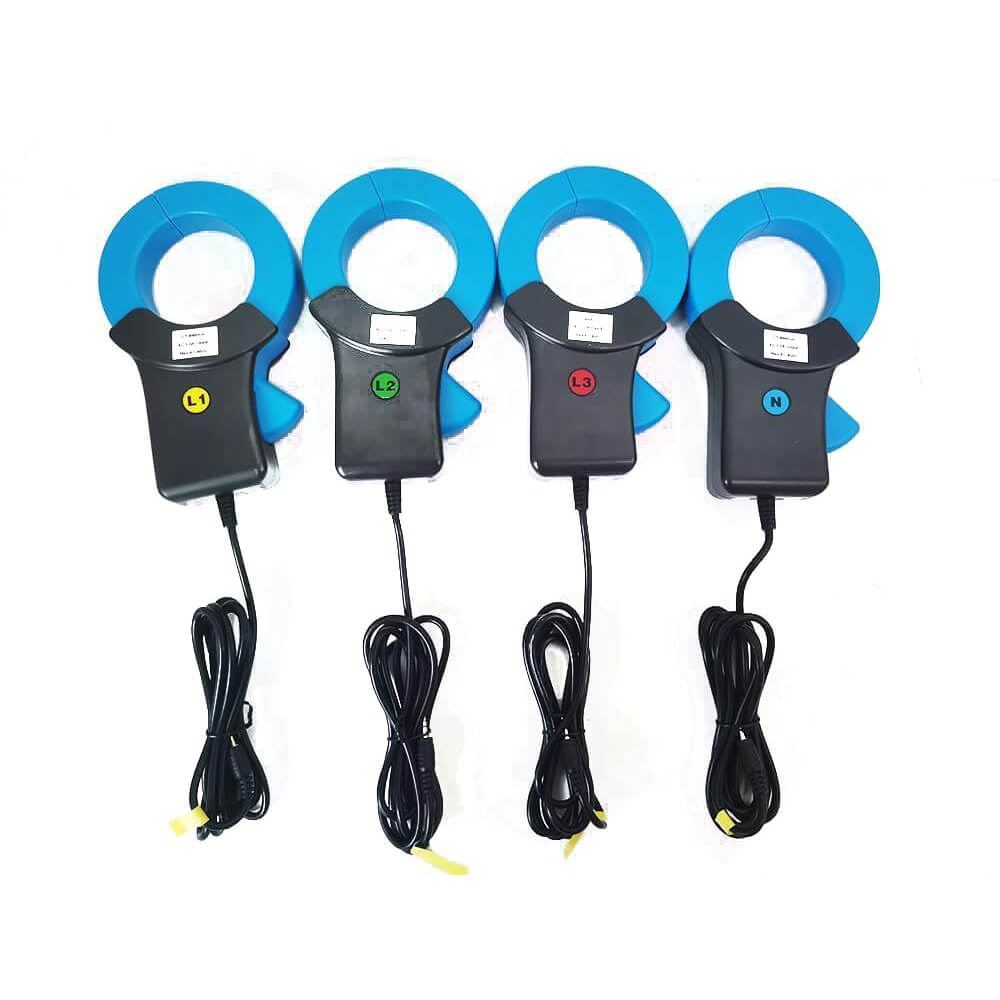

068B Round mouth current clamp: 68mm×68mm; (option)

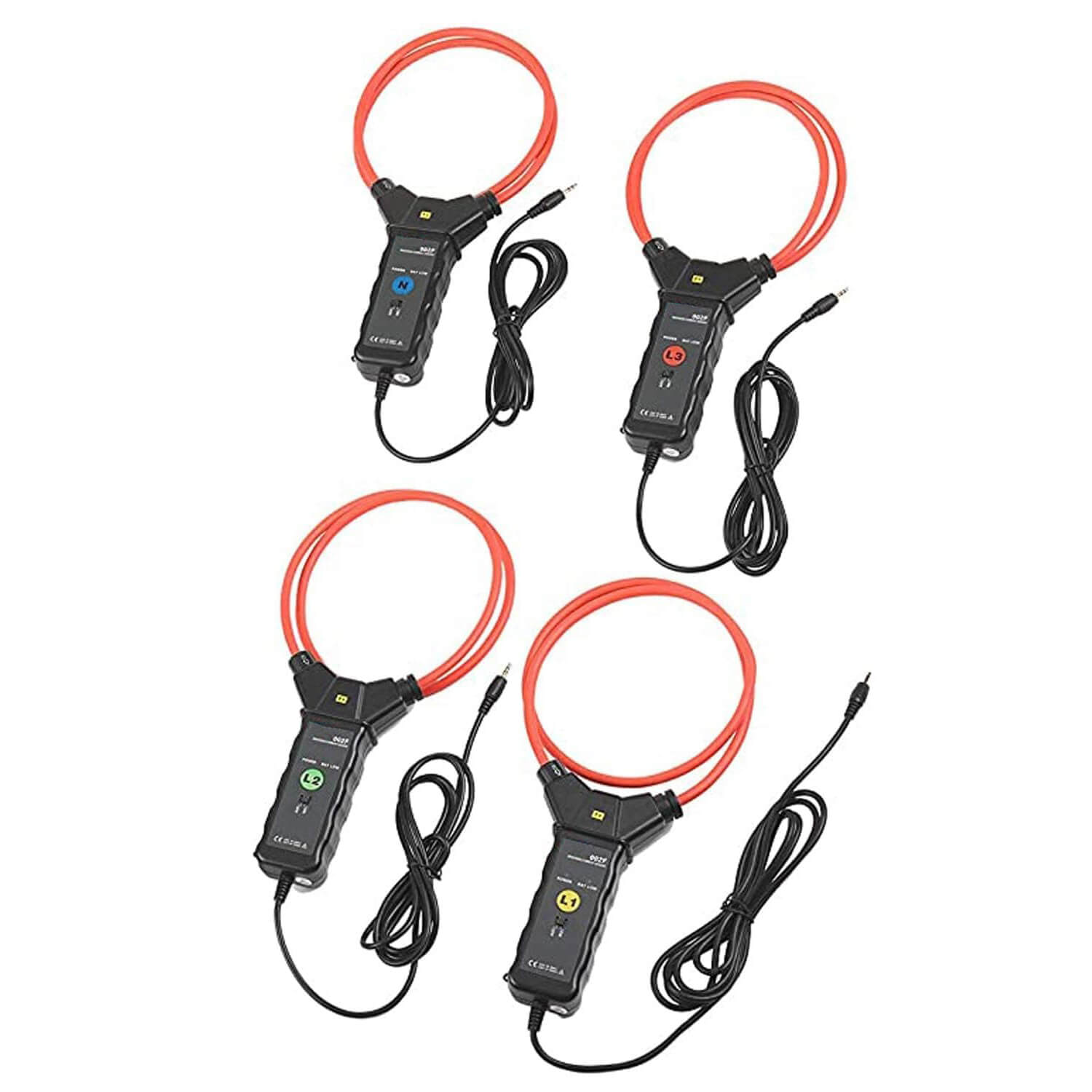

300F Flexible coil current sensor: Φ300mm; (option)

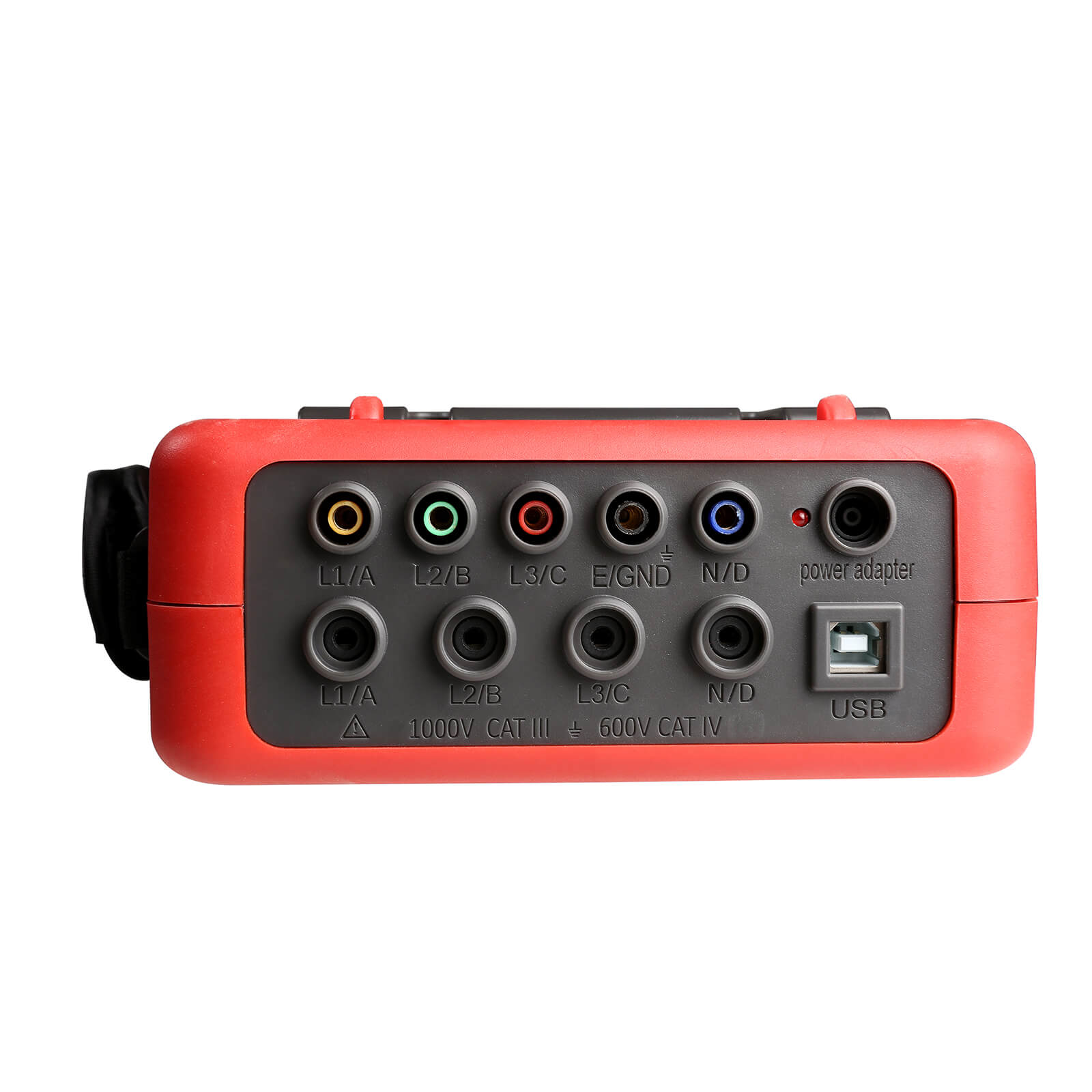

Number Of Channels4 channels of current and voltage
Line Voltage1.0V-2000V
Phase Voltage1.0V-1000V
Current008B Current clamp: 10mA-10.0A; (option)
040B Current clamp: 0.10A-100A; (option)
068B Current clamp: 1.0A-1000A; (option)
300F Flexible coil current sensor: 10A-6000A (option)
Frequency40Hz-70Hz。
Electricity Quantity ParametersW, VA, Var, PF, DPF, cosφ, tanφ.
Electric Energy ParametersWh, Varh, Vah.
HarmonicYes, 0-50times.
Total Harmonic DistortionYes, 0-50times, each phase.
Number Of Transient Recording Groups150 groups.
Voltage FlickerYes
Starting Current ModeYes, 100 seconds.
Three-phase ImbalanceYes
Record300 days (record 20 parameters at the same time, record 1 parameter every 1 minute).
Min Max Record ValueYes, the maximum and minimum values can be measured over a period of time.
Alarm40 different types of parameters can be selected, and 12,800 sets of alarm logs.
Peak ValueYes
Screenshot Capacity60 PCS
Menu LanguageChinese and English.
SD Memory Card2G
Communication InterfaceUSB
Automatic ShutdownIn the alarm/trend chart recording/transient capture mode (pending or in progress), the instrument will not automatically shut down.
In other test mode, no button operation within 15 minutes, automatically shut down after 1 minute prompt.
Backlight FunctionYes, it is suitable for use in dim place and at night.
Meter Size240mm×170mm×68mm
WeightHost: about 1.6kg (include battery); total weight: about 9.18kg (include package and accessory).
Input ImpedanceInput impedance of the test voltage: 1MΩ.
Withstand VoltageThe sine wave AC voltage of 3700V/50Hz withstand between the instrument circuit and the housing for 1 minute.
InsulationThe distance between the instrument circuit and the protective case ≥ 10M Ω.
Suitable Safety StandardIEC 61010 1000V Cat III / 600V CAT IV, IEC61010-031, IEC61326, Pollution Level 2.
Working Temperature & Humidity-10℃-40℃; below 80%RH.
Store Temperature & Humidity-10℃-60℃; below 70%RH.



The Characteristics Of Current Clamp

Current Clamp ModelCurrent True RMS ValueThe Maximum Error Of The True RMS Value Of The CurrentMaximum Error Of Phase Angle
EITAI 008B
CT Size: Ф8mm
10mA-99mA±(1 %rdg + 3dgt)±(1.5°),Arms≥20mA
100mA-10.0A±(1 %rdg + 3dgt)±(1°)
EITAI 040B
CT Size: Ф40mm
0.10A-0.99A±(1 %rdg + 3dgt)±(1.5°)
1.00A-100A±(1 %rdg + 3dgt)±(1°)
EITAI 068B
CT Size: Ф68mm
1.0A-9.9A±(2 %rdg + 3dgt)±(3°)
10.0A-1000A±(2 %rdg + 3dgt)±(2°)
EITAI 300F
CT Size: Ф300mm
10A-99A±(1 %rdg + 3dgt)±(3°)
100A-6000A±(1 %rdg + 3dgt)±(2°)

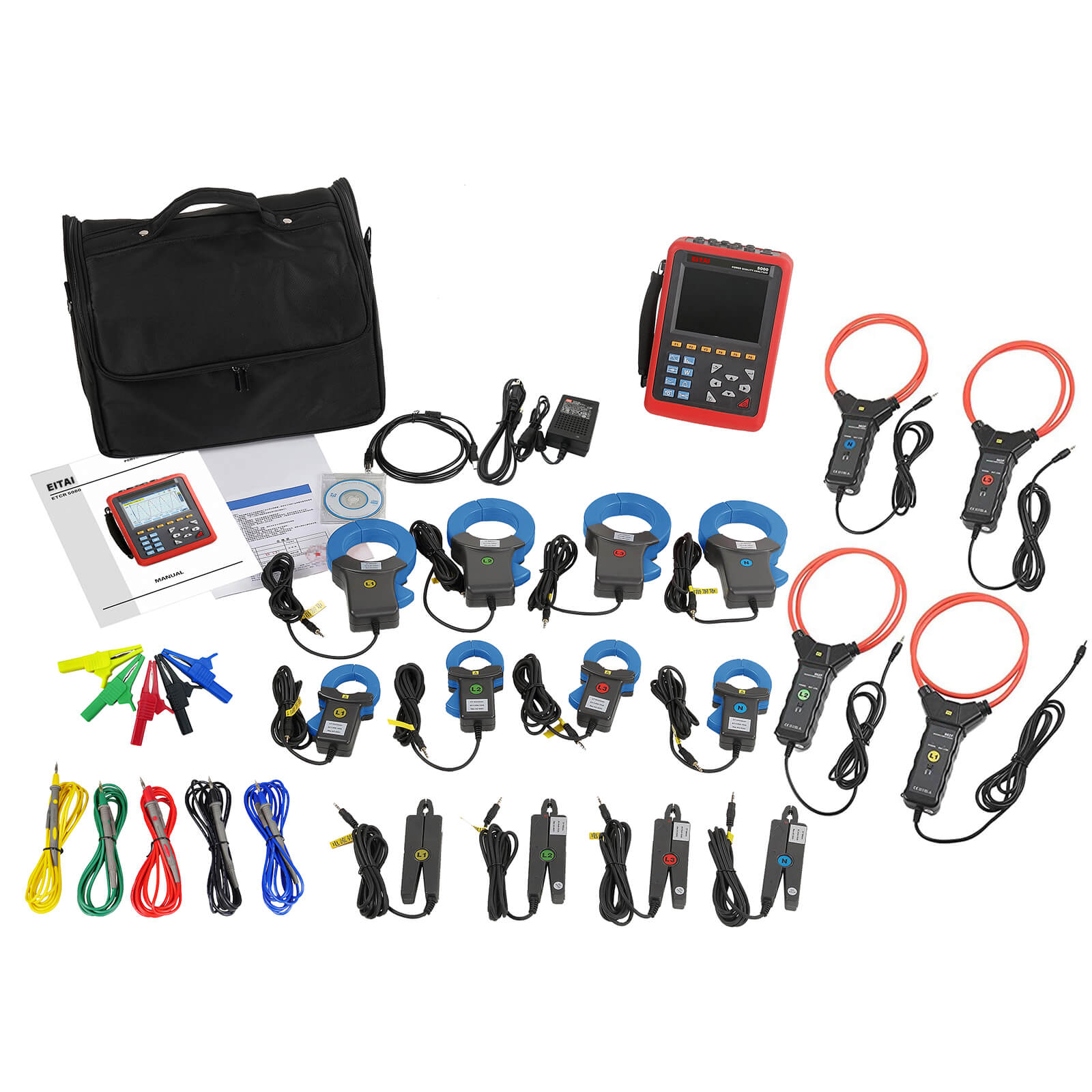

Main Unit

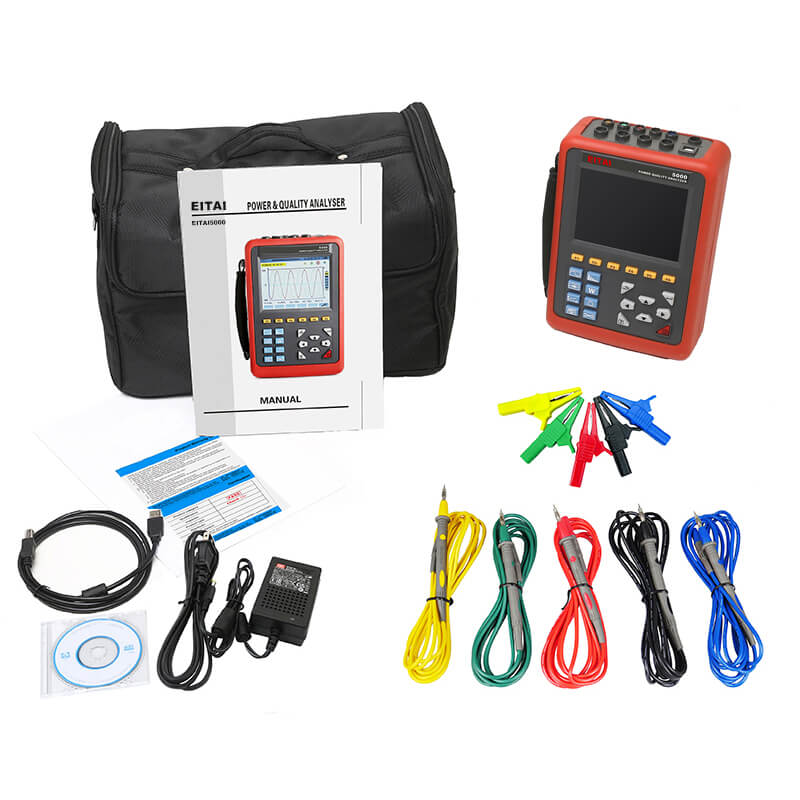

1 PCS

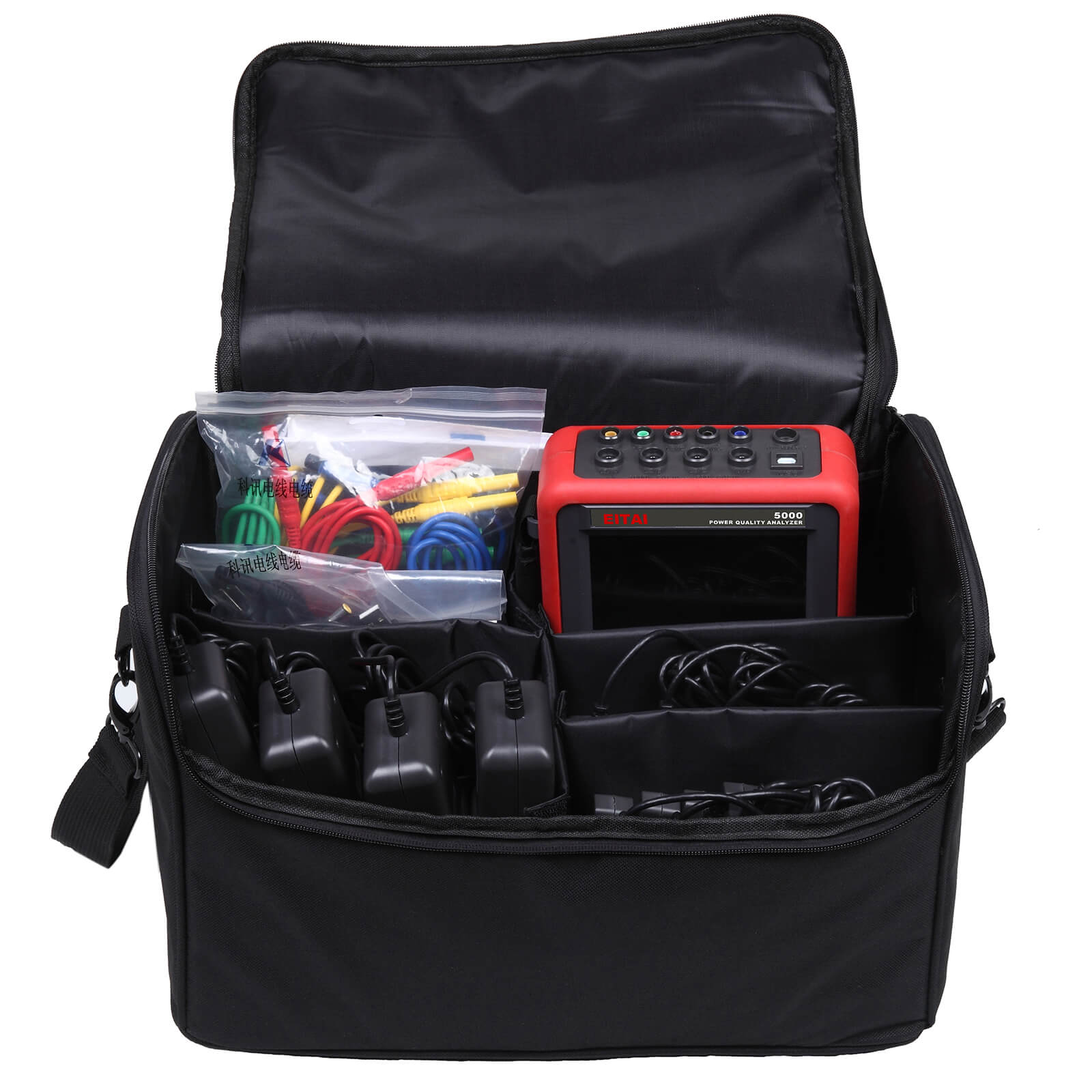

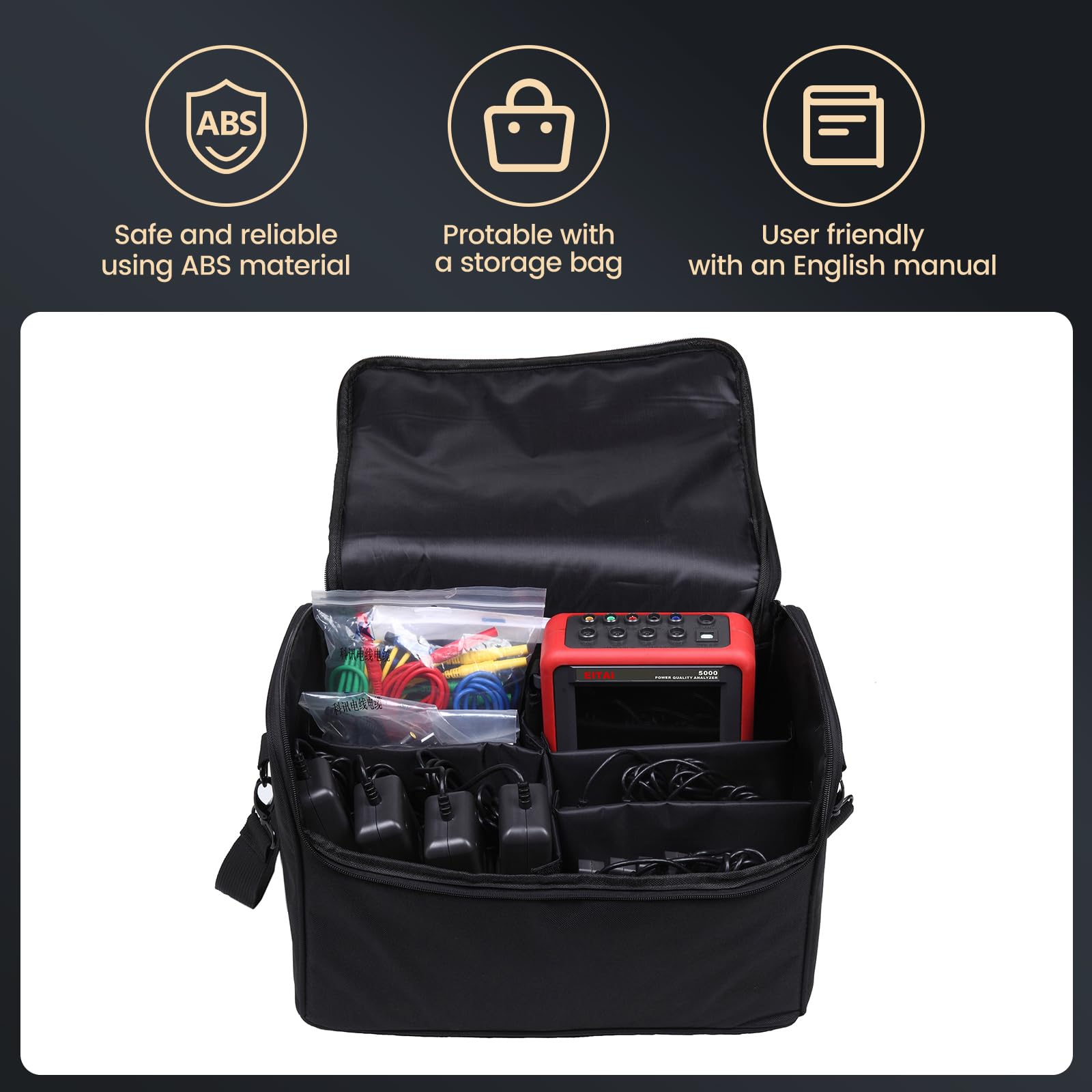

Tool bag

1 PCS

Current sensors (Optional)

4 Kinds(each 4PCS)

USB communication cable

1 PCS

Testing wires

1 SET(yellow, green, red, blue, black)

Crocodile clips

5 PCS

Test probe

5 PCS

Dedicated power adapter

1 PCS

USB Date Cord

1 PCS

Software CD

1 PCS

Lithium battery Pack

1 PCS(Built into the instrument)

2GB Memory

1 PCS(Plug in the instrument)

Warranty Card / Qualification Certificate

1 SET

User Manual

1 PCS
