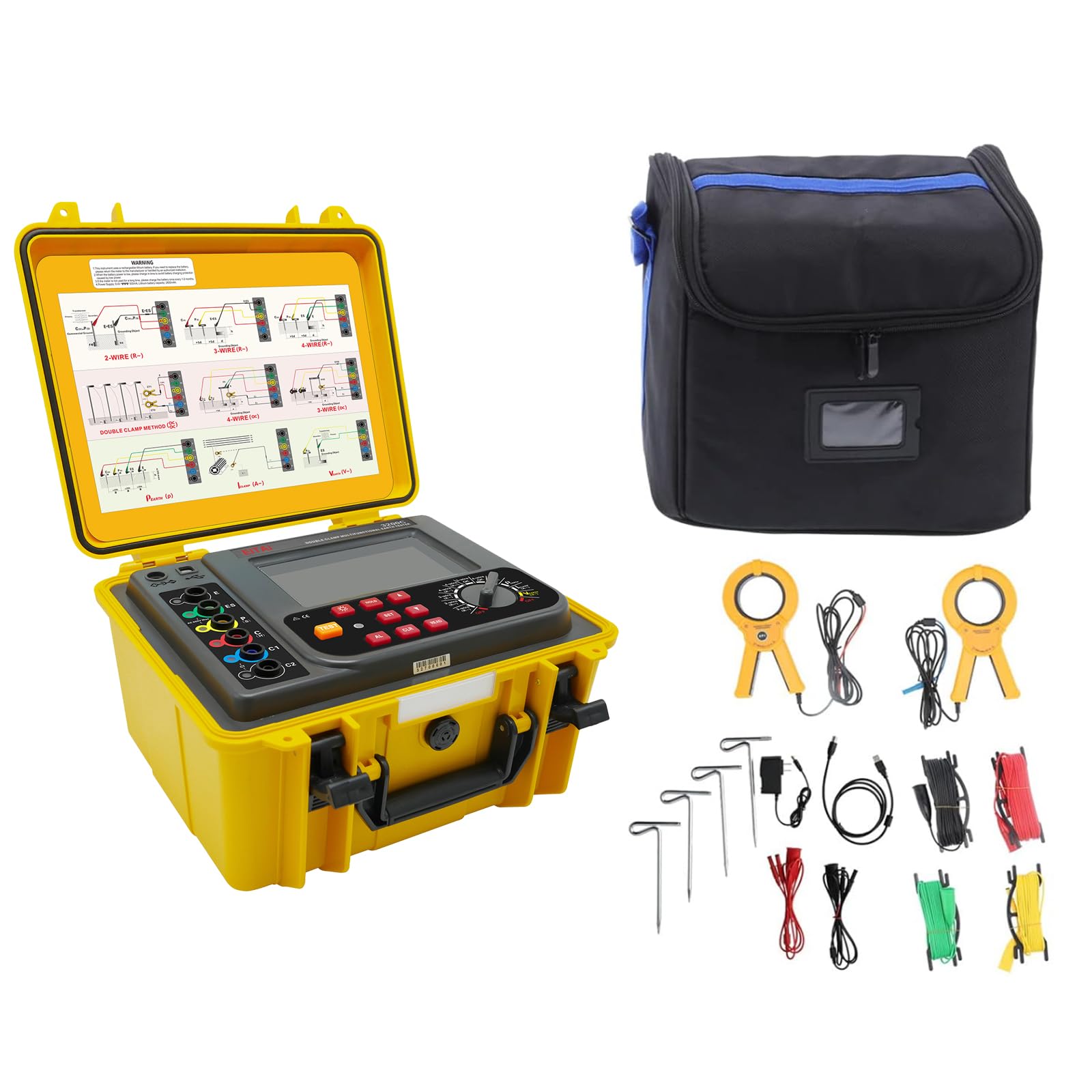

EITAI3200C Double Clamp Ground Resistance Meter

EITAI3200C Double Clamp Ground Resistance Meter

$0.00 $689.00

EITAI3200C Double Clamp Ground Resistance Meter

$0.00 $689.00

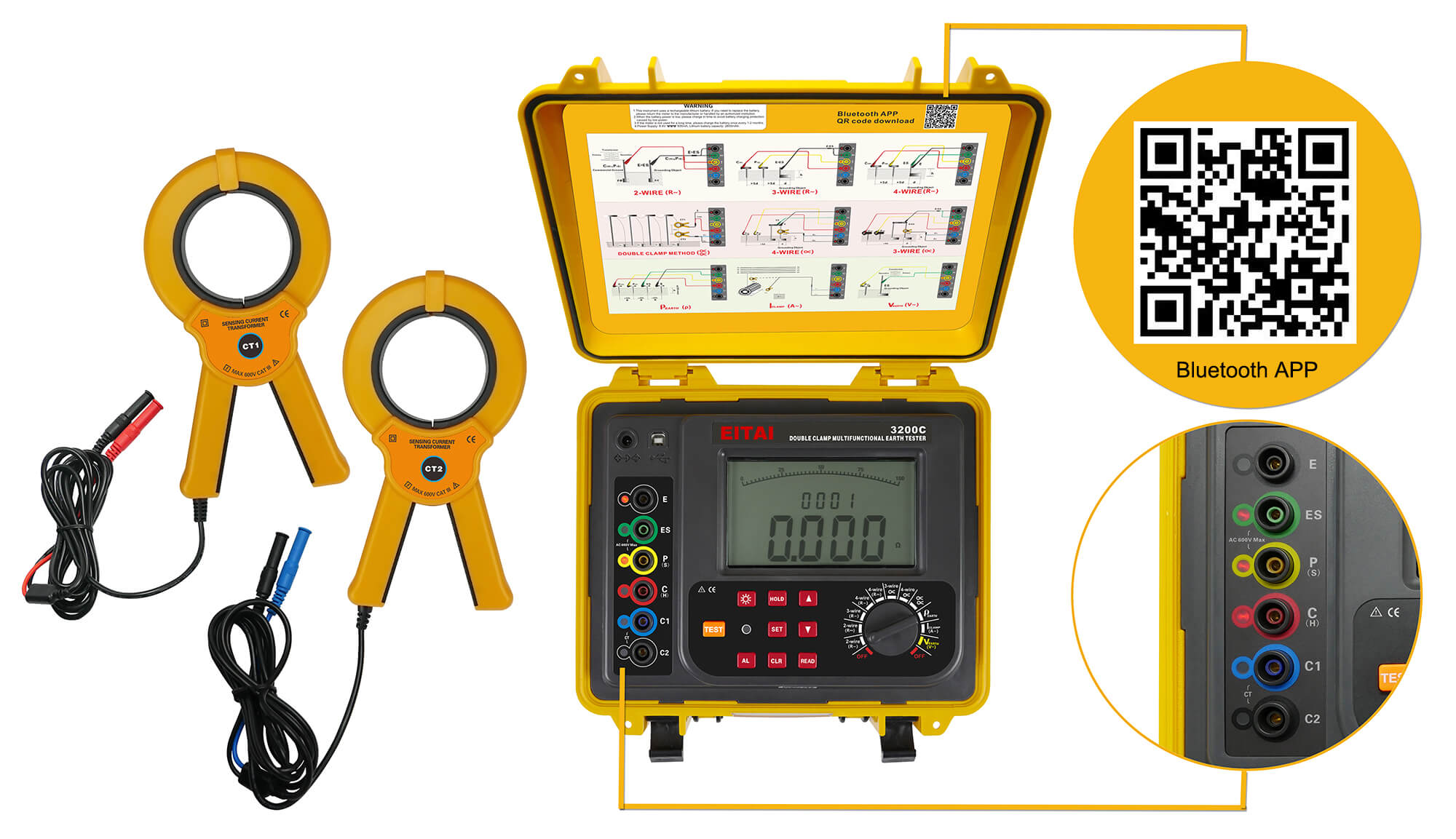

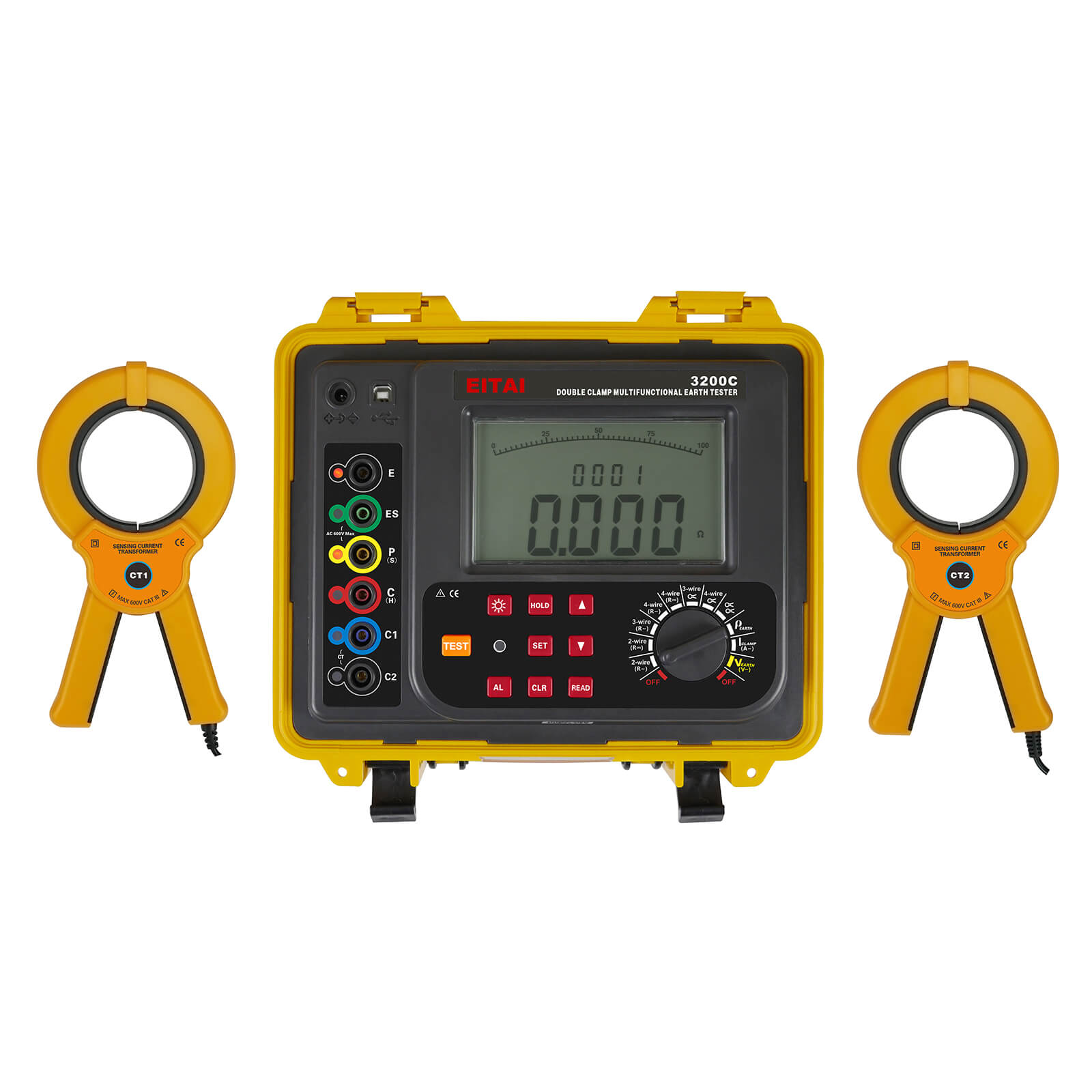

EITAI3200C Double Clamp Multi-Function Ground Resistance Meter is designed for on-site measurement of various parameters including grounding resistance, soil resistivity, and more.
  • Measurement Methods: Utilizes digital processing technology, precision 4-wire, 3-wire, and 2-wire methods, and double-clamp method for measuring grounding resistance.
  • Large Caliber Clamp Design: Capable of measuring grounding systems with large grounding down leads and various complex grounding conditions without the need to disconnect parallel grounding poles.
  • Advanced Technologies: Equipped with FFT (Fast Fourier Transform) and AFC (Automatic Frequency Control) technologies for anti-interference ability and high test consistency.
  • Precision and Reliability: Ensures high precision, stability, and reliability for long-term measurements.

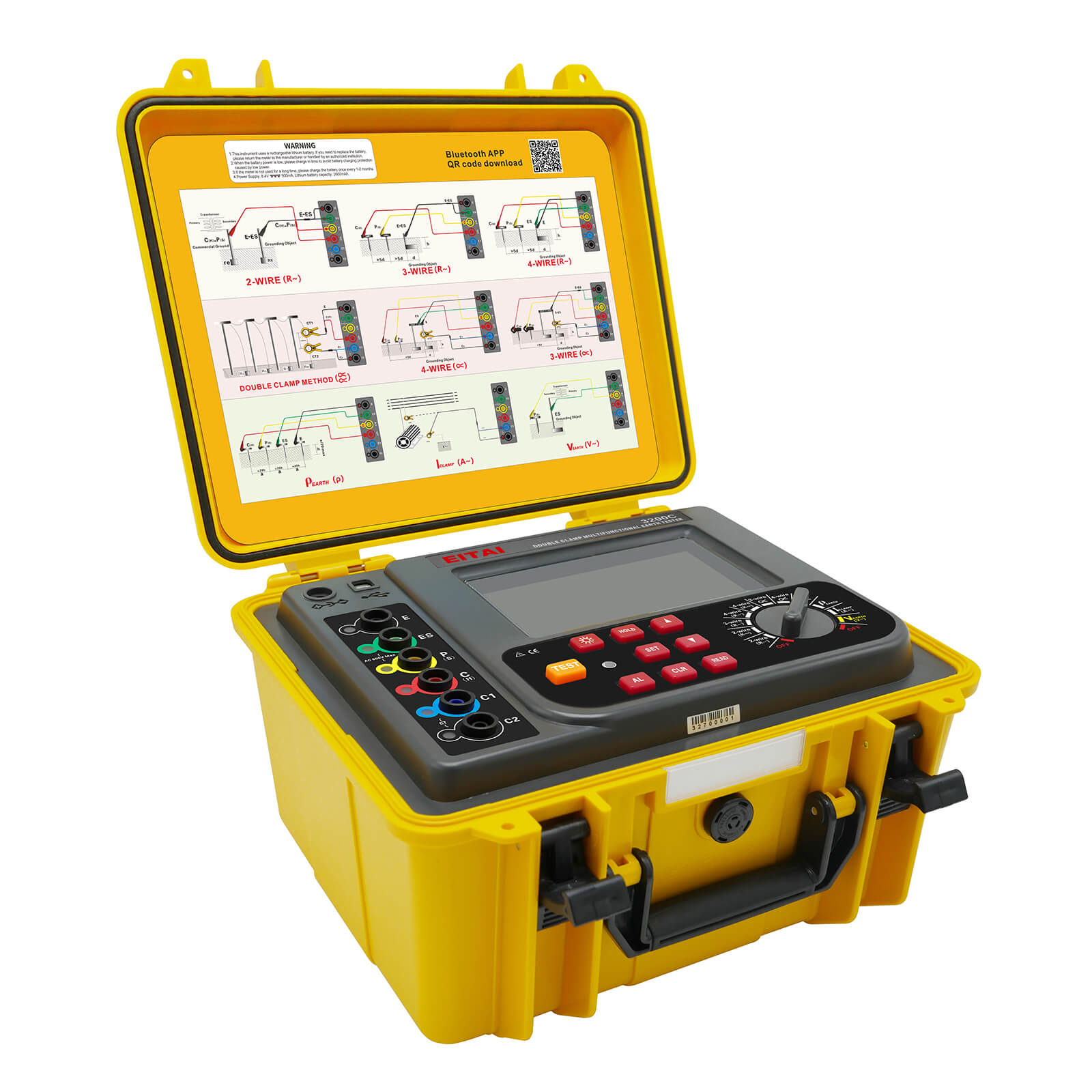

  • Durable Construction: The tester case is waterproof (IP65), anti-collision, anti-drop, and made of a strong, durable material.
  • Battery and Portability: Features a large-capacity rechargeable lithium battery pack, making it suitable for outdoor construction.
  • Applications: Widely used in power, telecommunications, meteorology, oil fields, construction, lightning protection, and industrial electrical equipment for various measurements.

Basic Error & Performance Indicator Under Reference Condition

Measurement FunctionMeasuring RangeAccuracyResolution
Two-Three-Four-wire Method To Measure Earth Resistance (R-) & DC Resistance (R-)0.000Ω-9.999Ω±2%rdg±0.05Ω0.001Ω
10.00Ω-29.99Ω±2%rdg±5dgt0.01Ω
30.0Ω-299.9Ω±2%rdg±3dgt0.1Ω
300Ω-2999Ω±2%rdg±3dgt
3.00kΩ-300.00kΩ±4%rdg±3dgt10Ω
Selection Method To Measure Earth Resistance (R-)0.000Ω-9.999Ω±2%rdg±0.05Ω0.001Ω
10.00Ω-29.99Ω±2%rdg±5dgt0.01Ω
30.0Ω-299.9Ω±2%rdg±3dgt0.1Ω
300Ω-3000Ω±2%rdg±3dgt
Double Clamp Method To Measure Earth Resistance (R-)0.01Ω-0.99Ω±10%rdg±5dgt0.01Ω
1.0Ω-29.9Ω0.1Ω
30Ω-100Ω
Soil Resistivity(ρ)0.00Ωm-99.99ΩmDepending on the measurement accuracy of R (ρ=2πaR a:1 m-100m; π=3.14)0.01Ωm
100.0Ωm-999.9Ωm0.1Ωm
1000Ωm-9999Ωm1Ωm
10.00kΩm-99.99kΩm10Ωm
100.0kΩm-999.9kΩm100Ωm
1000kΩm-9000kΩm1kΩm
Earth Voltage (V-) 50Hz/60HzAC 0.0V-100.0V±2%rdg±3dgt0.1V
Earth Current (A-) 50Hz/60HzAC 0.00mA-600.0A±2%rdg±3dgt0.01mA



General Specification

Power SupplyDC 7.4V 2600mAh rechargeable lithium battery, the battery is fully charged about 8.4V
Display Mode4-digit max LCD display, white screen backlight
Measurement InstructionLED flashing indication during measurement, LCD countdown display
LCD Size128mm×75mm;LCD Display area: 124mm×67mm
BacklightControllable white screen backlight, suitable for use in dim place
Measurement MethodDC ResistanceDC resistance bipolar method
DC resistance quadrupole method
Earth Resistance

Earth resistance bipolar method
Earth Resistance Three-electrode method
Earth resistance Quadrupole method
Earth resistance single clamp Three-electrode method (selection method)
Earth resistance single clamp quadrupole method (selection method)
Earth resistance double clamp method
Soil resistivity (Wenner method)
Earth CurrentCurrent clamp measurement
Earth VoltageAverage value rectification
Test Frequency128Hz/111Hz/105Hz/94Hz(AFC)
Short  Circuit Test CurrentAC 250mA max
Open Circuit Test VoltageAC 40V max
Electrode Spacing Range1m-100m
Test Line4 PCS: red 20m, black 20m, yellow 10m, green 10m each 1 piece
Simple Test Line2 PCS: red 1.6m, black 1.6m each 1 piece
Auxiliary Earth Rod4 PCS:φ9mm×230mm (about 696g)
Current Clamp2 PCS:blue and black plug, 1 red and black plug each
Current Clamp Caliberφ70mm
Current Clamp Size223mm×120mm×39mm
Measurement TimeAC current: about 2 times/second; earth voltage: about 2 times/second; earth resistance: about 7 seconds/time
Line VoltageMeasurement below AC 600V
Communication MethodBluetooth module, USB interface, storage data can be uploaded to the computer through software
Data HoldWhen Data holding : “HOLD" symbol display
Memory2000 groups, flashing "FULL”symbol indicates that the storage is full
Data AccessData access function: “READ" symbol display
Overflow DisplayOver-range overflow function: “OL" symbol display
Interference TestAutomatically identify the interference signal, and the “NOISE” symbol indicates when the interference voltage is higher than 5V
Auxiliary Earth TestWith auxiliary earth resistance value test function,0.00KΩ-30kΩ(100R+rC<50kΩ,100R+rP<50kΩ)
Alarm FunctionWhen the measured value exceed the alarm set value,“Du-Du-Du-" Alarm prompt
Alarm Threshold Setting RangeResistance: 0Ω-9999Ω, voltage: 0.0V-100.0V, current: 0.000A-9.9999A
Automatic ShutdownAutomatically shut down after 15 minutes of power on
Working CurrentBacklight: 25mA Max (separate backlight power consumption); standby: 25mA Max (the backlight is turned off after the tester turning on); measurement: 150mA Max (the backlight turn off)
Tester Size280mm×260mm×160mm
WeightTester: About 1799g(include battery);total weight: about 6.13kg(include accessory)
Battery VoltageWhen the battery voltage drop to about DC 7.2V±0.1V, the low battery voltage symbol is displayed to remind that the battery need to be replaced.
Protection LevelIP65(closed)
Overload ProtectionMeasuring earth resistance: AC 280V/3 seconds between C(H)-E、P(S)-ES ports
Insulation ResistanceAbove 20MΩ(500V between the circuit and the housing)
Withstand VoltageAC 3700V/rms(Between the circuit and the housing)
Electromagnetic characteristicsIEC61326(EMC)
Suitable Safety RegulationIEC61010-1(CAT Ⅲ 300V, CAT IV 150V, pollution level 2);IEC61010-031;
IEC61557-1(Earth resistance);IEC61557-5(Soil resistivity);JJG 366-2004(Earth Resistance Tester);JJG 1054-2009(Clamp Earth Resistance Tester)
Working Temperature & Humidity-10℃-40℃; below 80%RH
Storage Temperature & Humidity-20℃-60℃; below 70%RH

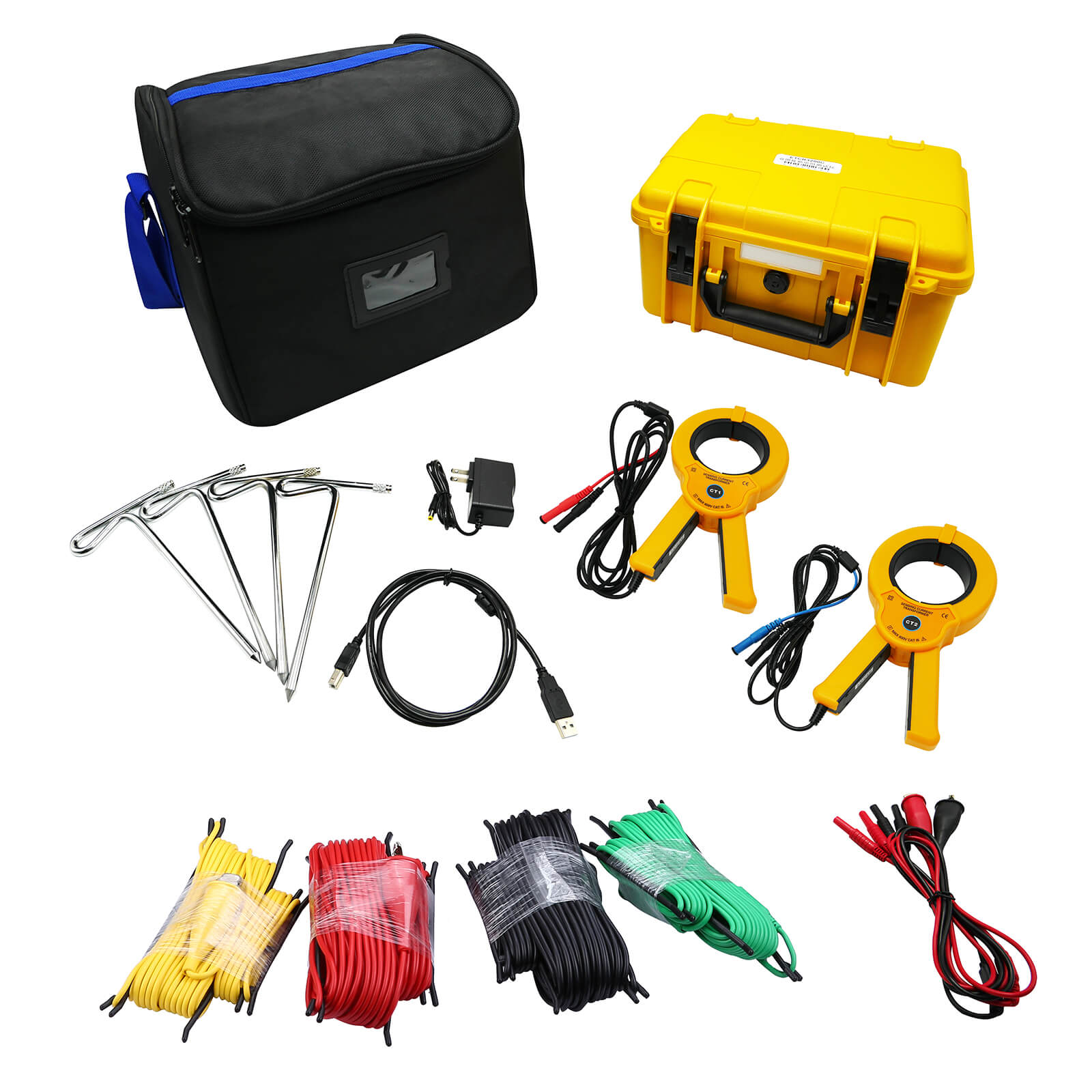

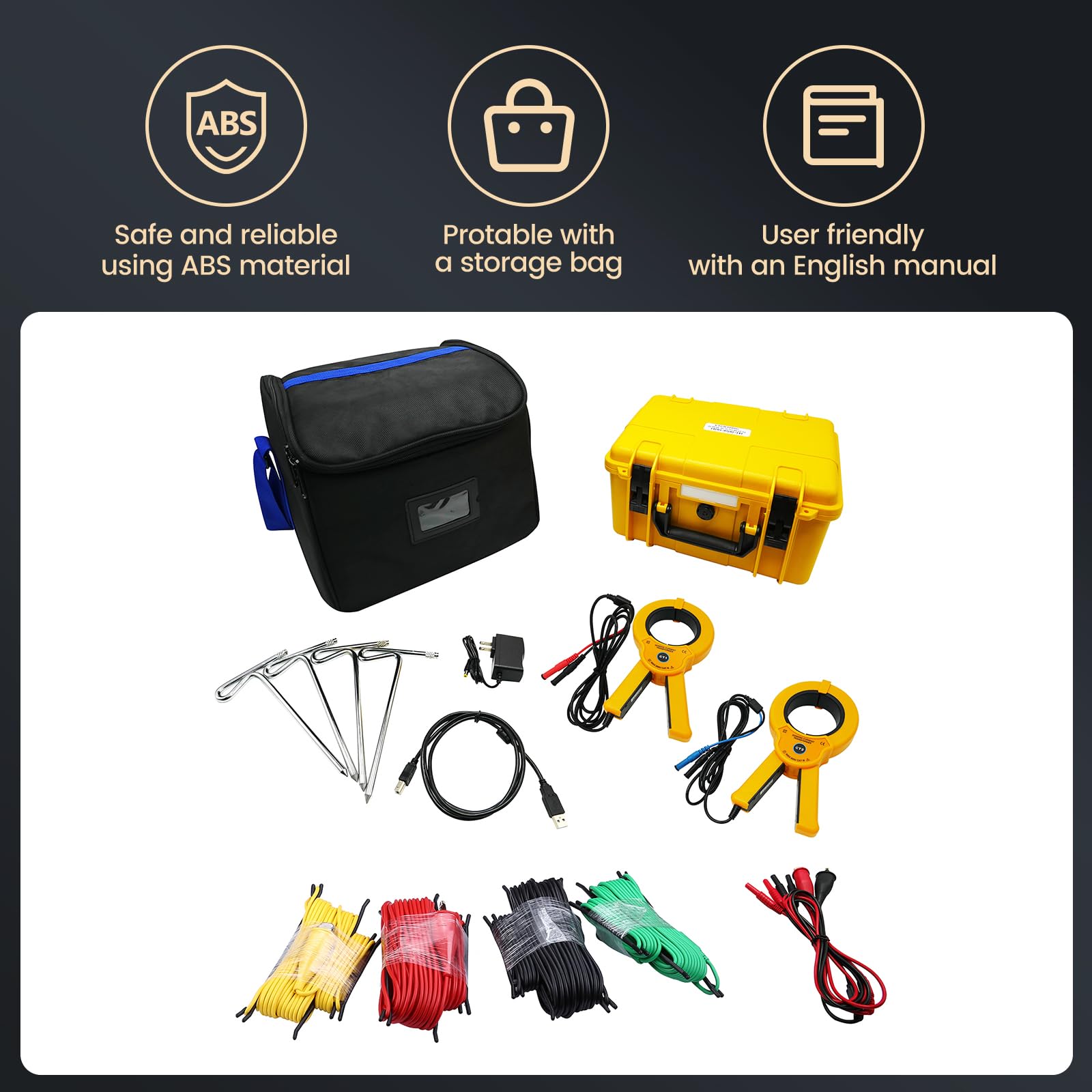

Tester1 PCS

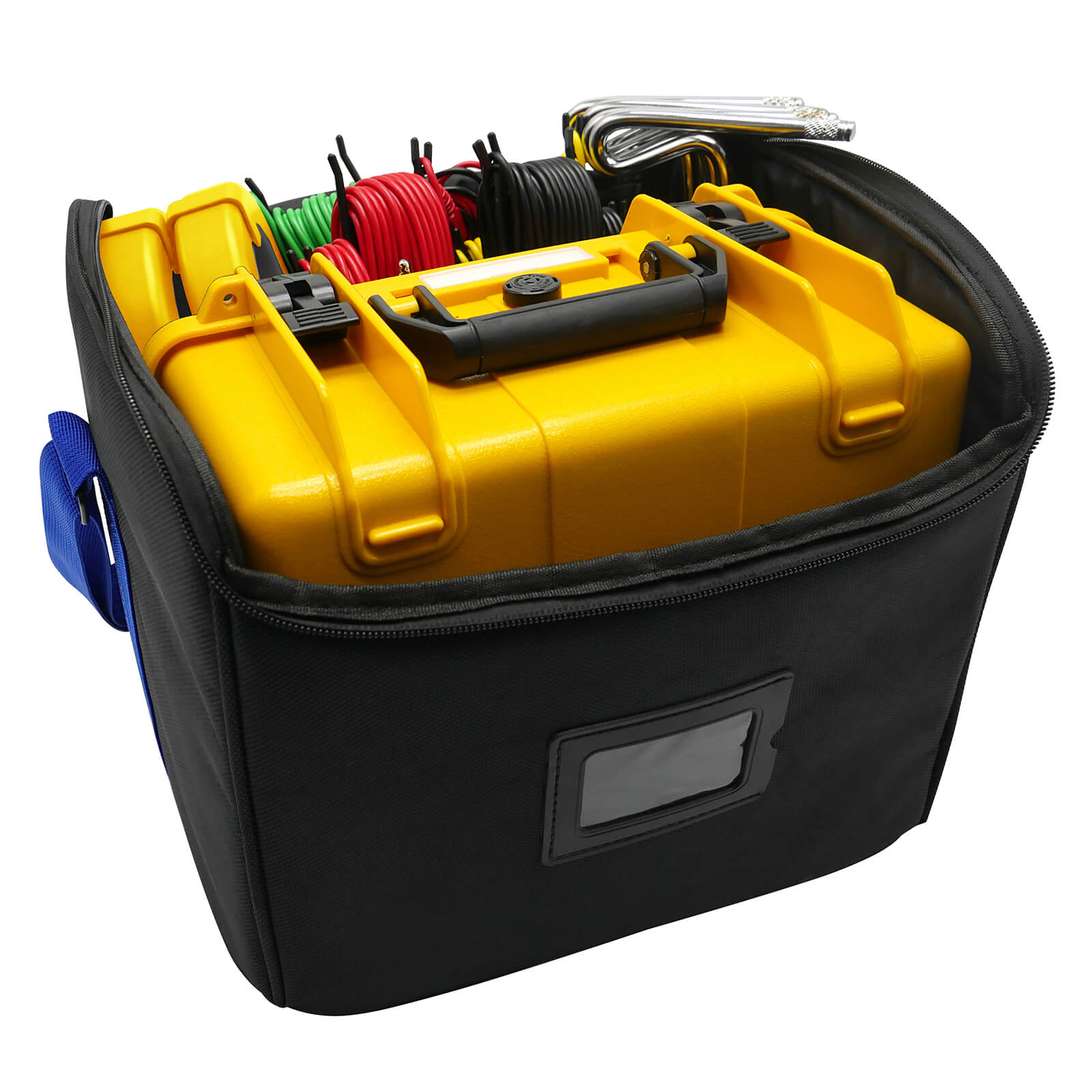

Tester Bag1 PCS
Auxiliary Grounding Rod4 PCS
Test Wires

4 PCS: each for red 20m,

black 20m, yellow 10m, and green 10m

Simple testing Wire2 PCS: each for red 1.6m and black 1.6m
Current clamp2 PCS
Monitoring Software Disk1 PCS
USB Communication Cable1 PCS
Special charger1 PCS
Warranty Card / Qualification Certificate

1 SET

User Manual

1 PCS
