EITAI2300 Series Clamp Ground Resistance Meter

EITAI2300 Series Clamp Ground Resistance Meter

$0.00 $679.00

EITAI2300 Series Clamp Ground Resistance Meter

$0.00 $679.00
Model: EITAI2300(0.00Ω 20kΩ, 0.000mA-20A)

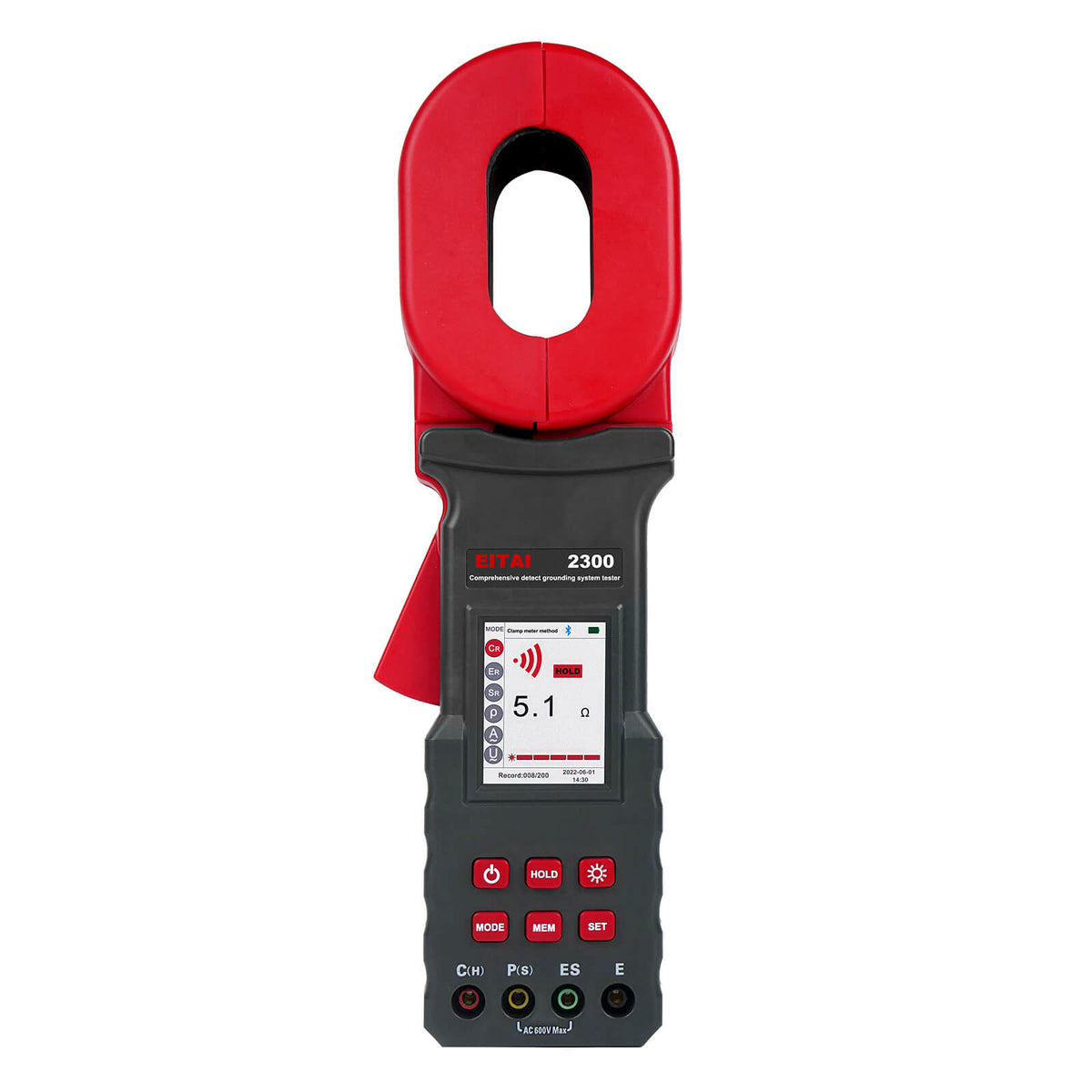

EITAI2300 Series Clamp Ground Resistance Tester, also known as ground pile clamp tester, which is used for measurement of the earth resistance,soil resistivity, earth current,earth voltage. The tester has various measurement methods such as clamp tester method, two-wire method, three-wire method, four-wire method, and selection method. The tester introduces FFT (fast Fourier transform) technology and AFC (automatic frequency control) technology. It has unique anti-interference ability and environmental adaptability. The consistency of repeated tests is strong to ensure the high precision, high stability and high reliability of the measurement.

  1. The tester has various measurement methods such as clamp tester method, two-wire method, three-wire method, four-wire method, and selection method to measure the earth resistance.
  2. Equipped with 2.5-inch color LCD screen.
  3. The tester has a storage function that automatically stores 500 sets of test results containing date and time.
  4. Alarm function: Alarm threshold can be set
  5. Memory:Data Storage 500 Groups
  6. Rechargeable lithium battery
  7. Bluetooth Communication

Measurement Range & Accuracy(Basic Error Under Benchmark Condition)

Measurement FunctionMeasuring RangeAccuracyResolution
Clamp Tester Method  To
Measure Earth Resistance
0.010Ω-0.099Ω±(1%rdg+0.05Ω)0.001Ω
0.10Ω-0.99Ω±(1%rdg+0.05Ω)0.01Ω
1.0Ω-49.9Ω±(1%rdg+0.5Ω)0.1Ω
50.0Ω-99.5Ω±(2%rdg+0.5Ω)0.5Ω
100Ω-199Ω±(5%rdg+1Ω)
2/3/4 Wire Method To
Measure Earth Resistance
0.10Ω-20.00Ω±2%rdg±5dgt0.01Ω
20.0Ω-200.0Ω±2%rdg±5dgt0.1Ω
200Ω-2000Ω±2%rdg±5dgt
2.00kΩ-20.00kΩ±4%rdg±5dgt10Ω
Selection Method To
Measure Earth Resistance
0.10Ω-20.00Ω±2%rdg±5dgt0.01Ω
20.0Ω-200.0Ω±2%rdg±5dgt0.1Ω
200Ω-2000Ω±2%rdg±5dgt
Soil Resistivity0.00Ωm-99.99ΩmDepending on the measurement accuracy of R (ρ=2πaRa: 1 m~100m; π=3.14)0.01Ωm
100.0Ωm-999.9Ωm0.1Ωm
1000Ωm-9999Ωm1Ωm
10.00kΩm-99.99k10Ωm
100.0kΩm-999.9k100Ωm
1000kΩm-9999kΩm1kΩm
Earth Voltage 50Hz/60HzAC 0.0V-600.0V±2%rdg±5dgt0.1V
Earth Current 50Hz/60Hz0.000mA-5.000mA±(2.5%rdg+1mA)0.001mA
5.0mA-100.0mA±(2.5%rdg+5mA)0.1mA
100mA-500mA±(2.5%rdg+10mA)1mA
0.50A-20.00A±(2.5%rdg+0.5A)0.01A

Technical Specification

Power SupplyDC 3.7V 2600mAh rechargeable lithium battery, the battery is fully charged about 4.2V
Display Mode2.5 inch color LCD screen
Earth Resistance Measurement MethodClamp tester method, two-wire method, three-wire method, four-wire method, selection method
Earth Resistance Range

ETCR2300: 0.00Ω-20kΩ
ETCR2300B: 0.00Ω-200kΩ
Soil Resistivity Range0.00Ωm-9999kΩm
Earth Current Range

ETCR2300: 0.000mA-20A
ETCR2300B: 0.000mA-45A
Earth Voltage Range0.0V-600.0V
Test Frequency128Hz/111Hz/105Hz/94Hz(AFC Automatic frequency control)
Short Circuit Test CurrentAC 10mA max
Open Circuit Test VoltageAC 14V max
Electrode Spacing Range1m-100m
Clamp Jaw Size65mm×32mm(2.56''x1.26'')
Tester Size307mm×98mm×56mm
Tester weightClamp tester: about 1112g(include battery); Total weight: about 5.1kg (include accessories)
Test Line4 PCS: red 20m, black 20m, yellow 10m, green 10m each 1 piece
Simple Testing Line2 PCS: red 1.6m, black 1.6m each 1 piece
Auxiliary Earth Rod4 PCS: φ9mm×230mm(935g)
Measurement TimeEarth resistance: about 15 seconds/time; earth current: about 2 times/second; earth voltage: about 2 times/second
Line VoltageMeasurement below AC 600V
Data HoldThe "HOLD" symbol indicates when holding data
Memory500 groups, "HOLD" symbol storage indication
Data AccessThe "READ" symbol indicates when viewing data
Overflow DisplayWhen the overrange overflows, the "OL” symbol indicates
Working CurrentMeasurement: 600mA Max (maximum backlight)
Alarm FunctionWhen the measured value exceeds the alarm set value, the "Du-Du-Du-"  Beep alarm prompt
Alarm Threshold Setting RangeResistance: 0Ω~2000Ω; Current: 0mA~60A; Voltage: 0V~600V
Battery Voltage

When the battery voltage drops to about DC 3.5V±0.1V,the low battery voltage symbol “

” is displayed to remind the meter that it needs to be charged.

Automatic ShutdownAutomatically shut down after 5 minutes of power-on
Bluetooth CommunicationWith Bluetooth Communication , supports Android system.
USB InterfaceWith USB Interface, only for charging
Overload ProtectionMeasure earth resistance:  C(H)-E, P(S)-ES   AC 280V/3 seconds between each port
Withstand VoltageAC 3700V/rms(Between the circuit and the housing)
Working Temperature & Humidity-10℃-40℃; below 80%rh

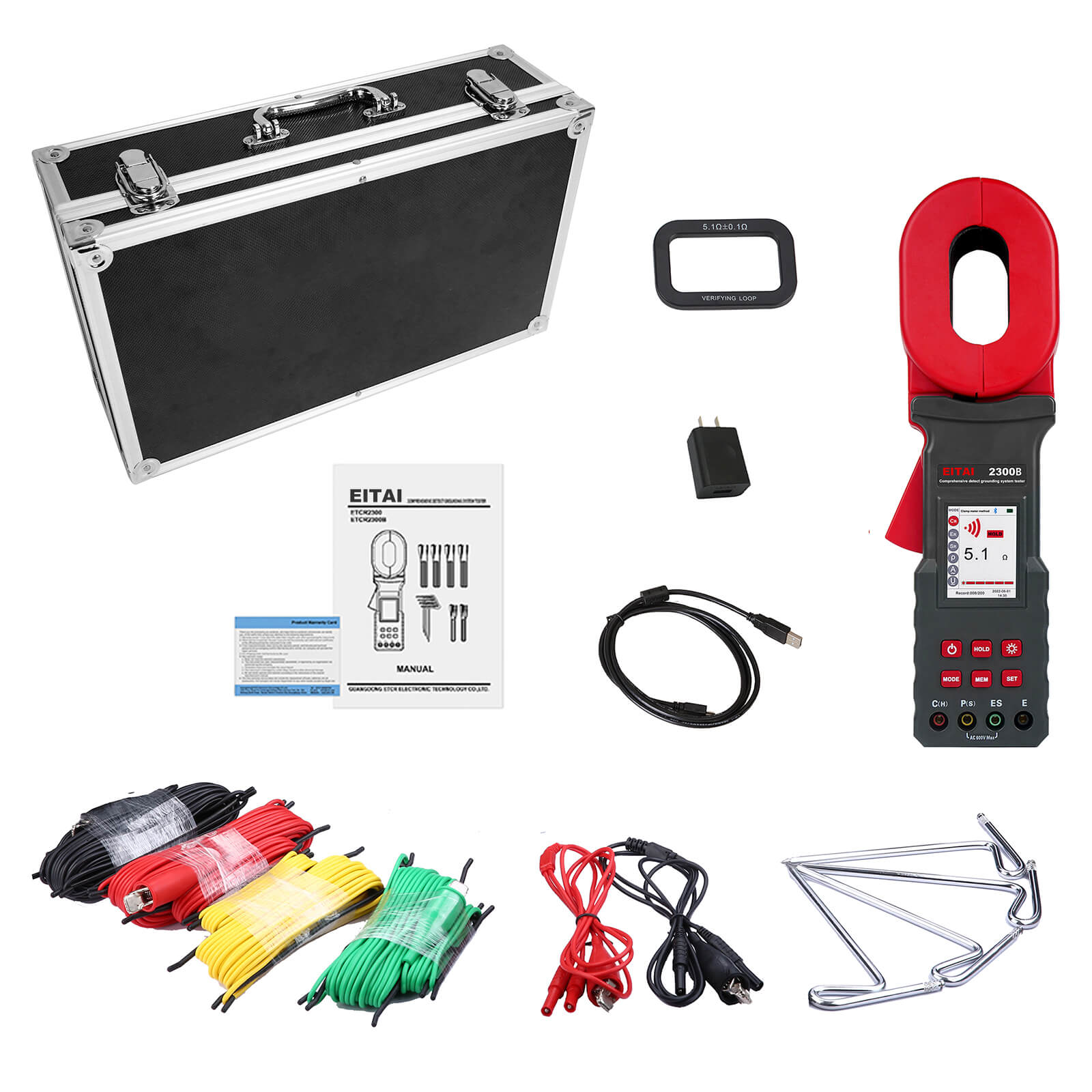

Tester1 PCS
Tool case1 PCS
Auxiliary ground rod4 PCS
Test Wires4 PCS: each for red 20m, black 20m, yellow 10m, and green 10m
Simple testing Wire2 PCS: each for red 1.6m and black 1.6m
USB communication cable1 PCS
5V Charger1 PCS
Test ring (5.1Ω)1 PCS
Warranty Card/Certification1 PCS
User Manual1 PCS
