EITAI1000 Series Non-Contact Three Phase Rotation Meter

EITAI1000 Series Non-Contact Three Phase Rotation Meter

$0.00 $45.00

EITAI1000 Series Non-Contact Three Phase Rotation Meter

$0.00 $45.00
Model: EITAI1000C

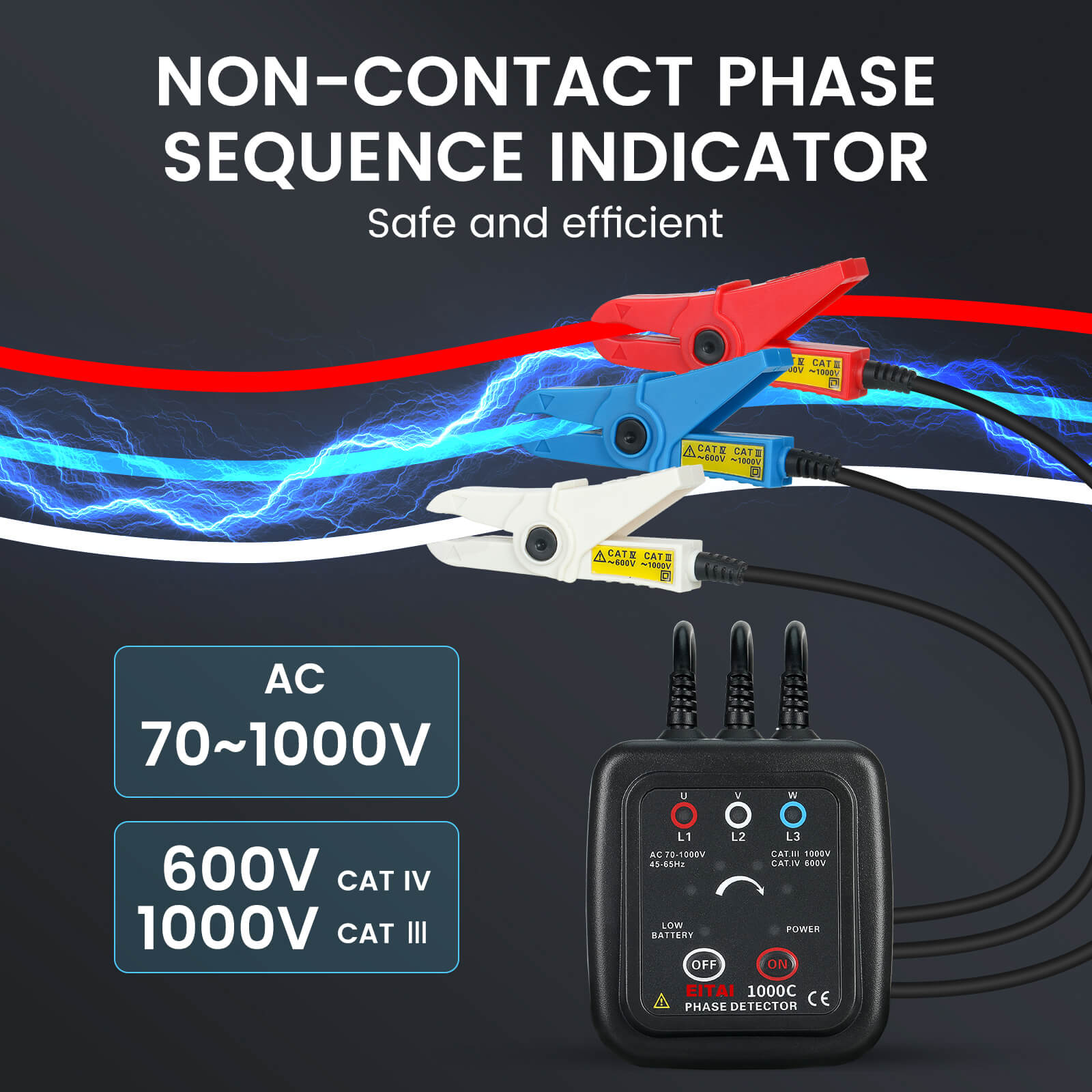

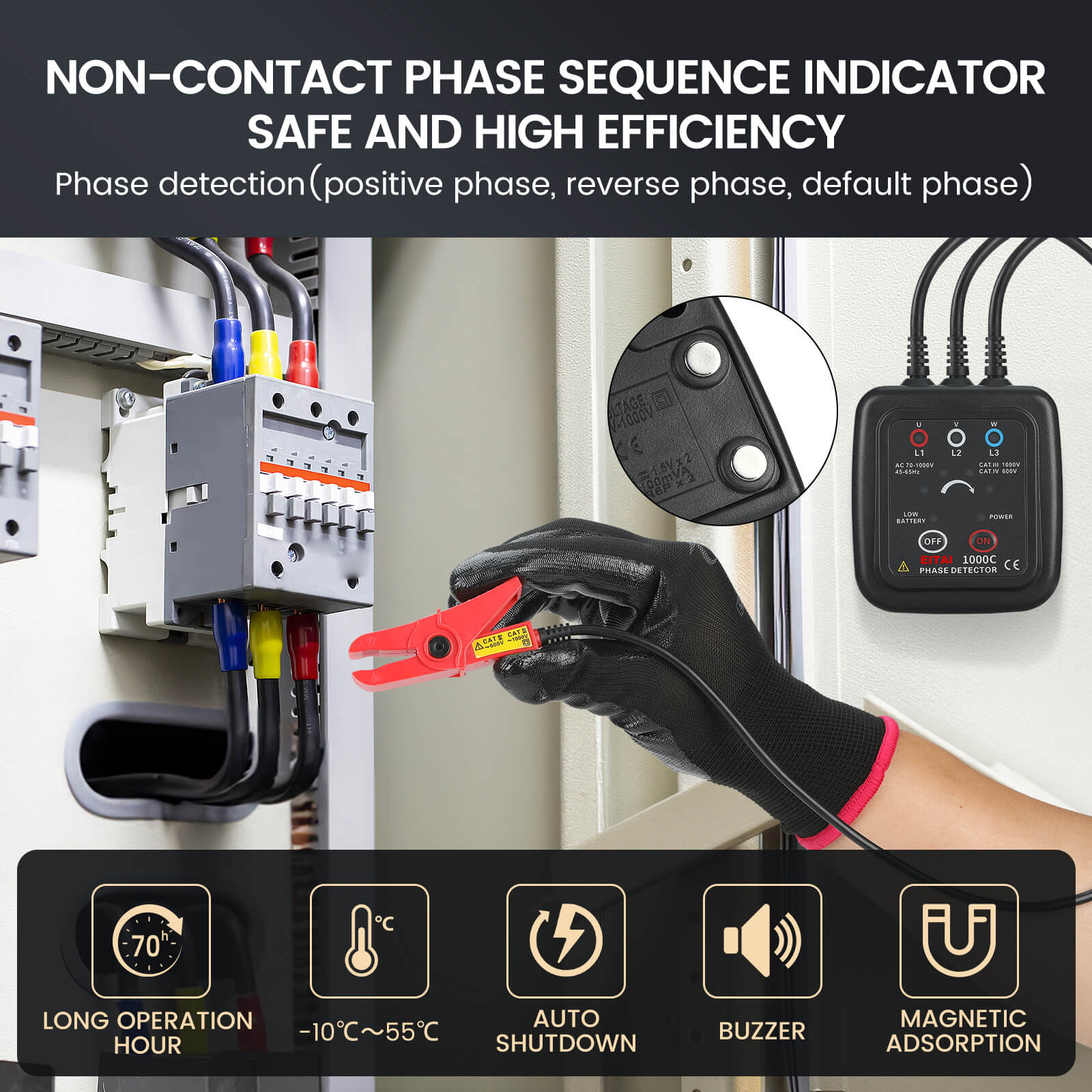

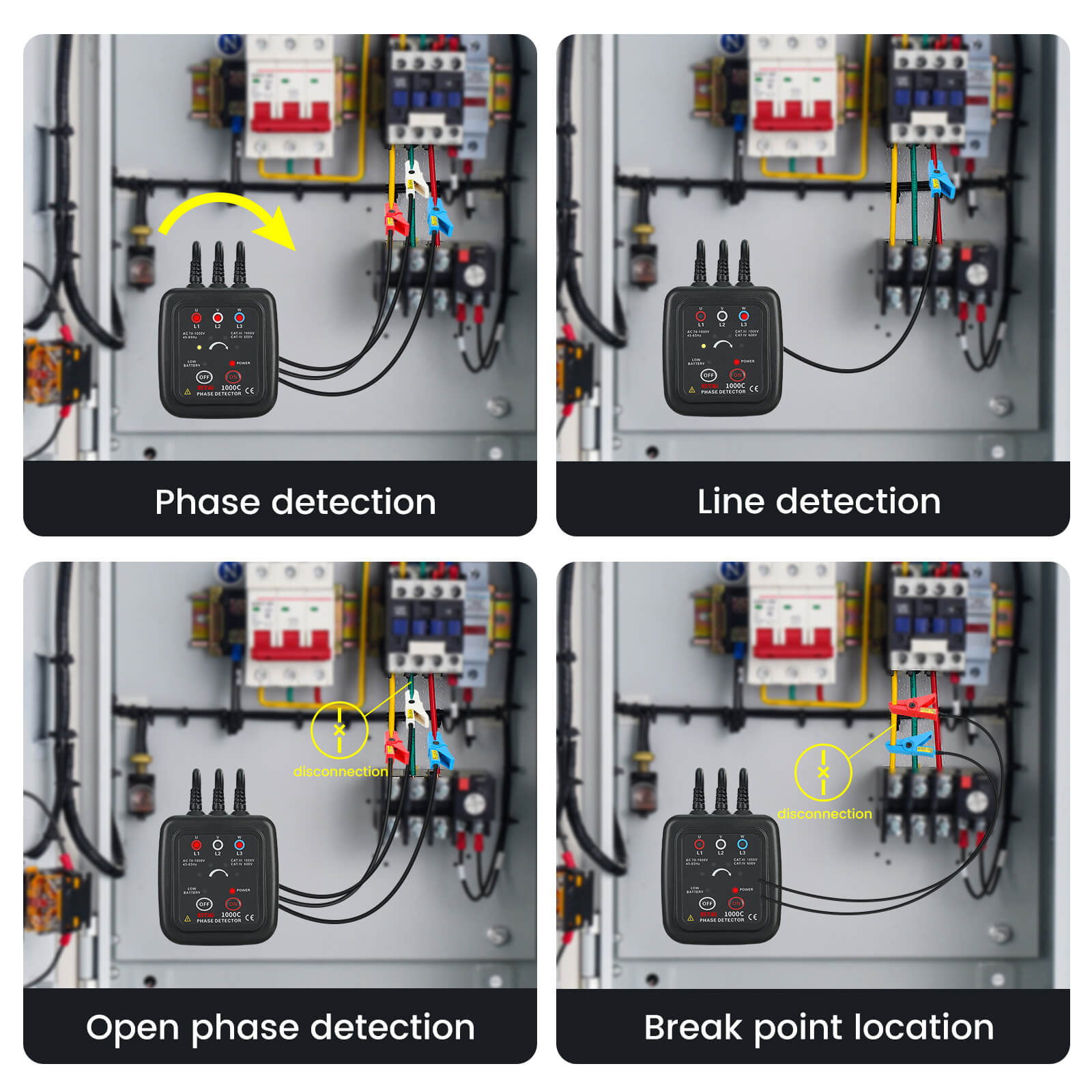

EITAI1000 Series Non-Contact Three Phase Sequence Tester, also known as phase rotation meter, phase sequence detector, motor three-phase detector, is used for phase sequence detection (positive phase, reverse phase, phase loss), live wire inspection, simple power inspection, firewire identification, phase loss judgment, disconnection location search, line maintenance.

Power SupplyDC 3V AA alkaline batteries (LR6)X2PCS
Live Power RangeAC70-1000V,45-65Hz(Sine Wave Continuous Input)
Available Clamp Wire Sizeexternal diameter Φ1.6mm-Φ16mm(EITAI1000C), Φ10mm-Φ40mm(EITAI1000D)
LED Display[Positive phase sequence] The phase detector lamp lights up clockwise
[Negative phase sequence] The phase detector lamp lights up counterclockwise
[Live power] L1, L2, L3 lamps light up in setting voltage range
[Default phase] L1 or L2, or L3 lamp is not lighting
[Open circuit] L1 or L2, or L3 lamp is not lighting
Buzzer[Positive phase sequence] the buzzer sounds intermittently
[Negative phase sequence] the buzzer sounds continuously
Battery CheckThe POWER indication lamp light up after boot up; the LOW BATTERY lamp lightup when low battery
Auto Shutdown5 minutes after booting up, the meter automatically shutdown
Clamp Lead Length0.6m
Meter Size70mmX75mmX30mm
WeightThe instrument: 230g (include battery); the total weight: 0.33kg (including accessories)
Max Measure VoltageAC 1000V
Insulation Strength5.4kV/rms
Maximum Rated Power300mVA
Suitable Safety StandaerdEN61010-1:2001, EN61010-031:2002, pollution level 2, CAT Ⅲ1000V, instantaneous overvoltage 6000V
Working Temperature & Humidity-10℃ - 55℃; below 80%RH
Store Temperature & Humidity-20℃ - 60℃; below 90%RH

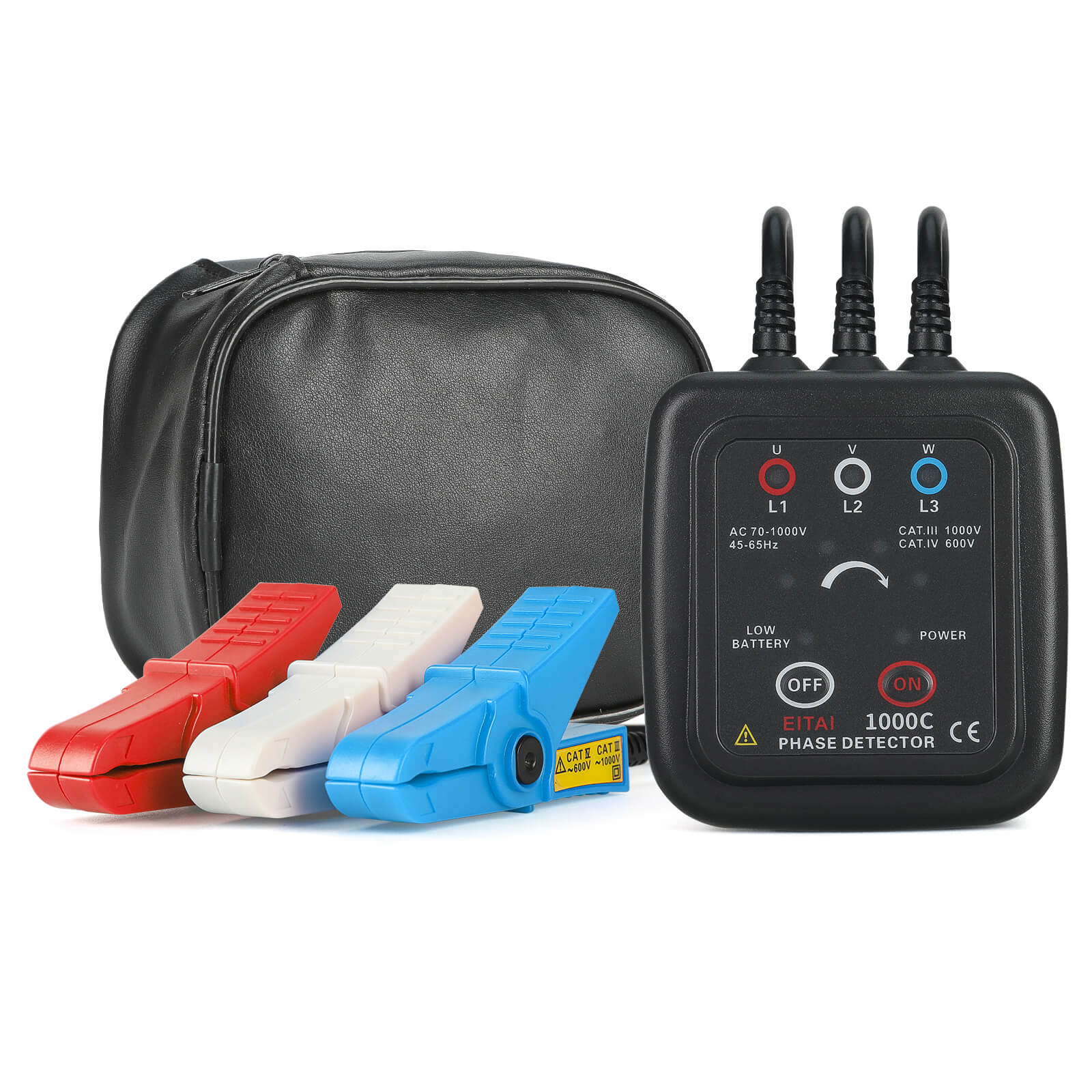

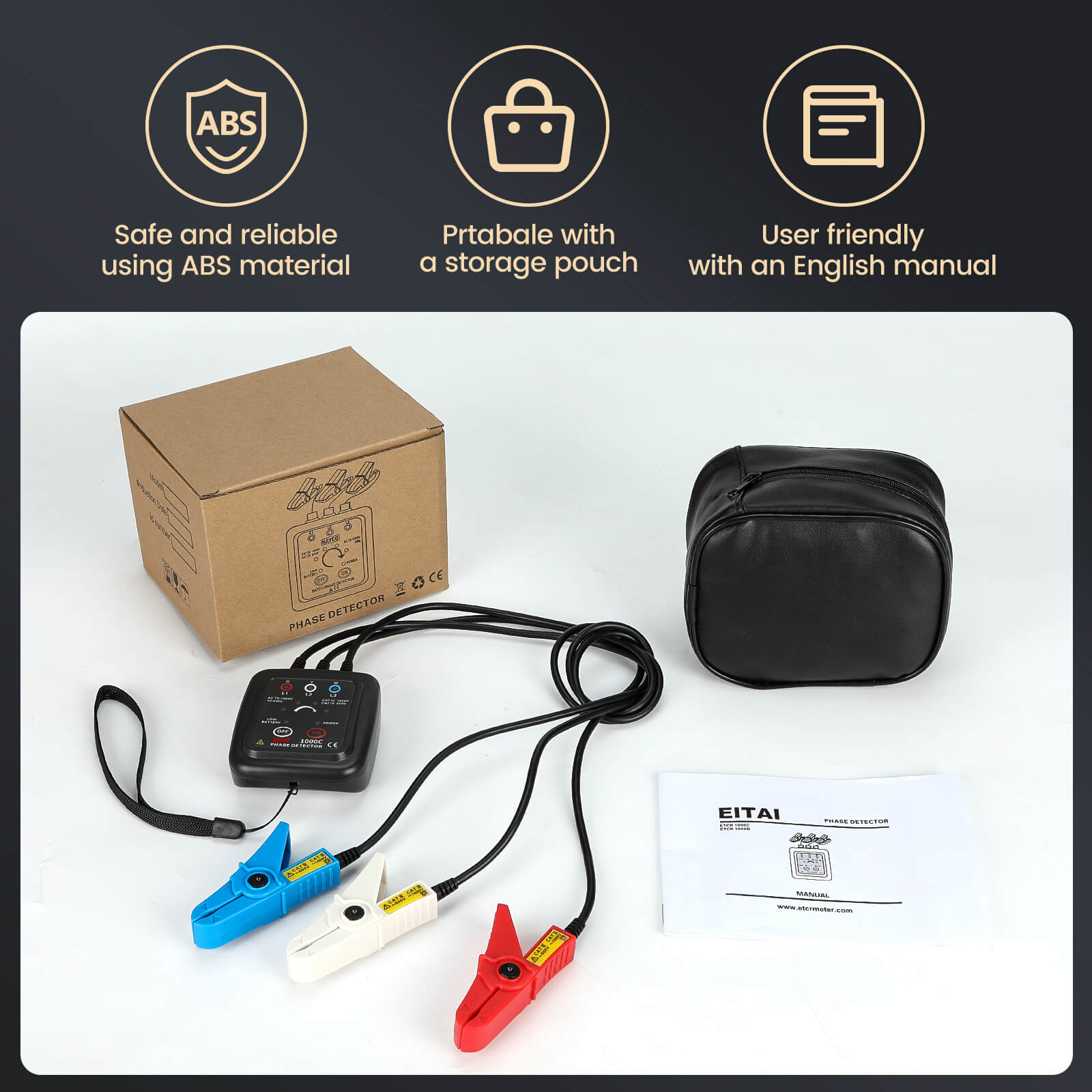

Three Phase Sequence Tester1 PCS
Tool Bag1 PCS
Manual1 PCS
Warranty Card / Qualification Certificate1 PCS
Product Model NameDiameter Of The Clamped Wire ConductorVoltage RangeLED DisplayBuzzerFixed Magnet
ETCR1000C Non-Contact Low Voltage Phase Sequence DetectorΦ1.6mm~16mmAC 70V~1000VYes    Yes    Yes

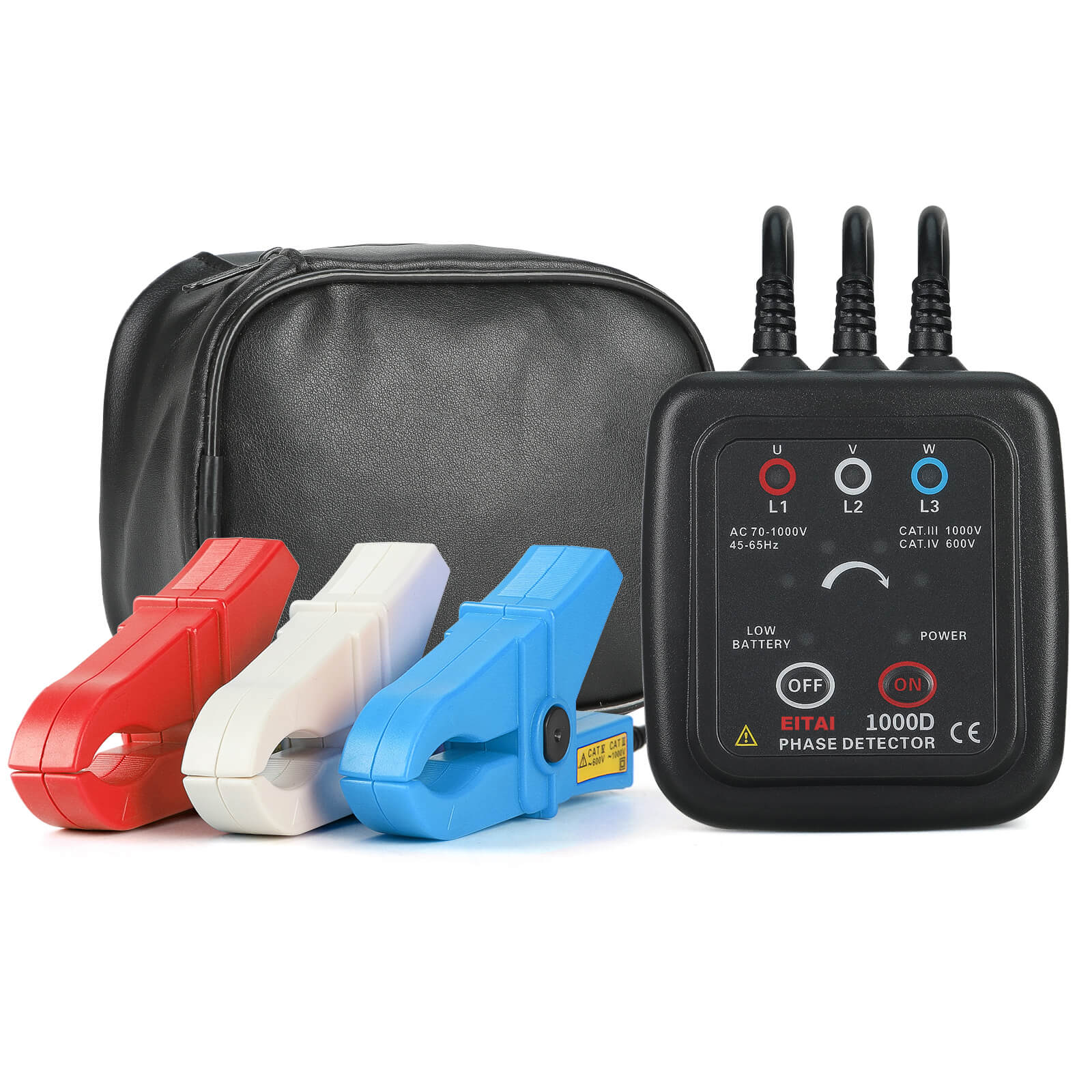

ETCR1000D Non-Contact Low Voltage Phase Sequence DetectorΦ10mm~40mmAC 70V~1000VYes    Yes    Yes
